Front Controlor Display Interface Module (FCDIM)

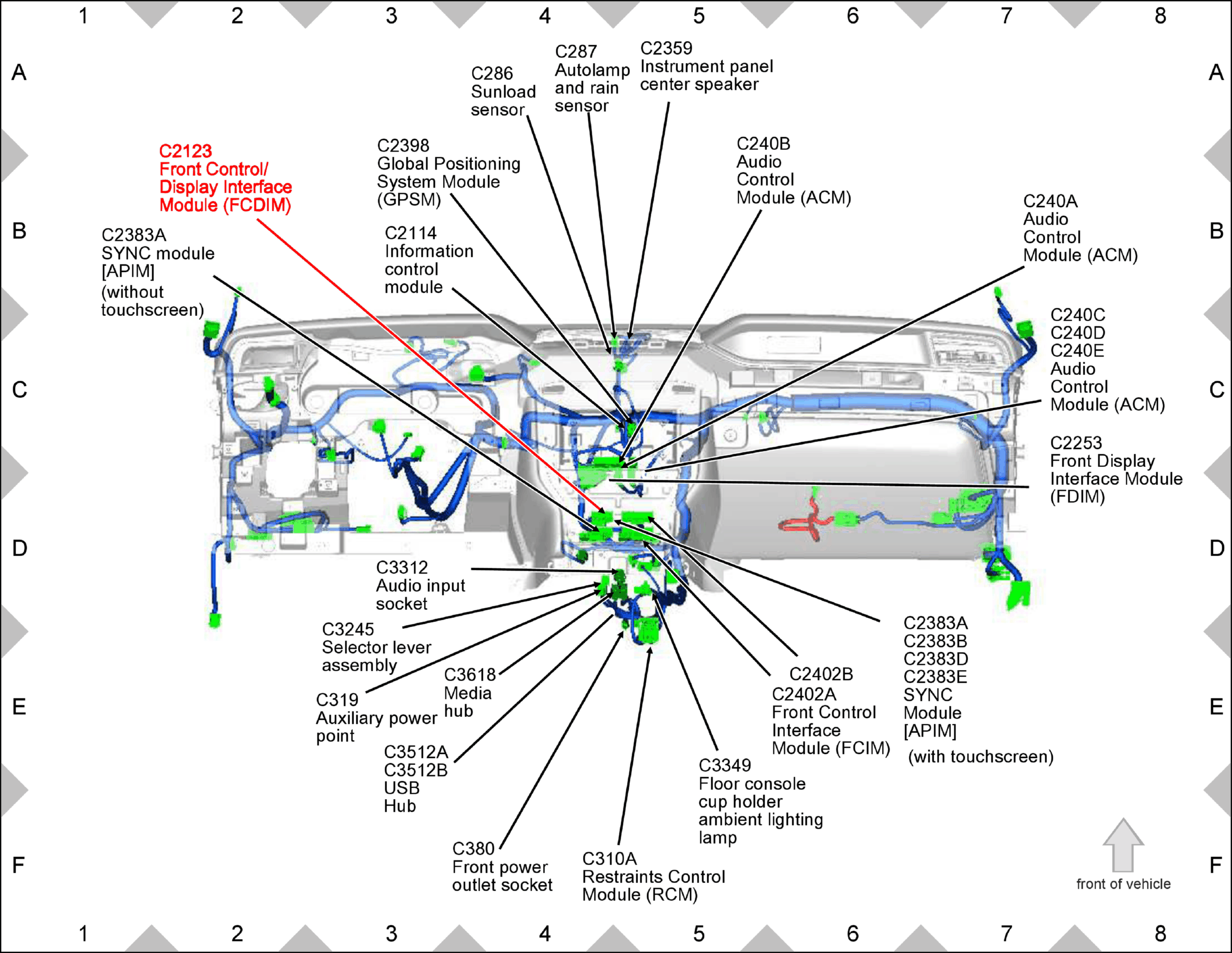

Fig 1: Front Controlor Display Interface Module (FCDIM) Components Location
GFDW56570Courtesy of FORD MOTOR COMPANY
