Cruise-Control Module (C-CM): Installation

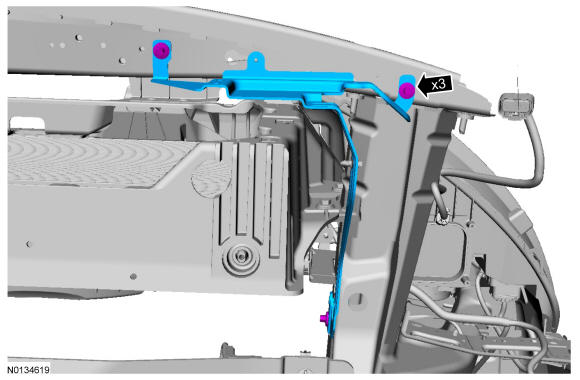

Bracket

1. 1.


   • Tighten the bolts to 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

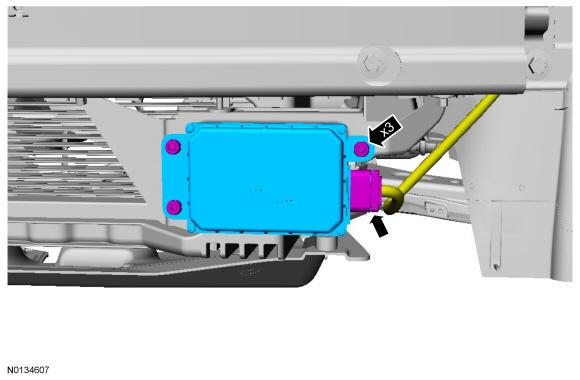

C-CM or bracket

1. 2.


   NOTE: If one plastic grommet breaks while the C-CM is being installed, a new grommet should be installed.
   NOTE: Firmly apply pressure to the C-CM so that it seats completely in the grommets.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Once the C-CM is installed, pull the C-CM to confirm that all 3 ball studs are fully seated in the grommets.

1. 4.

   Connect the C-CM connector.

1. 5.


   NOTE: Do not install the C-CM front bumper cover until the alignment procedures are carried out.

   Vertically and horizontally align the C-CM. For additional information, refer to Cruise Control Module (C-CM) (with Sensor) Adjustment .

1. 6.

   Install the front bumper cover. For additional information, refer to Bumpers .
