Instrument Panel - Exploded View

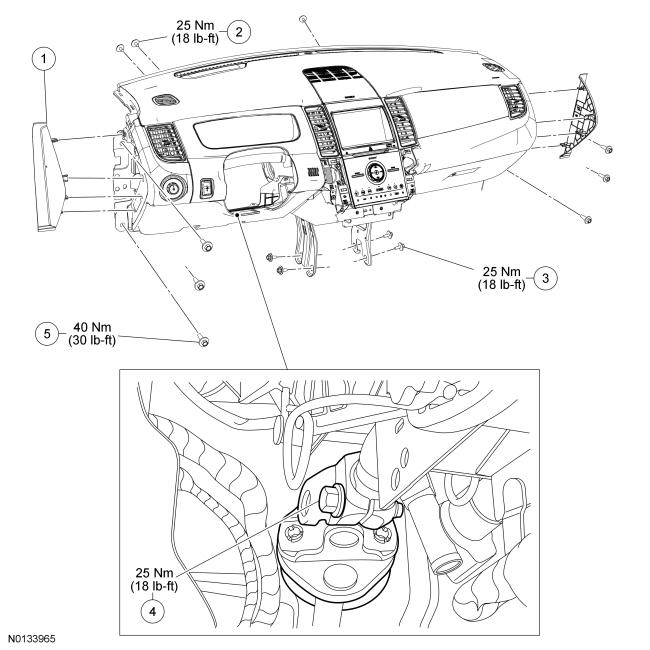

Instrument Panel Trim Panel and Fasteners
| Item | Part Number | Description |
|---|---|---|
| 1 | 04316 RH/ 04317 LH RH/ 04317 LH | Instrument panel side finish panel |
| 2 | W709178 | Instrument panel upper cowl bolt (3 required) |
| 3 | W709268 | Instrument panel center support bracket bolt (4 required) |
| 4 | W712961 | Steering column shaft-to-steering column bolt |
| 5 | W710259 | Instrument panel side bolt (6 required) |

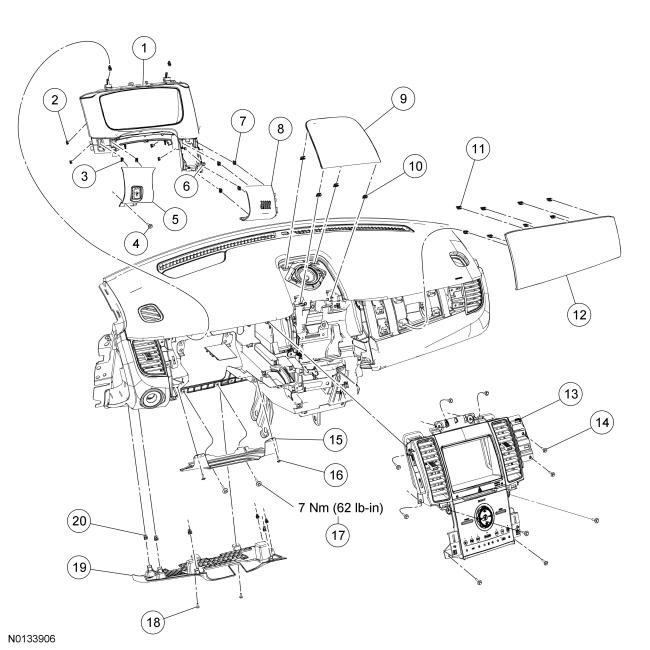

Instrument Panel Finish and Trim Panels
| Item | Part Number | Description |
|---|---|---|
| 1 | 044D70 | Instrument cluster finish panel |
| 2 | W714086 | Instrument cluster finish panel retaining clip (6 required) |
| 3 | - | LH instrument panel finish panel retaining clip (part of 044L54) (2 required) |
| 4 | W707628 | LH instrument panel finish panel screw |
| 5 | 044L54 | LH instrument panel finish panel |
| 6 | W707628 | Instrument cluster finish panel screw |
| 7 | - | In-vehicle temperature sensor cover retaining clip (part of 042D90) (4 required) |
| 8 | 042D90 | In-vehicle temperature sensor cover |
| 9 | 04405 | Instrument panel upper cover |
| 10 | - | Instrument panel upper cover retaining clip (part of 04405) (4 required) |
| 11 | - | RH instrument panel finish moulding retaining clip (part of 04268) (8 required) |
| 12 | 04268 | RH instrument panel finish moulding |
| 13 | 04302 | Center instrument panel finish panel |
| 14 | W707628 | Center instrument panel finish panel screw (10 required) |
| 15 | 017A26 | Instrument panel reinforcement plate |
| 16 | N808453 | Instrument panel reinforcement plate screw (2 required) |
| 17 | N807316 | Instrument panel reinforcement plate bolt (2 required) |
| 18 | N808453 | Steering column opening trim panel screw (2 required) |
| 19 | 044F08 | Steering column opening trim panel |
| 20 | - | Steering column opening trim panel retaining clip (part of 044F08) (6 required) |

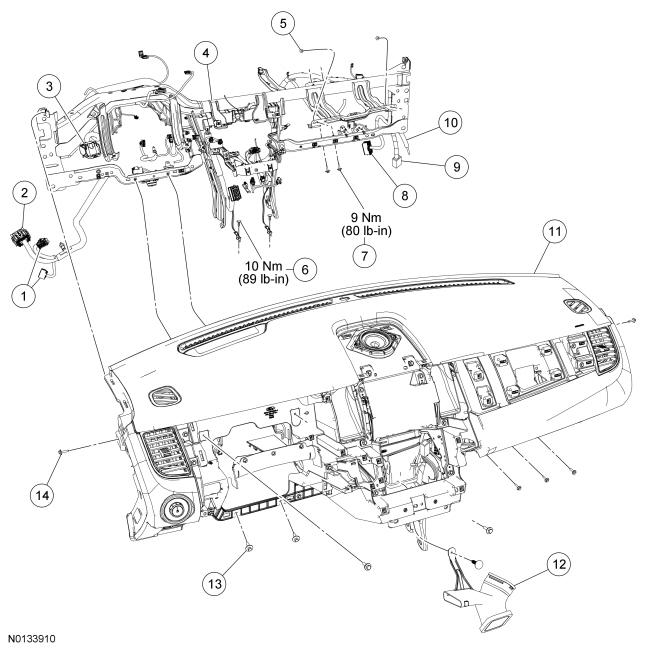

Instrument Panel Upper Section
| Item | Part Number | Description |
|---|---|---|
| 1 | 14401 | Smart Junction Box(SJB) electrical connectors |
| 2 | 14401 | Instrument panel lower LH bulkhead electrical connector |
| 3 | 14401 | Instrument panel upper LH bulkhead electrical connector |
| 4 | 04545 | In-vehicle crossbeam |
| 5 | W707607 | Instrument panel rear screw (2 required) |
| 6 | W706281 | Ground wire bolt |
| 7 | W705583 | Passenger side air bag-to-crossbeam bolt (2 required) |
| 8 | 14401 | Instrument panel RH bulkhead electrical connector |
| 9 | 14401 | Satellite radio connector |
| 10 | 14401 | Antenna cable |
| 11 | 04320 | Instrument panel upper section |
| 12 | 19B680 | Console duct Y adapter |
| 13 | W707628 | Instrument panel front screw (7 required) |
| 14 | W707628 | Instrument panel side screw (2 required) |

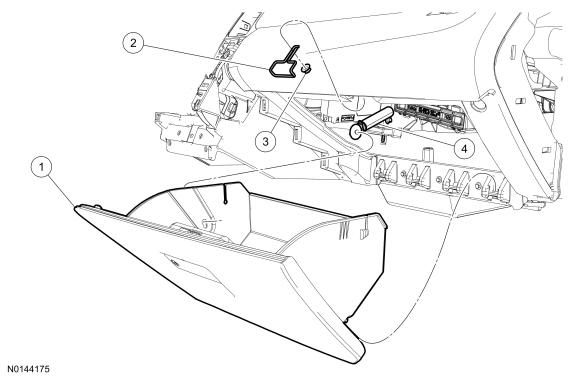

Glove Compartment
| Item | Part Number | Description |
|---|---|---|
| 1 | 060T10 | Glove compartment assembly |
| 2 | 06157 | Glove compartment striker |
| 3 | N805572 | Glove compartment striker nut |
| 4 | 06102 | Glove compartment damper |
