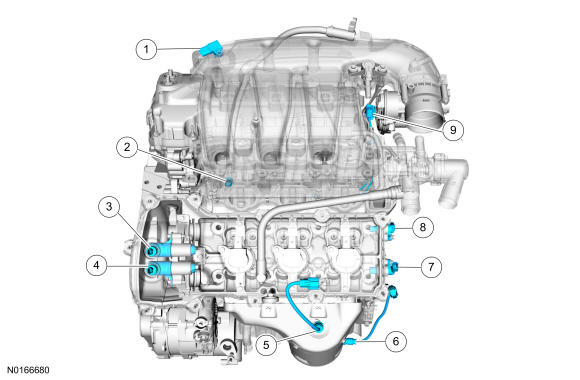

Front Engine Sensor Locations - 3.5L Ti-VCT
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
Comments |
| 1 |
MAPT sensor |
- |
| 2 |
CHT sensor |
- |
| 3 |
LH intake VCT oil control solenoid |
- |
| 4 |
LH exhaust VCT oil control solenoid |
- |
| 5 |
LH HO2S |
- |
| 6 |
LH CMS |
- |
| 7 |
LH exhaust CMP sensor |
- |
| 8 |
LH intake CMP sensor |
- |
| 9 |
KS sensor |
- |
