Component Locations

2.0L GTDI

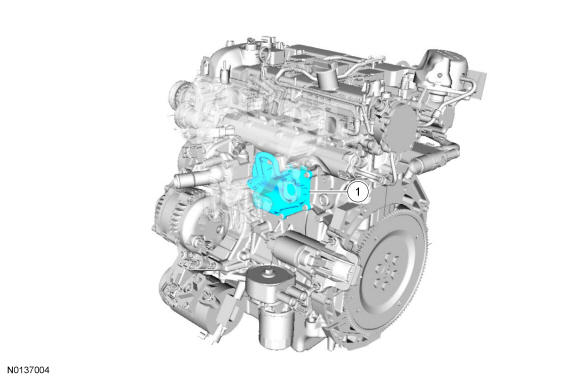

GFD83368Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 Crankcase vent oil separator -

3.5L Ti-VCT

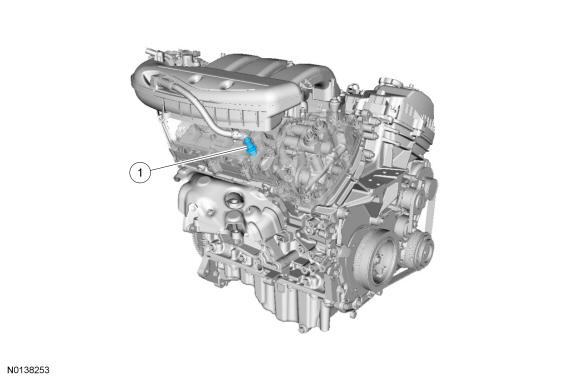

GFD83369Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 PCV valve -

3.5L GTDI

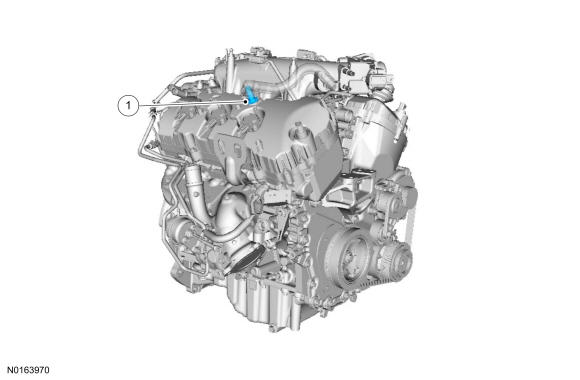

GFD83370Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 PCV valve -
