Connector Repair Procedures

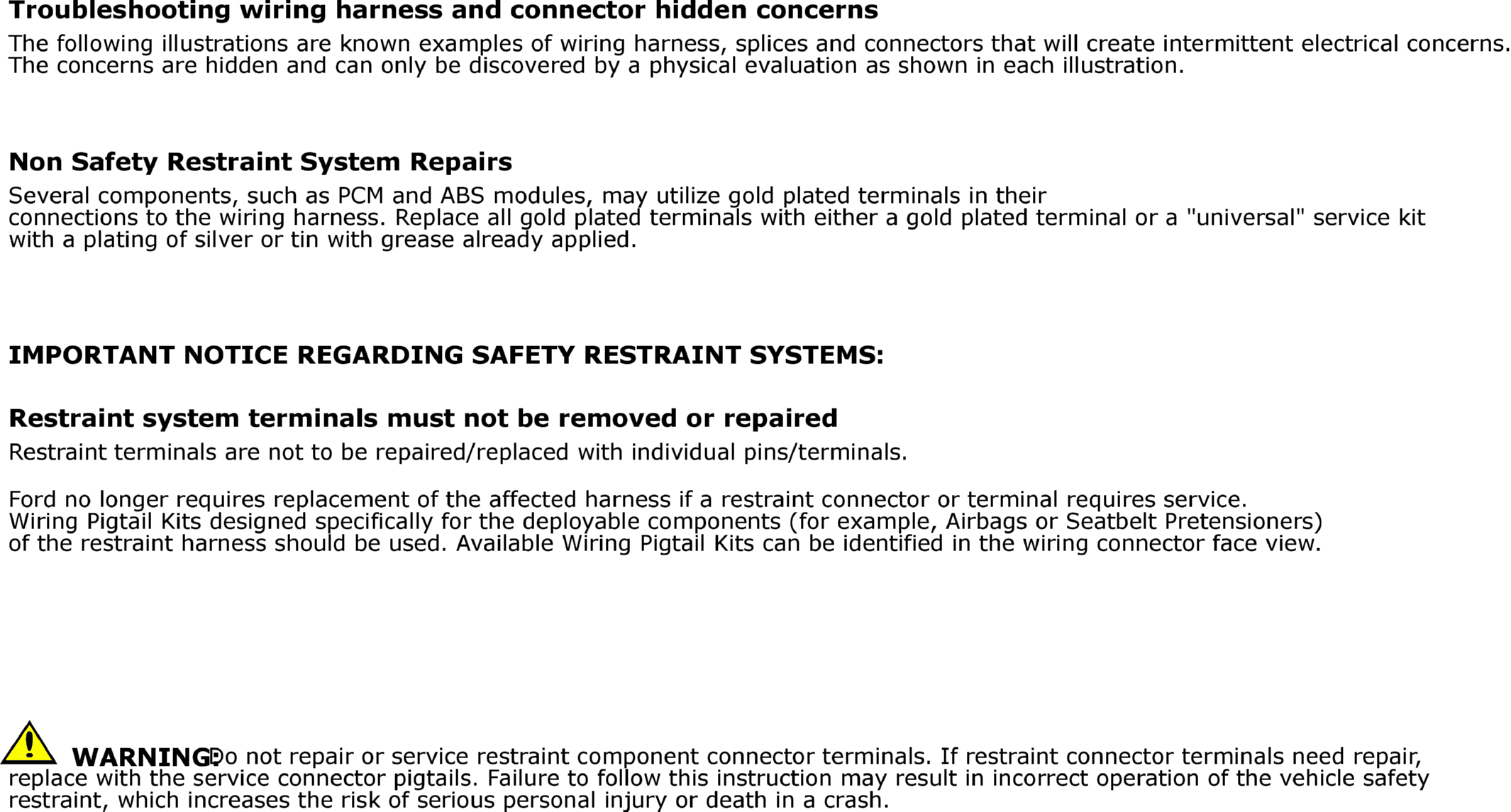

GFDW57837Courtesy of FORD MOTOR COMPANY

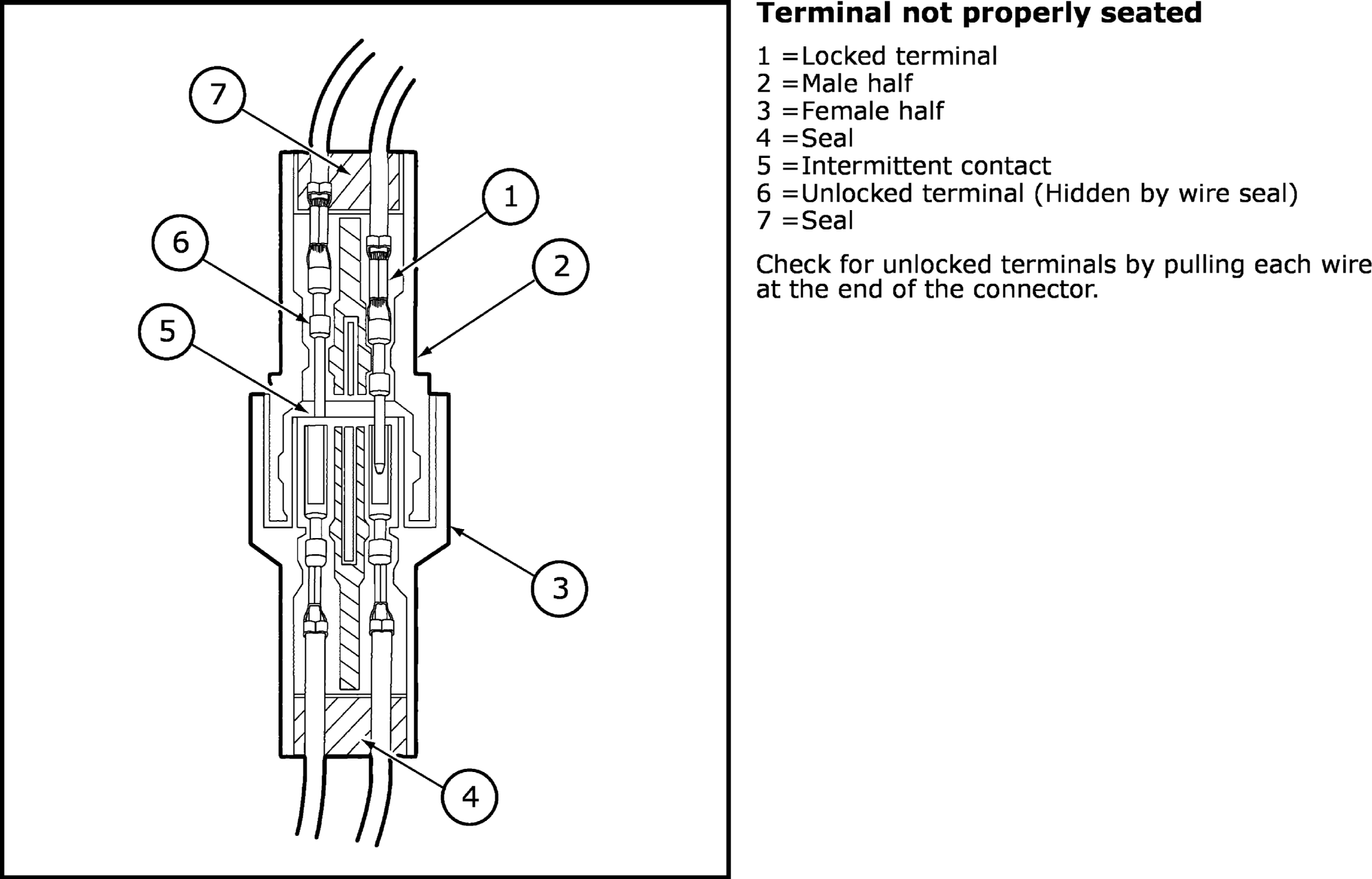

GFDW57838Courtesy of FORD MOTOR COMPANY

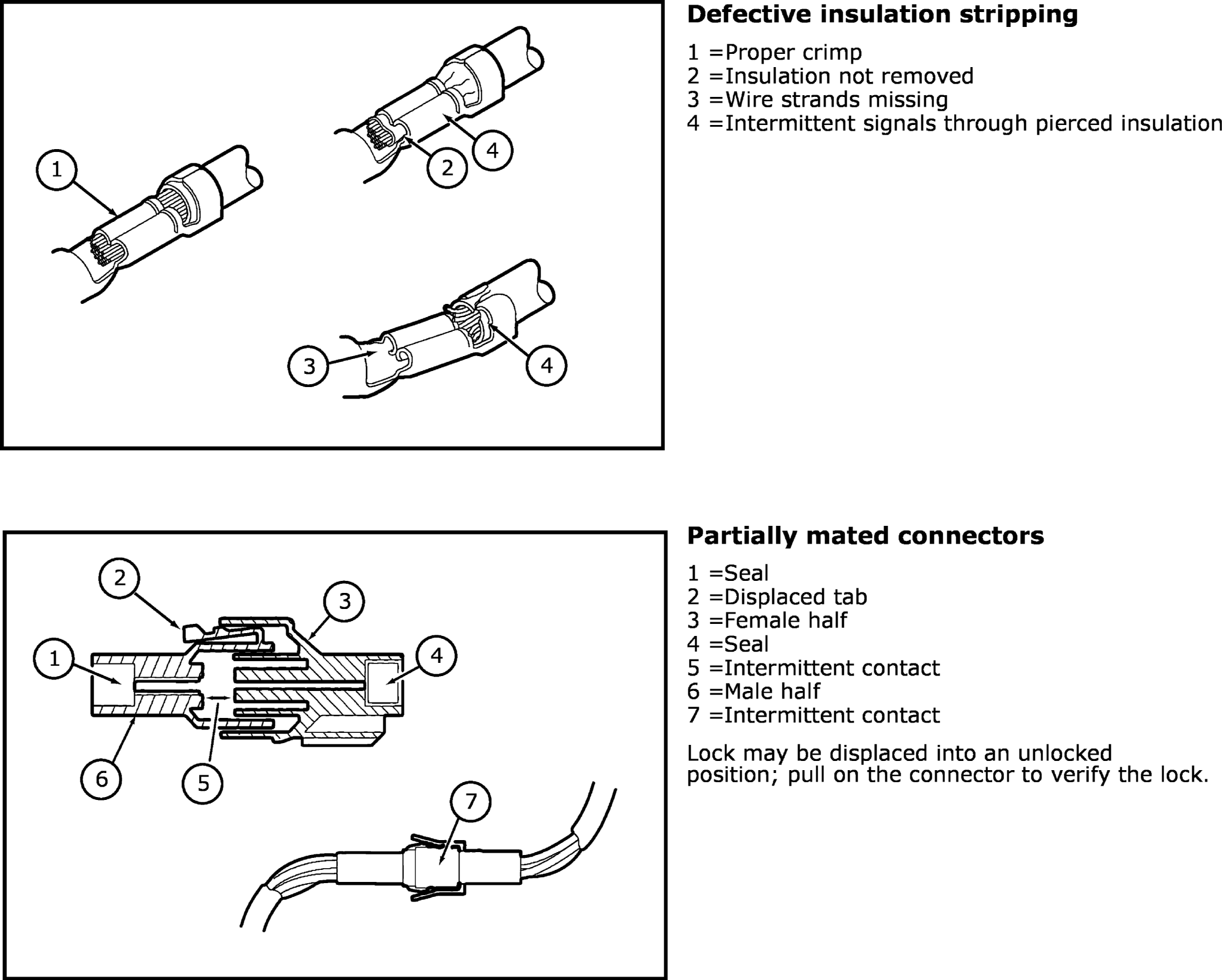

GFDW57839Courtesy of FORD MOTOR COMPANY

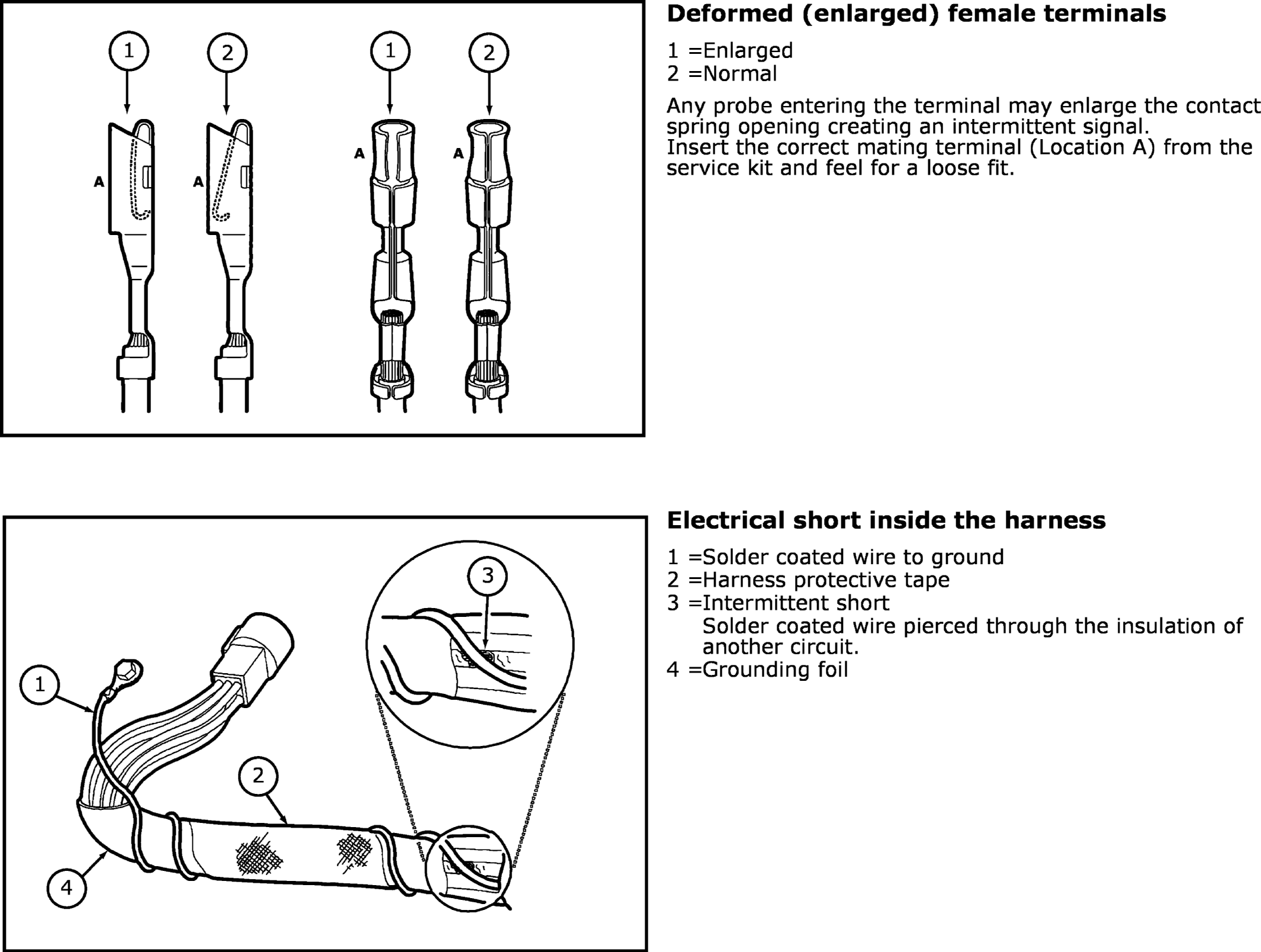

GFDW57840Courtesy of FORD MOTOR COMPANY

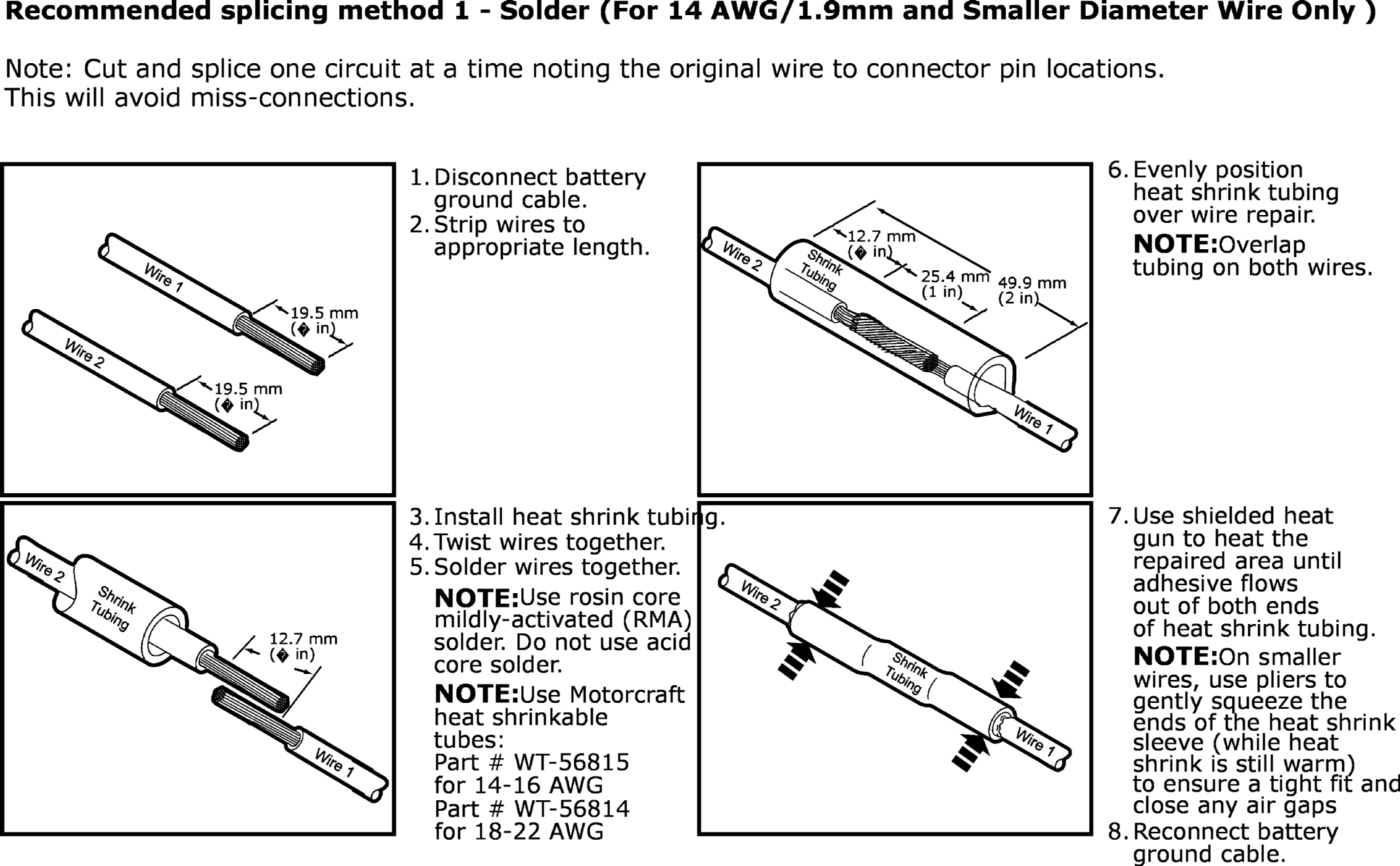

GFDW57841Courtesy of FORD MOTOR COMPANY

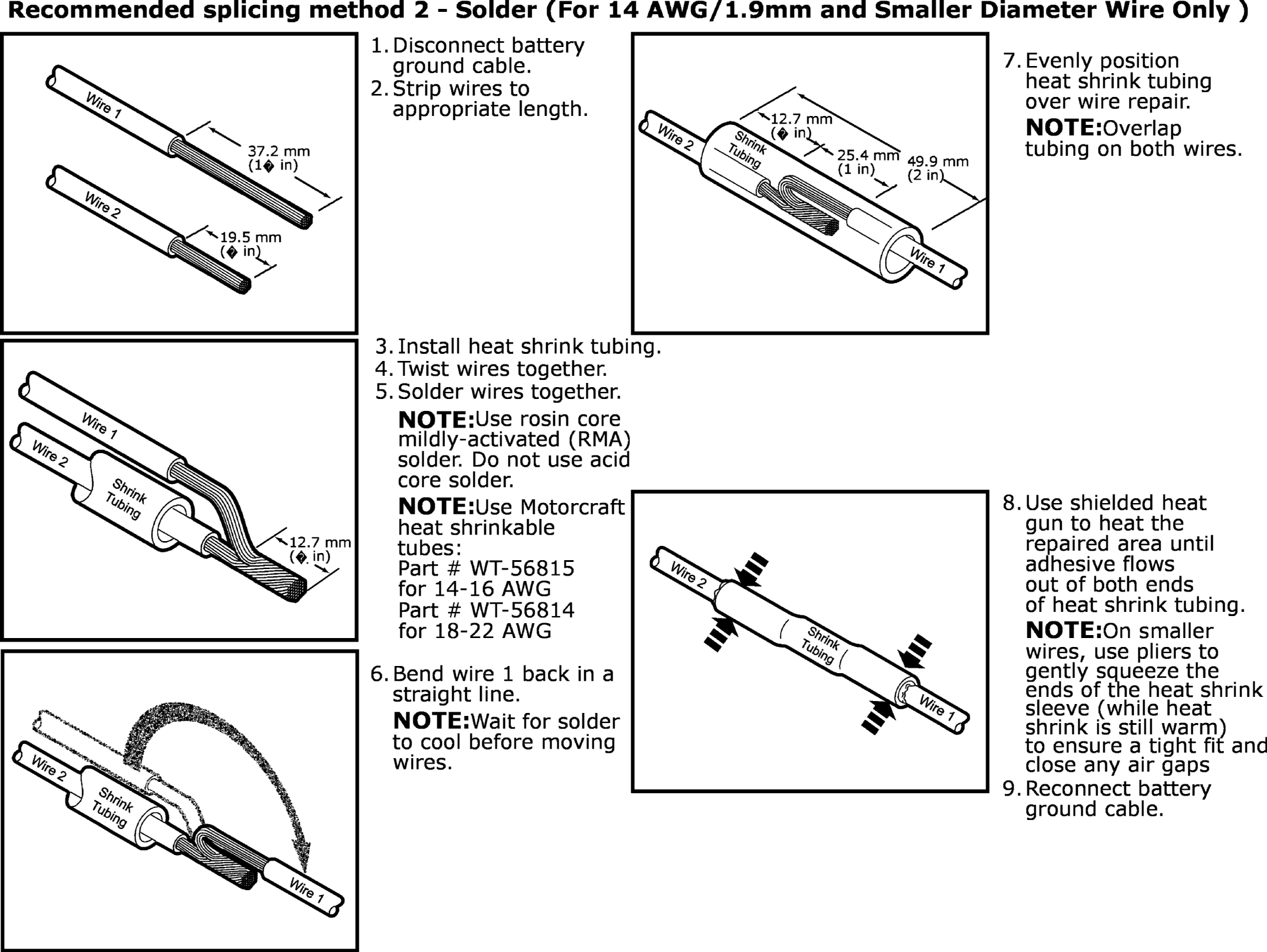

GFDW57842Courtesy of FORD MOTOR COMPANY

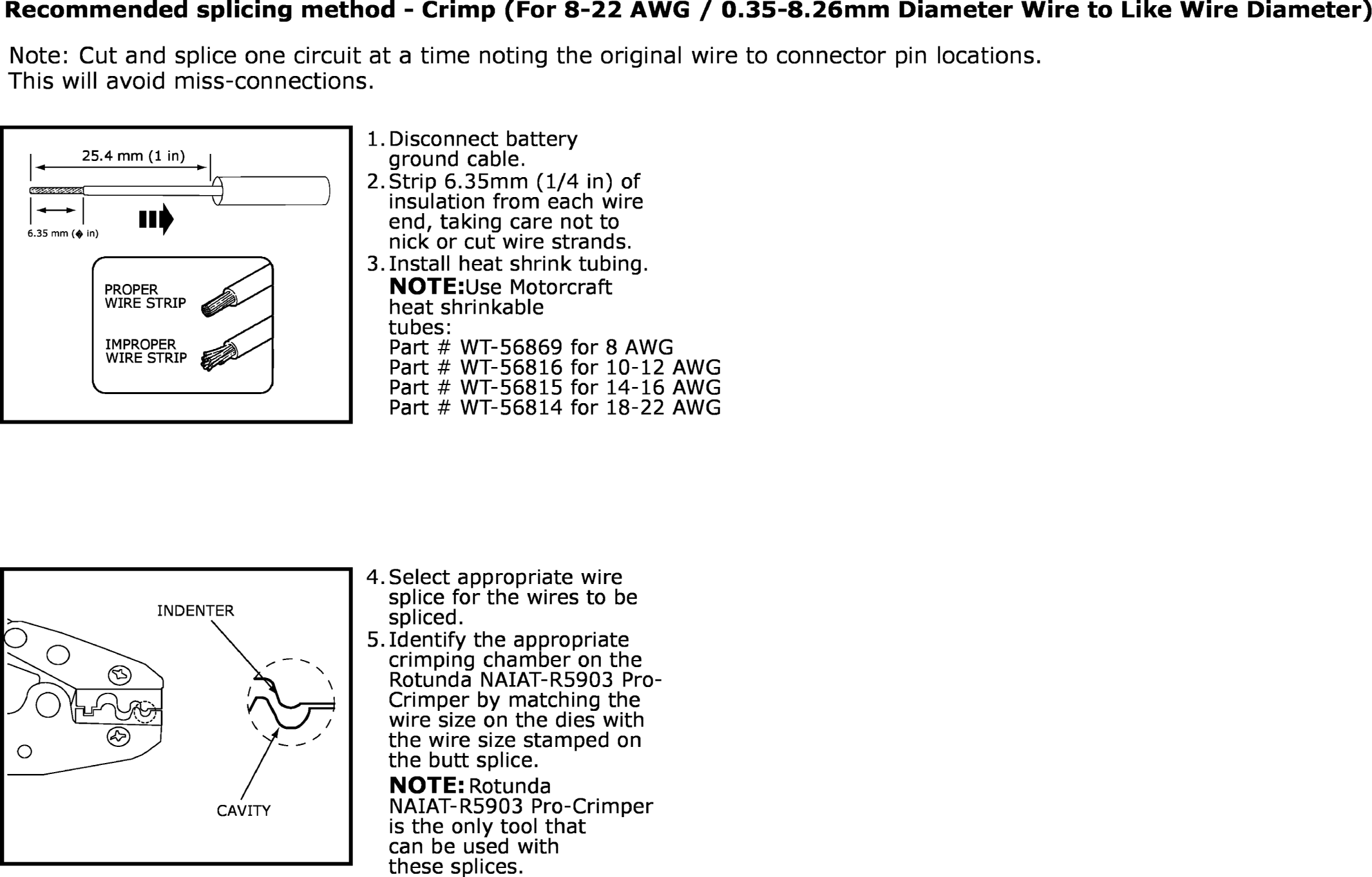

GFDW57843Courtesy of FORD MOTOR COMPANY

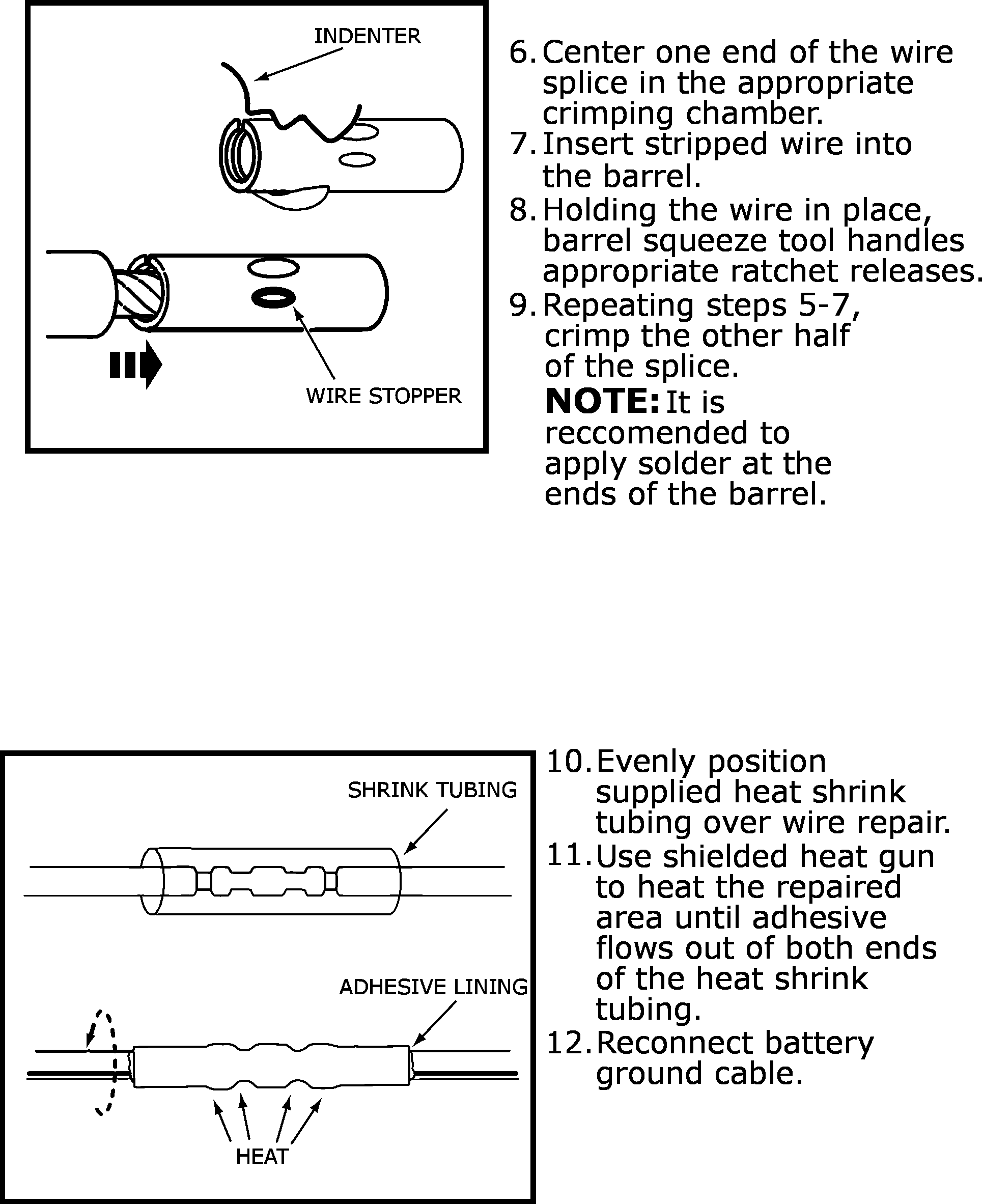

GFDW57844Courtesy of FORD MOTOR COMPANY

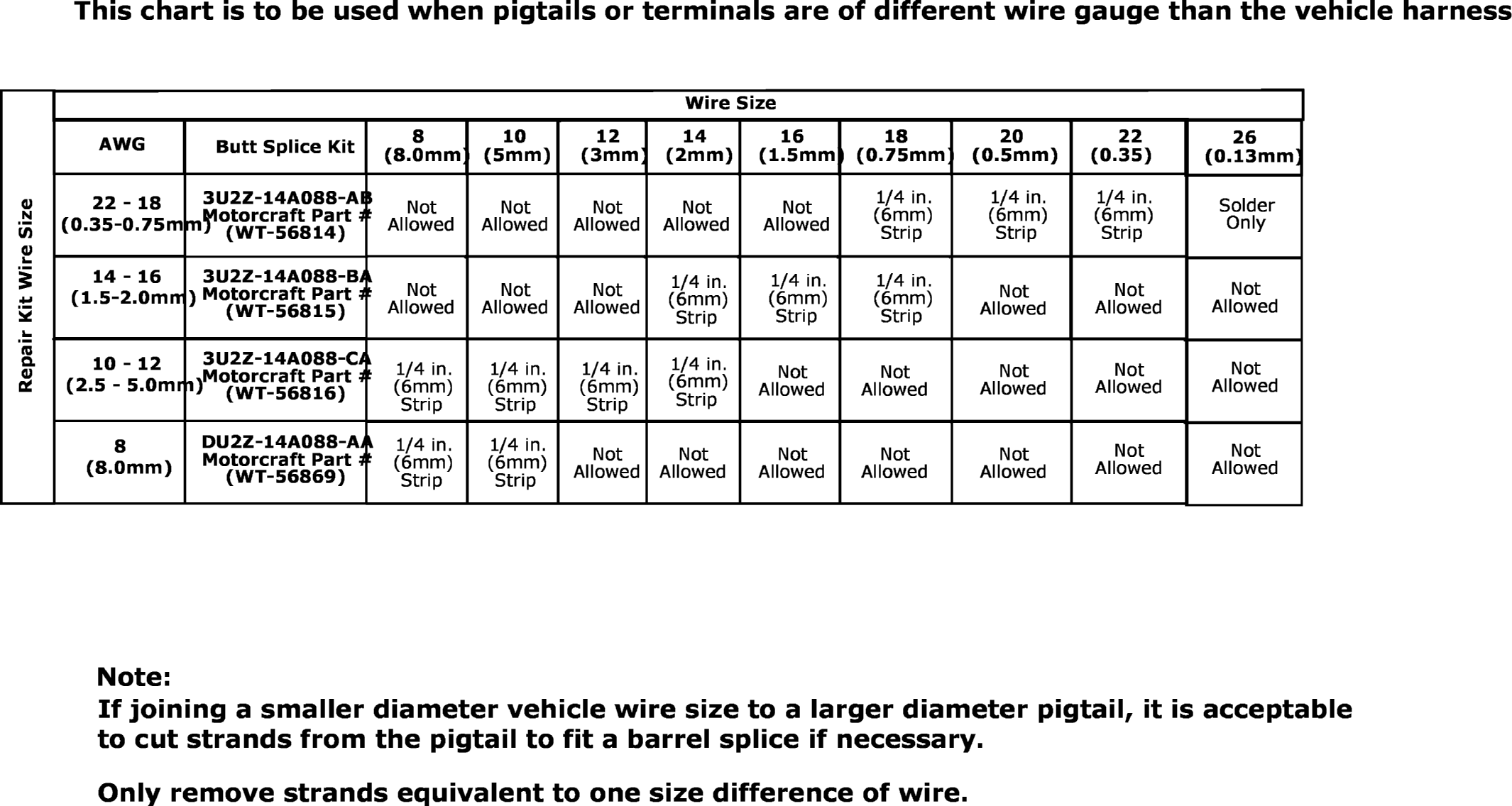

GFDW57845Courtesy of FORD MOTOR COMPANY
