OEM Ground Distribution: Grounds

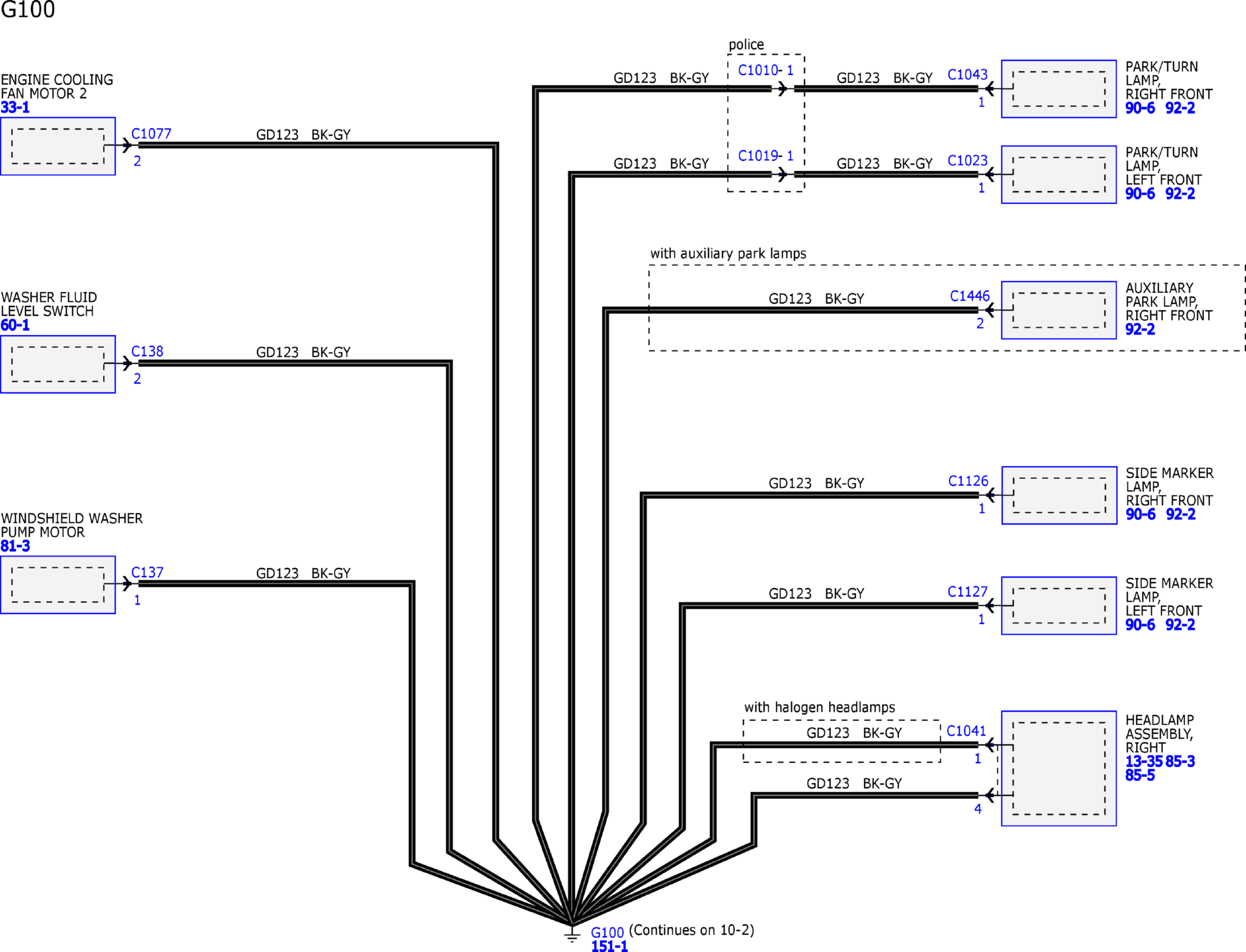

GFDW57857Courtesy of FORD MOTOR COMPANY

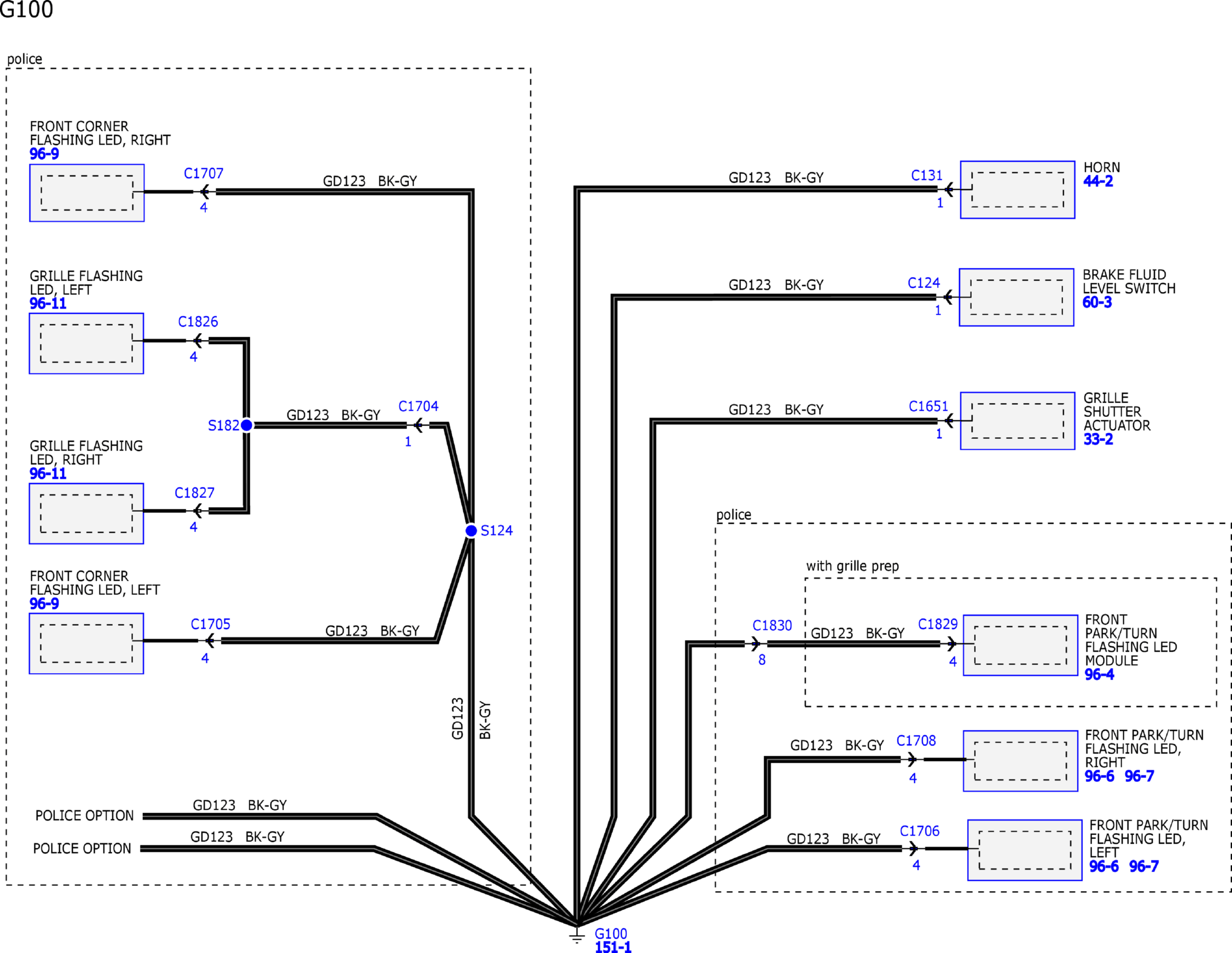

GFDW57858Courtesy of FORD MOTOR COMPANY

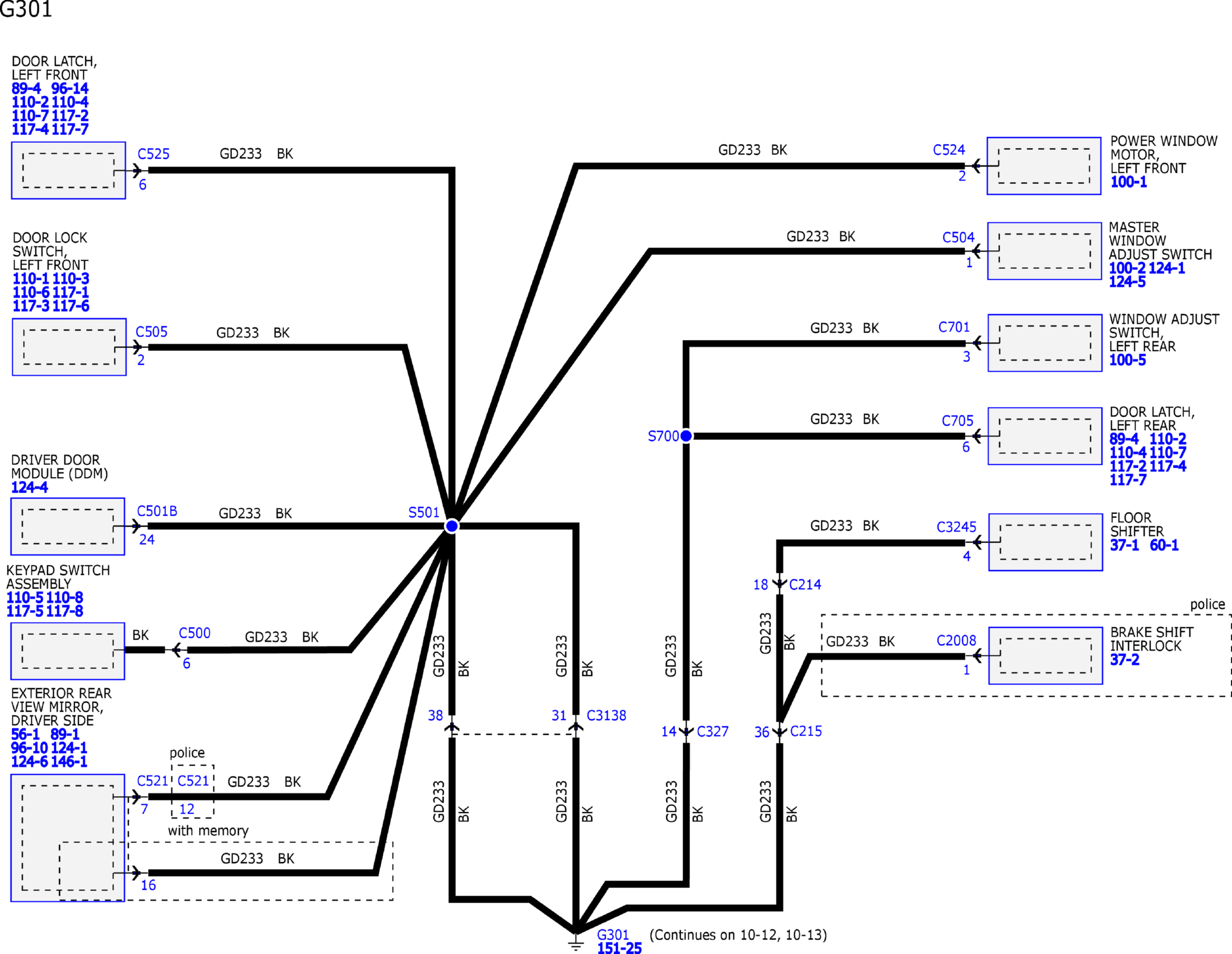

GFDW57859Courtesy of FORD MOTOR COMPANY

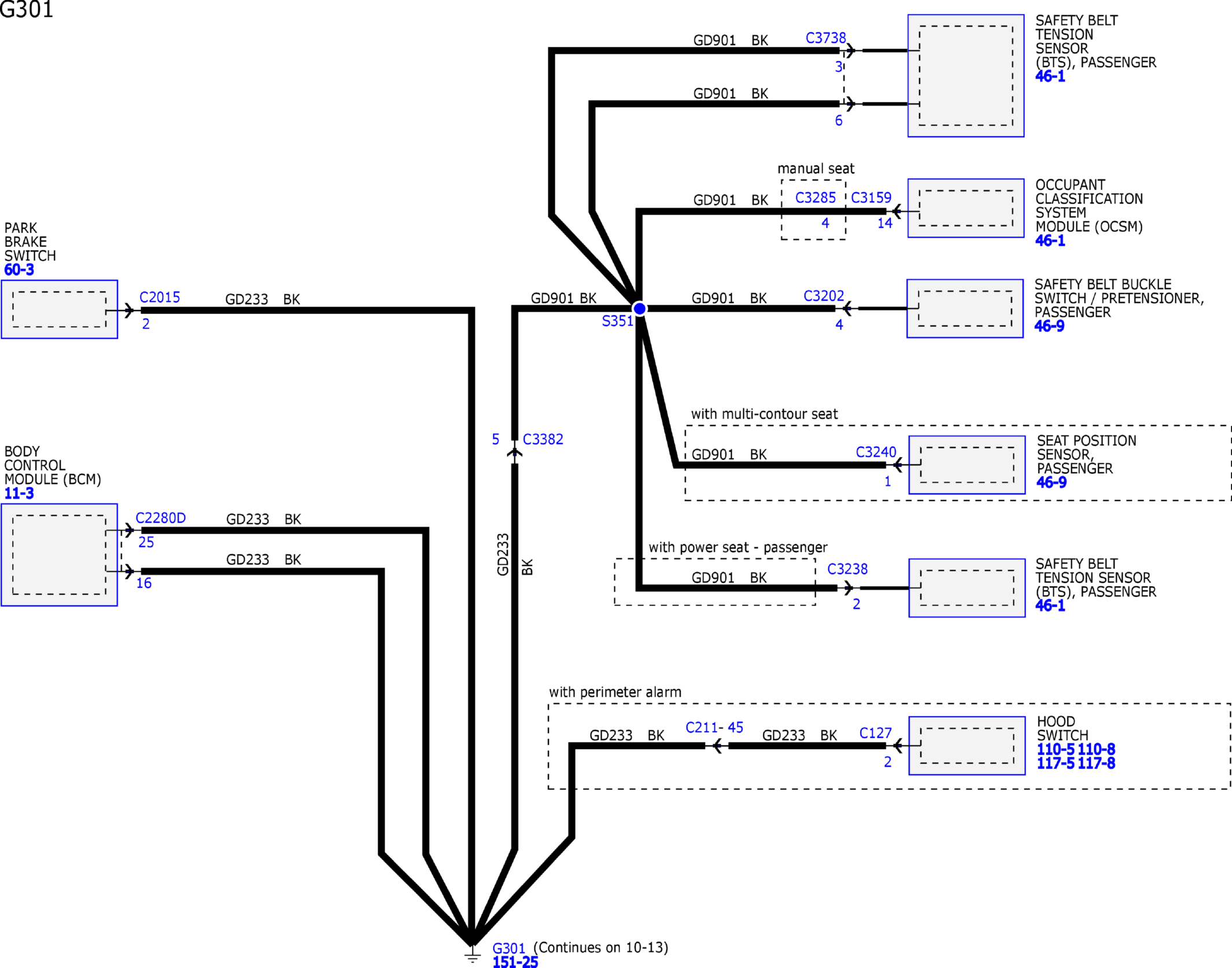

GFDW57860Courtesy of FORD MOTOR COMPANY

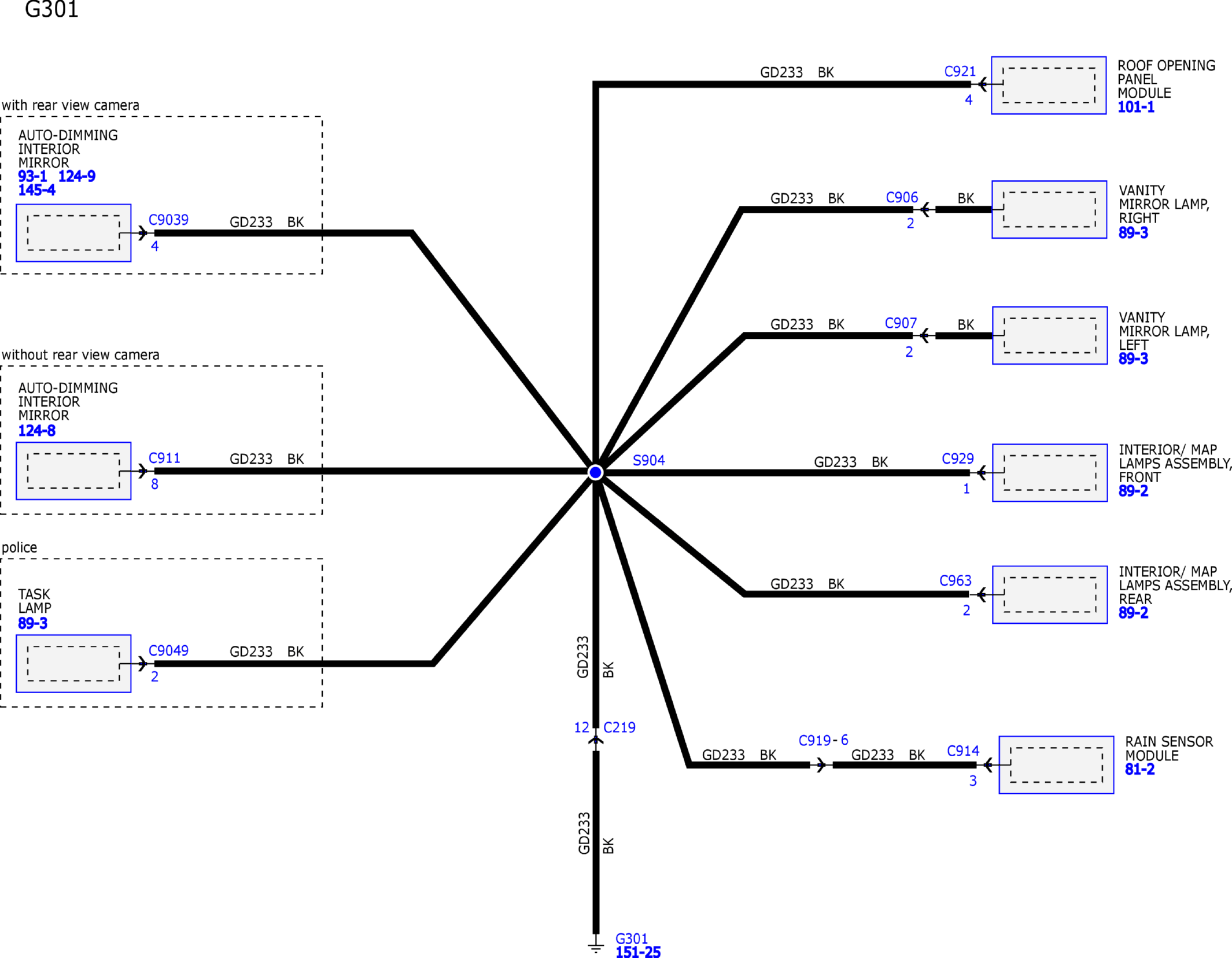

GFDW57861Courtesy of FORD MOTOR COMPANY

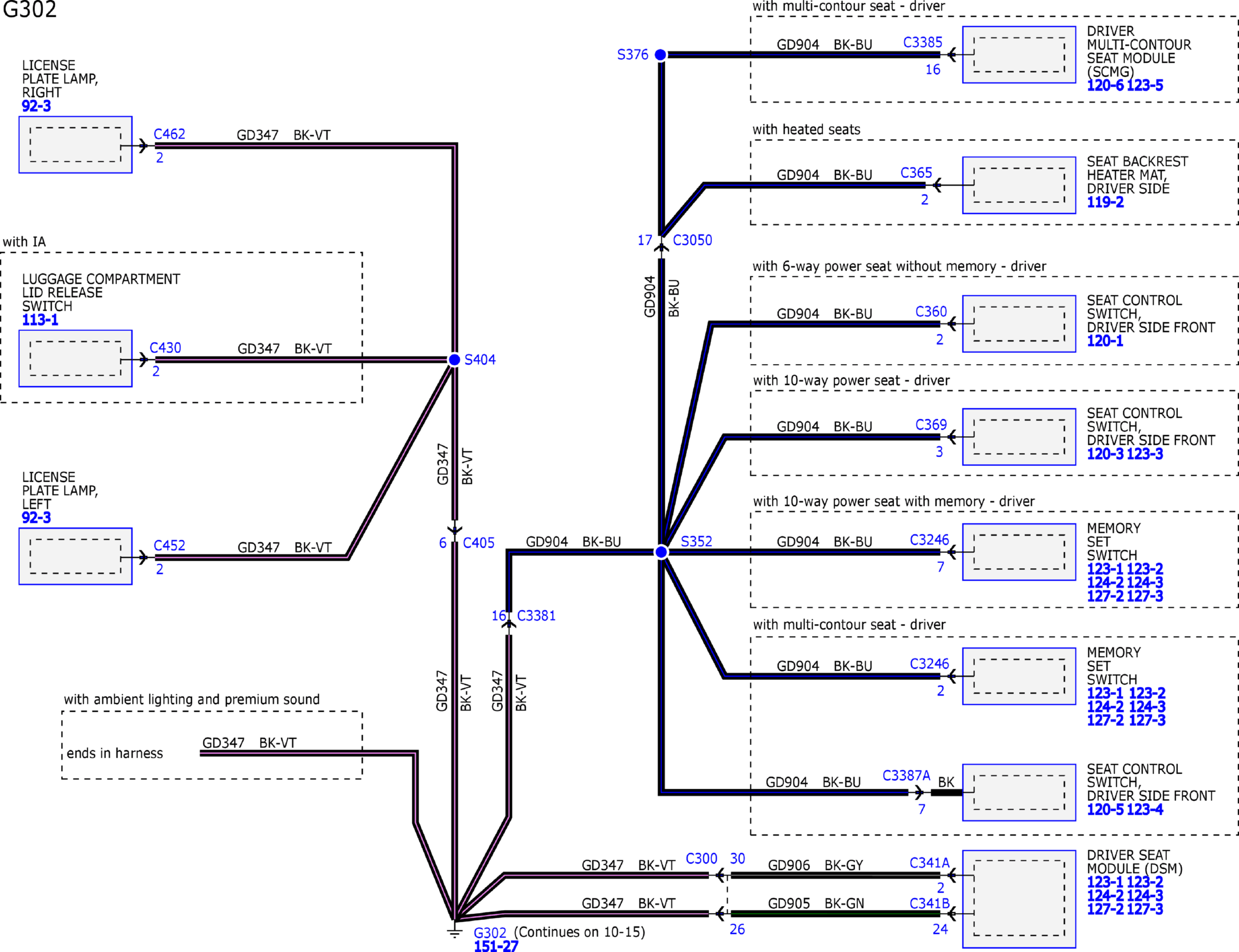

GFDW57862Courtesy of FORD MOTOR COMPANY

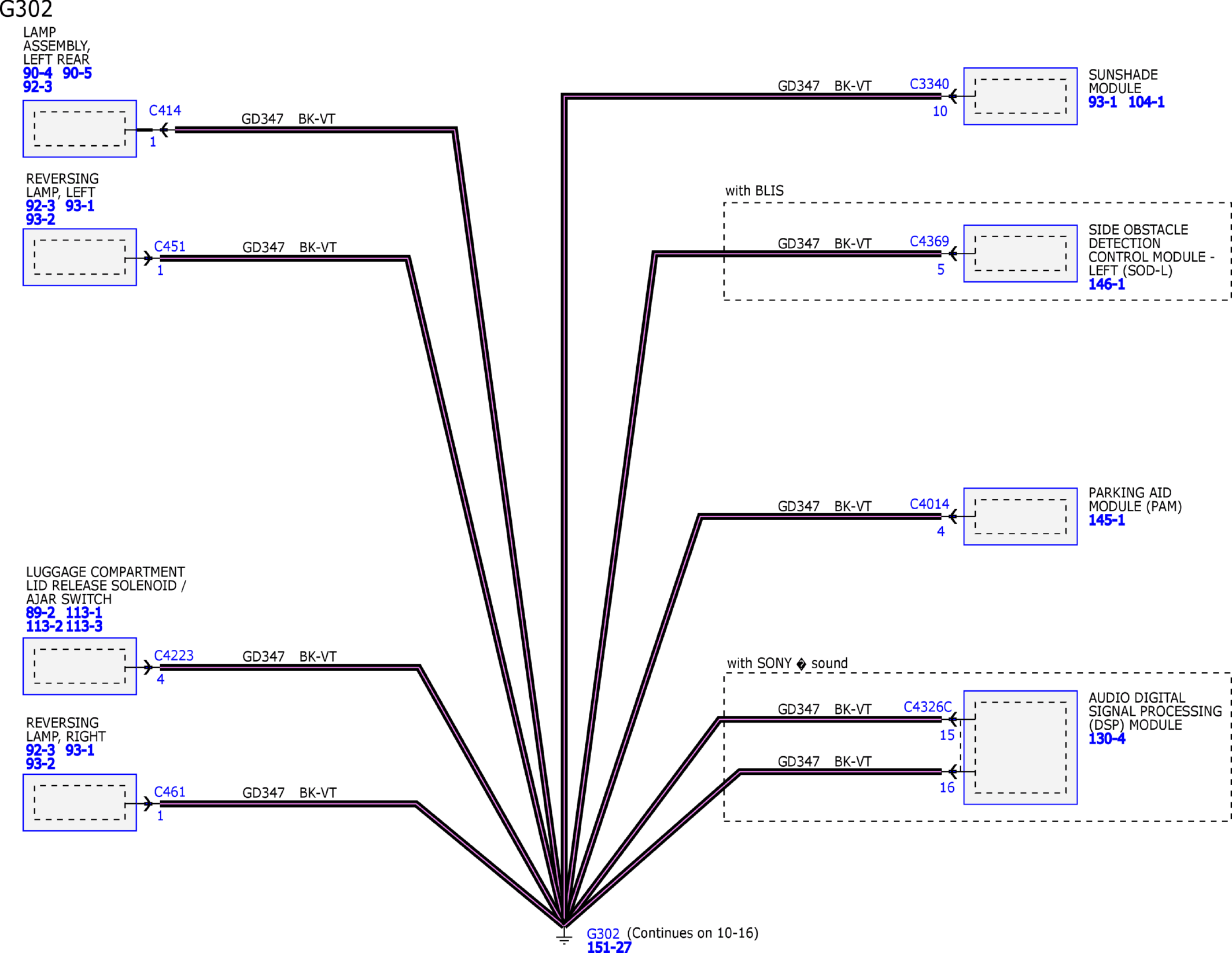

GFDW57863Courtesy of FORD MOTOR COMPANY

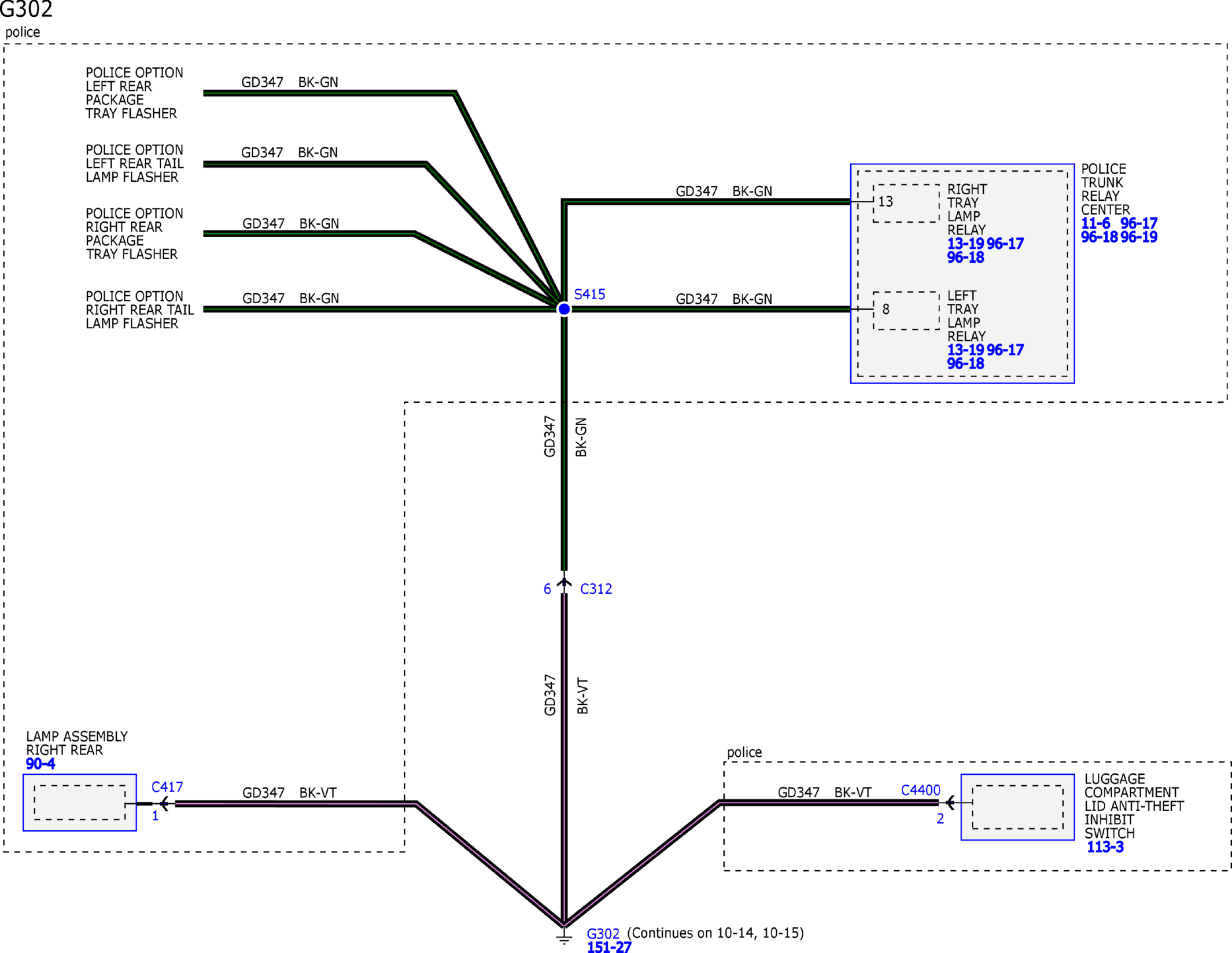

GFDW57864Courtesy of FORD MOTOR COMPANY

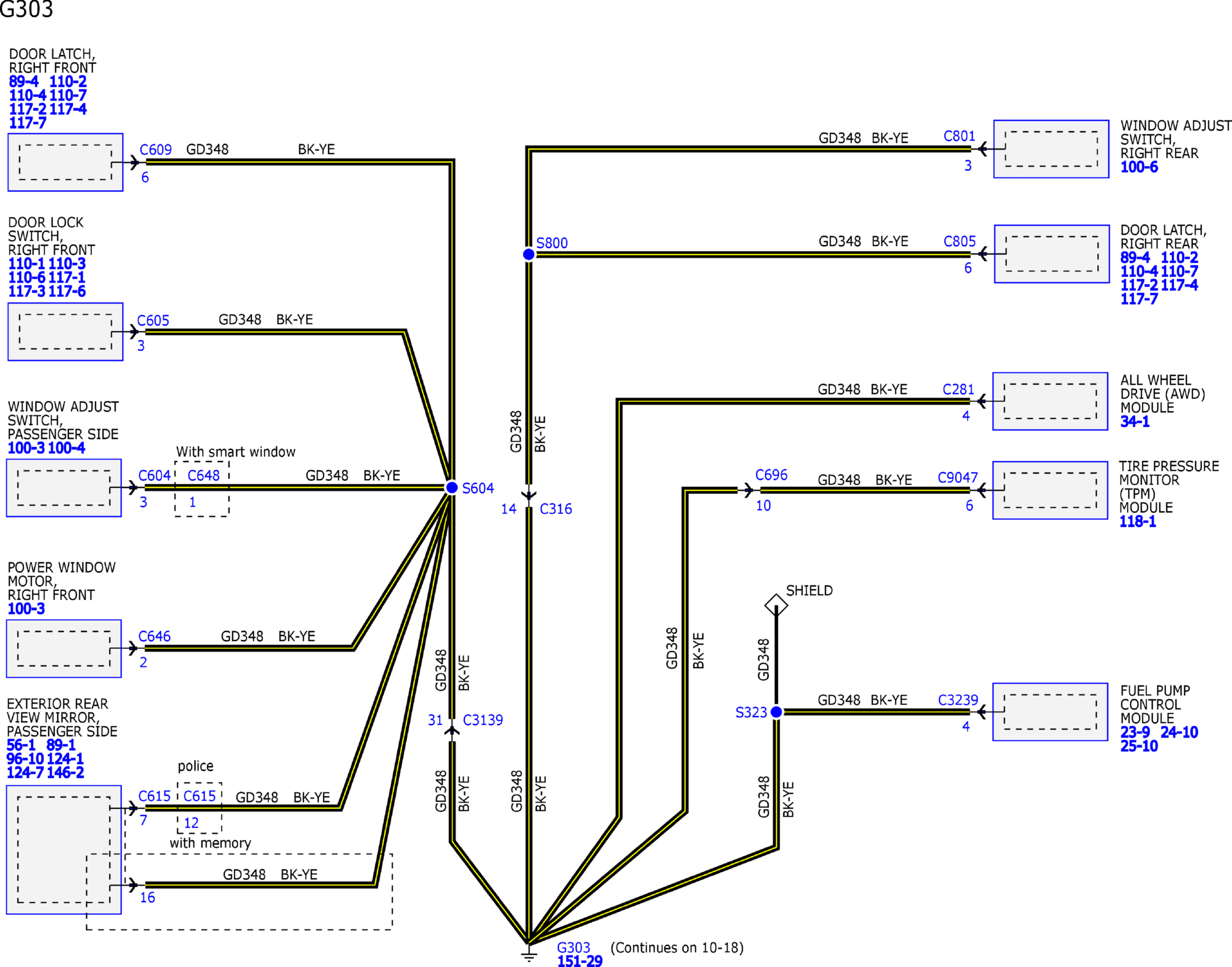

GFDW57865Courtesy of FORD MOTOR COMPANY

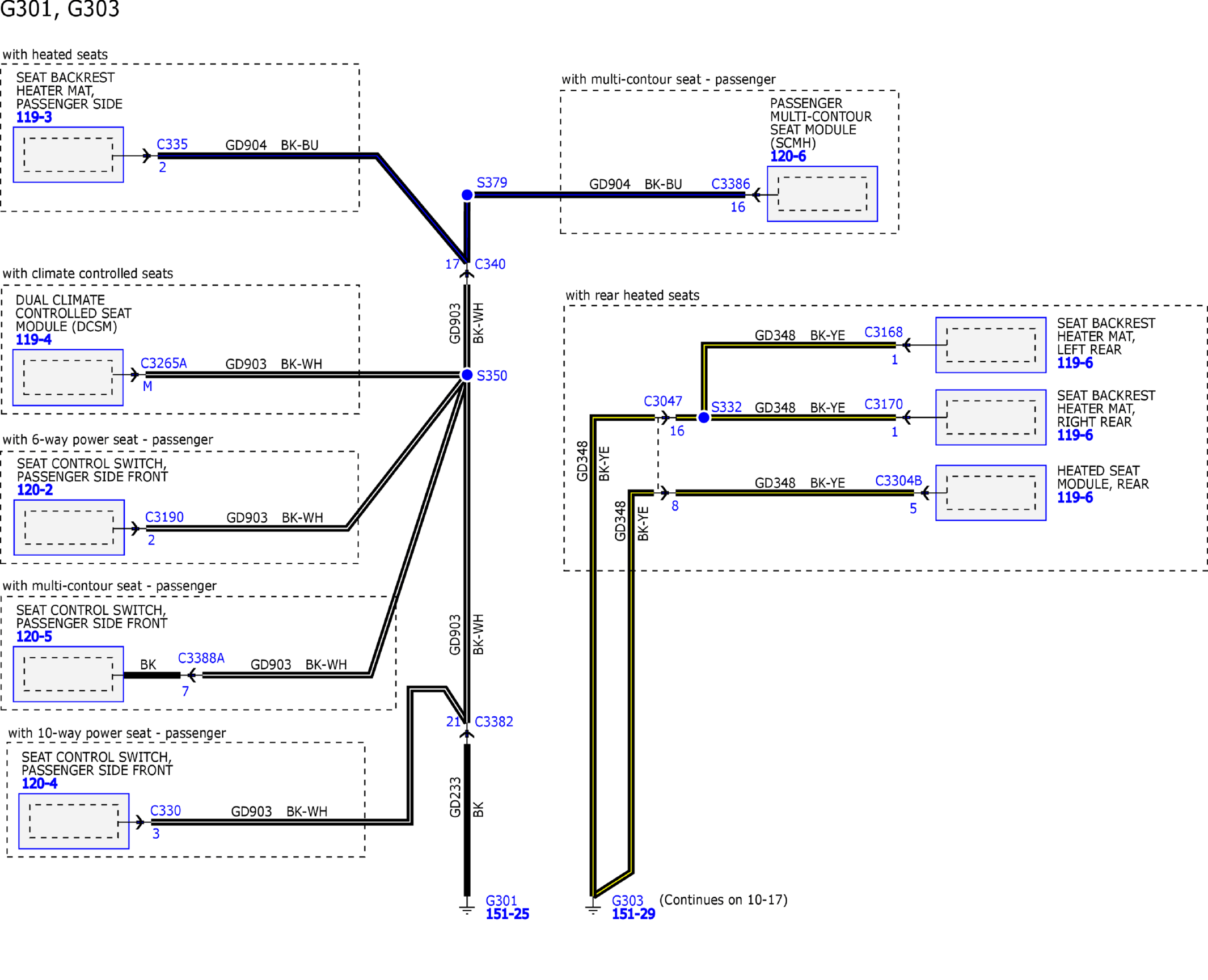

GFDW57866Courtesy of FORD MOTOR COMPANY

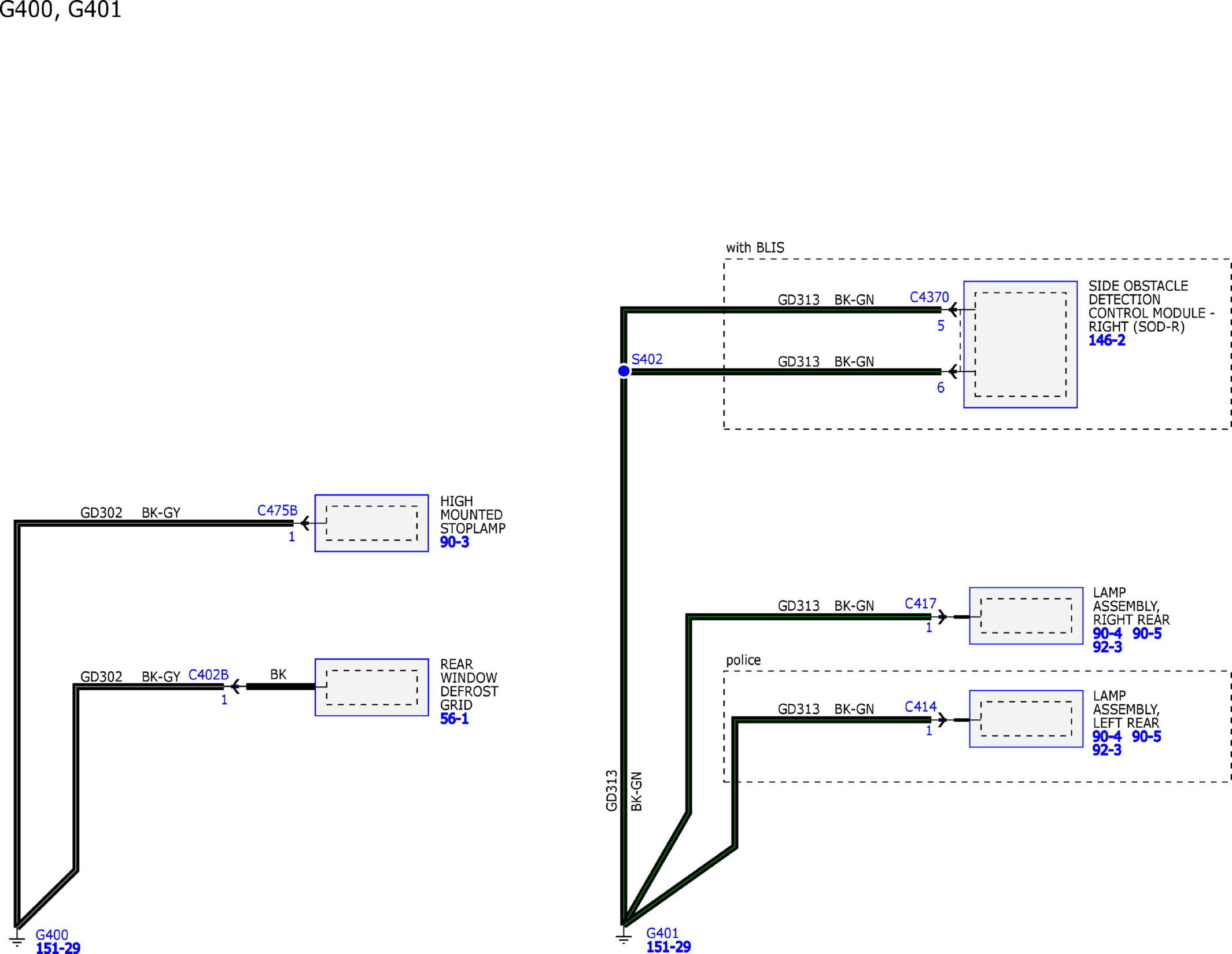

GFDW57867Courtesy of FORD MOTOR COMPANY

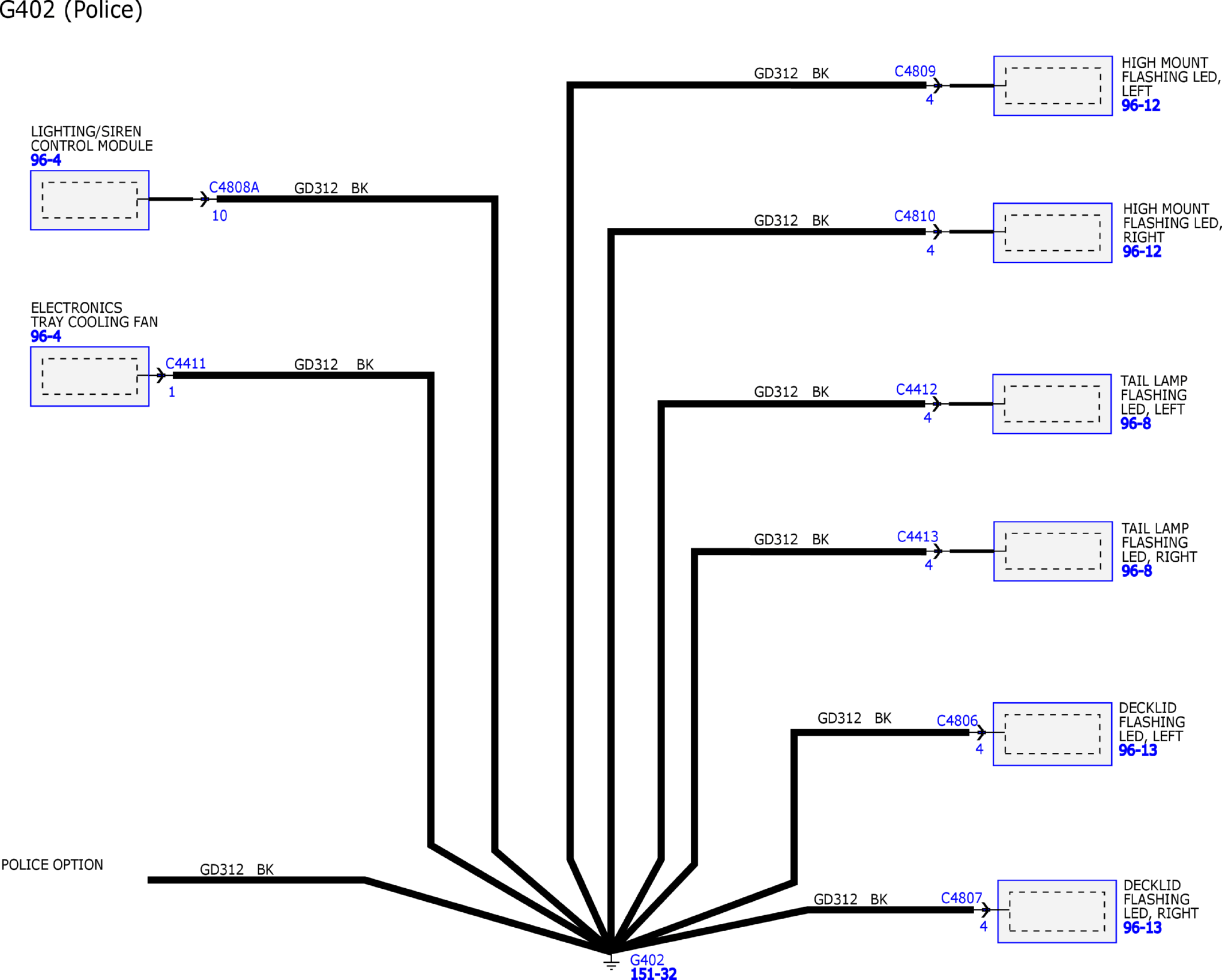

GFDW57868Courtesy of FORD MOTOR COMPANY

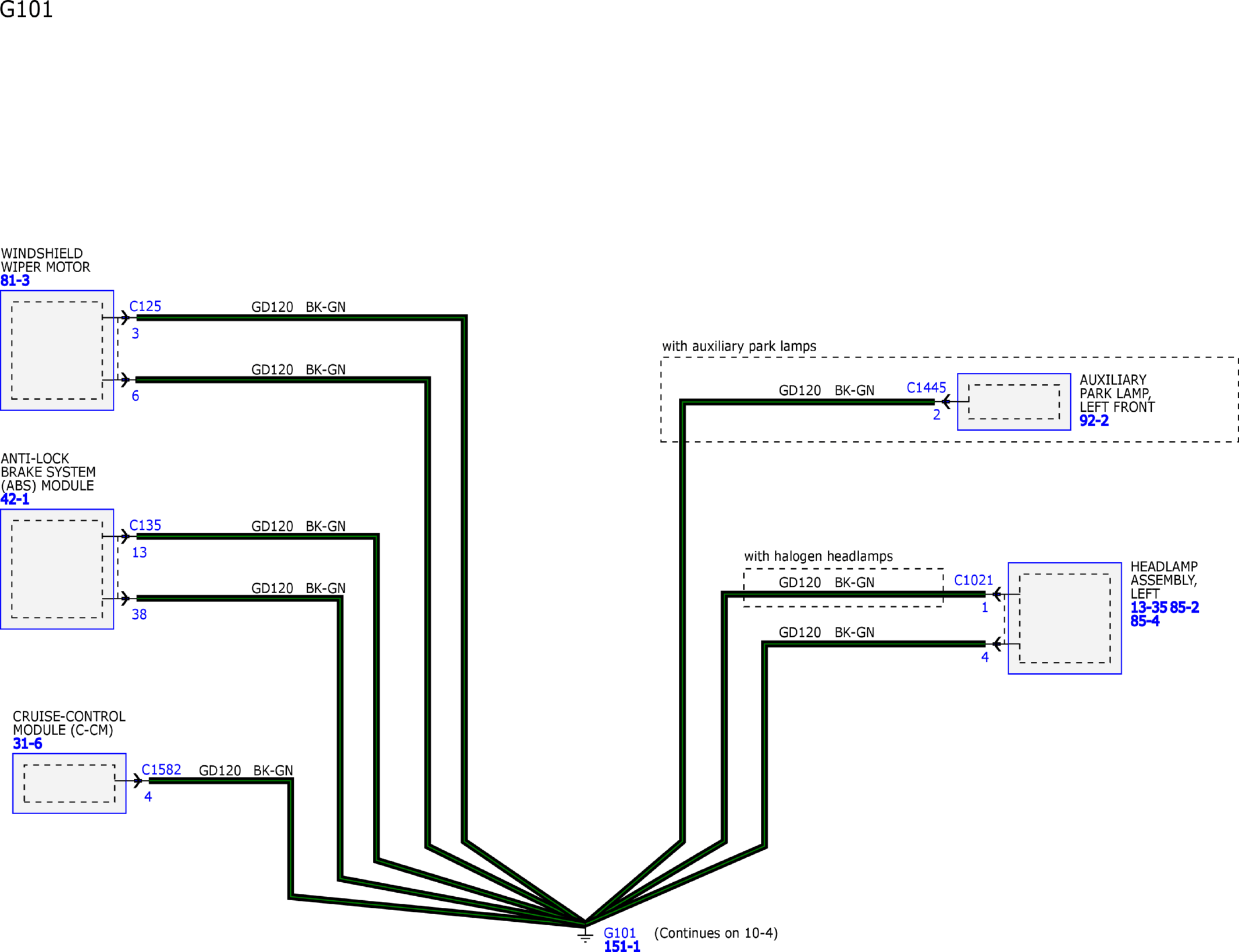

GFDW57869Courtesy of FORD MOTOR COMPANY

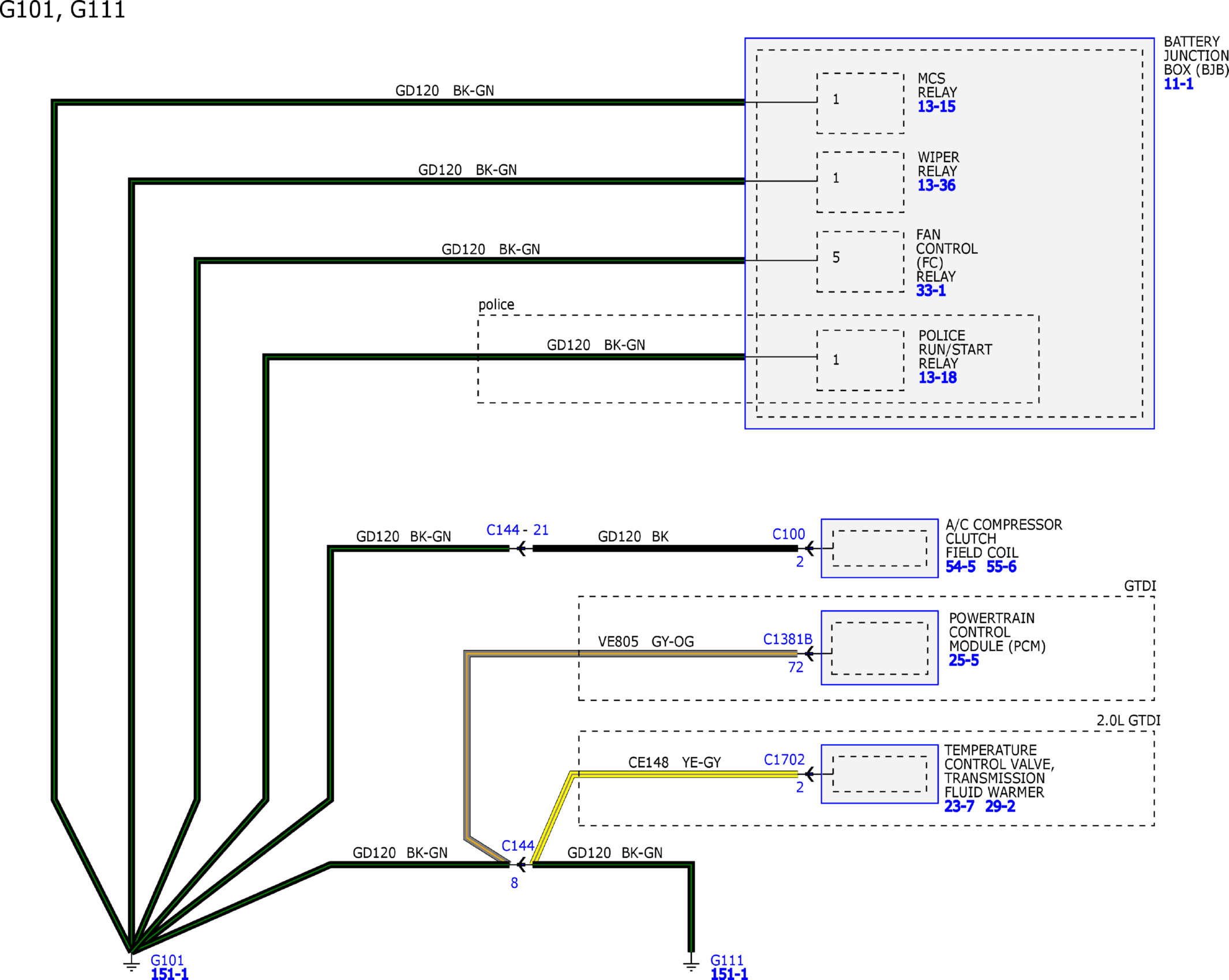

GFDW57870Courtesy of FORD MOTOR COMPANY

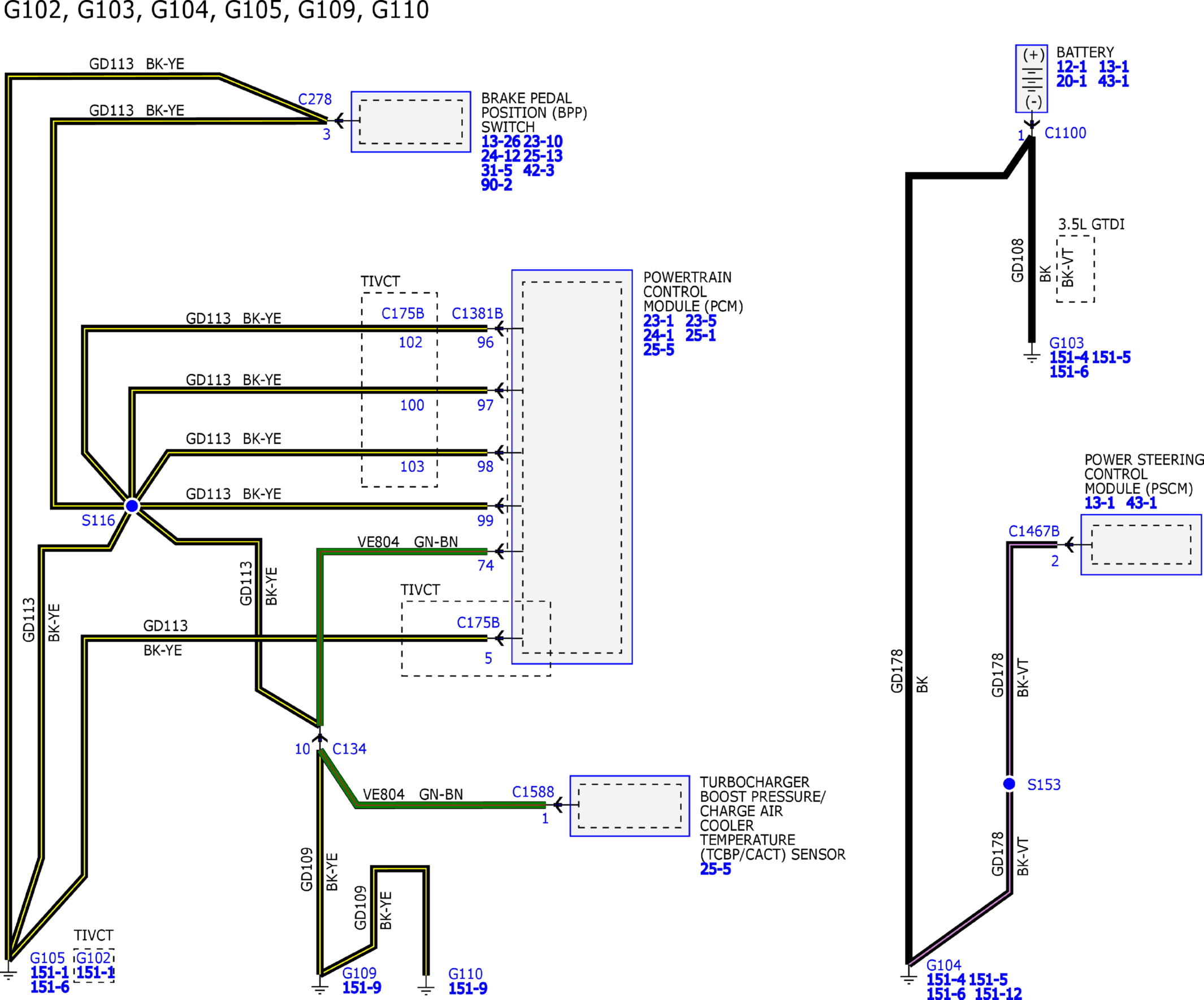

GFDW57871Courtesy of FORD MOTOR COMPANY

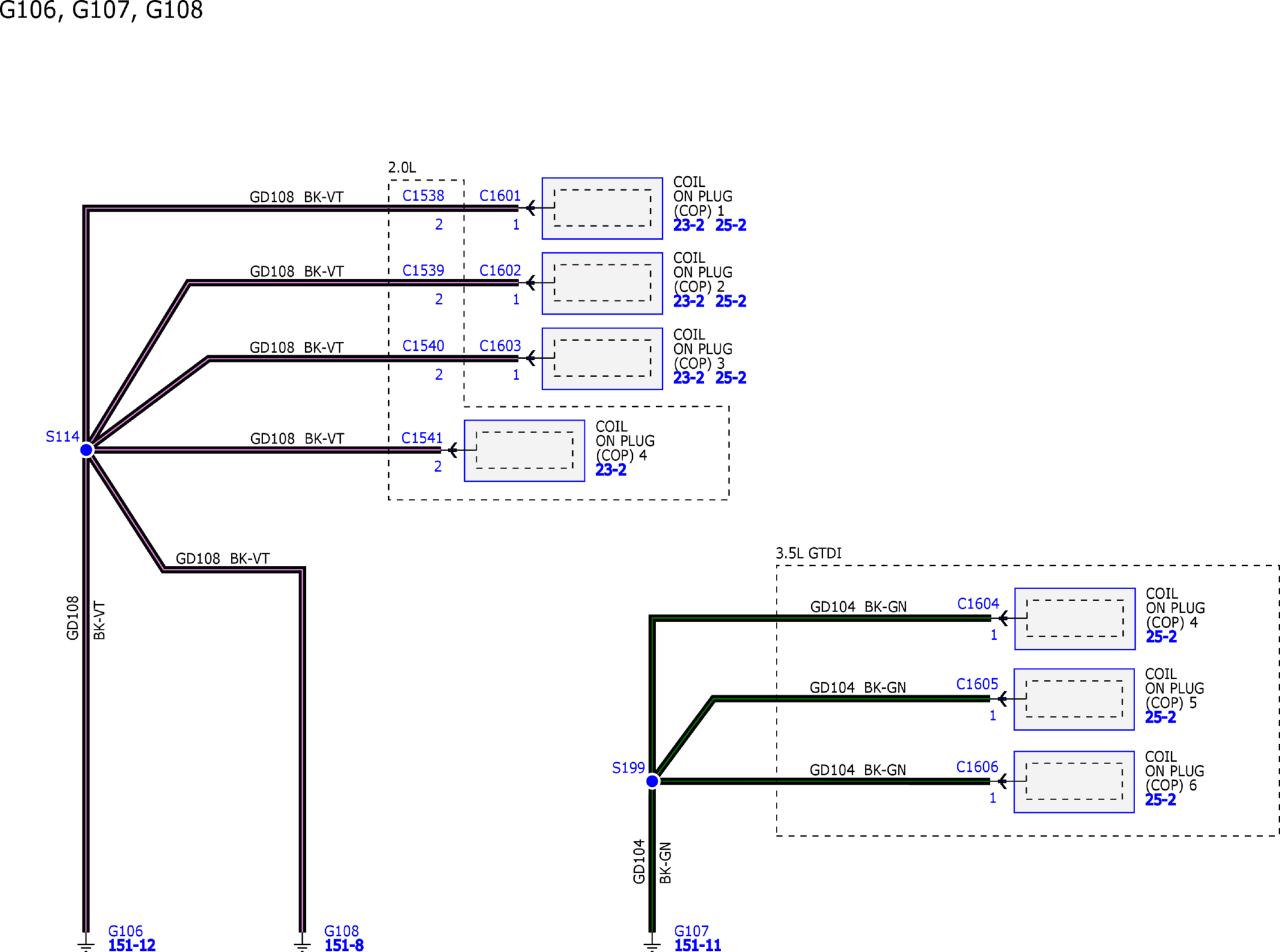

GFDW57872Courtesy of FORD MOTOR COMPANY

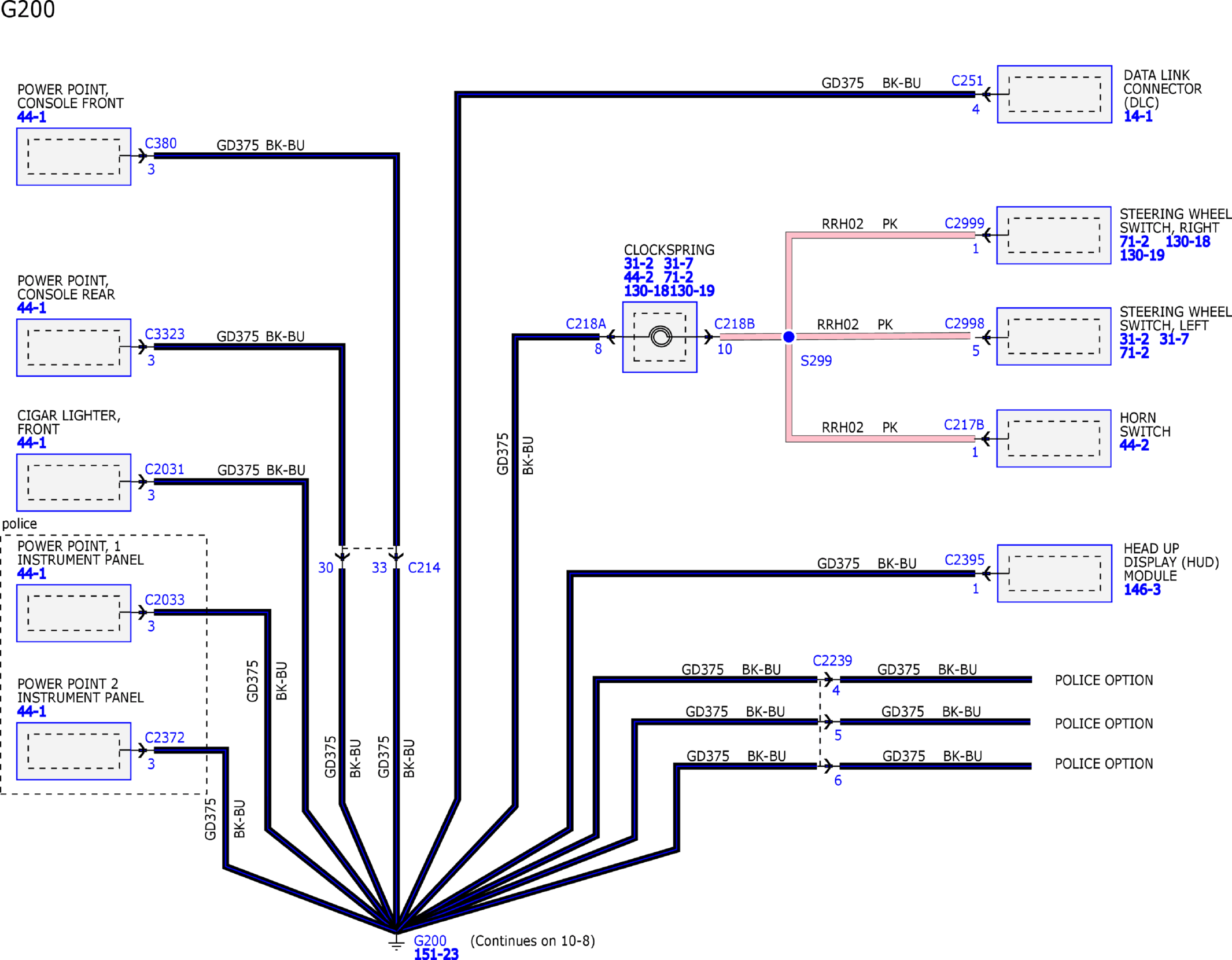

GFDW57873Courtesy of FORD MOTOR COMPANY

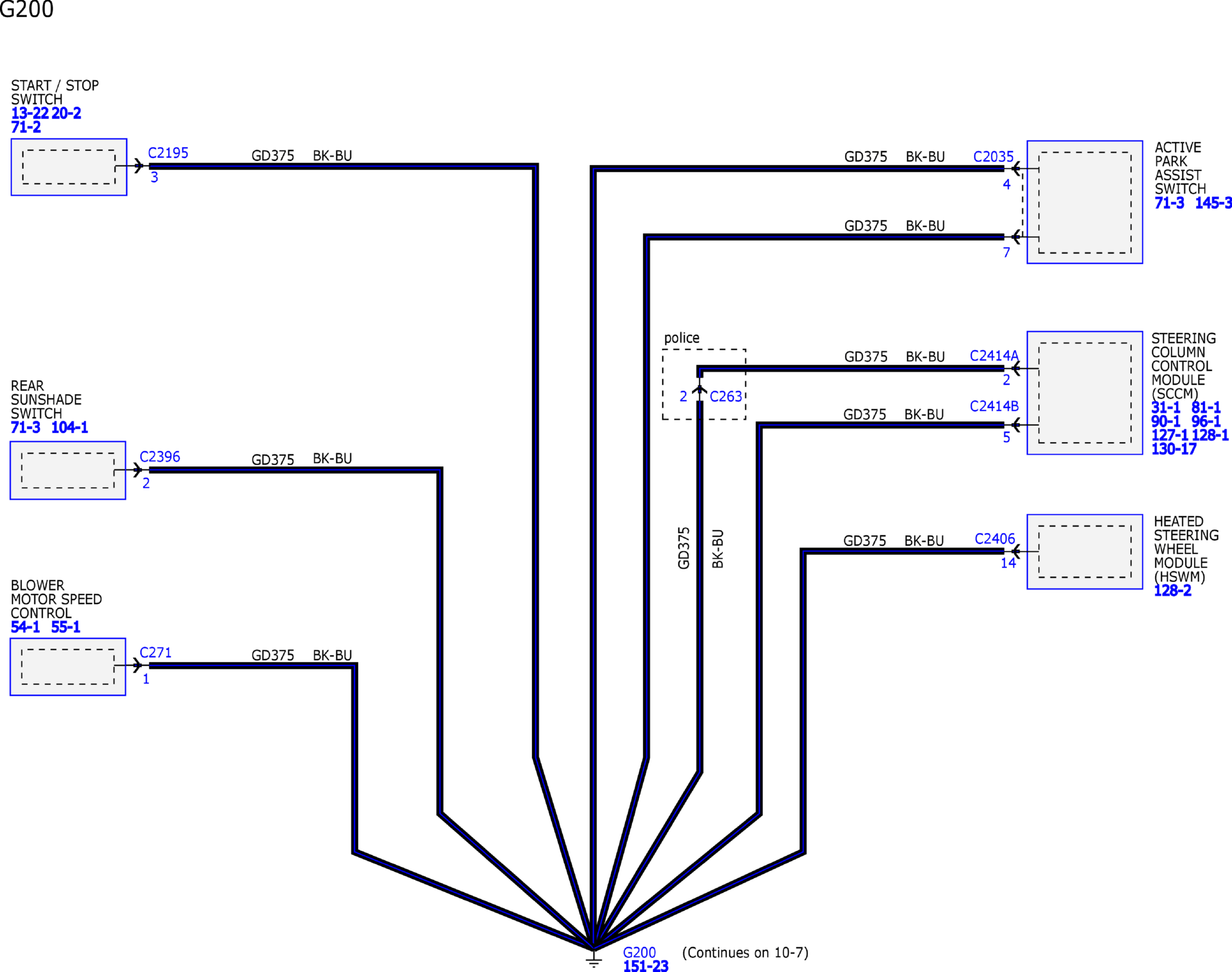

GFDW57874Courtesy of FORD MOTOR COMPANY

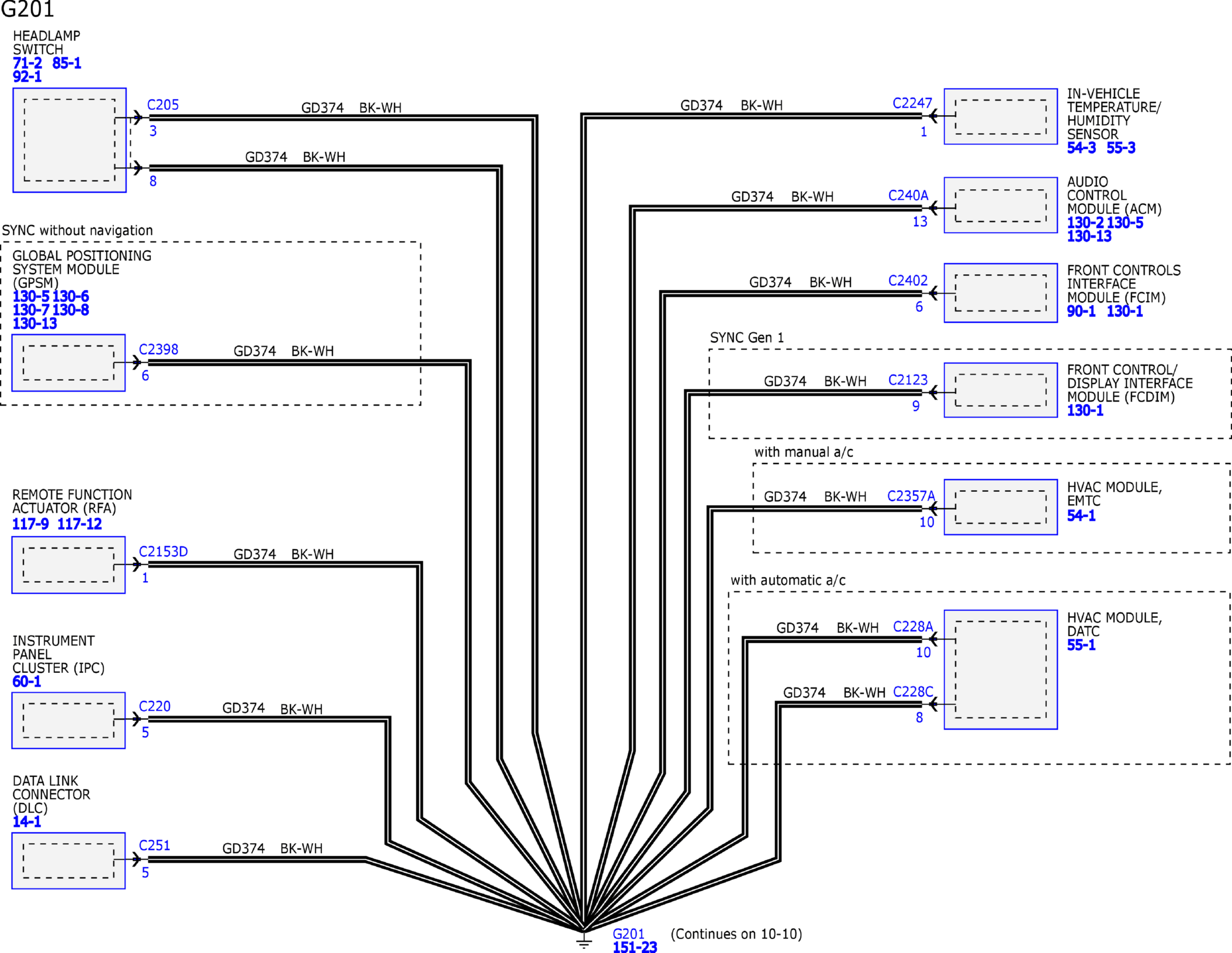

GFDW57875Courtesy of FORD MOTOR COMPANY

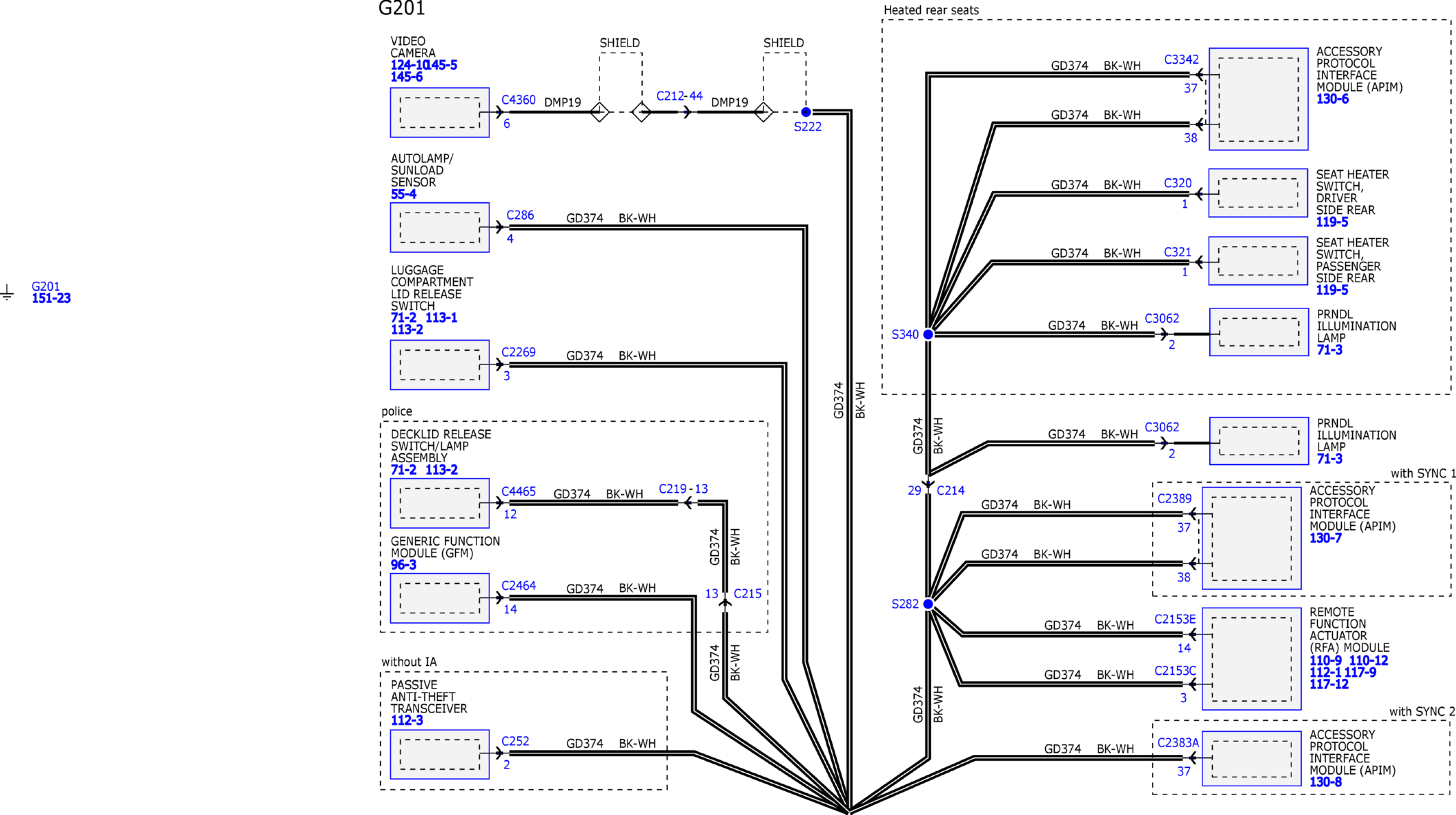

GFDW57876Courtesy of FORD MOTOR COMPANY
