Transaxle Case: Notes
Special Tool(s)
| Bearing Cup Installer 307-576 | |
| Bearing Cup Installer 307-689 | |
| Differential Bearing Cup Remover 307-586 | |
| Drawbar (Heavy Duty Threaded) 204-029 (T77F-1176) | |
| Handle 205-153 (T80T-4000-W) | |
| Installer, Transfer Gear Bearing 307-541 | |
| Oil Dam Seal Installer 307-583 | |
| Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C) | |
| Transfer Gear Bearing Race Remover 307-577 |

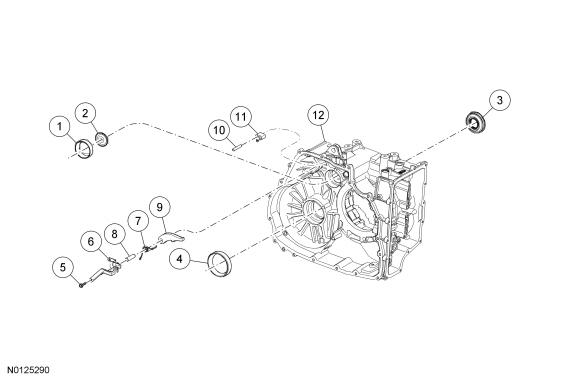

Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H344 | Transfer shaft roller bearing cup |
| 2 | 7L276 | Transfer shaft tube fluid dam |
| 3 | 1177 | Halfshaft seal |
| 4 | 4222 | Differential bearing cup |
| 5 | 7J283 | Park rod guide plate bolts (2 required) |
| 6 | 7D419 | Park rod guide plate |
| 7 | 7D070 | Park pawl return spring |
| 8 | 7D071 | Park pawl shaft |
| 9 | 7A441 | Park pawl |
| 10 | 7D412 | Parking pawl abutment pin (2 required) |
| 11 | 7G101 | Parking pawl abutment |
| 12 | 7005 | Transmission case |
