Body Control Module (BCM): Removal
NOTE:
If installing a new BCM, verify at least 2 of the vehicle keys are available prior to carrying out this procedure.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions. Refer to: Module Configuration - System Operation and Component Description .
- Disconnect the battery cables. Refer to: Battery Disconnect and Connect .
-

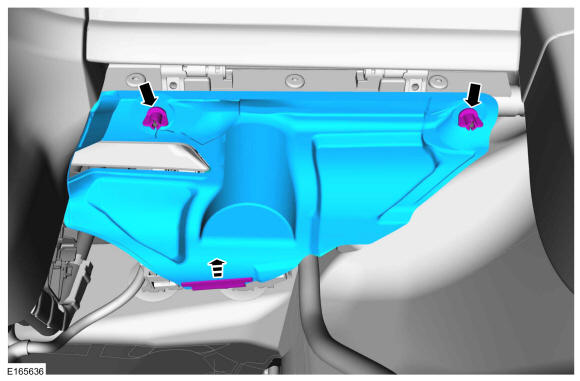

- Disengage the retaining tab and remove the retainers.
- Remove the RH side access panel.

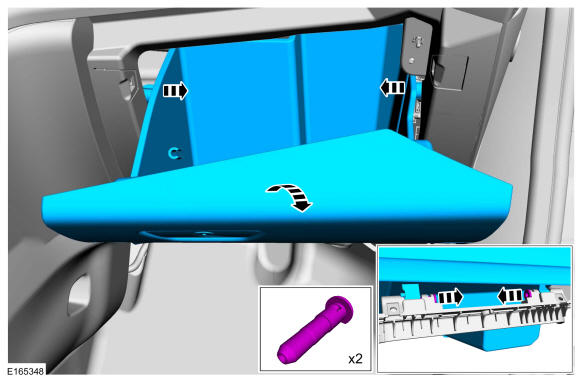

- Remove the retainers and the glove box cover.

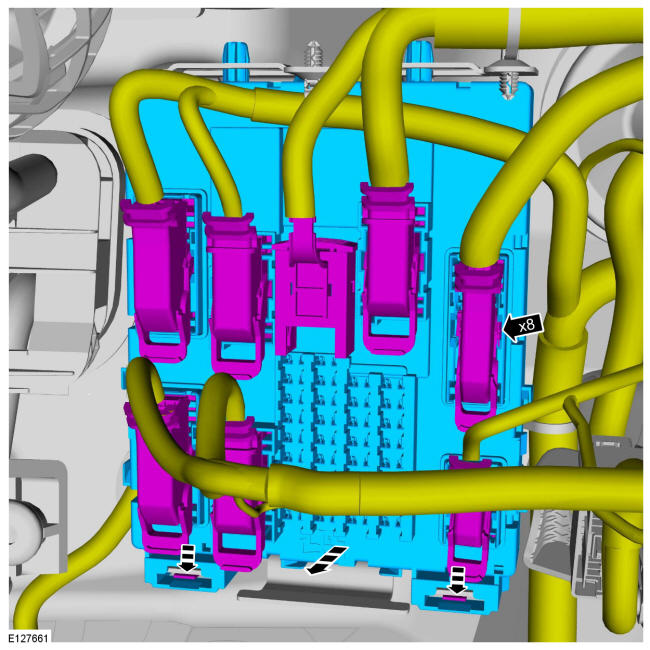

- Disconnect the BCM electrical connectors and remove the BCM.
