Fuse And Relay Location

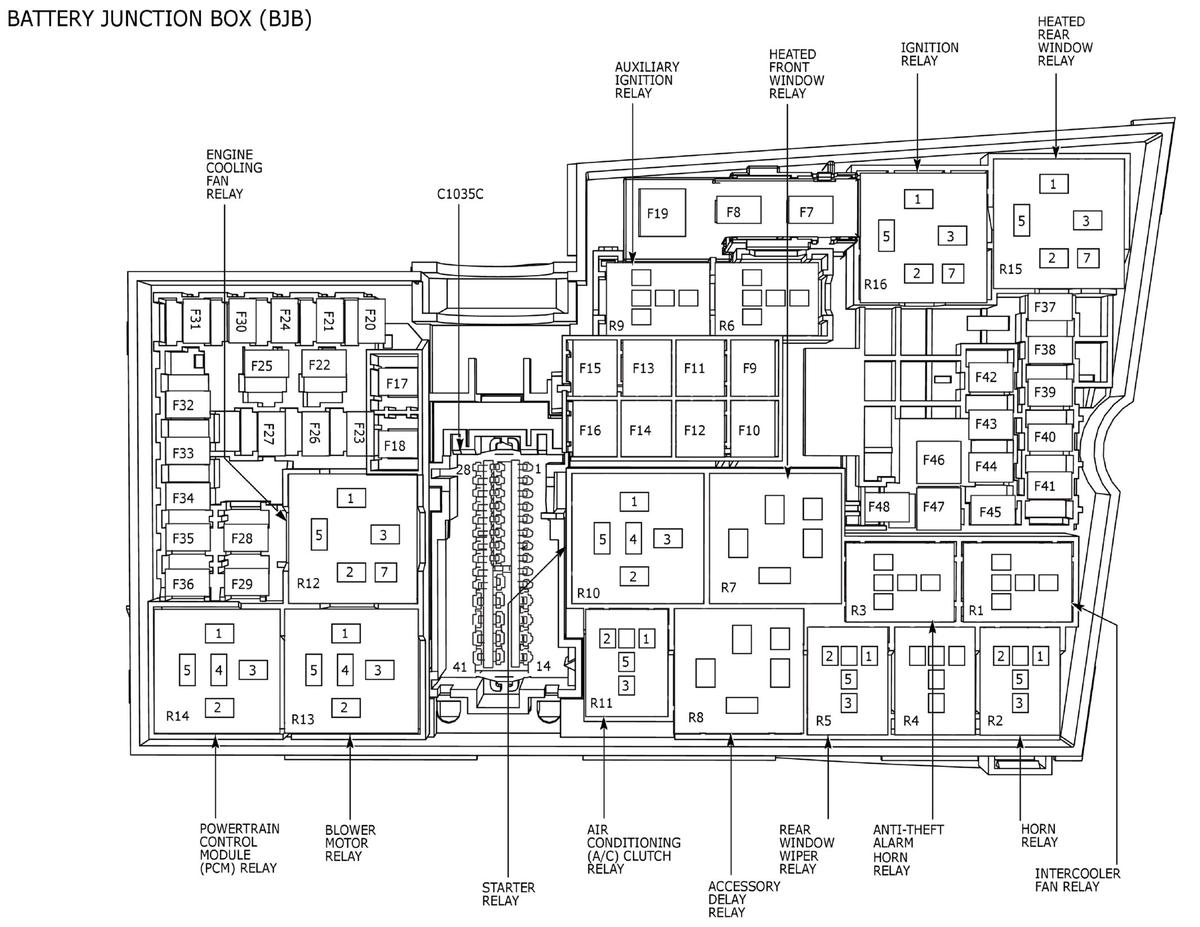

Fig 1: Battery Junction Box Location
Courtesy of FORD MOTOR COMPANY

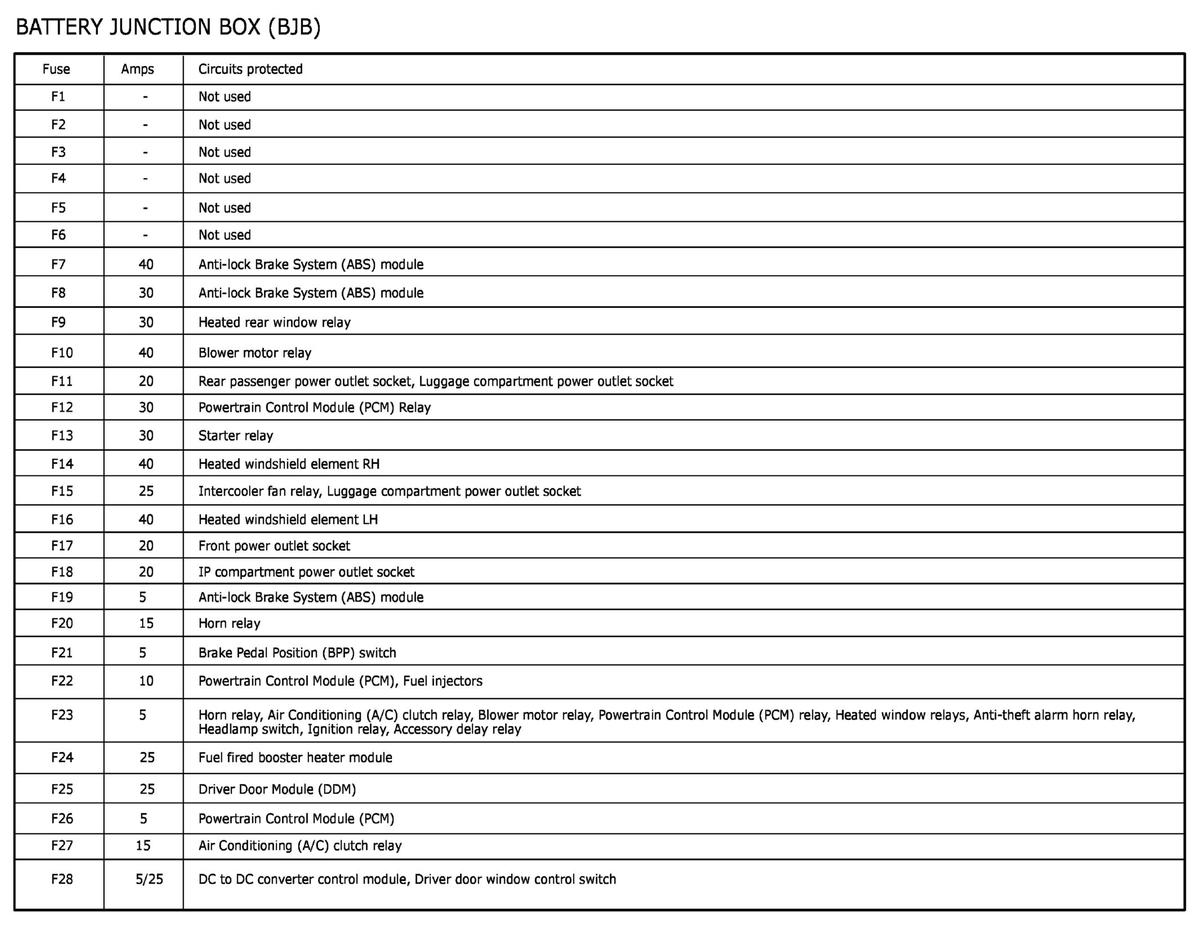

Fig 2: Battery Junction Box Location Legend (1 of 2)
Courtesy of FORD MOTOR COMPANY

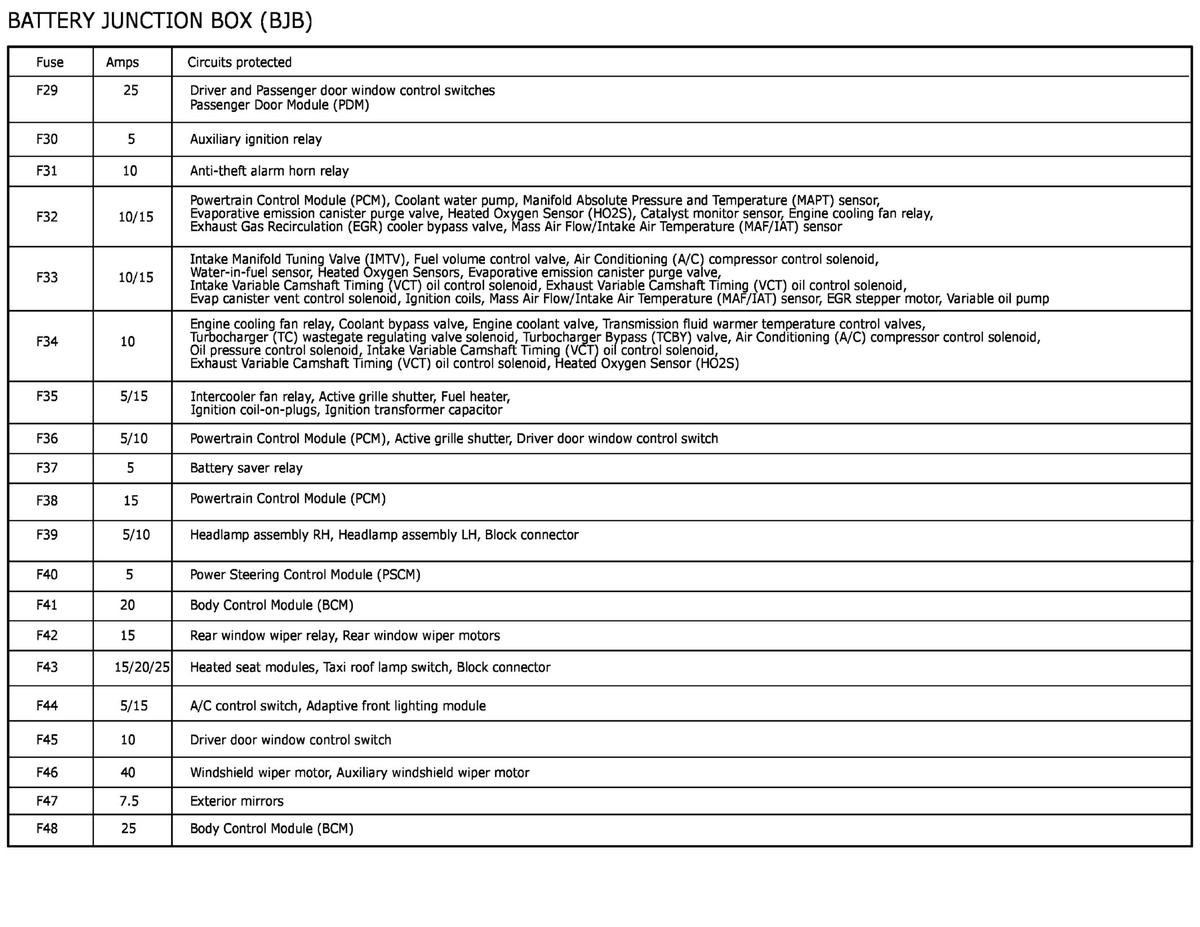

Fig 3: Battery Junction Box Location Legend (2 of 2)
Courtesy of FORD MOTOR COMPANY

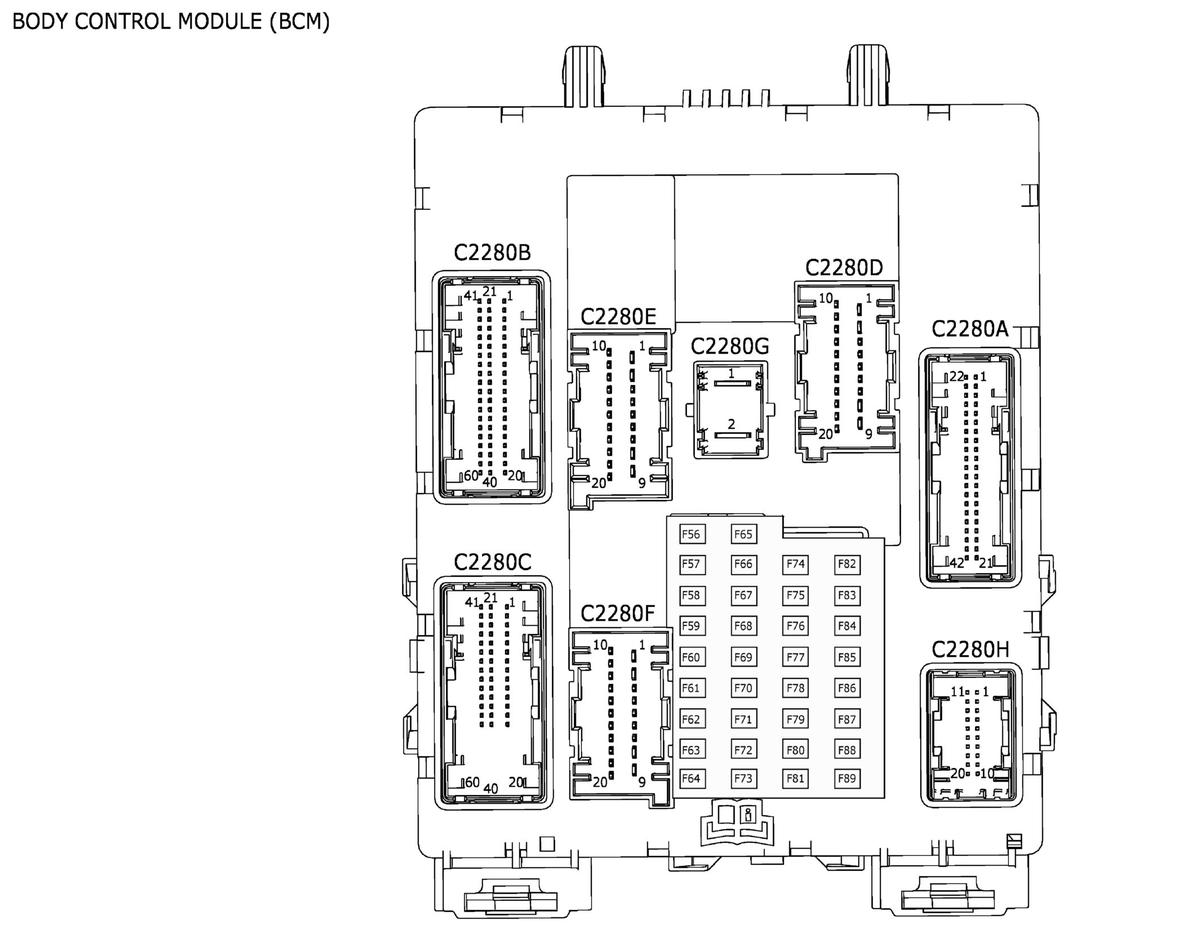

Fig 4: Body Control Module Location
Courtesy of FORD MOTOR COMPANY

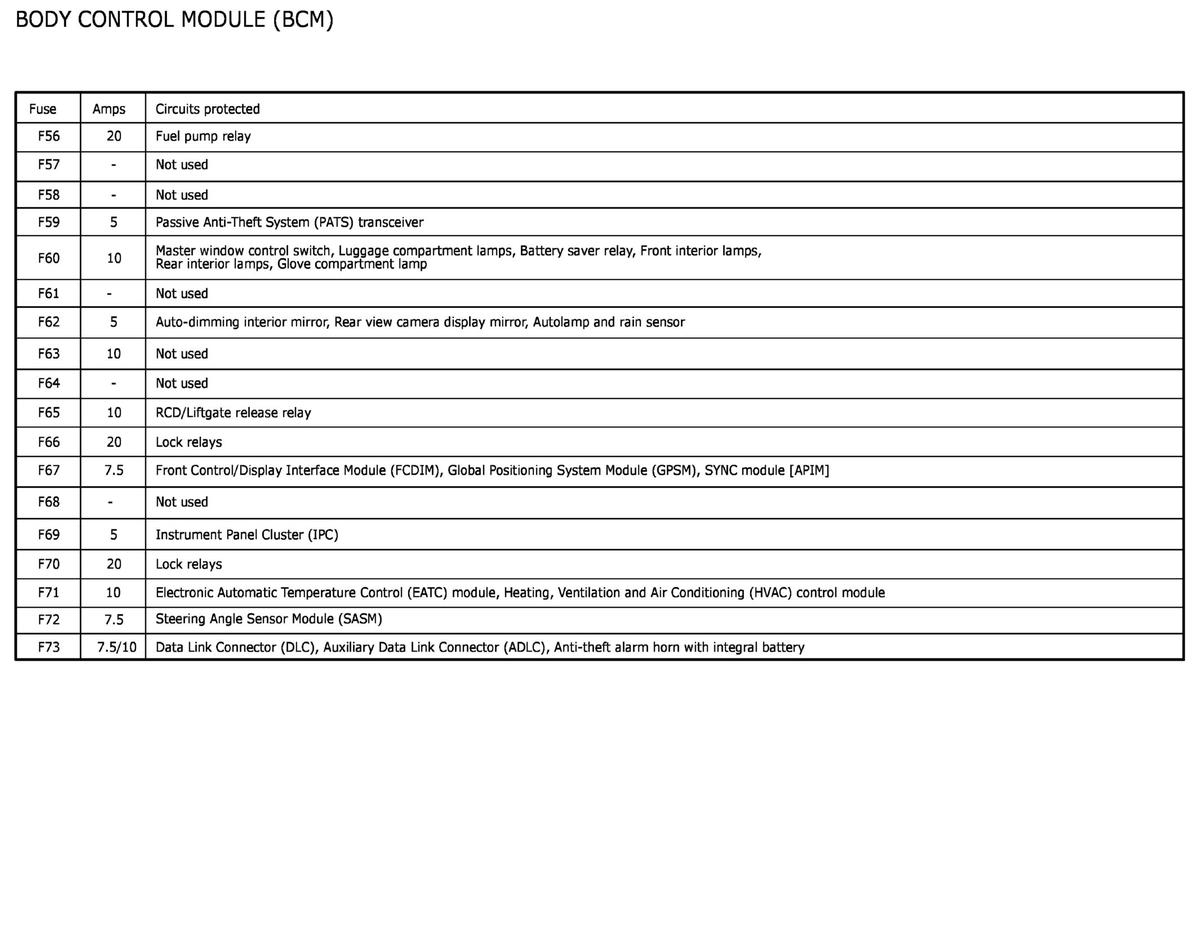

Fig 5: Body Control Module Location Legend (1 of 2)
Courtesy of FORD MOTOR COMPANY

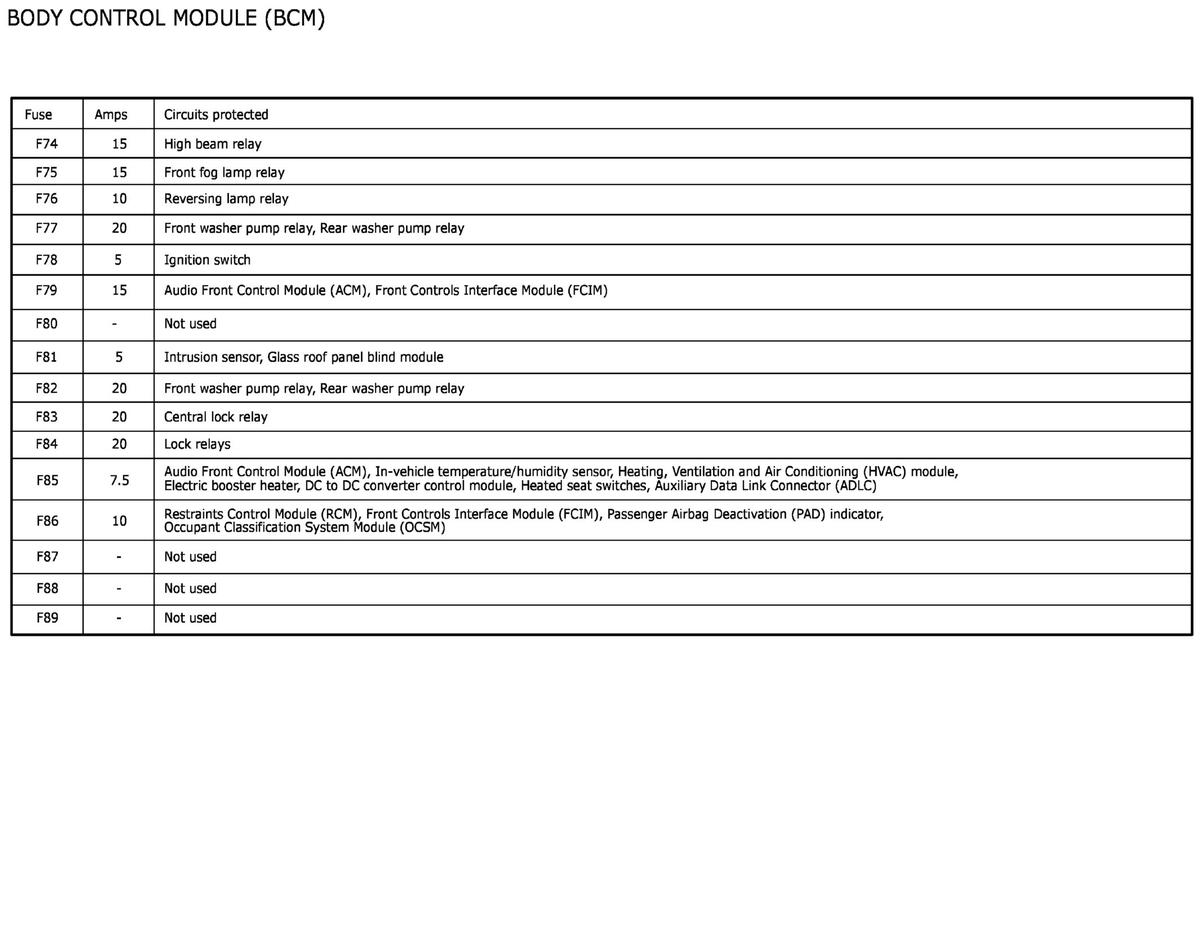

Fig 6: Body Control Module Location Legend (2 of 2)
Courtesy of FORD MOTOR COMPANY

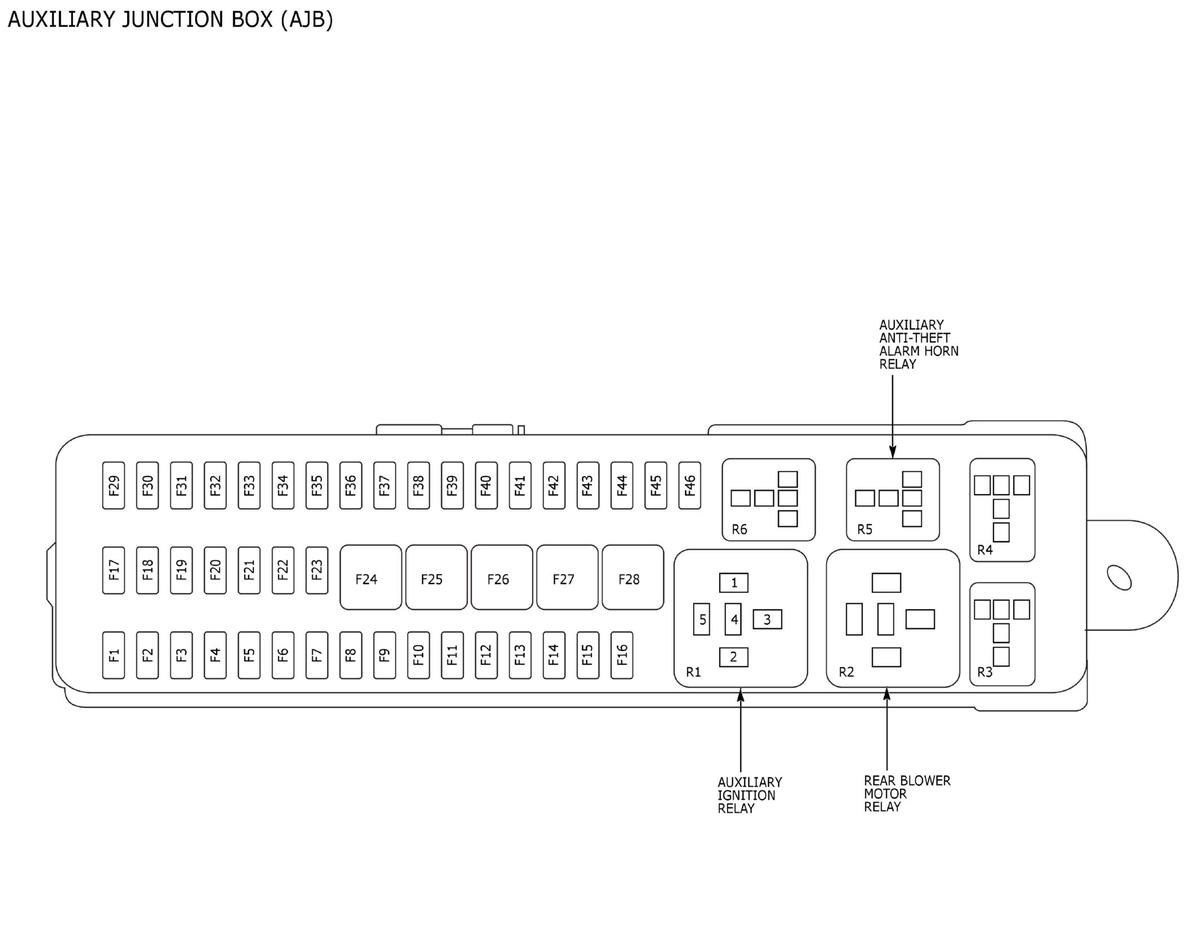

Fig 7: Auxiliary Junction Box Location
Courtesy of FORD MOTOR COMPANY

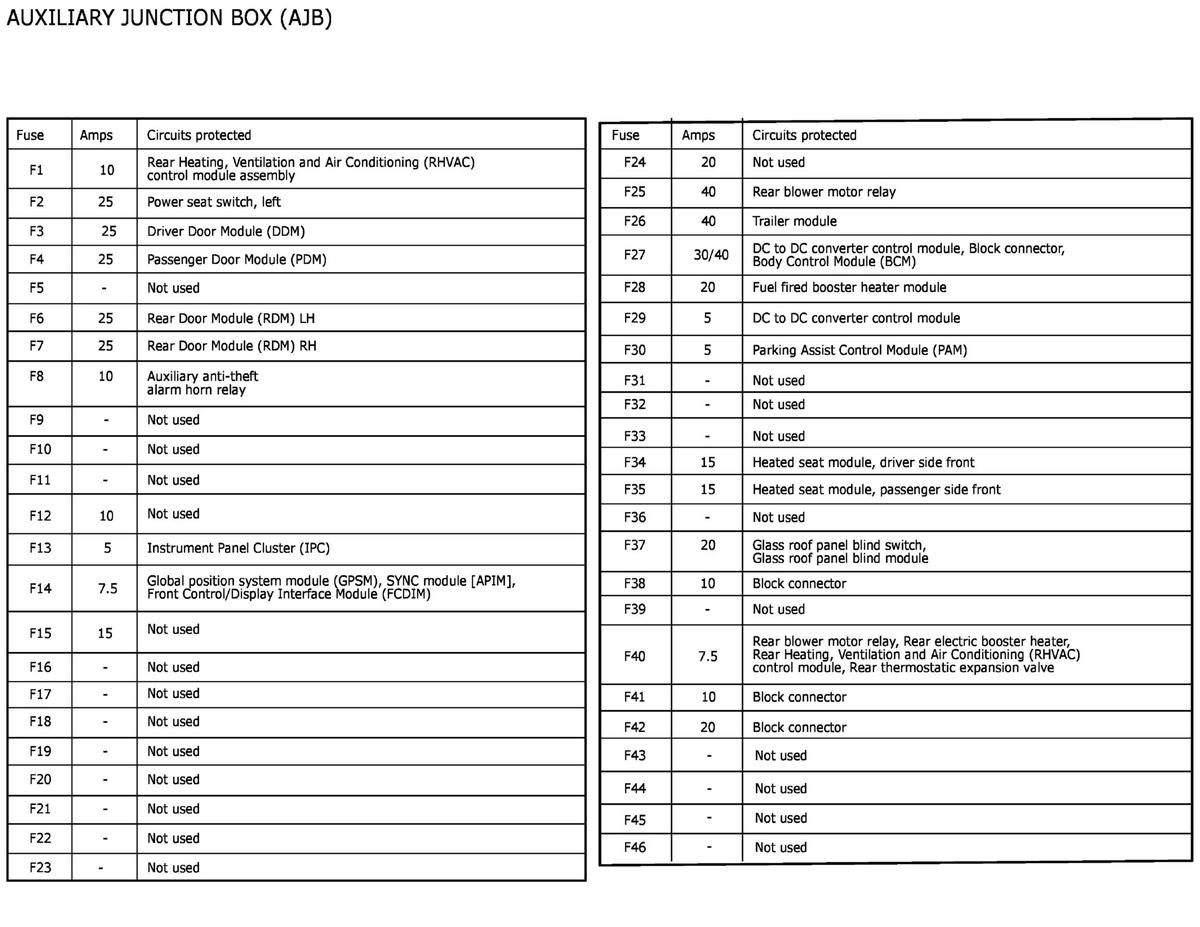

Fig 8: Auxiliary Junction Box Location Legend
Courtesy of FORD MOTOR COMPANY

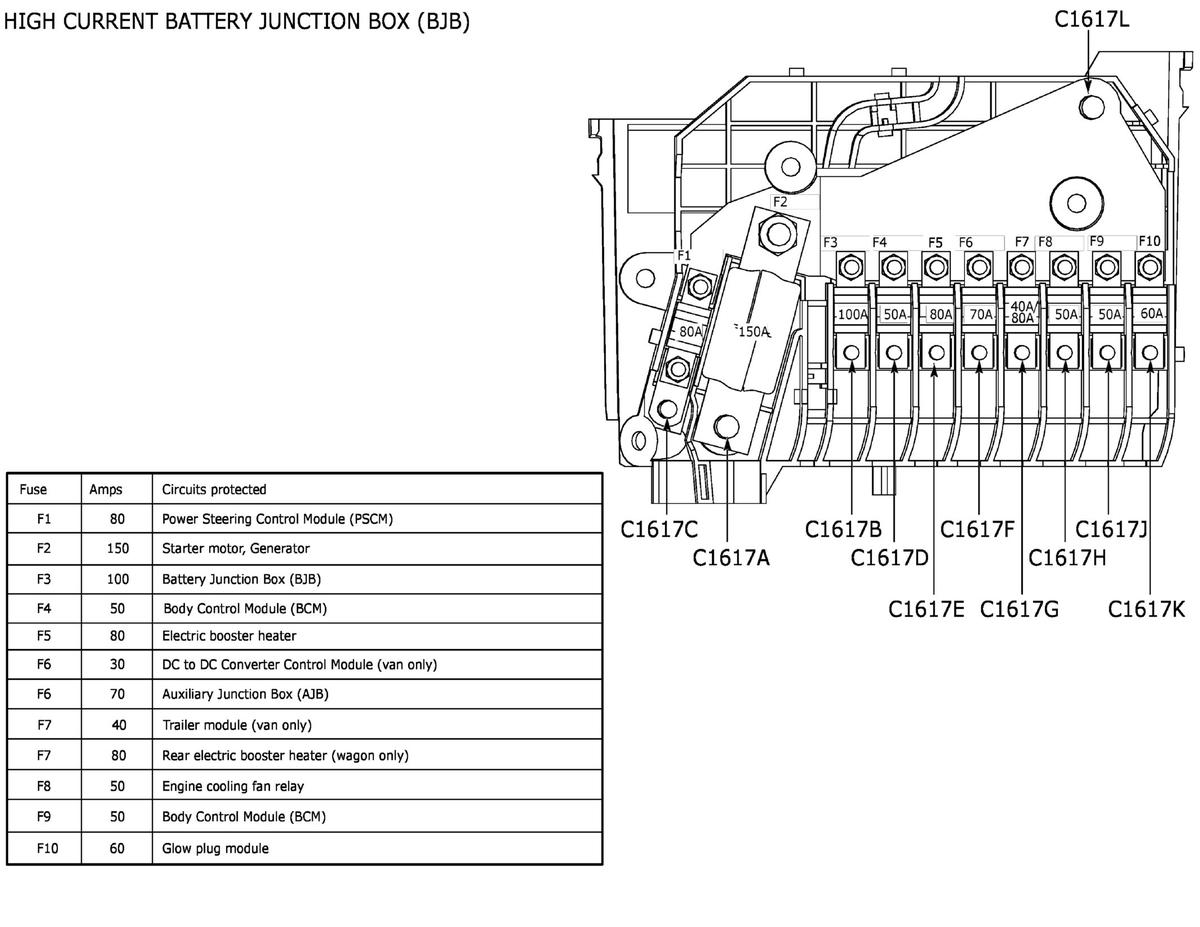

Fig 9: High Current Battery Junction Box Location and Legend
Courtesy of FORD MOTOR COMPANY
