Fuel Tank Pressure (FTP) Sensor

The in tank FTP sensor or the inline FTP sensor measures the fuel tank pressure.

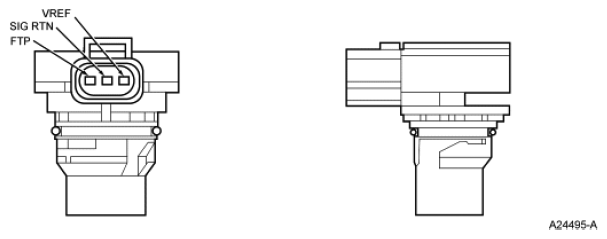

Fig 1: Tank FTP Sensor
G06053883Courtesy of FORD MOTOR CO.
Fig 2: Inline FTP Sensor
G06053884Courtesy of FORD MOTOR CO.
