Exterior Rear View Mirror Switch (2-Way Windows Without Door Modules
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

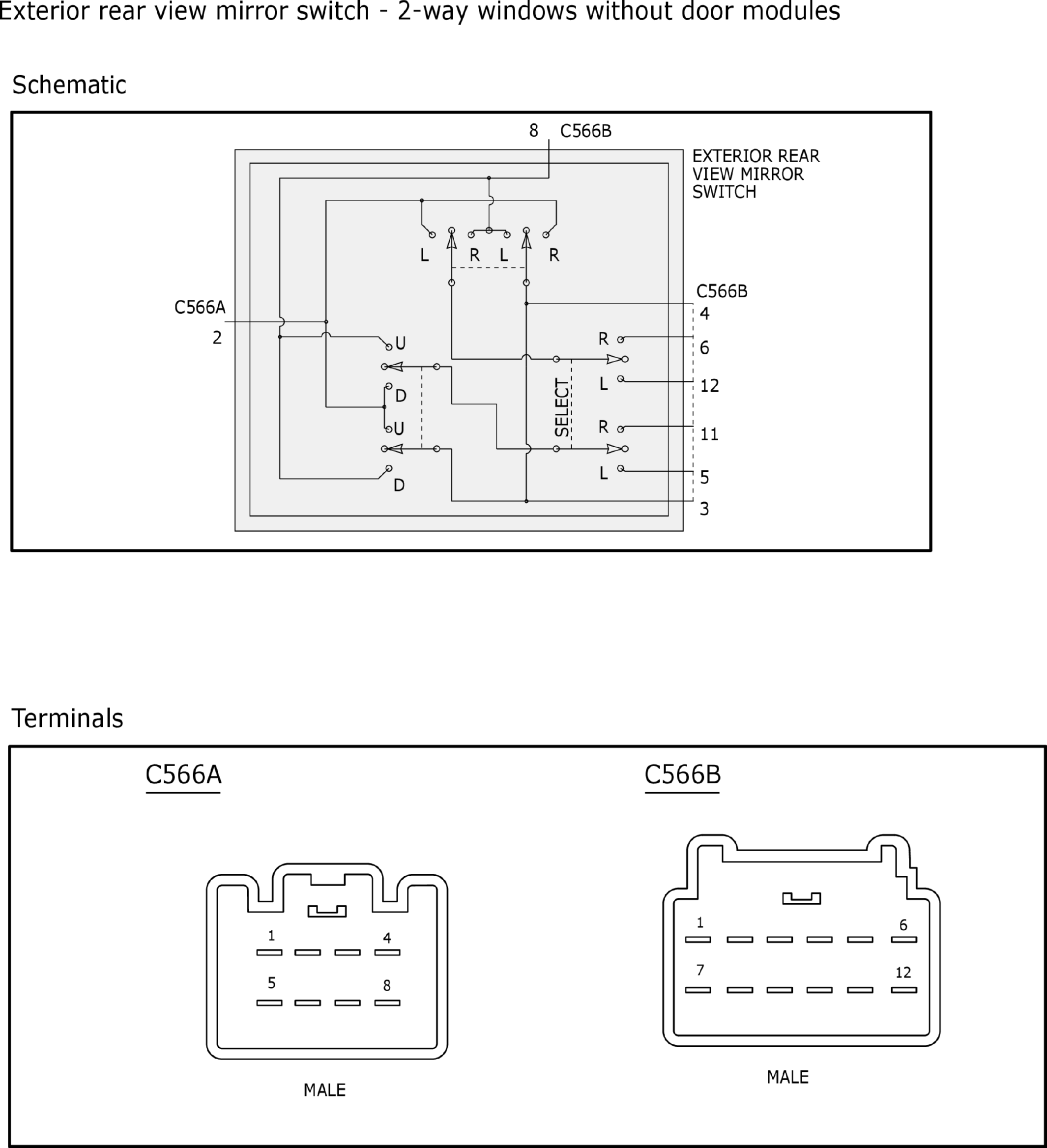

Fig 1: Exterior Rear View Mirror Switch (2-Way Windows Without Door Modules) (1 of 2)
Courtesy of FORD MOTOR COMPANY

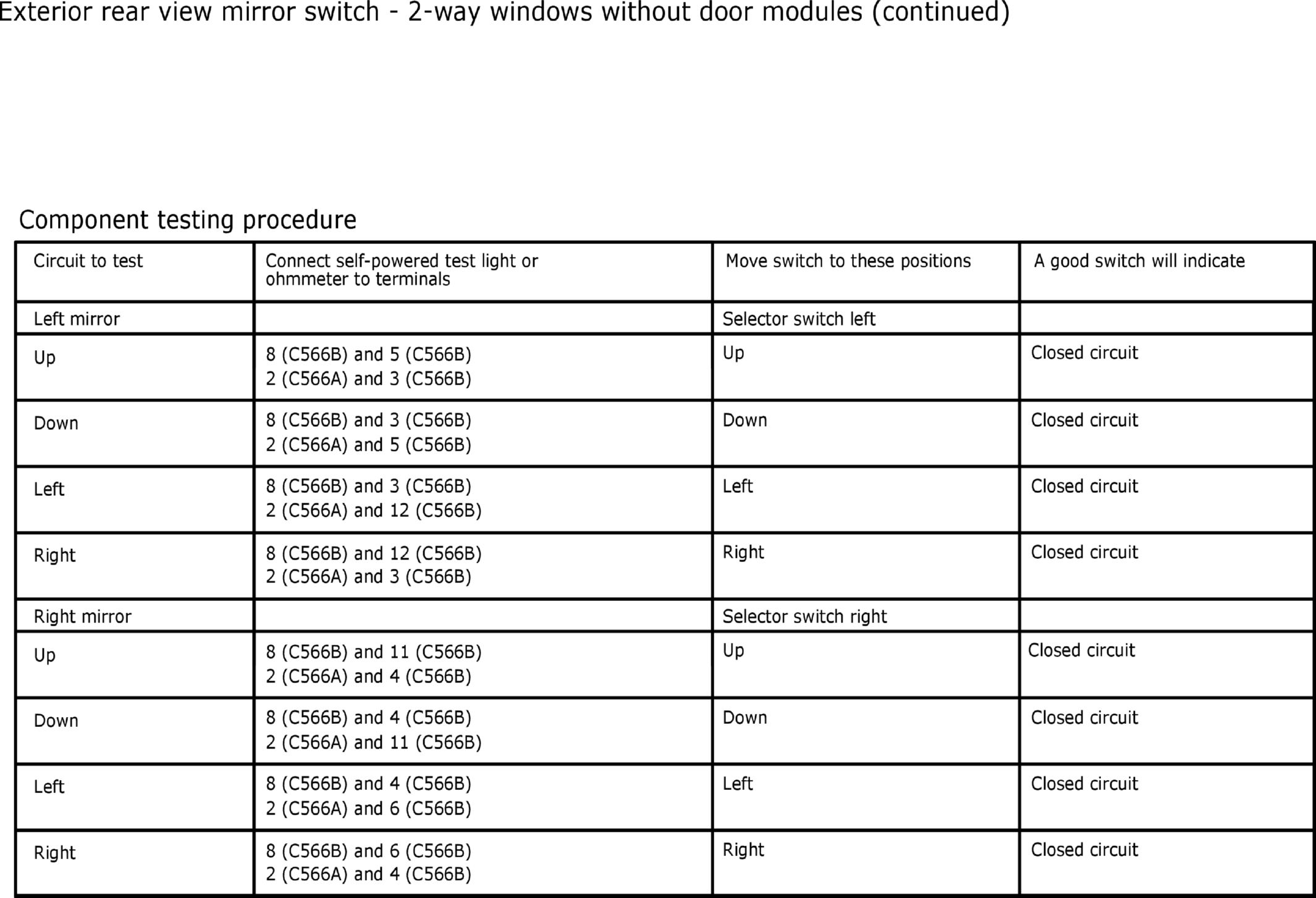

Fig 2: Exterior Rear View Mirror Switch (2-Way Windows Without Door Modules) (2 of 2)
