Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

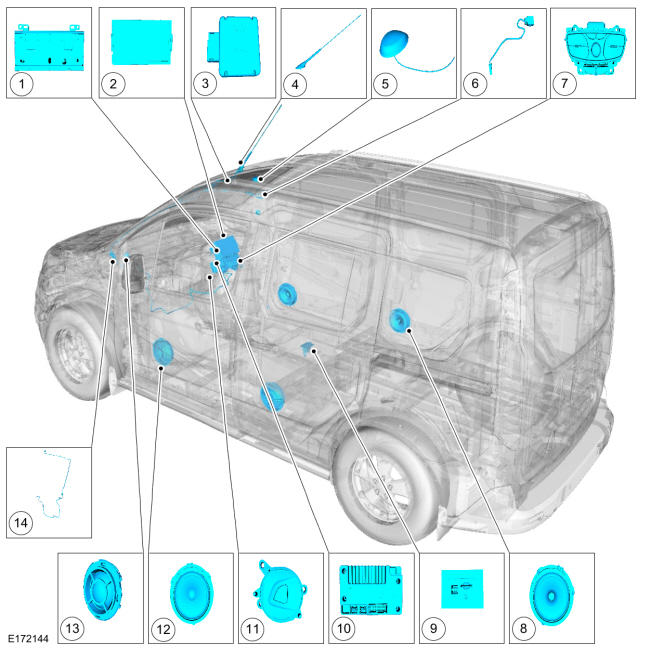

| Item | Description |
|---|---|
| 1 | ACM |
| 2 | 6.5-inch (165 mm) FDIM |
| 3 | GPSM |
| 4 | AM/ FM/HD Radio ® antenna |
| 5 | Satellite radio antenna |
| 6 | SYNC ® Microphone (located in the headliner) |
| 7 | FCIM |
| 8 | Right Rear (RR) door speaker (Left Rear (LR) also shown) |
| 9 | Media hub |
| 10 | APIM |
| 11 | RH steering wheel switches |
| 12 | Left Front (LF) door woofer speaker (Right Front (RF) also shown) |
| 13 | LH instrument panel tweeter speaker (RH side also shown) Comments: Wagon models only |
| 14 | AM/ FM/HD Radio ® antenna coaxial cable |
| - | Satellite radio antenna coaxial cable (not shown) Comments: Part of the 14401 harness |
| - | USB cable (not shown) Comments: Part of the 14401 harness |
