Climate Control Assembly: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

1.

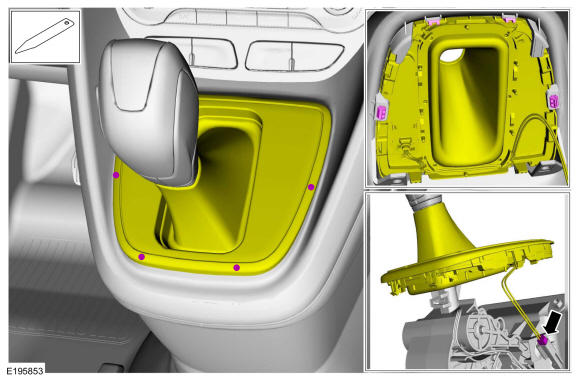

Release the clips and position the selector lever bezel aside.
- Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

2.

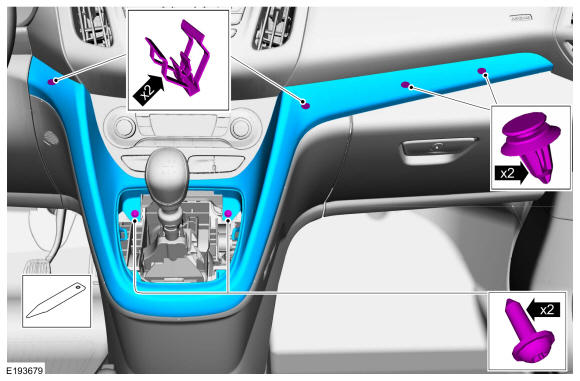

Remove the retainers, release the clips and remove the floor console upper trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

3.

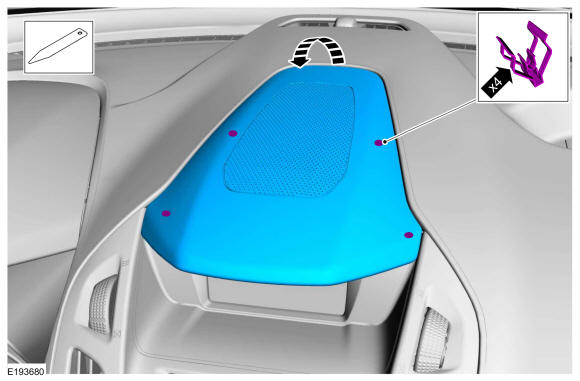

Release the clips and remove the instrument panel center upper trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

4.

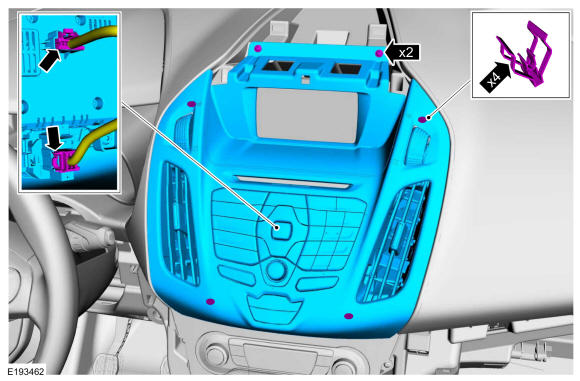

Remove the retainers, release the clips and remove the FCIM.
- Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

5.

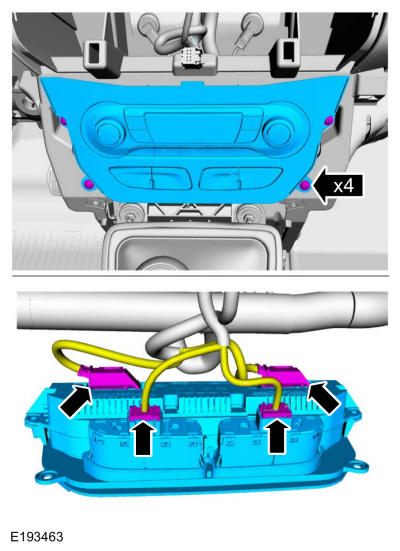

Remove the retainers and the climate control assembly.
- Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: This step is only necessary when installing a new component.

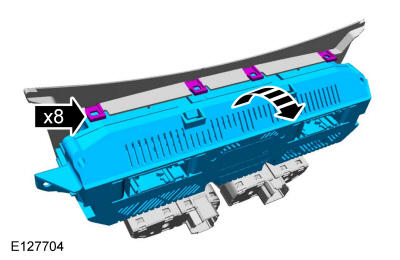

Release the retaining clips and remove the HVAC control module.

Courtesy of FORD MOTOR COMPANY
