Rear Climate Control Assembly: Removal
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

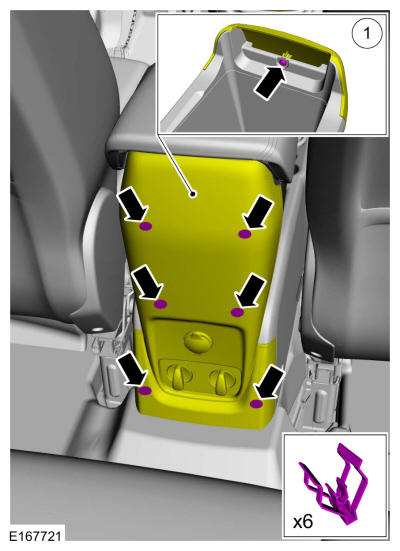

Release the clips and remove the rear floor console finish panel.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

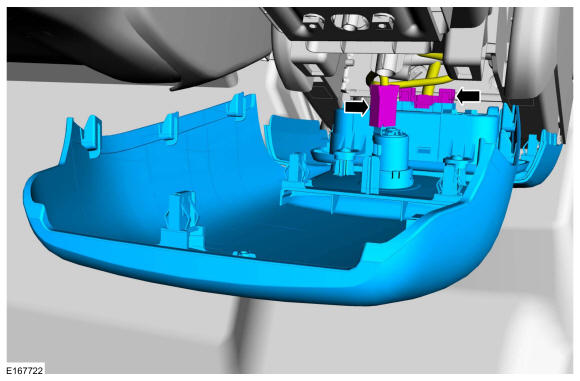

Disconnect the electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

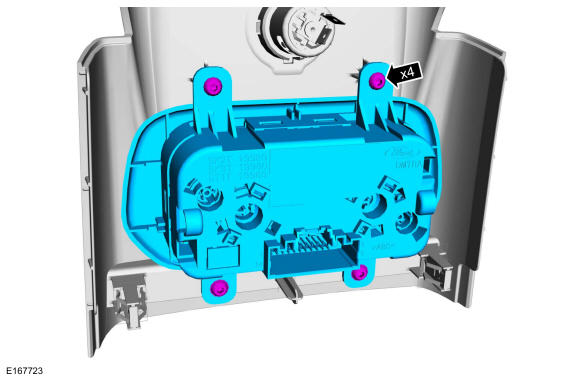

Remove the retainers and the RHVAC control module.
 Courtesy of FORD MOTOR COMPANY
|
