Front Bumper Cover: Assembly

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

1.

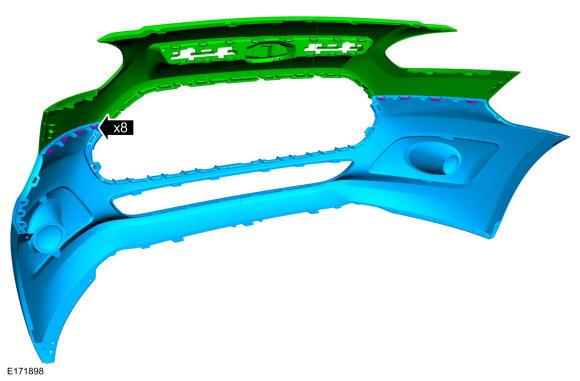

Install the lower bumper cover.

Courtesy of FORD MOTOR COMPANY

2.

Install the front bumper cover trim.

Courtesy of FORD MOTOR COMPANY

3.

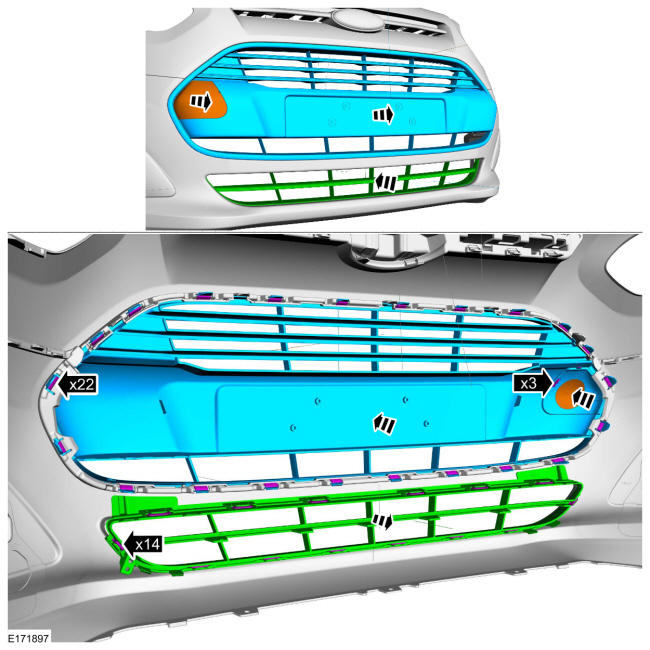

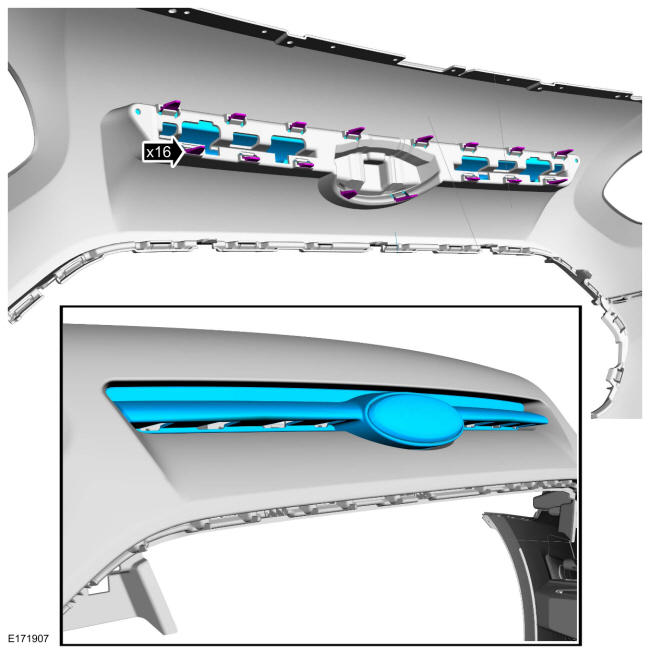

Install the lower radiator grille, the upper radiator grille and the front tow hook cover.

Courtesy of FORD MOTOR COMPANY

4.

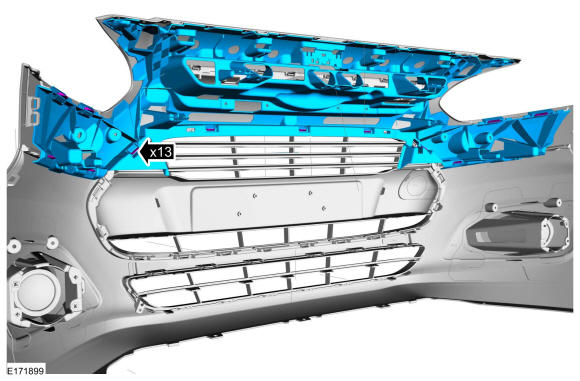

Install the bumper reinforcement.

Courtesy of FORD MOTOR COMPANY

5.

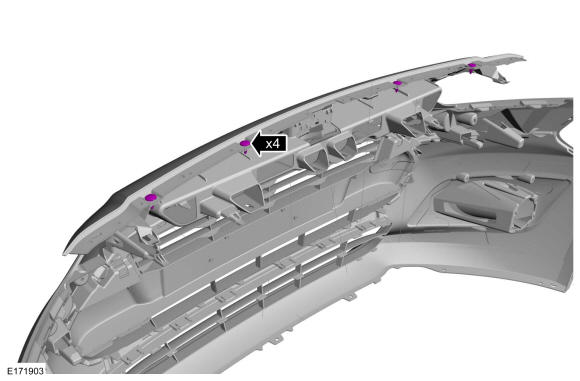

Install the push pins. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

6.

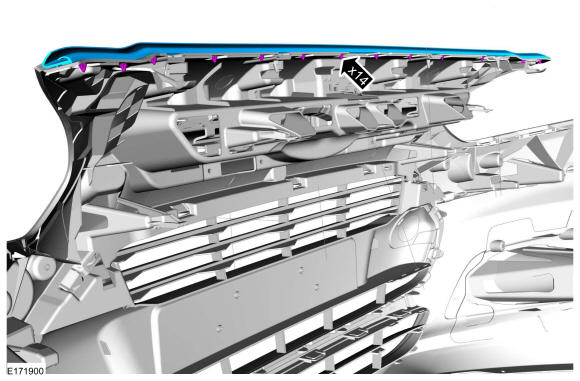

Install the hood seal.

Courtesy of FORD MOTOR COMPANY

Vehicles with front parking aid

7.

NOTE: Take extra care not to scratch the bumper cover.

NOTE: Cutlines already exist on the inner surface of a new bumper cover.

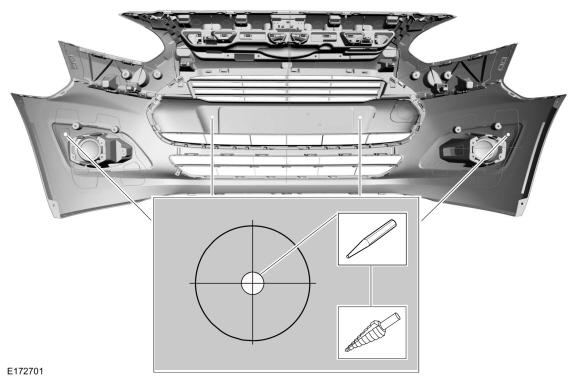

- Using a suitable center punch and hammer, mark the center of the parking aid sensor location holes.
- Using a suitable electric hand drill and a step drill, cut the bumper cover within the indicated area. Use the General Equipment: Electric Drill Use the General Equipment: Step Drill

Courtesy of FORD MOTOR COMPANY

8.

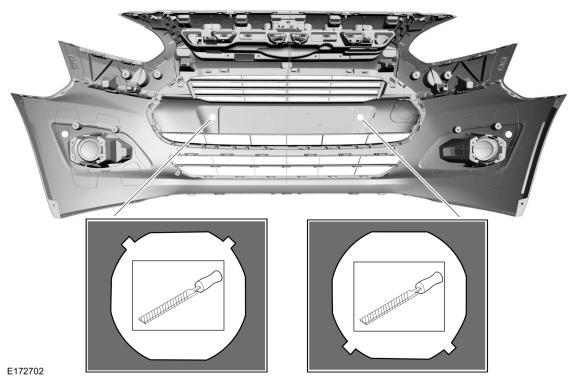

Using a suitable flat file (no more than 2mm wide), cut the parking aid sensor housing location grooves in the bumper cover as shown. Use the General Equipment: Flat File

Courtesy of FORD MOTOR COMPANY

9.

Using a suitable flat file (no more than 2mm wide), cut the parking aid sensor housing location grooves in the bumper cover as shown. Use the General Equipment: Flat File

Courtesy of FORD MOTOR COMPANY

10.

NOTE: Pressure must not be applied to the outer face of the parking aid sensor.

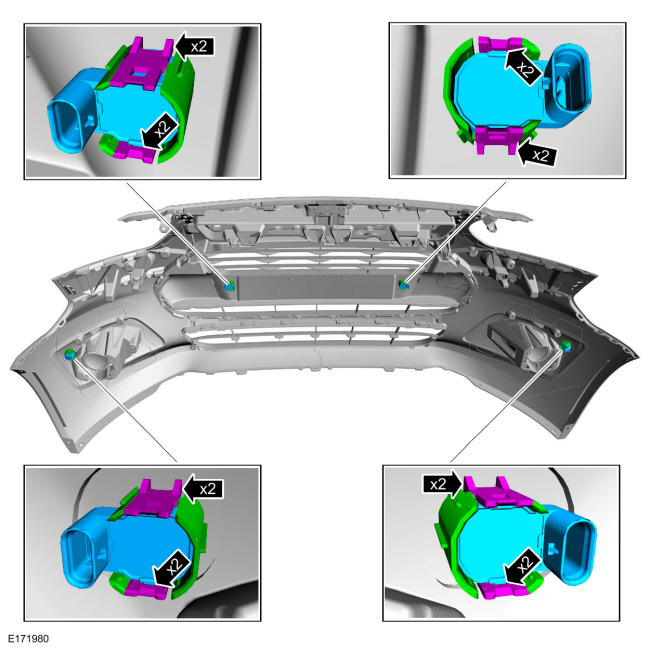

Install the front parking aid sensors.

Courtesy of FORD MOTOR COMPANY

Vehicles with front fog lamps

11.

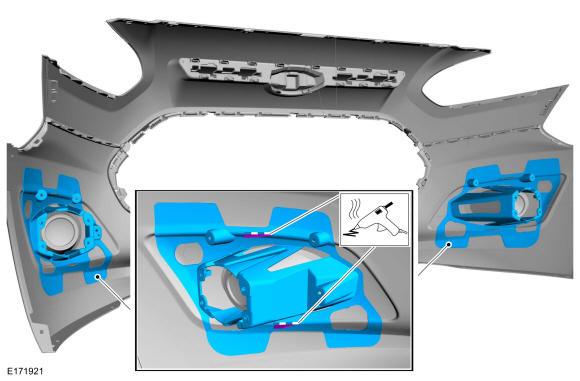

Install the front fog lamp mounting assembly. Use the General Equipment: Hot Glue Gun

Courtesy of FORD MOTOR COMPANY

12.

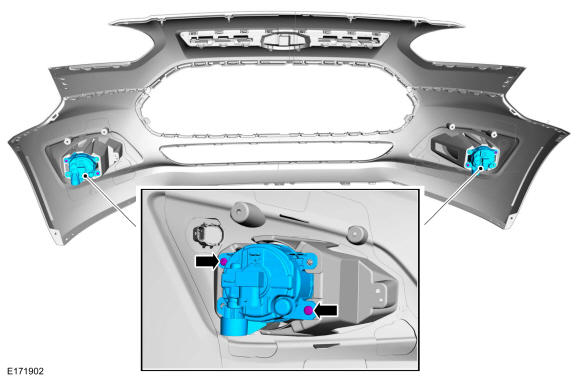

Install the front fog lamps and tighten the screws.

Courtesy of FORD MOTOR COMPANY

All vehicles

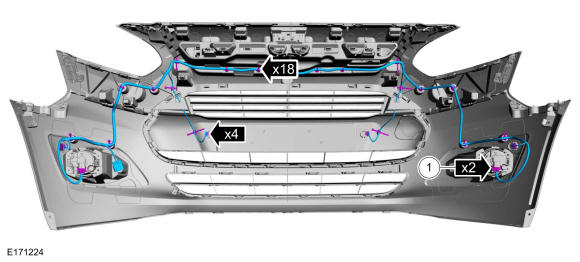

13.

If equipped.
- 1.

  Install the front fog lamp electrical connectors.
- 2.

  Install the front parking aid electrical connectors.
- 3.

  Install the electrical wire harness and attach the retainers.

Courtesy of FORD MOTOR COMPANY

14.

Install the front bumper cover. Refer to: Front Bumper Cover .
