Front Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the front bumper cover. Refer to: Front Bumper Cover .

2.

If equipped.
- 1.

  Disconnect the front fog lamp electrical connectors.
- 2.

  Disconnect the front parking aid electrical connectors.
- 3.

  Detach the retainers and remove the electrical wire harness.

GFD151673

Courtesy of FORD MOTOR COMPANY

Vehicles with front parking aid

3.

NOTE: Pressure must not be applied to the outer face of the parking aid sensor.

Release the tabs and remove the front parking aid sensor from the bracket.

GFD151674

Courtesy of FORD MOTOR COMPANY

All vehicles

4.

Remove the retainers and the hood seal.

GFD151675

Courtesy of FORD MOTOR COMPANY

5.

Remove the push pins. Use the General Equipment: Interior Trim Remover

GFD151676

Courtesy of FORD MOTOR COMPANY

6.

Release the tabs and remove the bumper reinforcement.

GFD151677

Courtesy of FORD MOTOR COMPANY

7.

Release the tabs, remove the tow hook cover, remove the upper radiator grille and the lower radiator grille.

GFD151678

Courtesy of FORD MOTOR COMPANY

8.

Release the tabs and remove the front bumper cover upper trim.

GFD151679

Courtesy of FORD MOTOR COMPANY

9.

Release the tabs and remove the lower bumper cover.

GFD151680

Courtesy of FORD MOTOR COMPANY

Vehicles with front fog lamps

10.

Remove the screws and the front fog lamps.

GFD151681

Courtesy of FORD MOTOR COMPANY

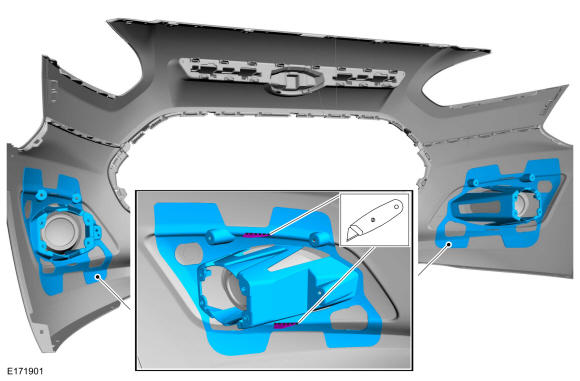

11.

Cut the sealing and remove the front fog lamp mounting assembly. Use the General Equipment: Knife

GFD151682

Courtesy of FORD MOTOR COMPANY
