Driver Door Window Control Switch - Without Door Modules 4-Way

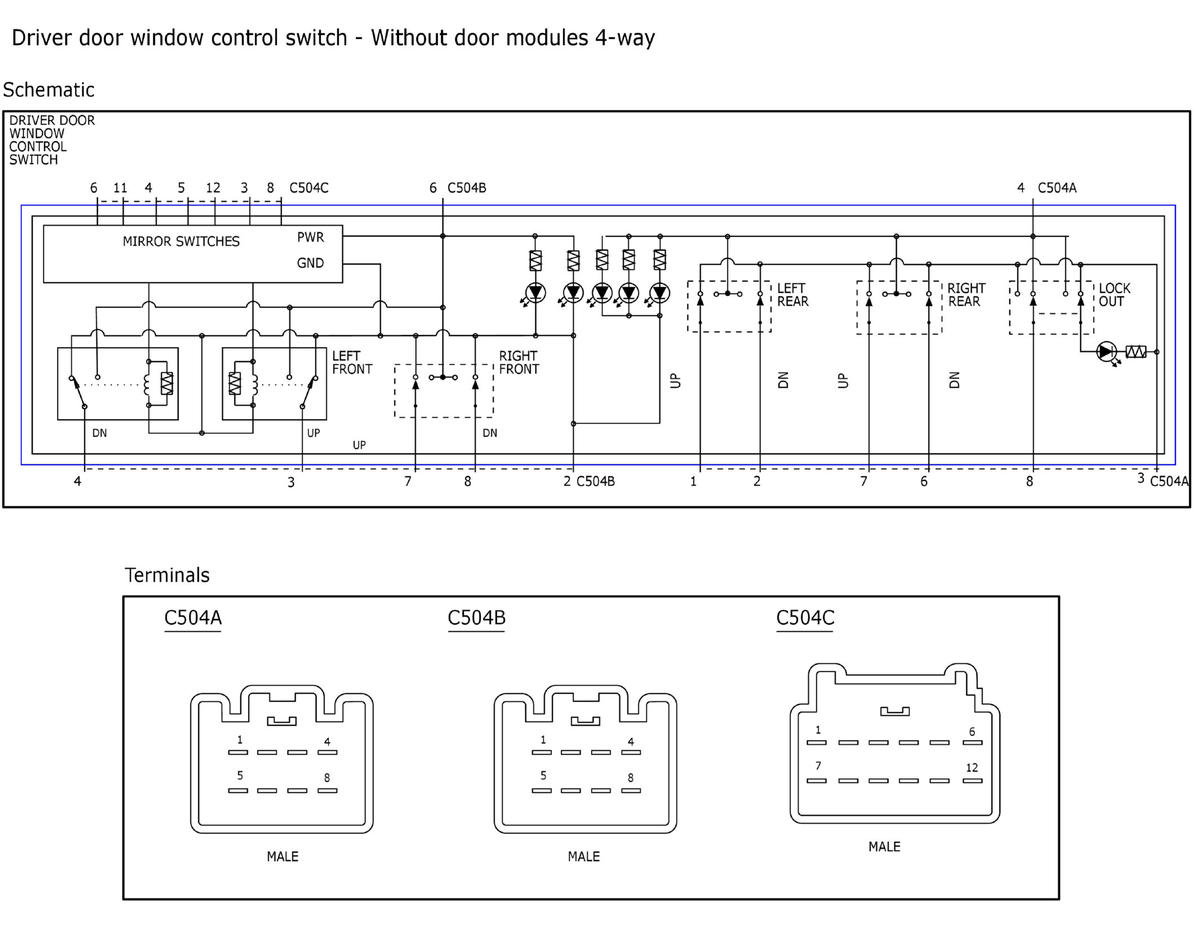

Fig 1: Driver Door Window Control Switch - Without Door Modules 4-Way (1 of 2)
GFDW85938Courtesy of FORD MOTOR COMPANY

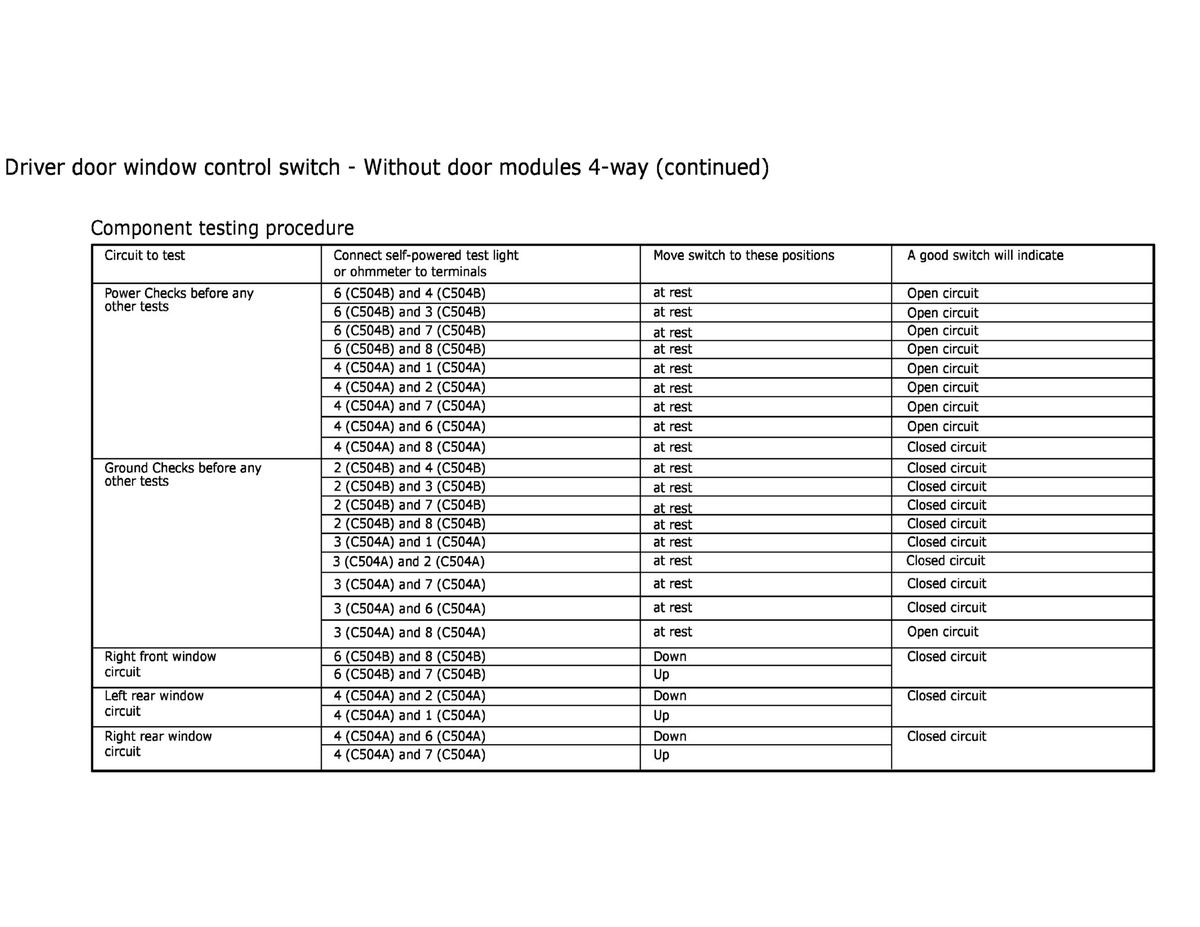

Fig 2: Driver Door Window Control Switch - Without Door Modules 4-Way (2 of 2)
GFDW85939Courtesy of FORD MOTOR COMPANY
