Heated Seat Switch

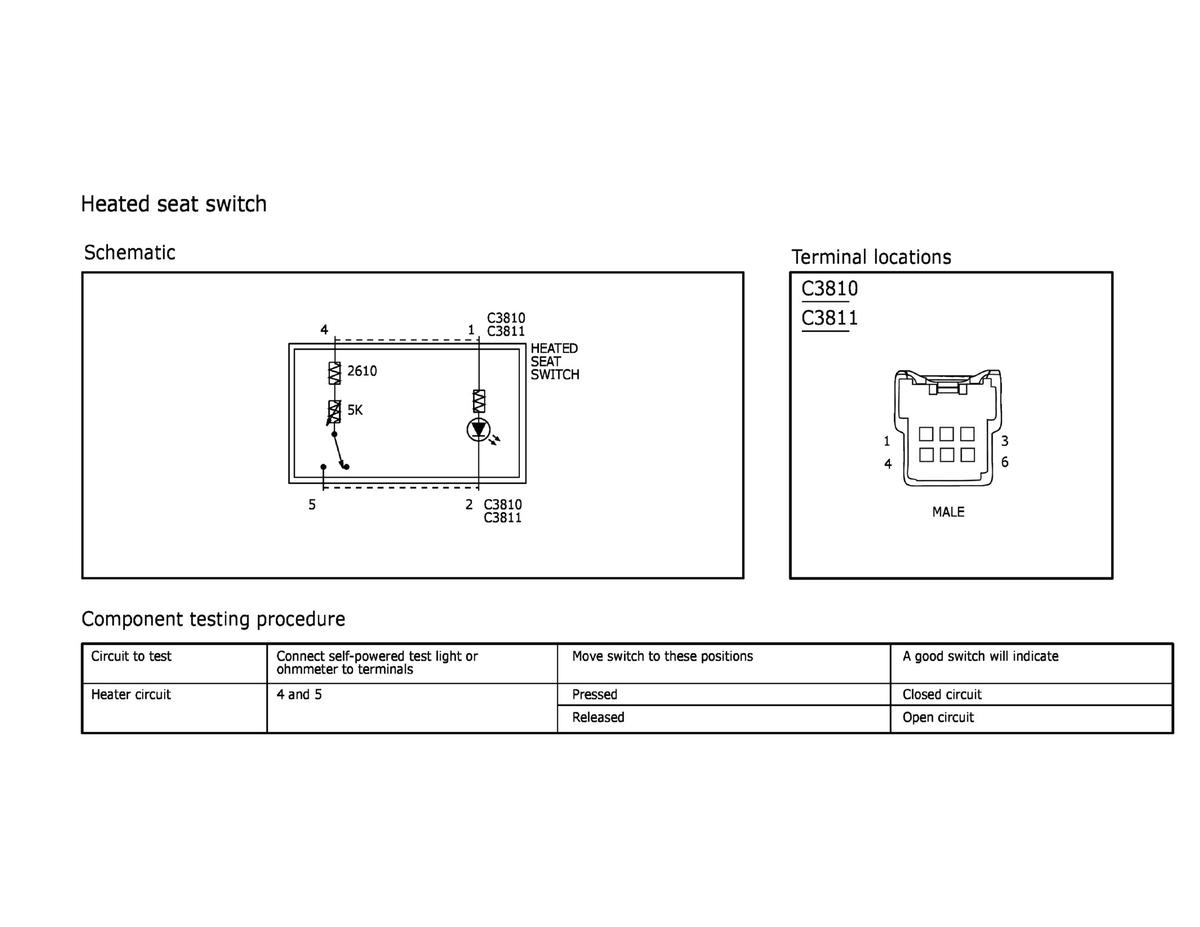

Fig 1: Heated Seat Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
