Component Testing: Relays

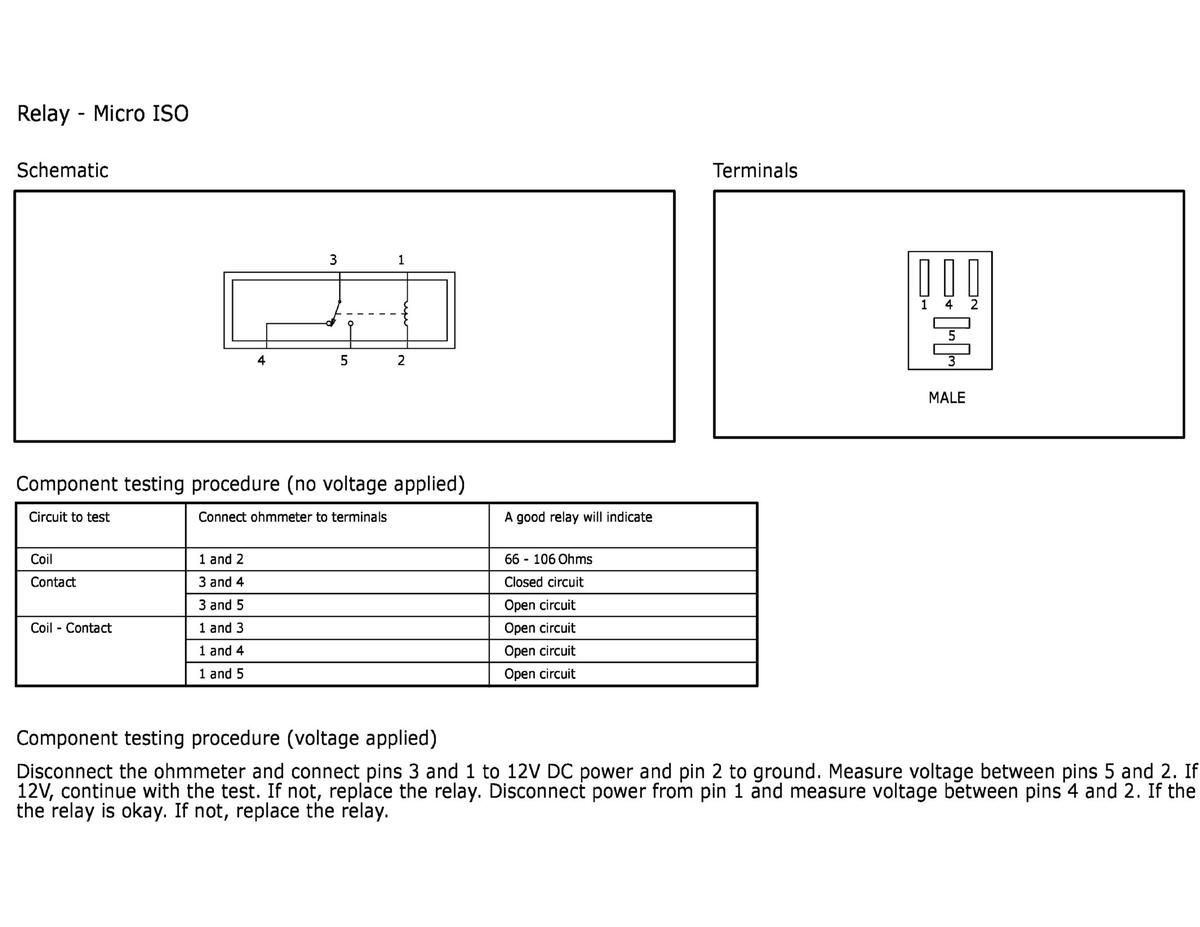

Fig 1: Relay - Micro ISO
GFDW85933Courtesy of FORD MOTOR COMPANY

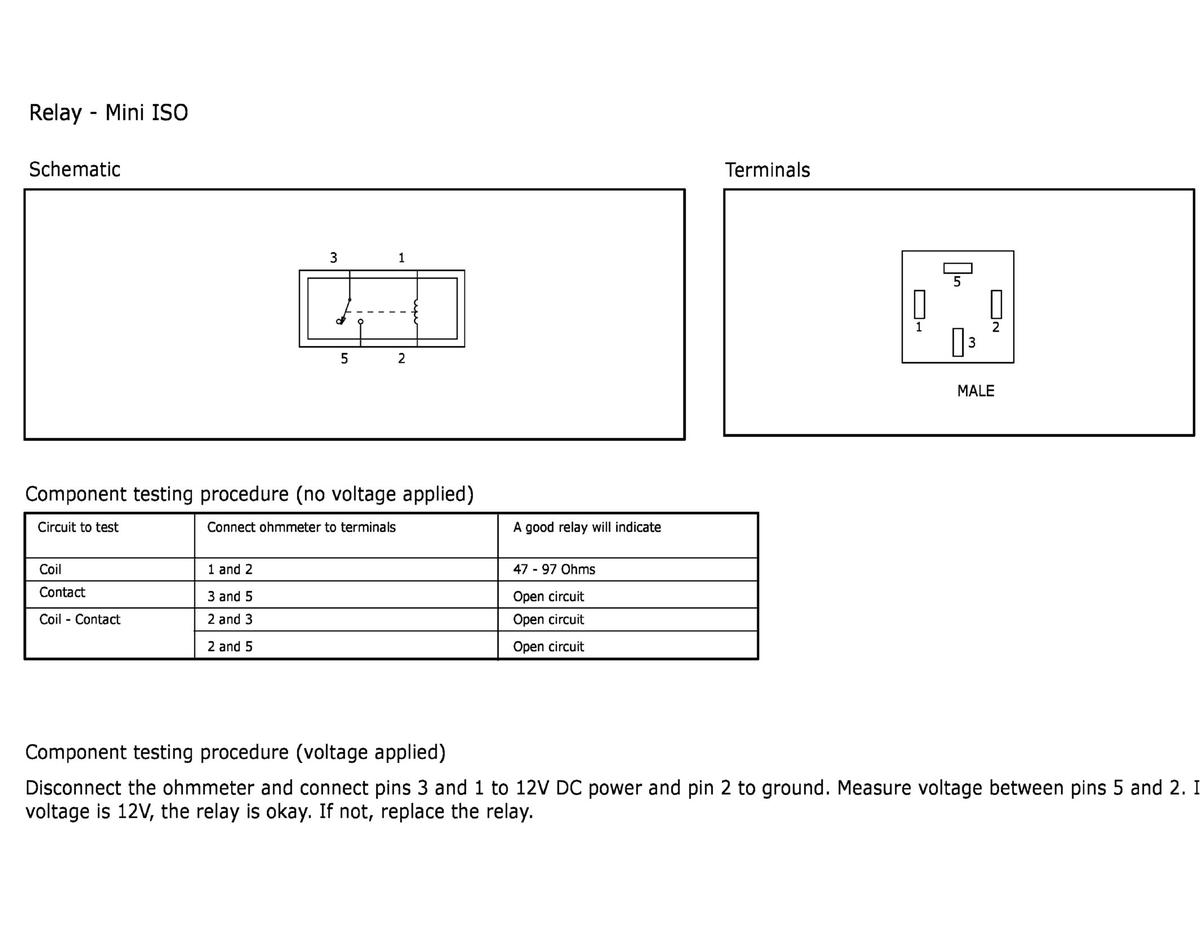

Fig 2: Relay - Mini ISO
GFDW85934Courtesy of FORD MOTOR COMPANY

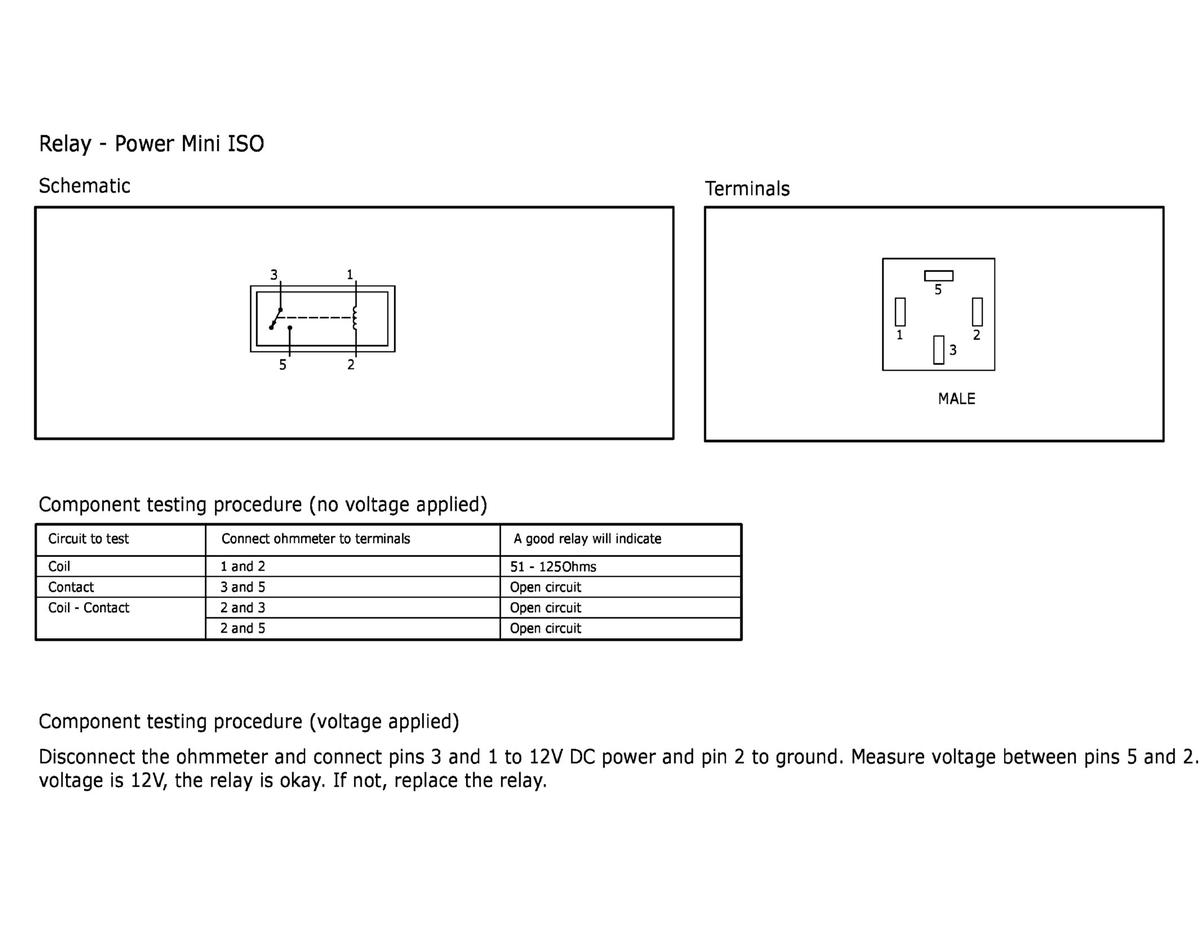

Fig 3: Relay - Power Mini ISO
GFDW85935Courtesy of FORD MOTOR COMPANY
