Window Control Switch - Without Door Modules

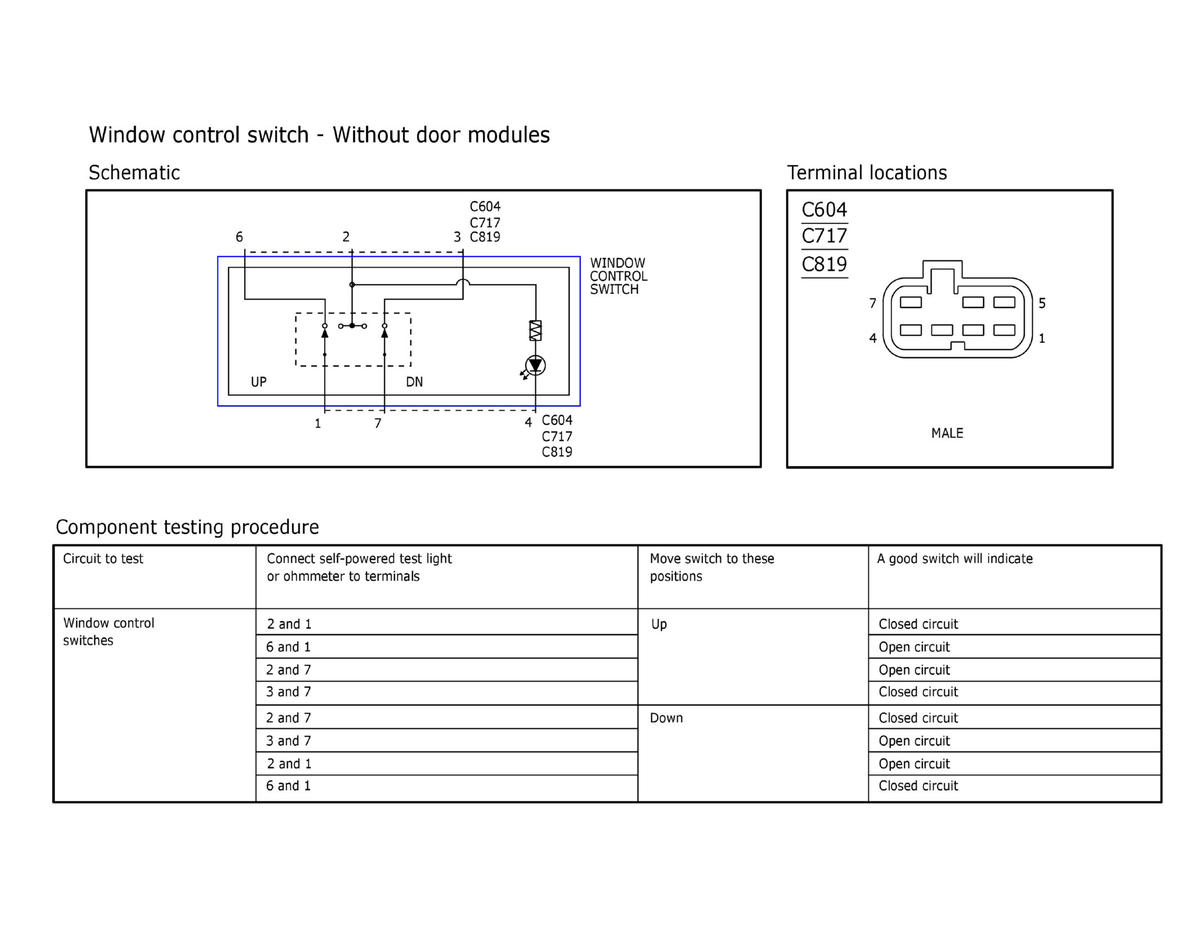

Fig 1: Window Control Switch - Without Door Modules
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
