Power Windows

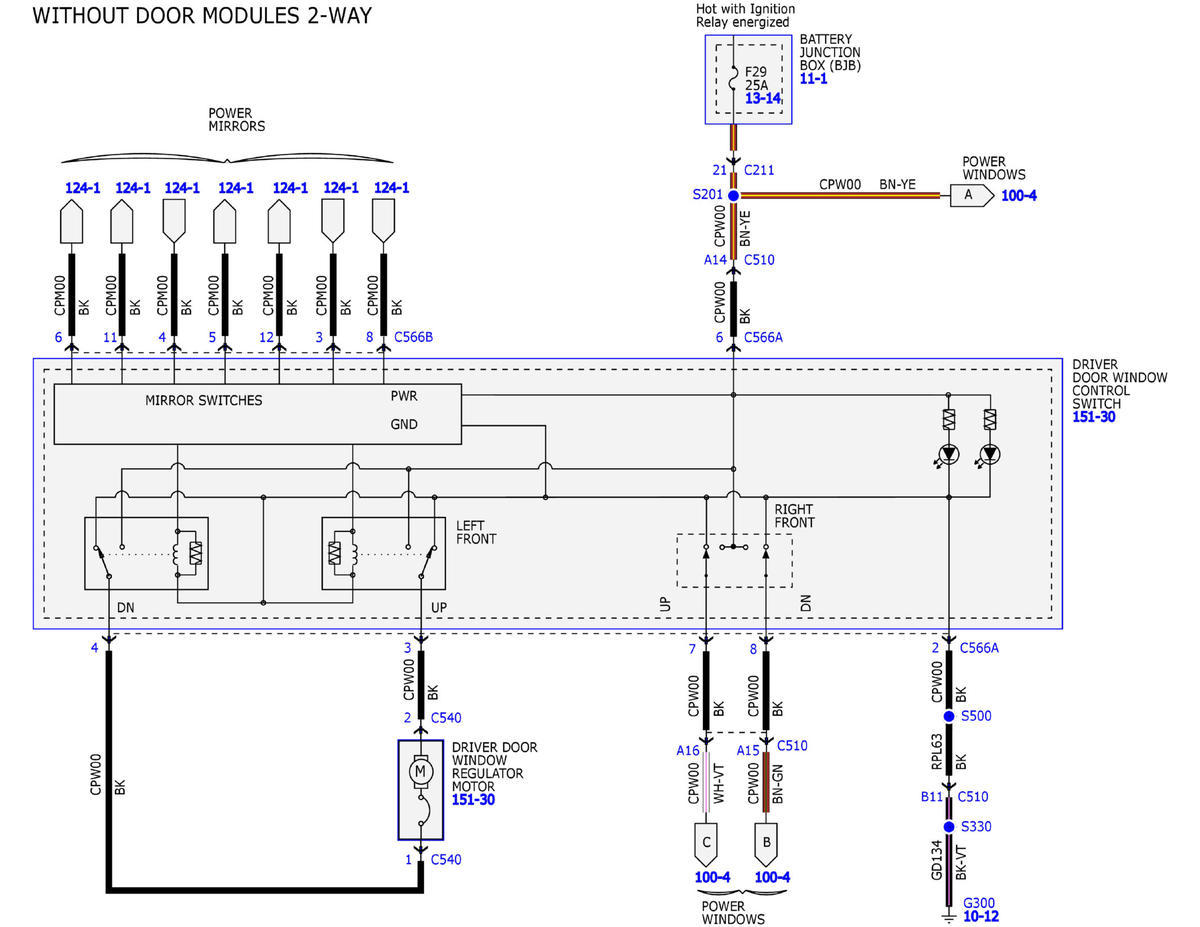

Fig 1: Power Windows Wiring Diagram (1 of 15)

GFDW85877

Courtesy of FORD MOTOR COMPANY

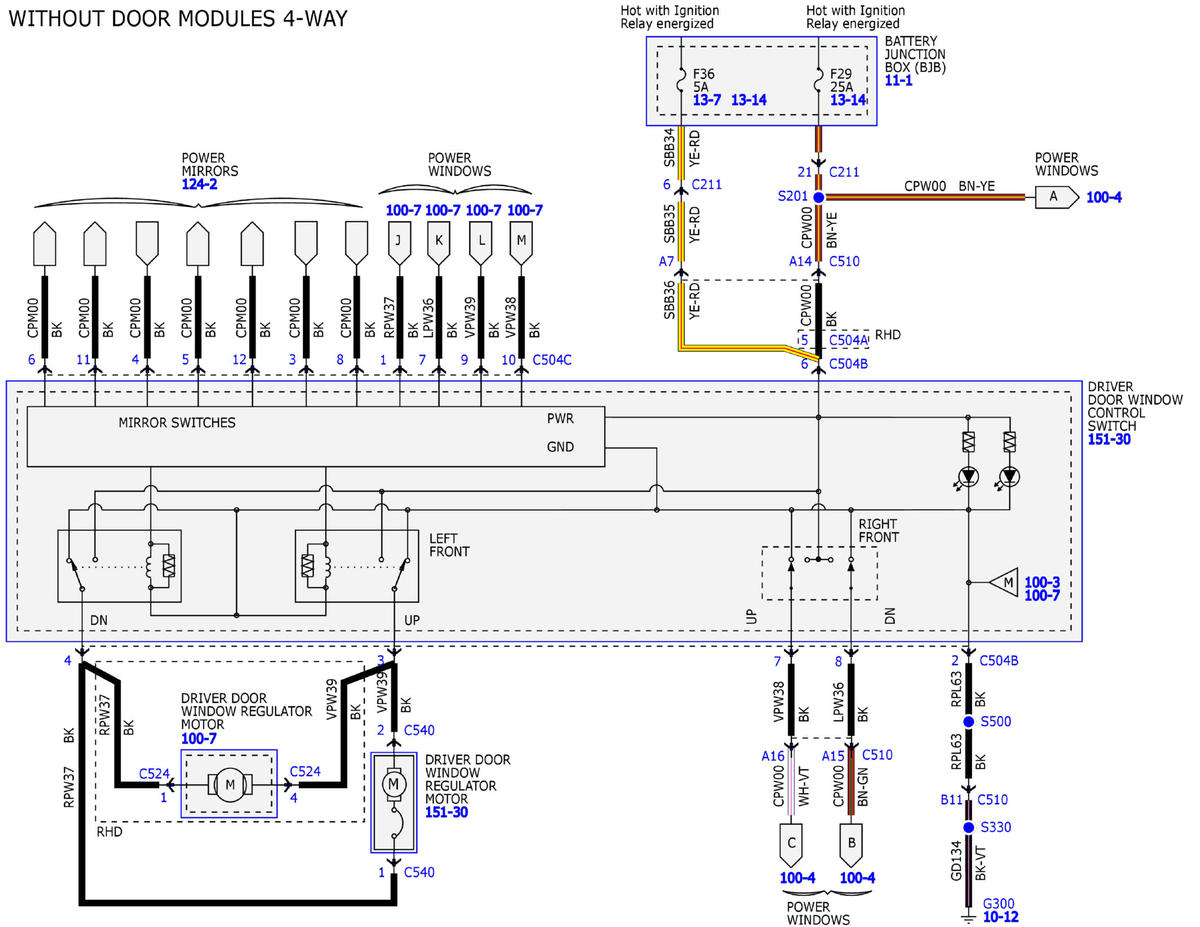

Fig 2: Power Windows Wiring Diagram (2 of 15)

GFDW85878

Courtesy of FORD MOTOR COMPANY

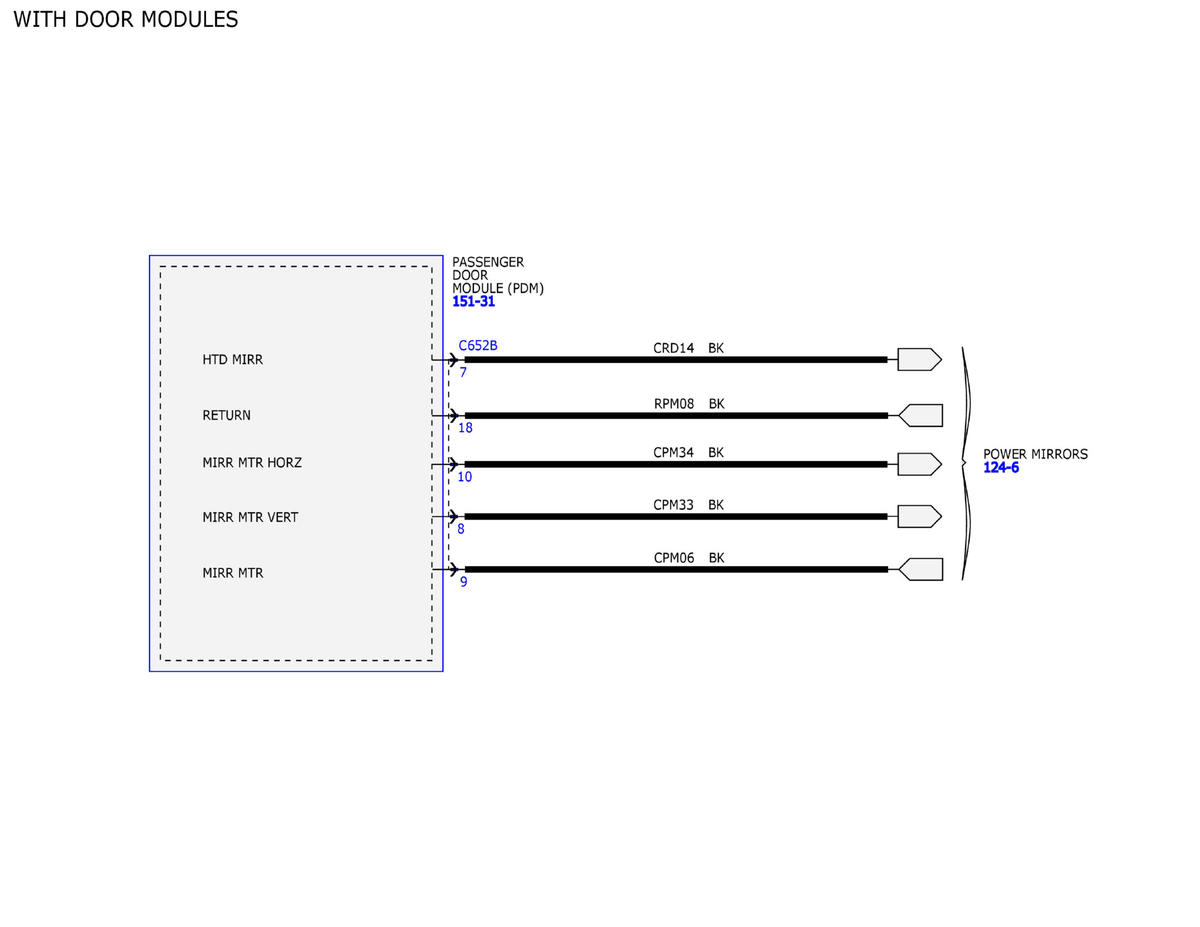

Fig 3: Power Windows Wiring Diagram (3 of 15)

GFDW85879

Courtesy of FORD MOTOR COMPANY

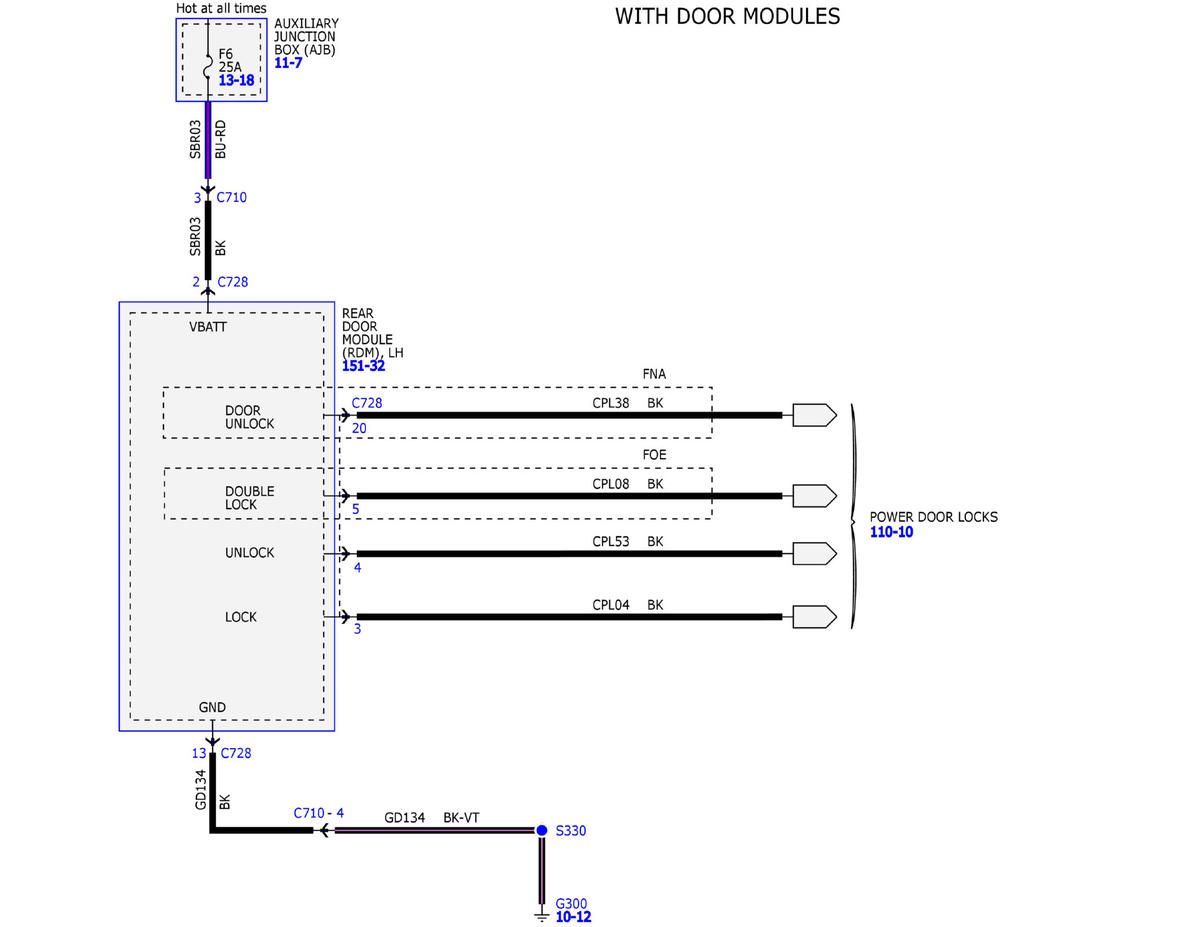

Fig 4: Power Windows Wiring Diagram (4 of 15)

GFDW85880

Courtesy of FORD MOTOR COMPANY

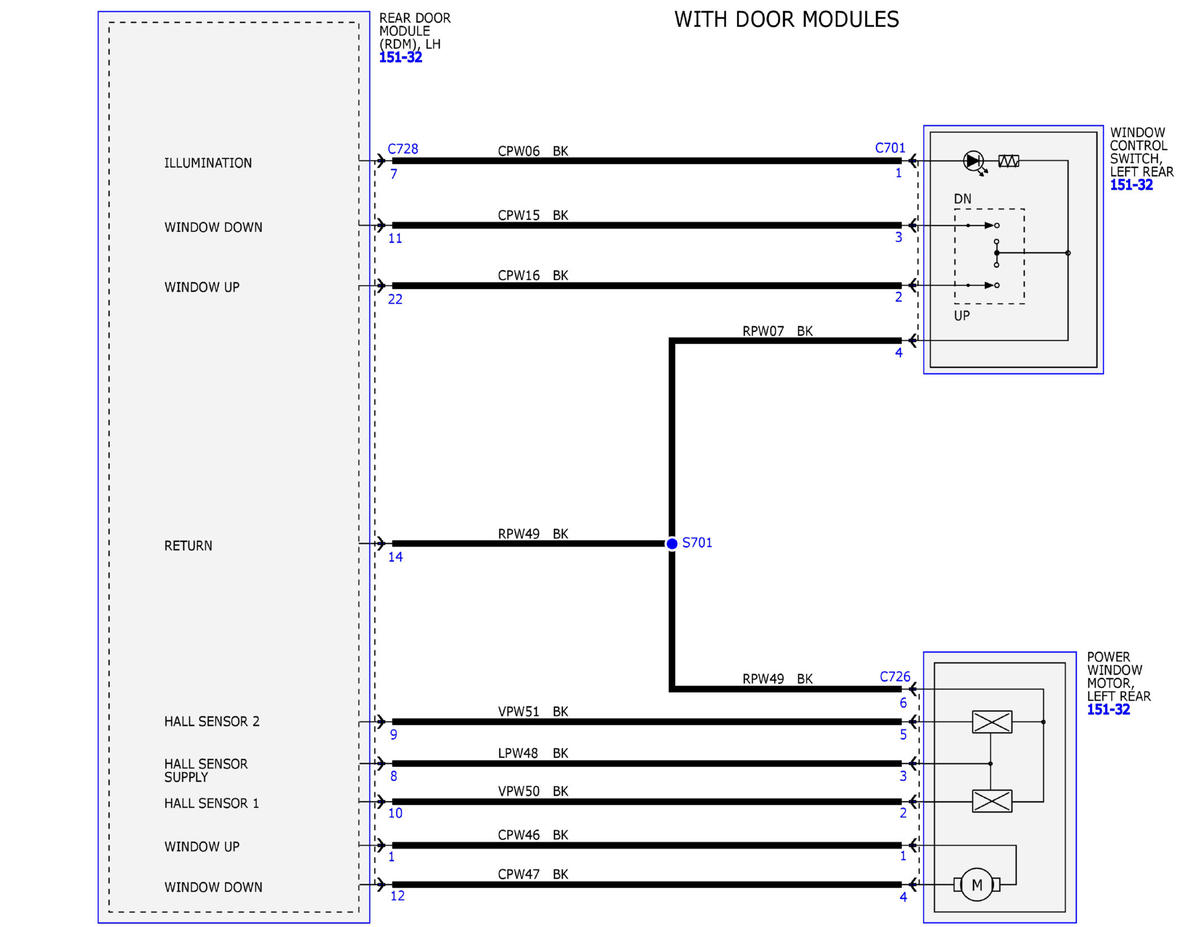

Fig 5: Power Windows Wiring Diagram (5 of 15)

GFDW85881

Courtesy of FORD MOTOR COMPANY

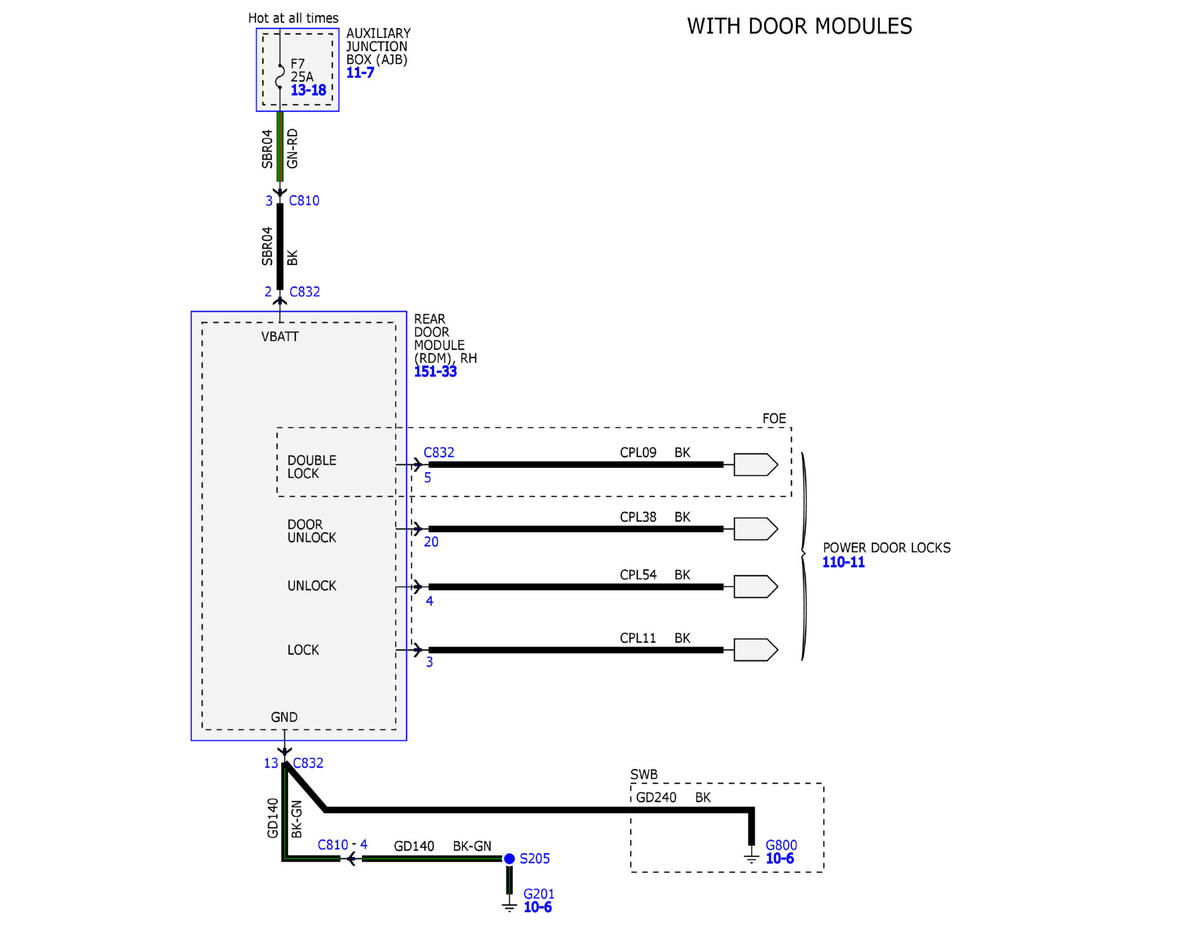

Fig 6: Power Windows Wiring Diagram (6 of 15)

GFDW85882

Courtesy of FORD MOTOR COMPANY

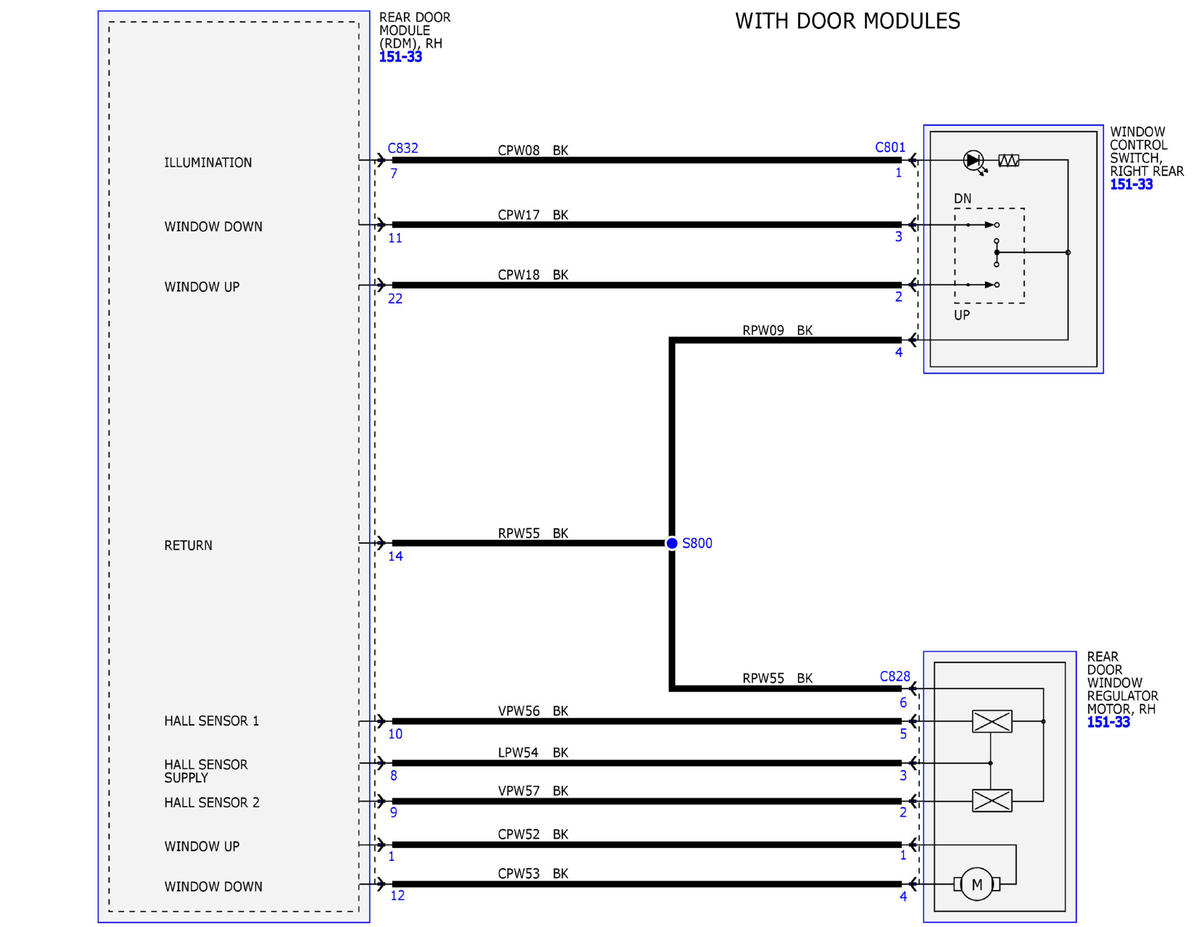

Fig 7: Power Windows Wiring Diagram (7 of 15)

GFDW85883

Courtesy of FORD MOTOR COMPANY

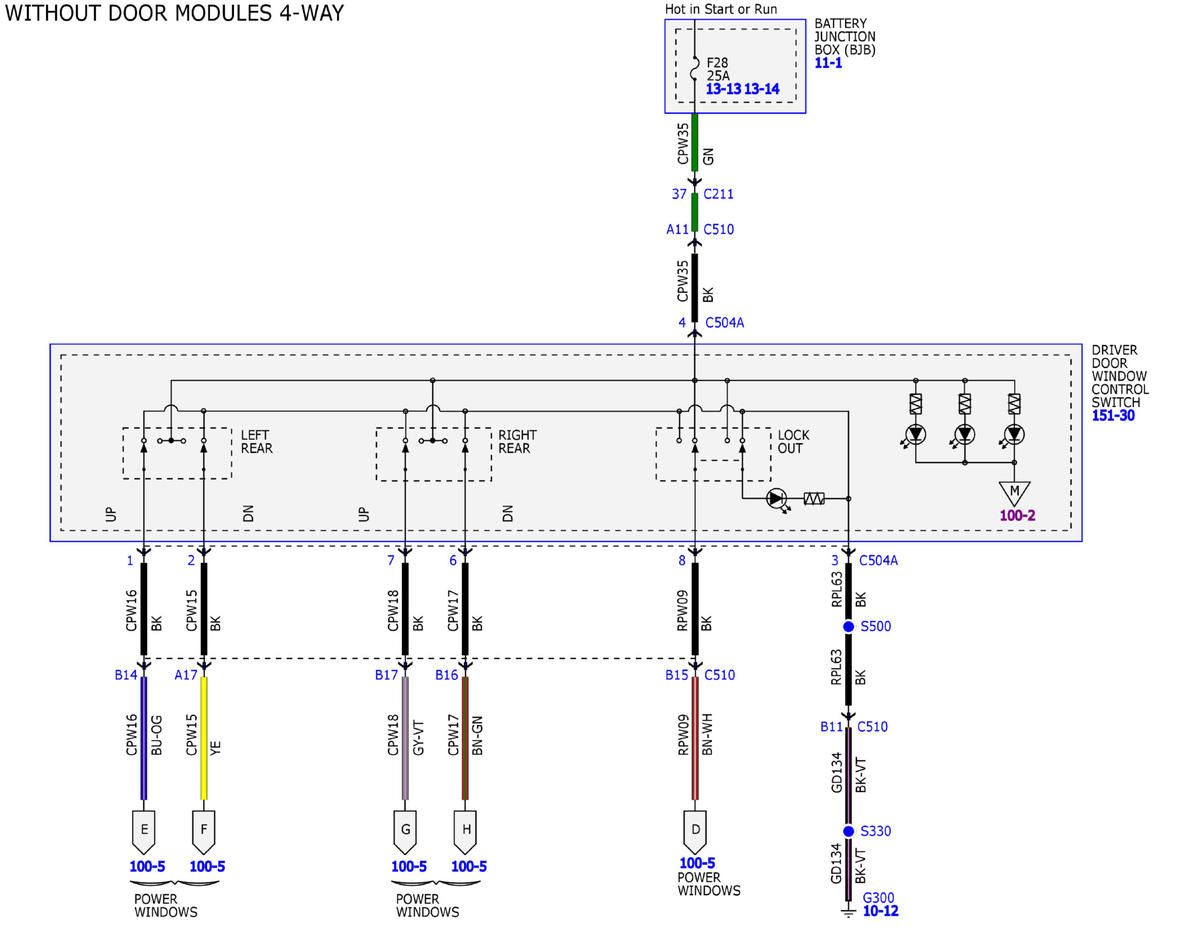

Fig 8: Power Windows Wiring Diagram (8 of 15)

GFDW85884

Courtesy of FORD MOTOR COMPANY

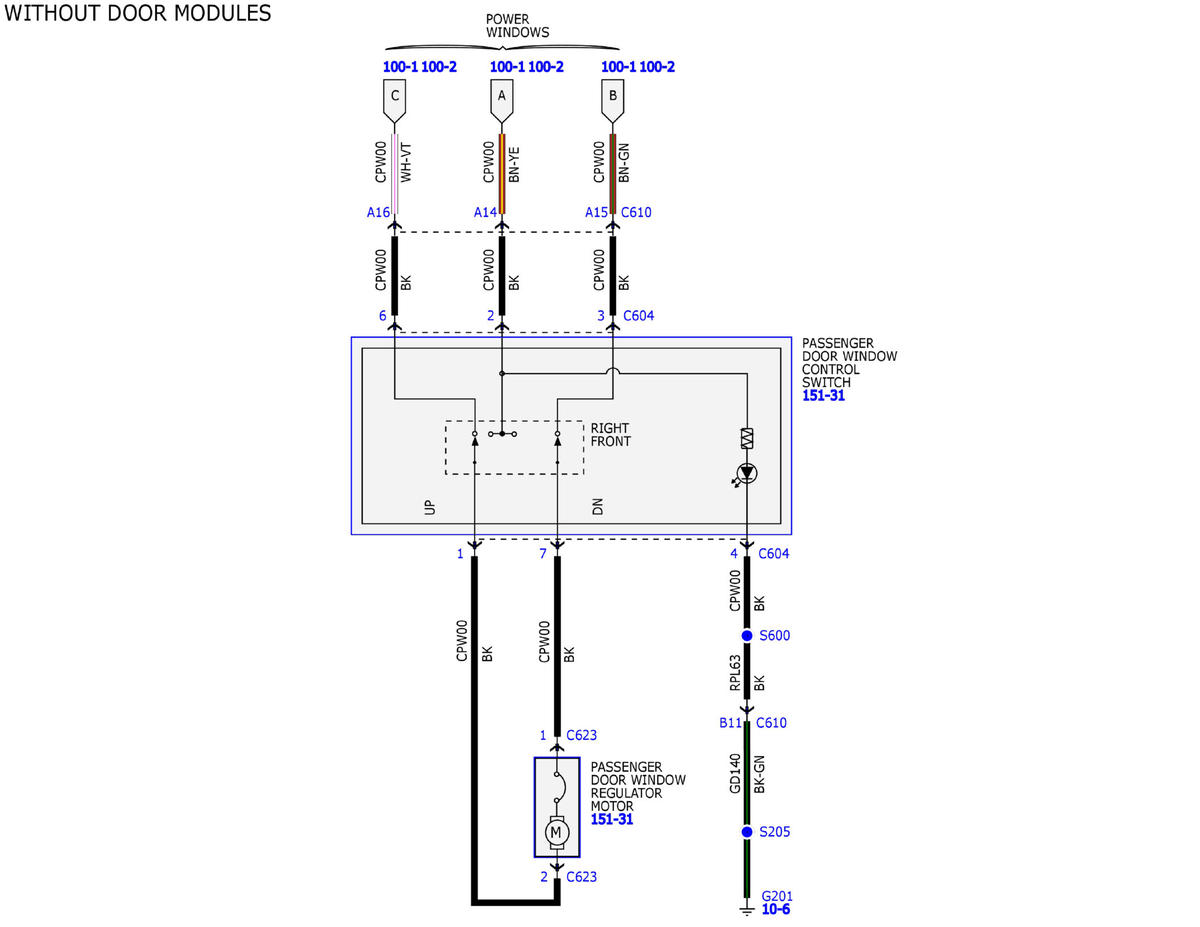

Fig 9: Power Windows Wiring Diagram (9 of 15)

GFDW85885

Courtesy of FORD MOTOR COMPANY

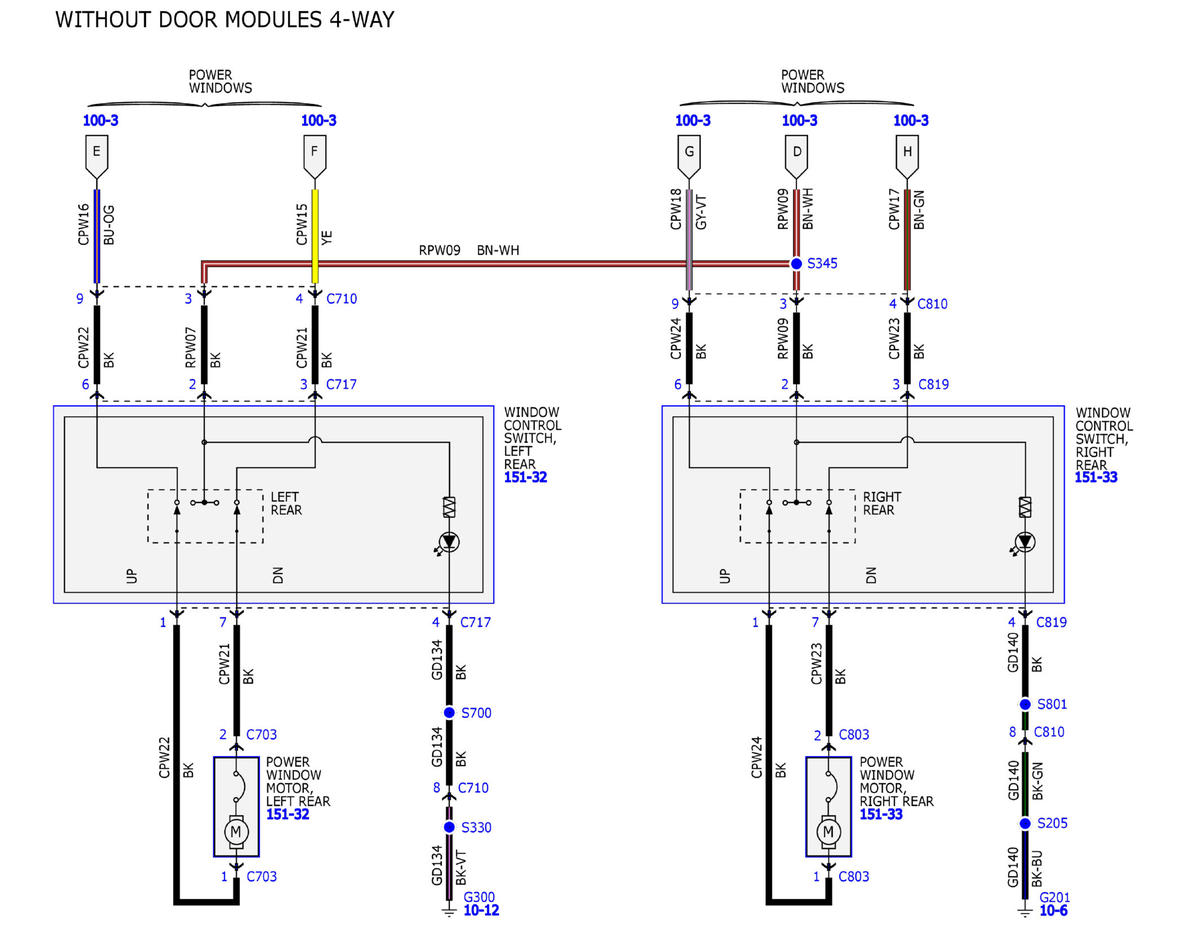

Fig 10: Power Windows Wiring Diagram (10 of 15)

GFDW85886

Courtesy of FORD MOTOR COMPANY

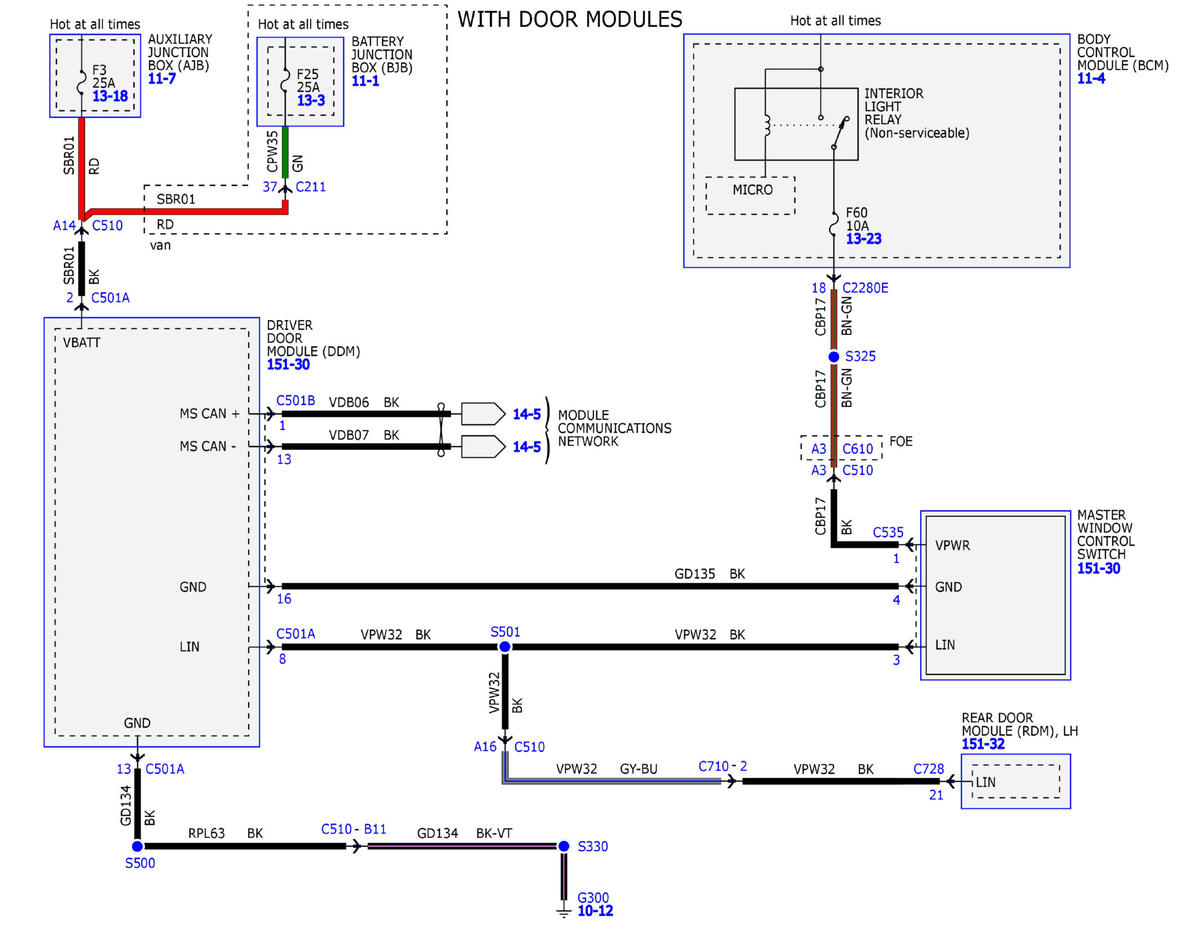

Fig 11: Power Windows Wiring Diagram (11 of 15)

GFDW85887

Courtesy of FORD MOTOR COMPANY

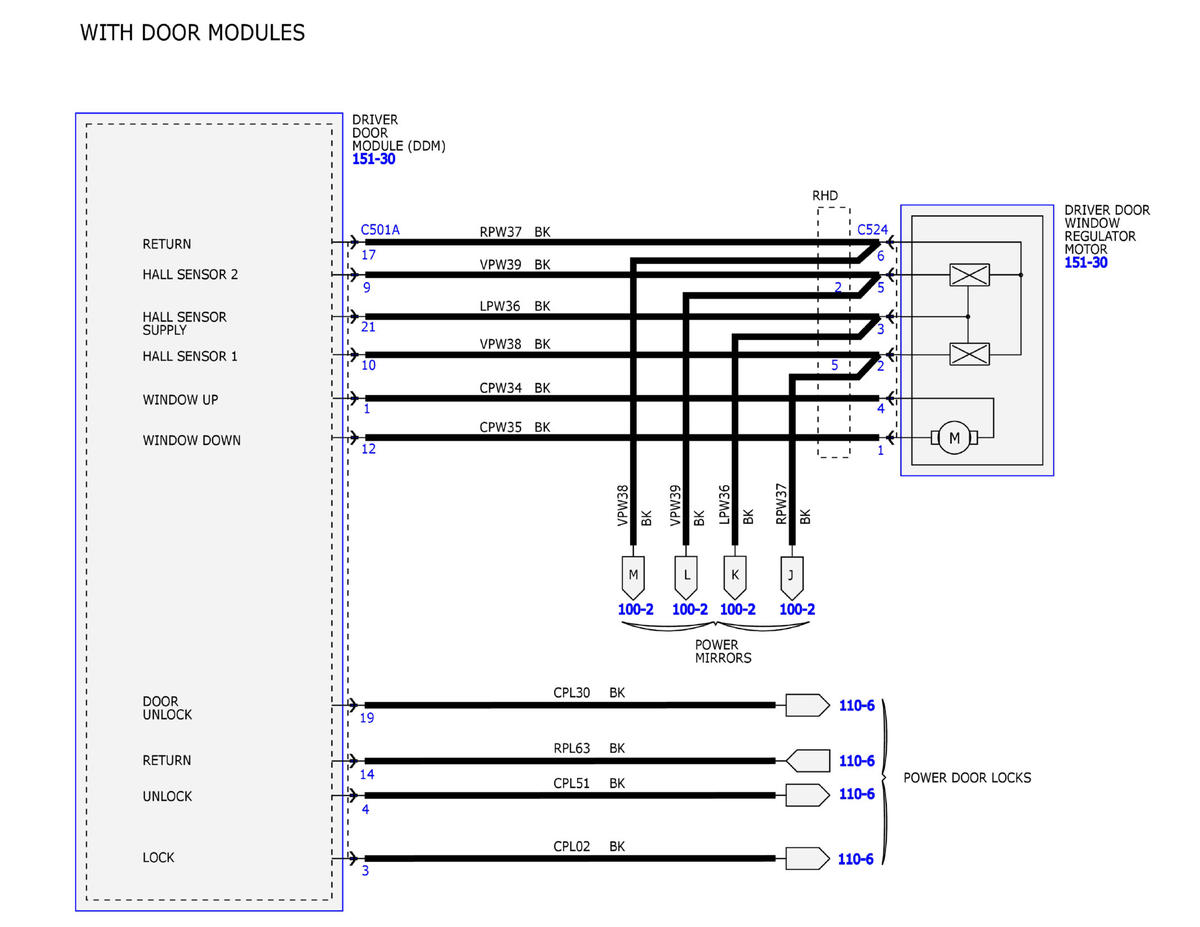

Fig 12: Power Windows Wiring Diagram (12 of 15)

GFDW85888

Courtesy of FORD MOTOR COMPANY

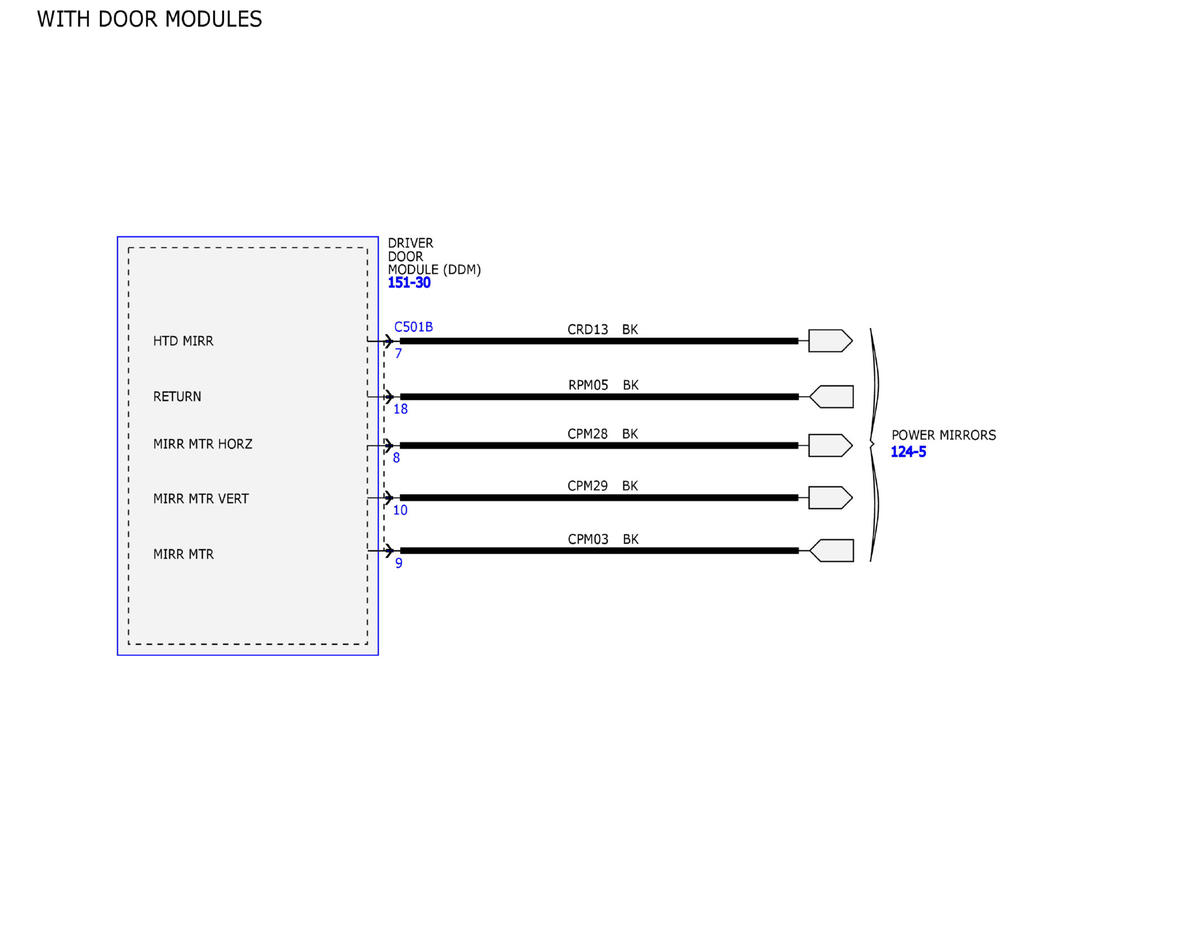

Fig 13: Power Windows Wiring Diagram (13 of 15)

GFDW85889

Courtesy of FORD MOTOR COMPANY

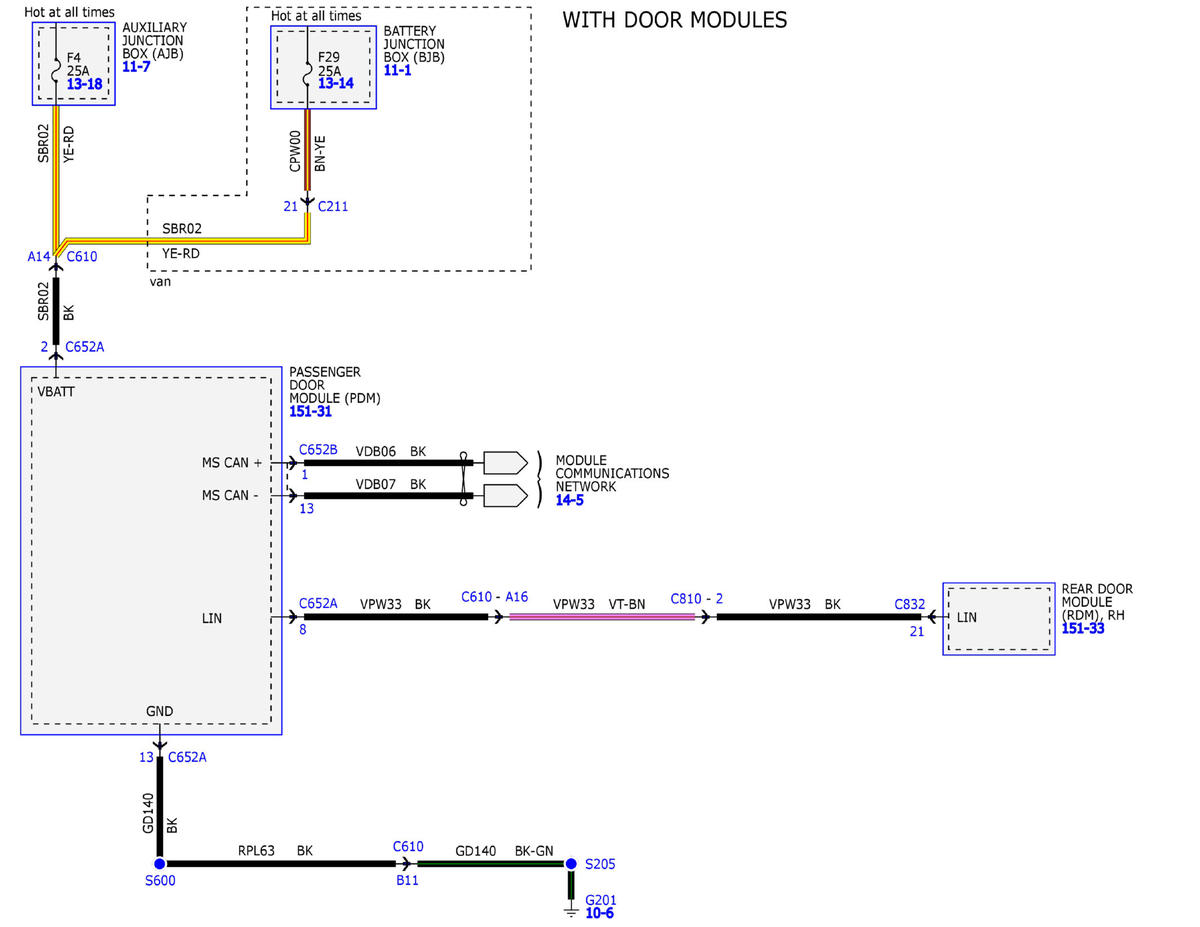

Fig 14: Power Windows Wiring Diagram (14 of 15)

GFDW85890

Courtesy of FORD MOTOR COMPANY

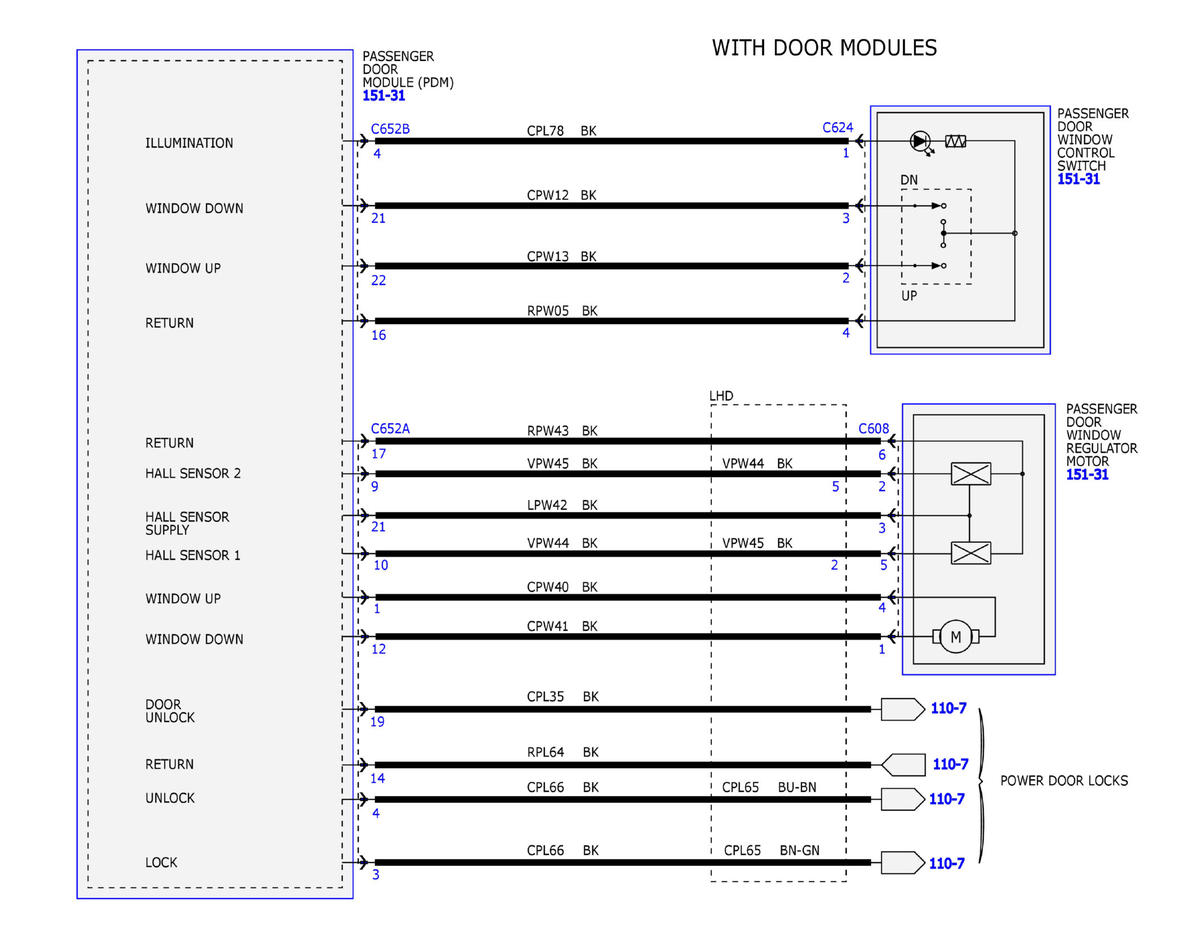

Fig 15: Power Windows Wiring Diagram (15 of 15)

GFDW85891

Courtesy of FORD MOTOR COMPANY
