Occupant Classification System (OCS) Sensor: Removal

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front seat. Refer to: Front Seat .

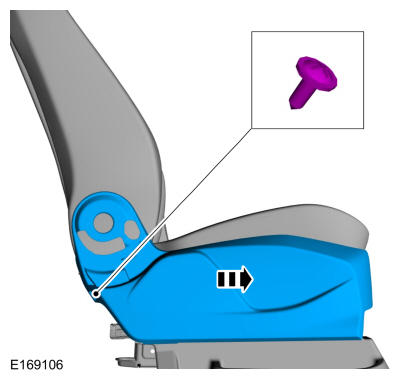

Remove the fastener cover, the screw and the recline handle.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

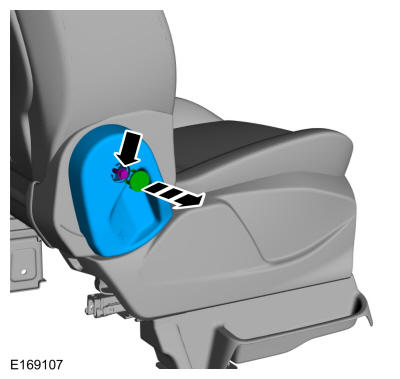

Release the retainer and remove the outboard upper side shield.

Courtesy of FORD MOTOR COMPANY

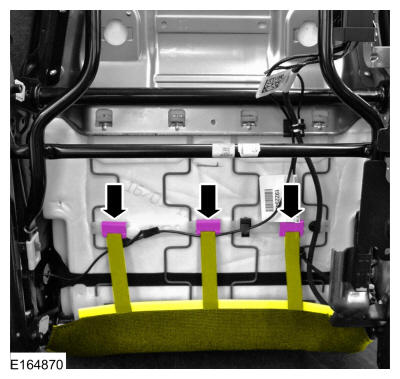

Detach the backrest cover straps and position the backrest cover downward.

Courtesy of FORD MOTOR COMPANY

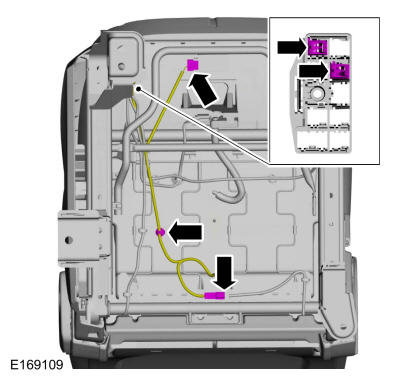

If equipped. Detach the heated seat wire harness retainers and remove the electrical connectors from the connector housing.

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care not to damage the clips.

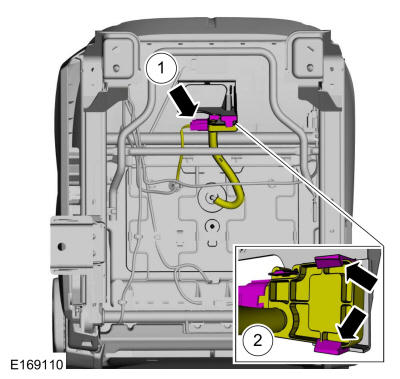

1. Disconnect the electrical connector.
2. Release the bracket locking tabs and detach the OCS sensor.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no components catch.

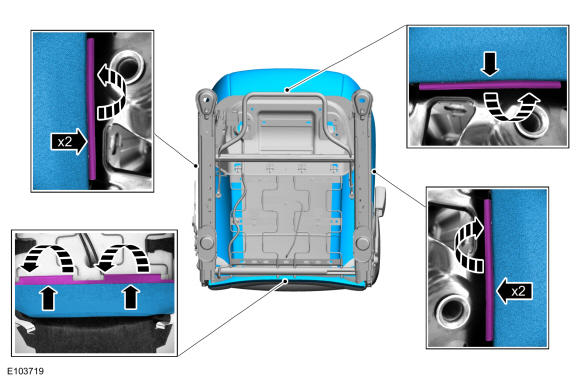

Release the cushion cover J-clips.

Courtesy of FORD MOTOR COMPANY

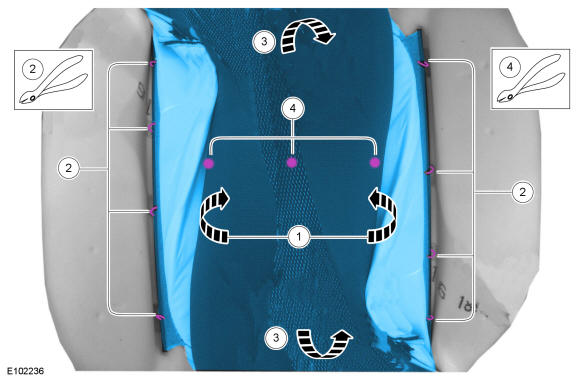

Remove the seat cushion cover.
1. Invert the cushion cover sides.
2. Remove the cushion cover side hog rings.
3. Invert the front and rear of the cushion cover.
4. Remove the center hog rings.
Courtesy of FORD MOTOR COMPANY

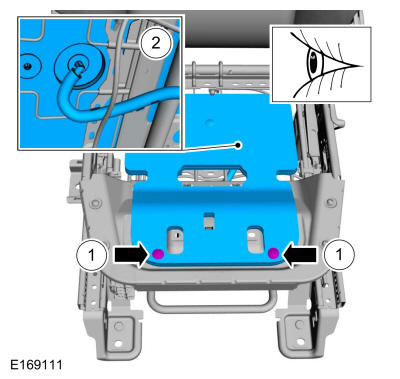

1. Remove the pin-type retainers.
2. NOTE: Make sure that no components catch.

  NOTE: Note the location of the OCS hose and heater mat pigtail (if equipped) as it passes through the seat springs for proper installation.

  Remove the OCS.
