Steering Gear: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
- Remove the front subframe. Refer to: Front Subframe .

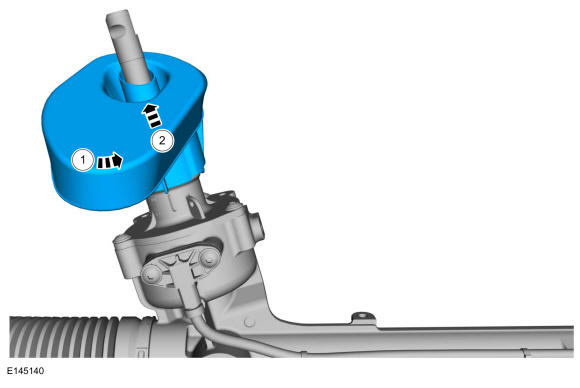

- Remove the steering gear boot as shown.

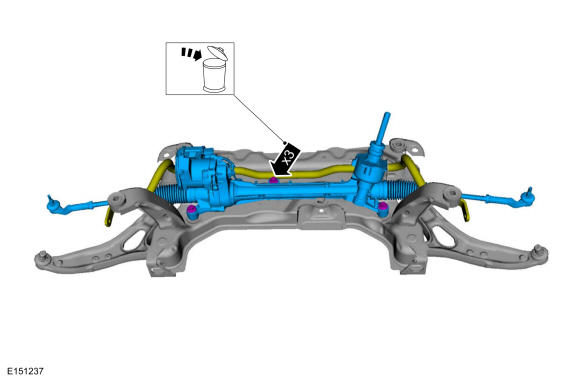

- Position aside the front stabilizer bar. Remove and discard the steering gear bolts and remove the steering gear.
