System Diagrams

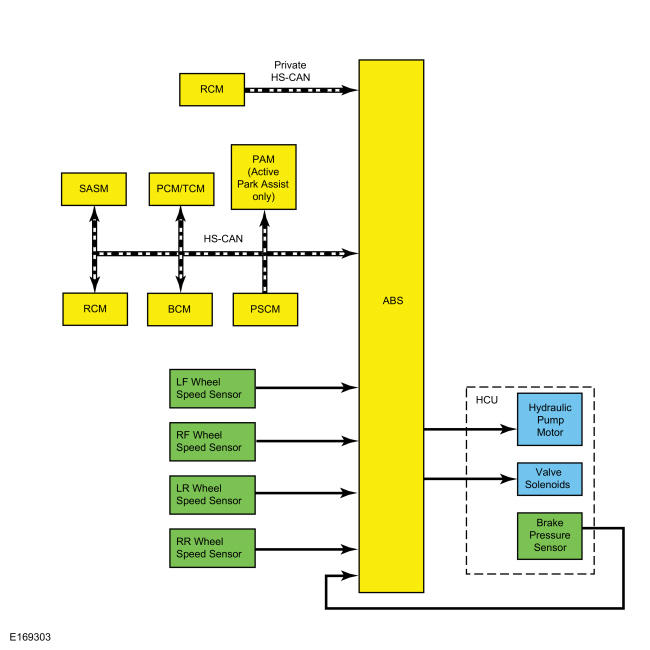

ABS and Stability Control System Diagram

GFD214292Courtesy of FORD MOTOR COMPANY

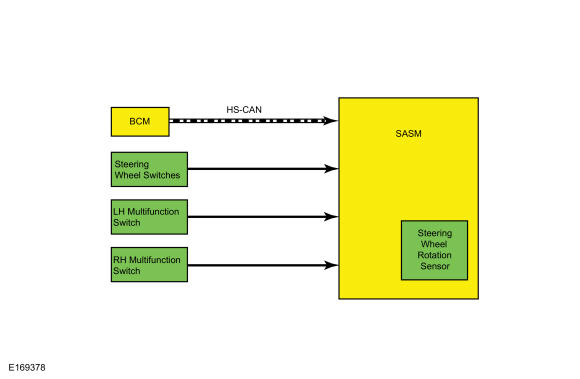

SASM System Diagram

GFD214293Courtesy of FORD MOTOR COMPANY
