Pinpoint Test Kc: Fuel Pump Control Module: Introduction

WARNING: THE FUEL SYSTEM REMAINS UNDER PRESSURE AFTER THE ENGINE IS OFF. RELIEVE PRESSURE BEFORE REPAIRING. HIGHLY FLAMMABLE MIXTURES ARE PRESENT. TO RELEASE PRESSURE FROM THE FUEL SYSTEM, CARRY OUT THE FOLLOWING:
  • CONNECT FUEL PRESSURE TEST KIT 310-D009 (D95L-7211A) OR EQUIVALENT.
  • GRADUALLY OPEN THE TESTING KIT VALVE TO RELIEVE THE FUEL PRESSURE IN THE VEHICLE FUEL SYSTEM AND DRAIN THE FUEL INTO A SUITABLE CONTAINER OR RETURN IT TO THE FUEL TANK.
  • TO AVOID UNNECESSARY FUEL SPILLAGE AND FIRE HAZARD, ANY TIME FUEL LINES ARE DISCONNECTED, THE IGNITION SWITCH MUST BE IN THE OFF POSITION UNLESS FUEL PUMP OPERATION IS REQUIRED FOR TEST PURPOSES.

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

WARNING: BEFORE WORKING ON OR DISCONNECTING ANY OF THE FUEL TUBES OR FUEL SYSTEM COMPONENTS, RELIEVE THE FUEL SYSTEM PRESSURE TO PREVENT ACCIDENTAL SPRAYING OF FUEL. FUEL IN THE FUEL SYSTEM REMAINS UNDER HIGH PRESSURE, EVEN WHEN THE ENGINE IS NOT RUNNING. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN SERIOUS PERSONAL INJURY.
WARNING: DO NOT SMOKE, CARRY LIGHTED TOBACCO OR HAVE AN OPEN FLAME OF ANY TYPE WHEN WORKING ON OR NEAR ANY FUEL-RELATED COMPONENT. HIGHLY FLAMMABLE MIXTURES ARE ALWAYS PRESENT AND MAY BE IGNITED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY.
WARNING: DO NOT CARRY PERSONAL ELECTRONIC DEVICES SUCH AS CELL PHONES, PAGERS OR AUDIO EQUIPMENT OF ANY TYPE WHEN WORKING ON OR NEAR ANY FUEL-RELATED COMPONENT. HIGHLY FLAMMABLE MIXTURES ARE ALWAYS PRESENT AND MAY BE IGNITED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY.
WARNING: WHEN HANDLING FUEL, ALWAYS OBSERVE FUEL HANDLING PRECAUTIONS AND BE PREPARED IN THE EVENT OF FUEL SPILLAGE. SPILLED FUEL MAY BE IGNITED BY HOT VEHICLE COMPONENTS OR OTHER IGNITION SOURCES. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY.
WARNING: CLEAN ALL FUEL RESIDUE FROM THE ENGINE COMPARTMENT. IF NOT REMOVED, FUEL RESIDUE MAY IGNITE WHEN THE ENGINE IS RETURNED TO OPERATION. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN SERIOUS PERSONAL INJURY.

This pinpoint test is intended to diagnose the following:

Fuel Pump (FP) Assembly Connector

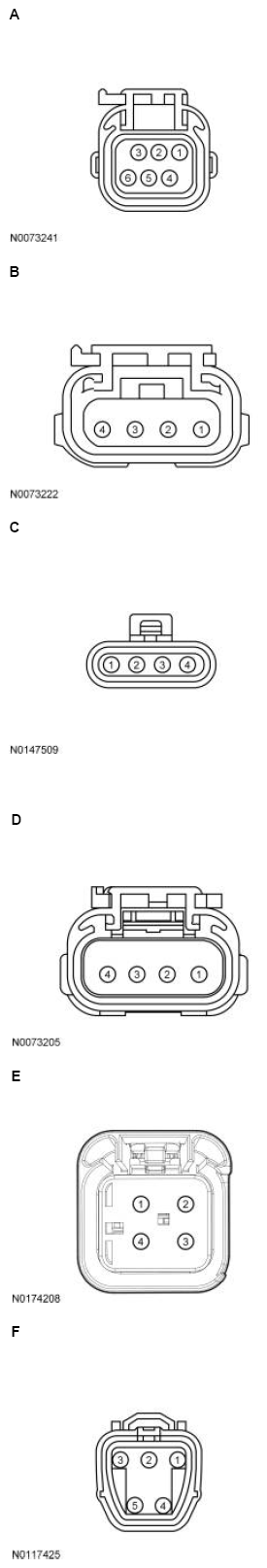

Fig 1: Fuel Pump (FP) Assembly Connector
G11848486Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Continental 3.0L,
Focus 2.3L,
Mustang 5.2L		 A 6
3
1
4		 FPRTN
FPPWR
FP2RTN
FP2PWR
E-Series,
Expedition,
F-150,
Mustang 2.3L,
Mustang 3.7L,
Mustang 5.0L,
Navigator,
Transit		 B 3
4		 FPRTN
FPPWR
EcoSport C 4
1		 FPGND
FPPWR
F-650/F-750,
F-Series Super Duty,
Motorhome/Stripped Chassis/Step Van		 D 3
4		 FPRTN
FPPWR
Ford GT E 1
4
3
2		 FPRTN
FPPWR
FP2RTN
FP2PWR
KA F 4
5		 FPGND
FPPWR
MKZ 3.0L F 1
2
5
4		 FPRTN
FPPWR
FP2RTN
FP2PWR
All other vehicles F 4
5		 FPRTN
FPPWR

Fuel Pump Control Module Connector

Fig 2: Fuel Pump Control Module Connector
G11848487Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
F-150,
F-650/F-750,
F-Series Super Duty,
Focus,
Ford GT,
Fusion,
MKC,
MKZ,
Motorhome/Stripped Chassis/Step Van,
Mustang		 A 8
5
7
3
4
1		 FPRTN
FPPWR
FPM
FPC
GND
VPWR Fuel
All other vehicles A 6
8
5
7
3
4
1		 ENS
FPRTN
FPPWR
FPM
FPC
GND
VPWR Fuel

Fuel Pump Control Module 2 Module Connector

Fig 3: Fuel Pump Control Module 2 Module Connector
G11848488Courtesy of FORD MOTOR CO.
Pin Circuit
8 FP2RTN (Fuel Pump 2 Return)
5 FP2PWR (Fuel Pump 2 Power)
7 FPM2 (Fuel Pump Monitor 2)
3 FPC (Fuel Pump Command)
4 GND (Ground)
1 VPWR Fuel

Fuel Pump Control Module Relay Connector

Refer to the Wiring Diagrams article for schematic and connector information.

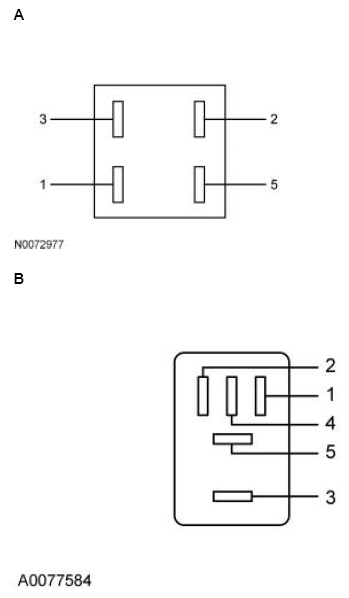

Fig 4: Fuel Pump Control Module Relay Connector
G11848489Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Continental,
Explorer,
Fusion,
MKZ,
Taurus		 A 1
2, 3
5		 FP
B+
VPWR Fuel
E-Series,
Motorhome/Stripped Chassis/Step Van		 B 2
1
3
5		 GND
VPWR
B+
VPWR Fuel
EcoSport B 5
2
1
3		 FPPWR
FP
VPWR
B+
Expedition,
MKC,
Mustang,
Navigator,
Transit		 B 2
1, 3
5		 FP
B+
VPWR Fuel
Fiesta A 2
1
3
5		 GND
VPWR
B+
VPWR Fuel
KA B 5
2
1, 3		 FPPWR
FP
B+
All other vehicles A 2
1, 3
5		 FP
B+
VPWR Fuel
Fig 5: Fuel Pump Control Module 2 Relay Connector
G11848490Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Continental 3.0L,
Ford GT,
Mustang 5.2L		 A 2
1, 3
5		 FP
B+
VPWR Fuel
Focus 2.3L A 1
2
3
5		 FP
GND
B+
VPWR Fuel
Fig 6: Inertia Fuel Shutoff (IFS) Switch Connector
G06054223Courtesy of FORD MOTOR CO.
Pin Circuit
1 VPWR Fuel - B
2 VPWR Fuel - A
Fig 7: Body Control Module-C (BCM-C) Connector
G11848492Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Continental,
Edge,
Fusion,
MKZ		 A 29
26		 IES
FP
KA B 7 FP
Transit C 12 FP
All other vehicles A 26 FP
Fig 8: Body Control Module-E (BCM-E) Connector
G09137551Courtesy of FORD MOTOR CO.
Pin Circuit
E9 VPWR Fuel
Fig 9: Body Control Module-F (BCM-F) Connector
G11848494Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Explorer,
F-150,
F-Series Super Duty,
Ford GT,
Mustang		 A 29
26		 IES
FP
All other vehicles B 6 FP
Fig 10: Battery Junction Box-A (BJB-A) Connector
G11848495Courtesy of FORD MOTOR CO.
Pin Circuit
24 FP (Fuel Pump)
25 VPWR Fuel
Fig 11: Restraints Control Module (RCM) Connector
G11848496Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Expedition,
Explorer,
Fiesta,
Navigator,
Taurus,
Transit		 A 42 ENS
All other vehicles B 19 ENS

Powertrain Control Module (PCM) Connector

For PCM connector views or REFERENCE VALUES .

Vehicle Connector Pin Circuit
Continental 2.0L,
Continental 2.7L,
Edge 2.0L,
Edge 2.7L,
Explorer 2.3L,
Explorer GTDI 3.5L,
F-150 2.7L,
Fusion 1.5L,
Fusion 2.0L,
Fusion 2.7L,
MKZ 2.0L,
Mustang 2.3L		 198 PIN B29
B27
B39		 IES
FPM
FPC
Continental 3.0L,
Ford GT,
MKZ 3.0L		 198 PIN B29
B27
B85
B39		 IES
FPM
FPM2
FPC
Continental 3.7L,
Edge 3.5L,
F-150 TiVCT 3.5L,
F-150 5.0L,
F-Series Super Duty,
Mustang 3.7L,
Mustang 5.0L		 198 PIN B49
B27
B14		 IES
FPM
FPC
E-Series,
F-650/F-750,
Flex TiVCT 3.5L,
MKT 3.7L,
MKX 3.7L,
Motorhome/Stripped Chassis/Step Van,
Taurus TiVCT 3.5L,
Taurus 3.7L		 198 PIN B27
B14		 FPM
FPC
EcoSport 2.0L Manual Transmission,
EcoSport 1.6L		 80 PIN B15 FP
EcoSport 2.0L Automatic Transmission 128 PIN B12 FP
Escape/Kuga 1.5L 198 PIN B23
B6
B41		 IES
FPM
FPC
Escape/Kuga 2.5L,
Transit Connect		 198 PIN B27
B65		 FPM
FPC
Explorer TiVCT 3.5L,
Explorer 3.7L		 198 PIN B49
B32
B19		 IES
FPM
FPC
F-150 GTDI 3.5L 198 PIN B27
B67
B23		 IES
FPM
FPC
Fiesta GTDI 1.6L 198 PIN B4
B37		 FPM
FPC
Fiesta TiVCT 1.6L 128 PIN E13
B37		 FPM
FPC
Focus GDI 2.0L 154 PIN B12
B45		 FPM
FPC
Focus 2.3L 198 PIN B27
B85
B39		 FPM
FPM2
FPC
Fusion 2.5L 198 PIN B49
B27
B65		 IES
FPM
FPC
KA 128 PIN B4 FPM
Mustang 5.2L 198 PIN B49
B27
B31
B14		 IES
FPM
FPM2
FPC
All other vehicles 198 PINB27 B39 FPM
FPC
