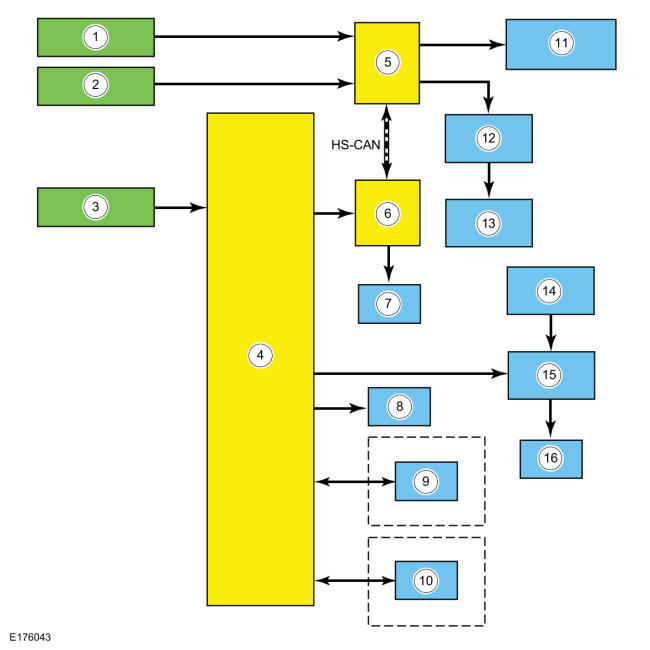

| 1 |
Ambient air temperature (AAT) sensor |
| 2 |
A/C pressure transducer |
| 3 |
Rear evaporator discharge temperature sensor |
| 4 |
RHVAC control module |
| 5 |
PCM |
| 6 |
BCM |
| 7 |
Rear electric booster heater |
| 8 |
Rear Thermostatic Expansion Valve (TXV) |
| 9 |
Rear air distribution door actuator RH |
| 10 |
Rear air distribution door actuator LH |
| 11 |
Externally Controlled Variable Displacement Compressor (EVDC) |
| 12 |
A/C clutch relay |
| 13 |
A/C compressor clutch field coil |
| 14 |
Rear blower motor control module relay |
| 15 |
Rear blower motor control module |
| 16 |
Rear blower motor |
