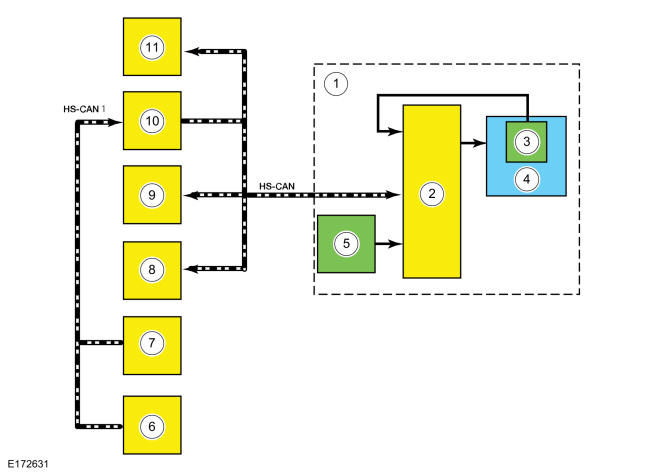

System Diagram

GFD214306Courtesy of FORD MOTOR COMPANY
Item Description
1 EPAS gear
2 PSCM
3 Position sensor
4 Motor
5 Torque sensor
6 PCM
7 ABS
8 BCM
9 SASM
10 GWM
11 PAM
