System Diagram
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

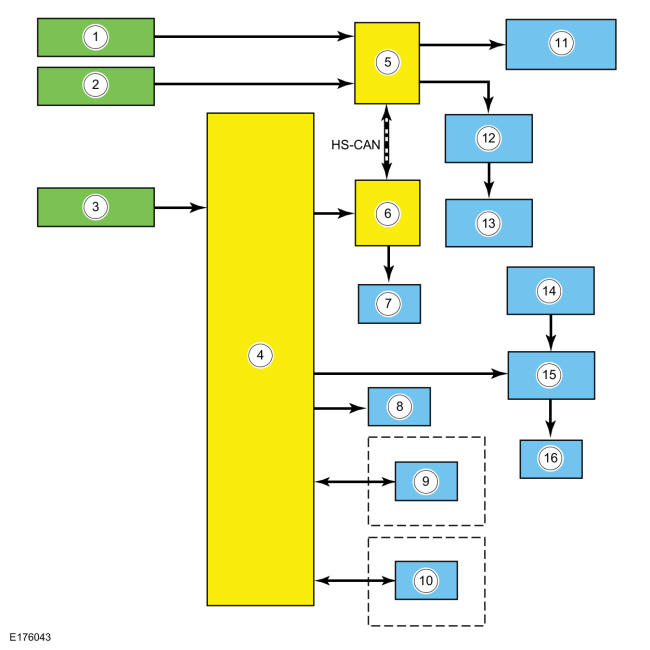

| Item | Description |
|---|---|
| 1 | Ambient air temperature (AAT) sensor |
| 2 | A/C pressure transducer |
| 3 | Rear evaporator discharge temperature sensor |
| 4 | RHVAC control module |
| 5 | PCM |
| 6 | BCM |
| 7 | Rear electric booster heater |
| 8 | Rear Thermostatic Expansion Valve (TXV) |
| 9 | Rear air distribution door actuator RH |
| 10 | Rear air distribution door actuator LH |
| 11 | Externally Controlled Variable Displacement Compressor (EVDC) |
| 12 | A/C clutch relay |
| 13 | A/C compressor clutch field coil |
| 14 | Rear blower motor control module relay |
| 15 | Rear blower motor control module |
