Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location
WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

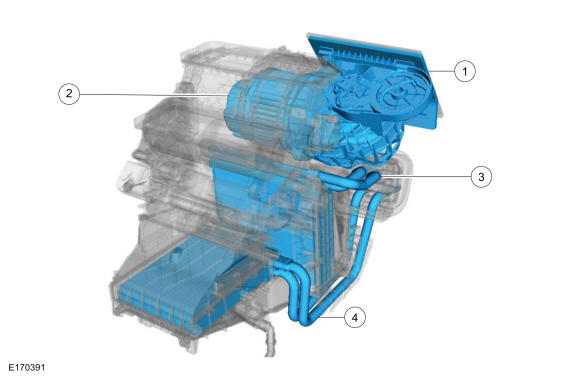

| Item | Description |
|---|---|
| 1 | Air inlet duct |
| 2 | Blower motor |
| 3 | Evaporator |
| 4 | Heater core |

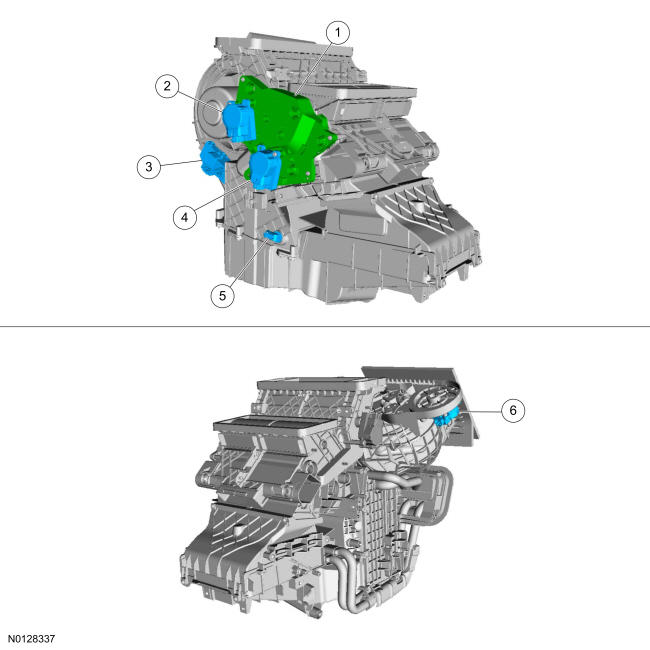

| Item | Description |
|---|---|
| 1 | Actuating assembly |
| 2 | Air distribution door actuator |
| 3 | Blower motor control module |
| 4 | Temperature door actuator |
| 5 | Evaporator temperature sensor |
| 6 | Air inlet actuator |

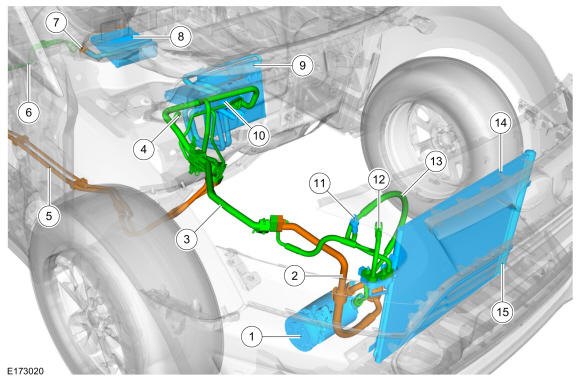

2.5L Duratec (long wheelbase shown, 1.6L similar)
| Item | Description |
|---|---|
| 1 | A/C compressor |
| 2 | A/C compressor inlet line |
| 3 | Thermostatic Expansion Valve (TXV) manifold and tube assembly |
| 4 | A/C valve charge port (low side) |
| 5 | Rear evaporator front outlet and inlet line |
| 6 | Rear evaporator rear outlet and inlet line |
| 7 | Rear Thermostatic Expansion Valve (TXV) |
| 8 | Rear evaporator |
| 9 | Front evaporator |
| 10 | Front Thermostatic Expansion Valve (TXV) |
| 11 | A/C pressure transducer |
| 12 | A/C valve charge port (high side) |
| 13 | A/C compressor outlet line |
| 14 | Condenser |
| 15 | Receiver-drier element |
