Powertrain Control Module (PCM): Installation

1.

Install the PCM and the bolts.
Torque: 97 lb.in (11 Nm)

GFD145270

Courtesy of FORD MOTOR COMPANY

2.

Connect the PCM electrical connectors.

GFD145269

Courtesy of FORD MOTOR COMPANY

3.

Connect the transmission control module and the engine harnesses.

GFD145268

Courtesy of FORD MOTOR COMPANY

4.

Install the LH headlight. Refer to: Headlamp Assembly .

5.

After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.

6.

NOTE: This step is only necessary when installing a new component.

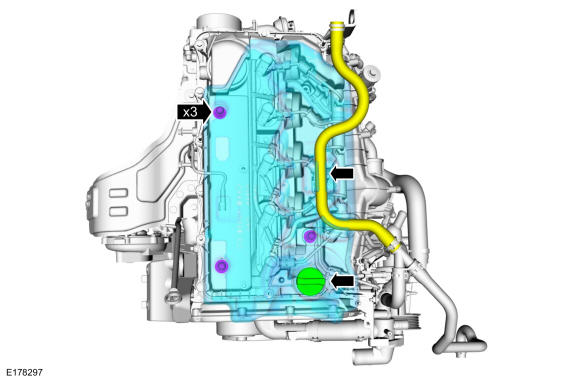

Position the hose aside, remove the oil filler cap and remove the engine appearance cover. Install the oil filler cap.

GFD144242

Courtesy of FORD MOTOR COMPANY

7.

NOTE: This step is only necessary when installing a new component.

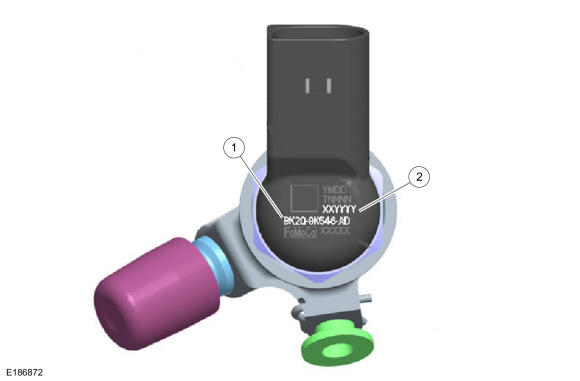

NOTE: The PCM is programmed with an IQA code for each fuel injector. If a new PCM is installed record the fuel injector IQA code located on top of the fuel injector.
- Ford part number (example).
- Fuel injector IQA code.

GFD144845

Courtesy of FORD MOTOR COMPANY

8.

NOTE: This step is only necessary when installing a new component.

Remove the oil filler cap. Install the engine appearance cover, position the hose back and install the oil filler cap.

GFD144242

Courtesy of FORD MOTOR COMPANY

9.

NOTE: This step is only necessary when installing a new component.

NOTE: The PCM must be programmed with the proper fuel injector IQA codes.
- Upload the module information from the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description .
- Using the scan tool, follow the on-screen instructions and program the PCM with the appropriate fuel injector IQA code for any fuel injector that was replaced.
