Steering Gear Boot: Installation

1.

To install, reverse the removal procedure.

2.
- 1.

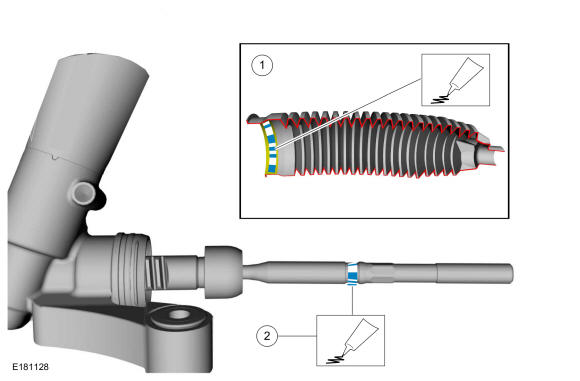

  Place a bead of Silicone Brake Caliper Grease at location shown in illustration completely around the inside of the steering gear boot.
  Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
- 2.

  Place a bead of Silicone Brake Caliper Grease at location shown in illustration completely around the tie rod at the steering gear boot outer clamp location.
  Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

GFD143047

Courtesy of FORD MOTOR COMPANY

3.

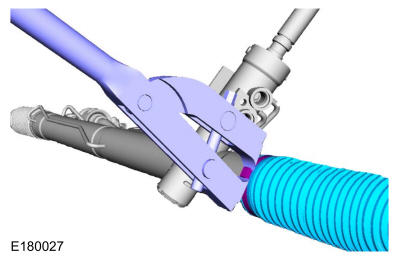

Install a new steering gear boot inner clamp.
Use the General Equipment: Boot Clamp Pliers

GFD143048

Courtesy of FORD MOTOR COMPANY

4.

Check and if necessary, adjust front toe. Refer to: Front Toe Adjustment .
