Fuel Pump Driver Module (FPDM): Installation

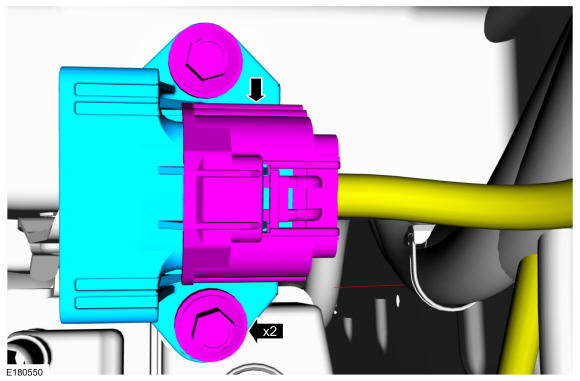

Gas engine
1.
Install the FPDM and the FPDM mounting bolts.
Torque: 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY
Diesel engine
2.
Install the FPDM and the FPDM mounting nuts.
Torque: 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
