Connector Repair Procedures

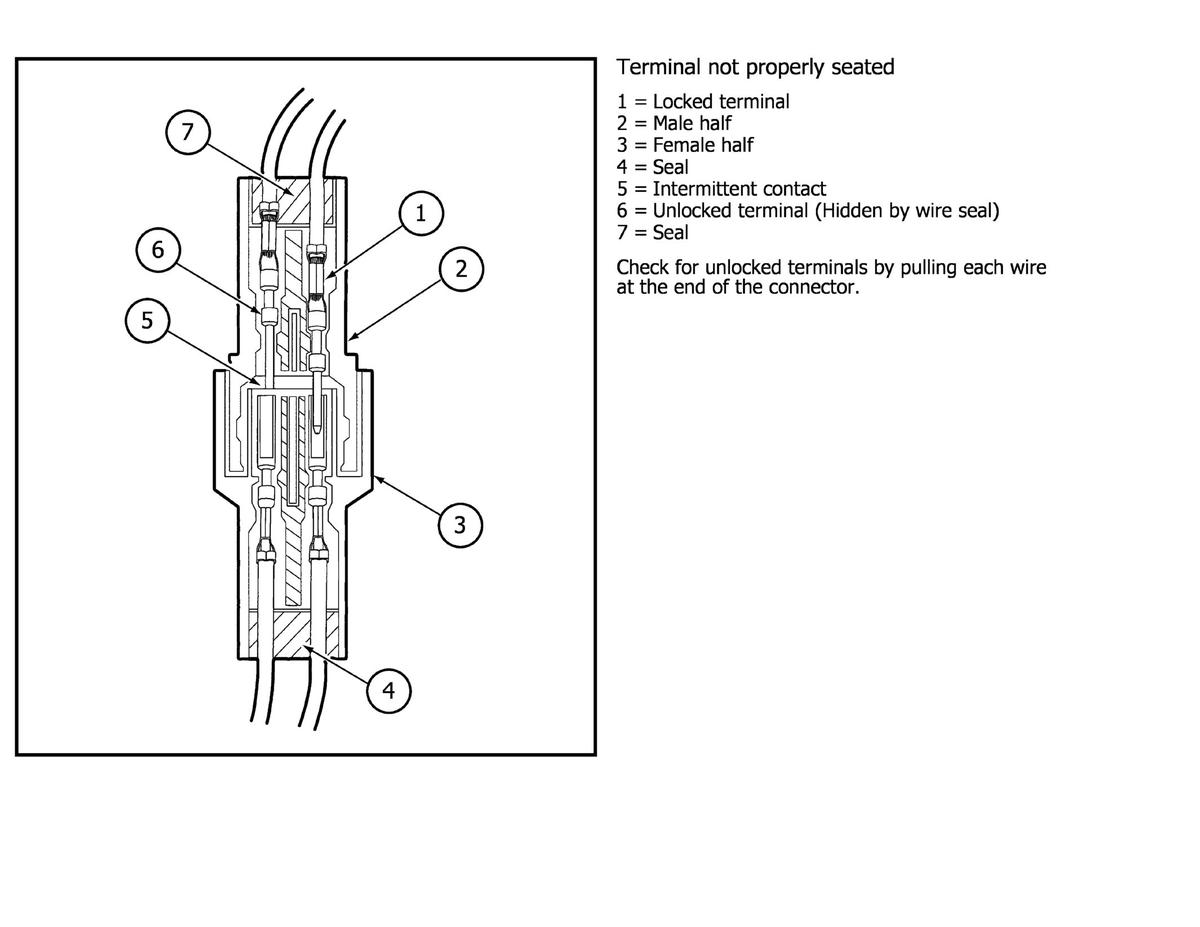

GFDWR1368Courtesy of FORD MOTOR COMPANY

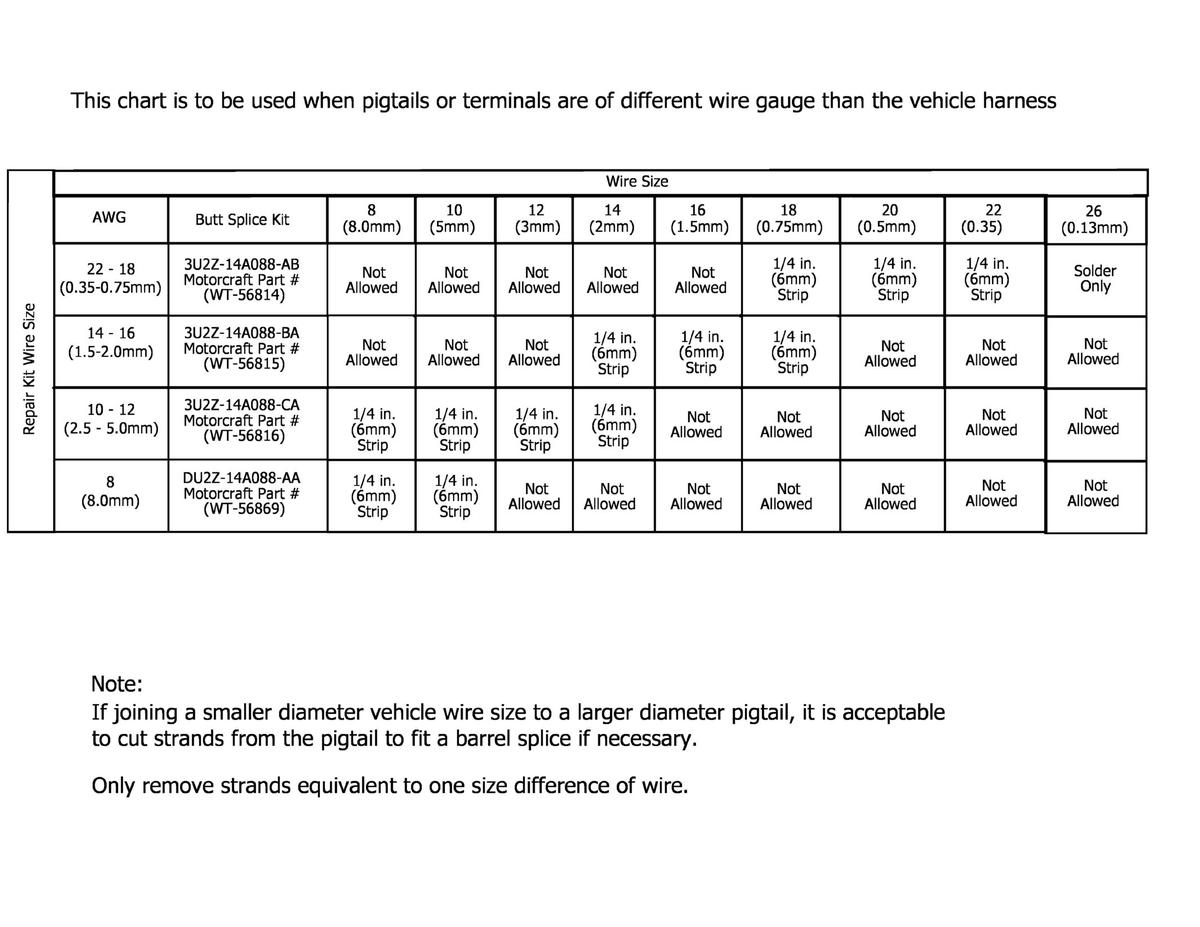

GFDWR1375Courtesy of FORD MOTOR COMPANY

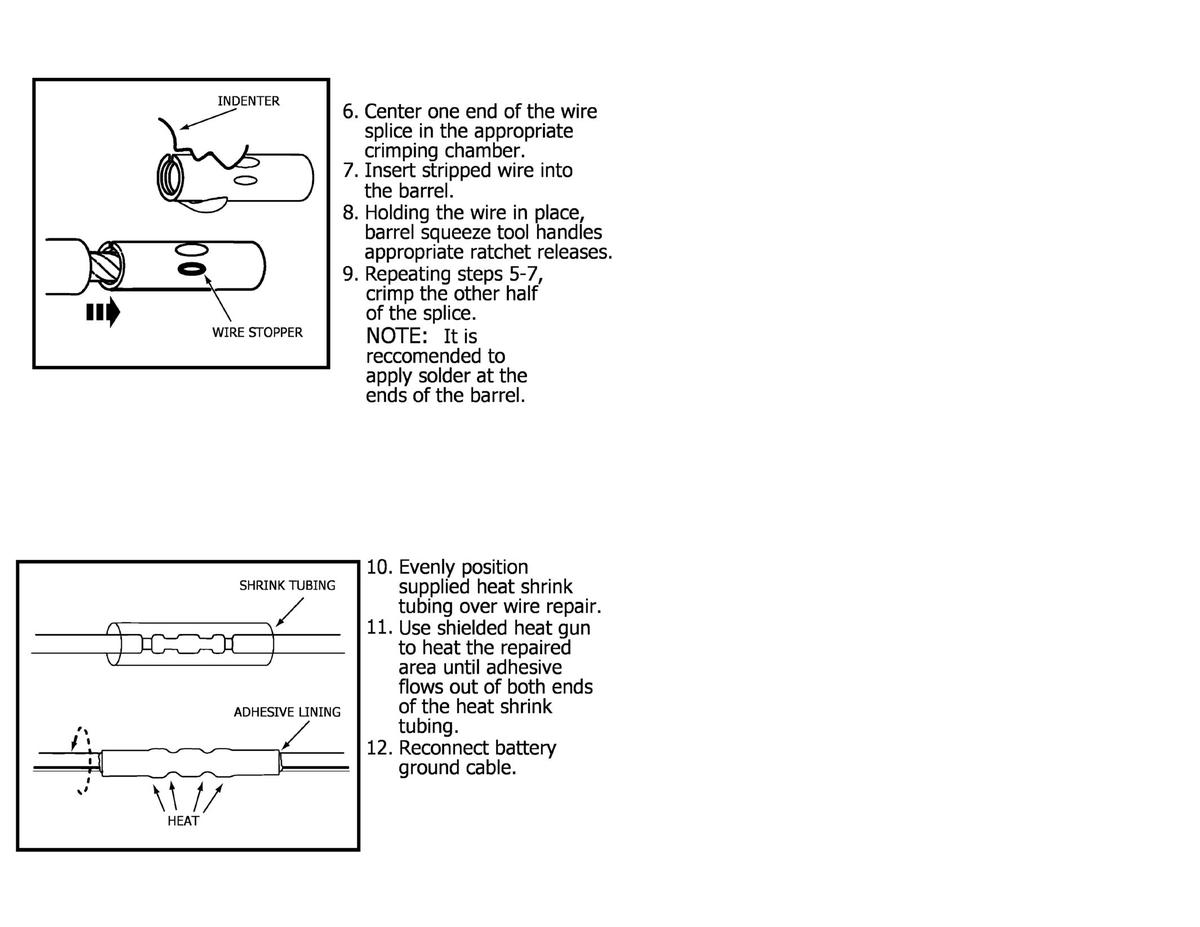

GFDWR1374Courtesy of FORD MOTOR COMPANY

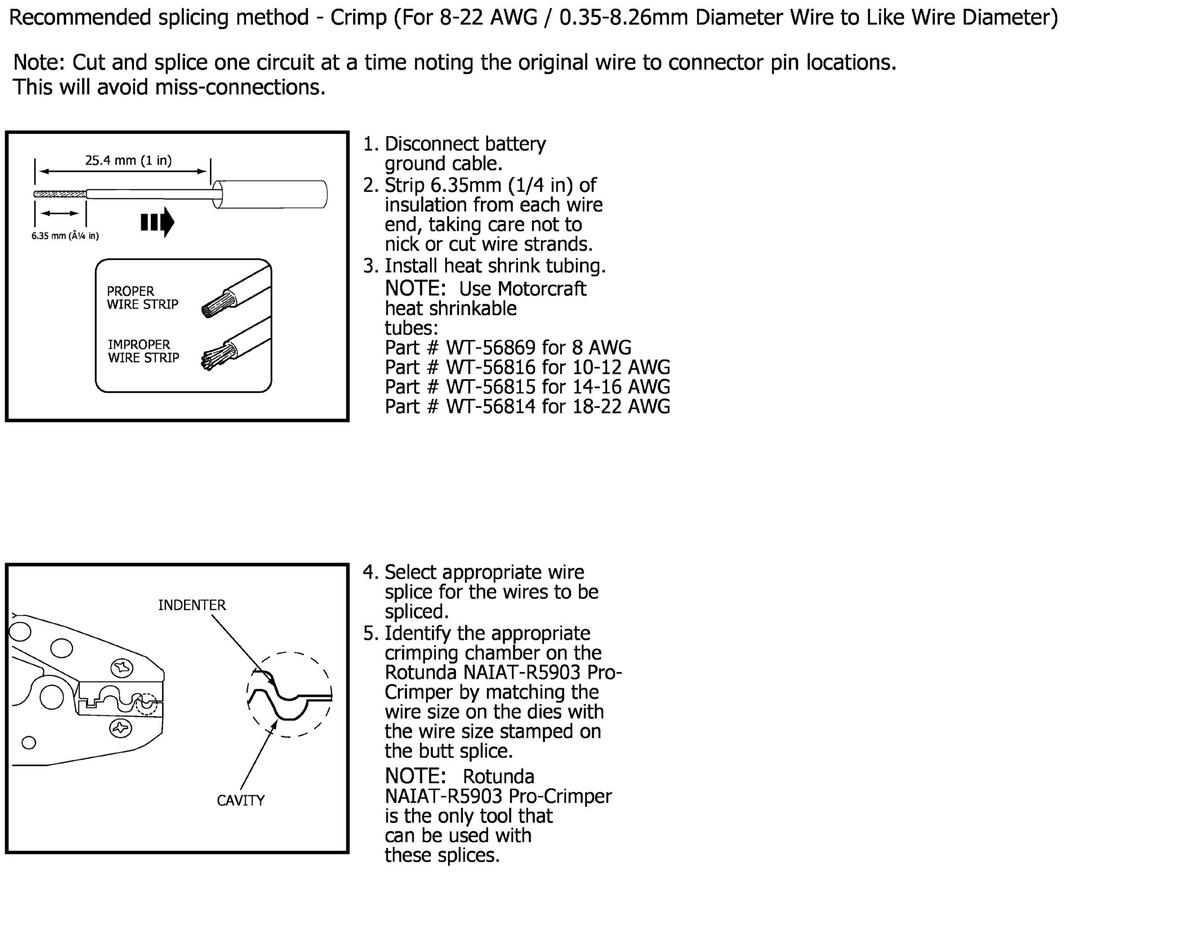

GFDWR1373Courtesy of FORD MOTOR COMPANY

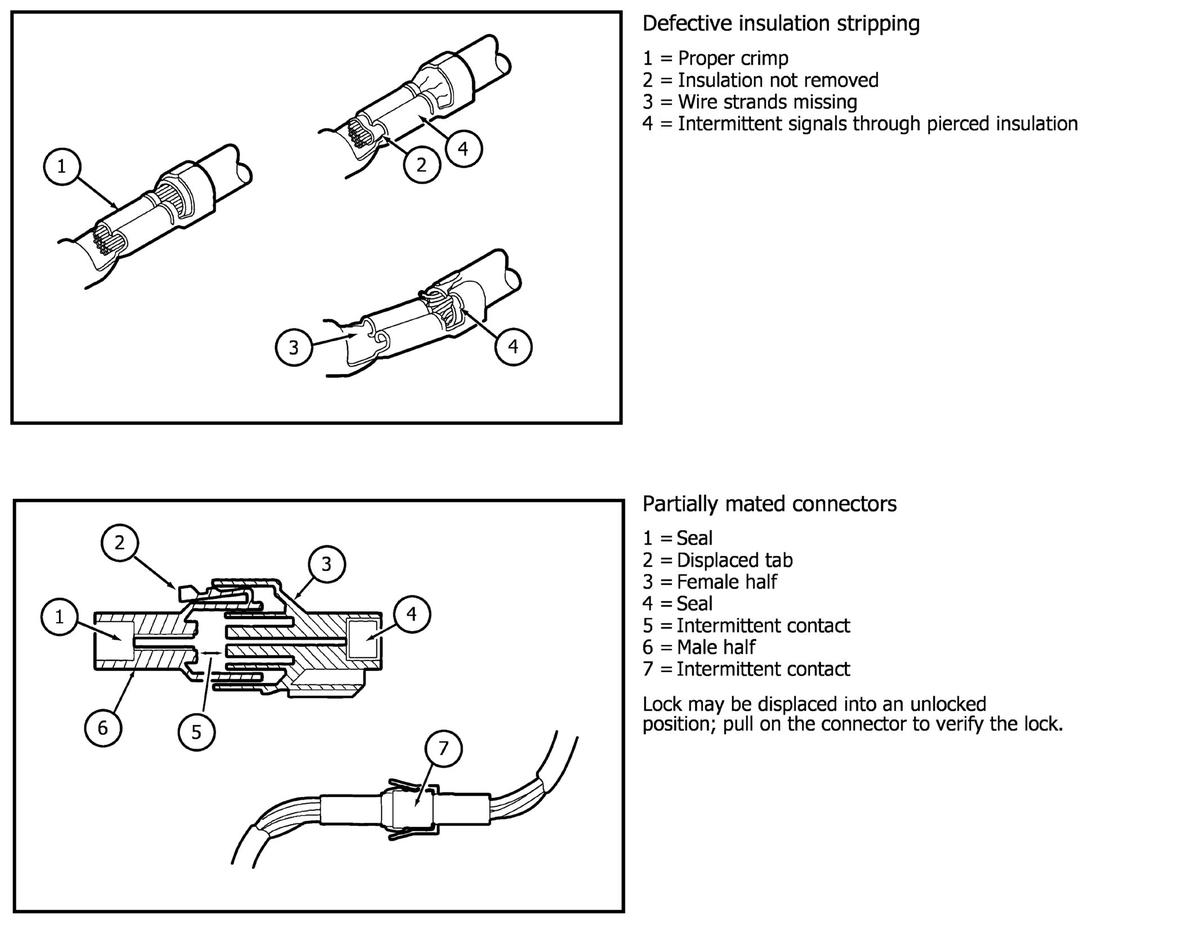

GFDWR1369Courtesy of FORD MOTOR COMPANY

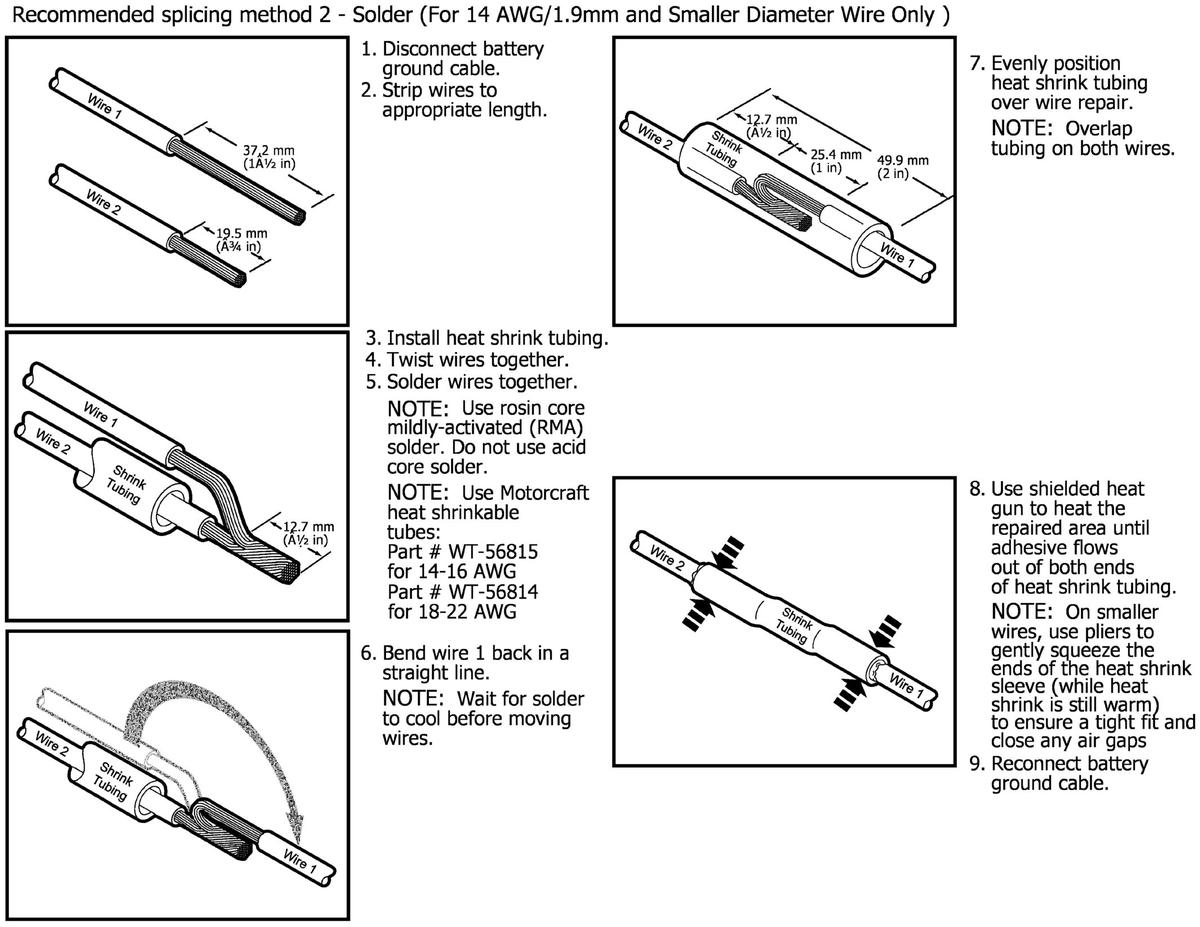

GFDWR1372Courtesy of FORD MOTOR COMPANY

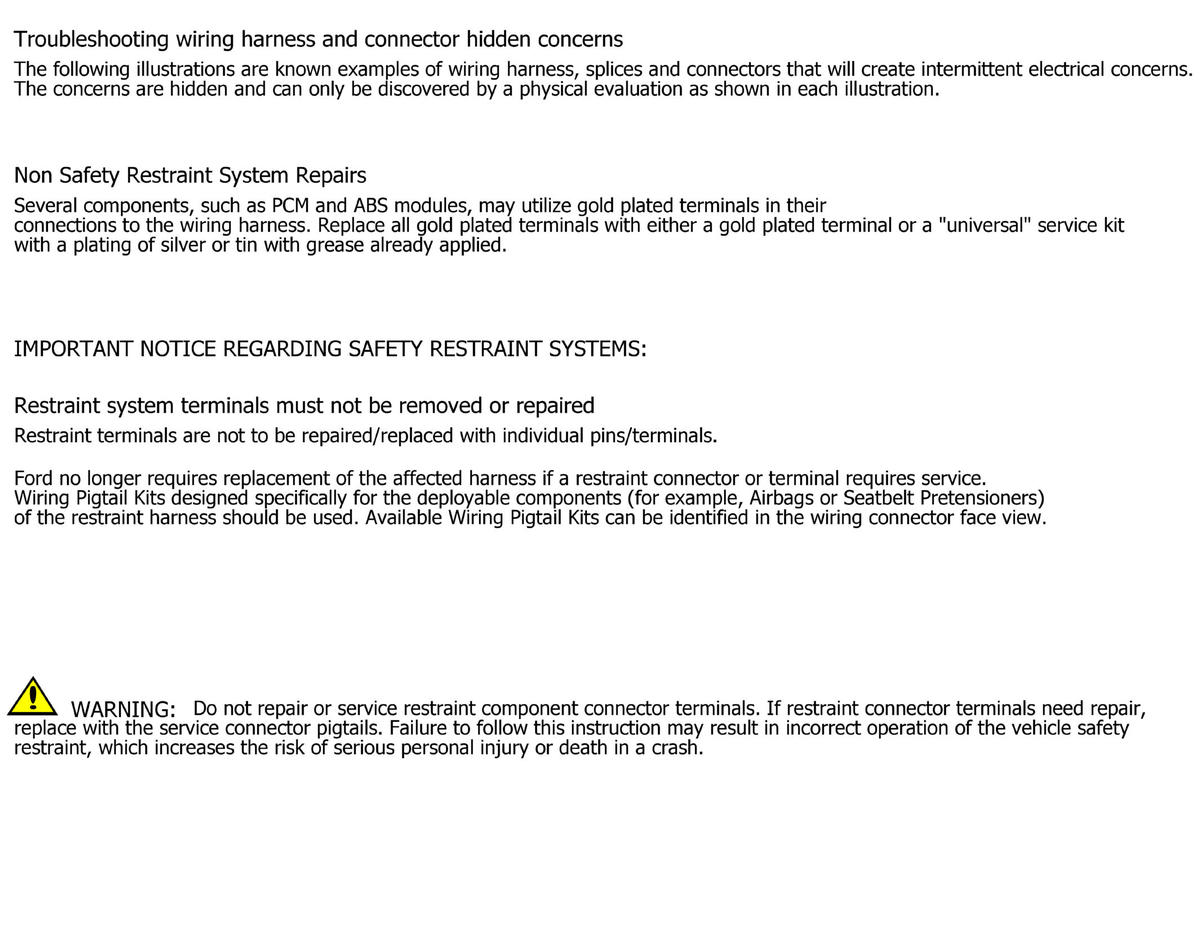

GFDWR1367Courtesy of FORD MOTOR COMPANY

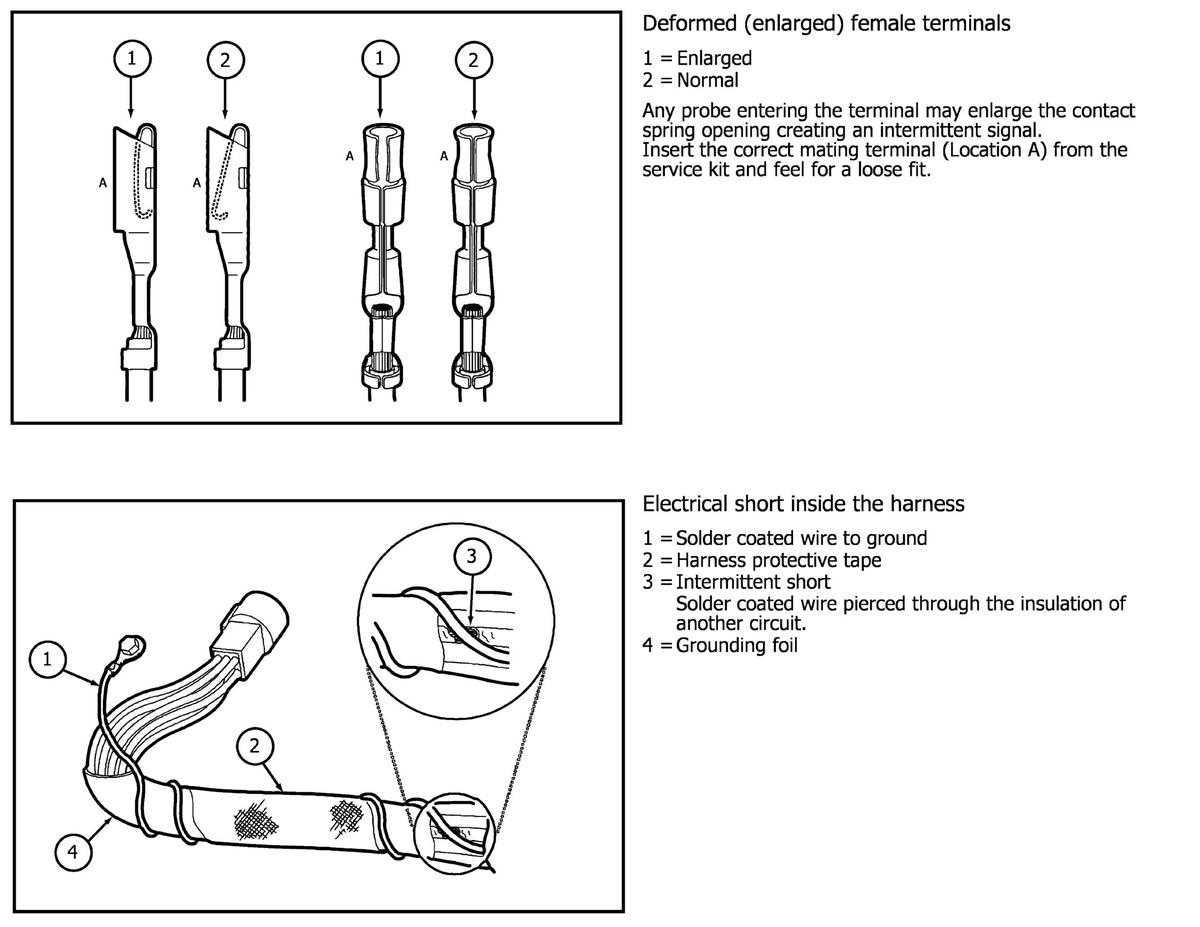

GFDWR1370Courtesy of FORD MOTOR COMPANY

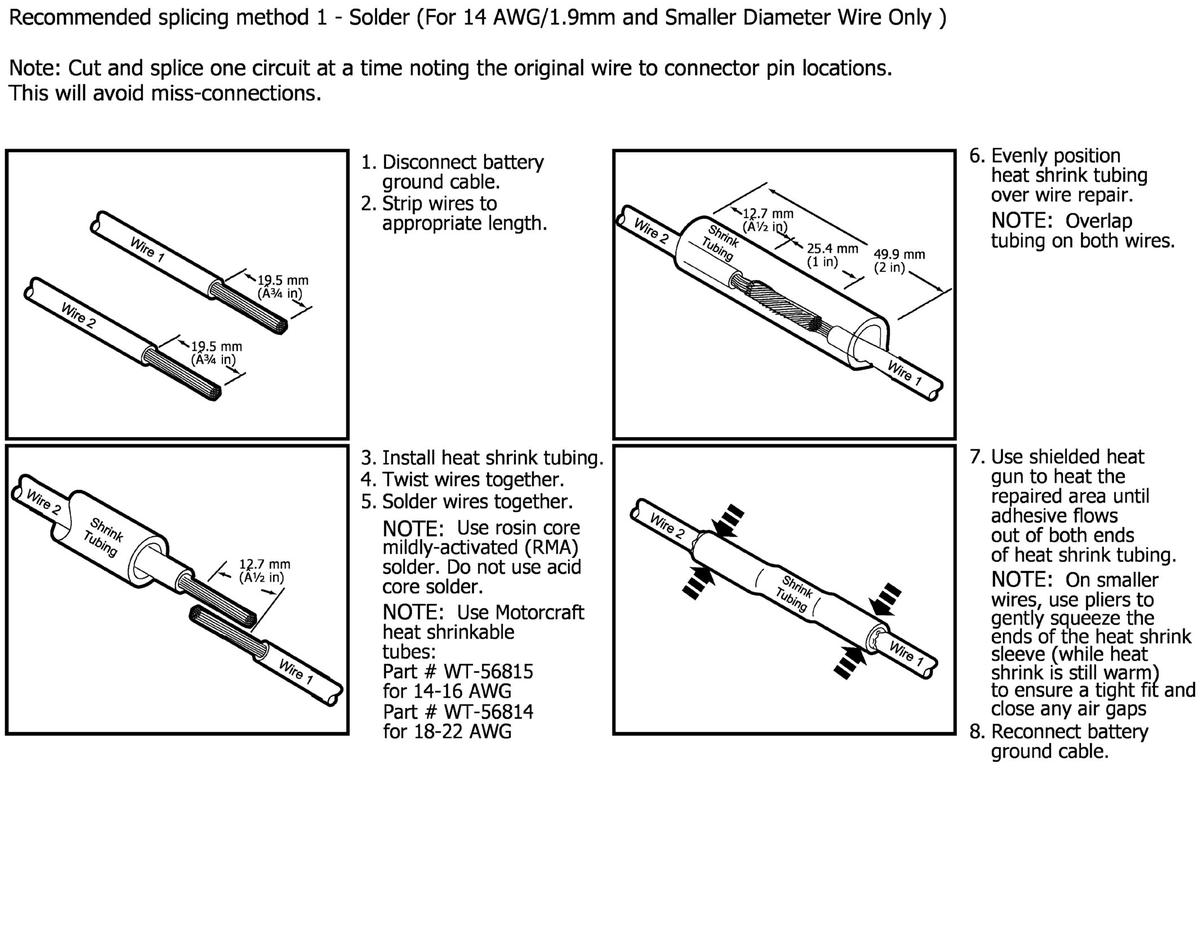

GFDWR1371Courtesy of FORD MOTOR COMPANY
