OEM Ground Distribution: Grounds

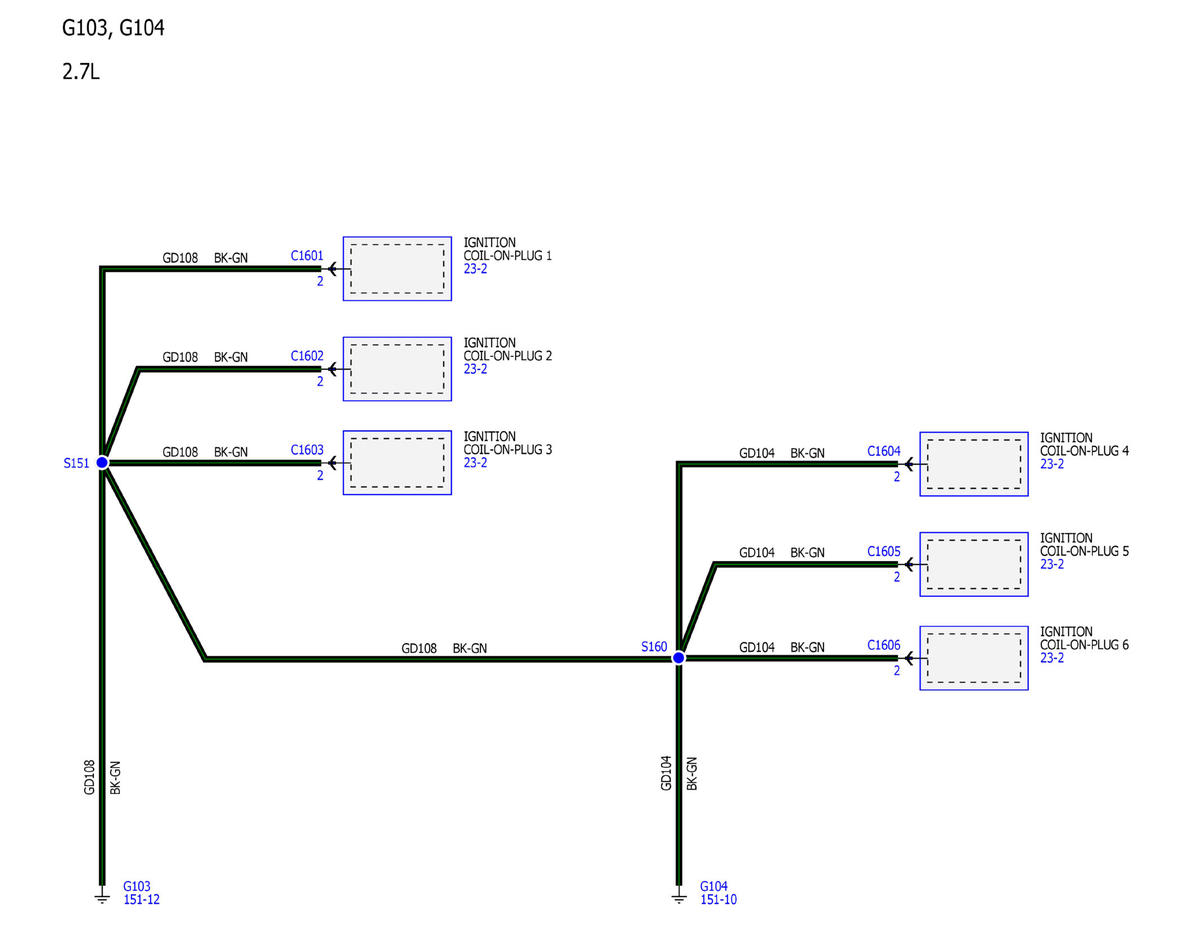

GFDWR1399Courtesy of FORD MOTOR COMPANY

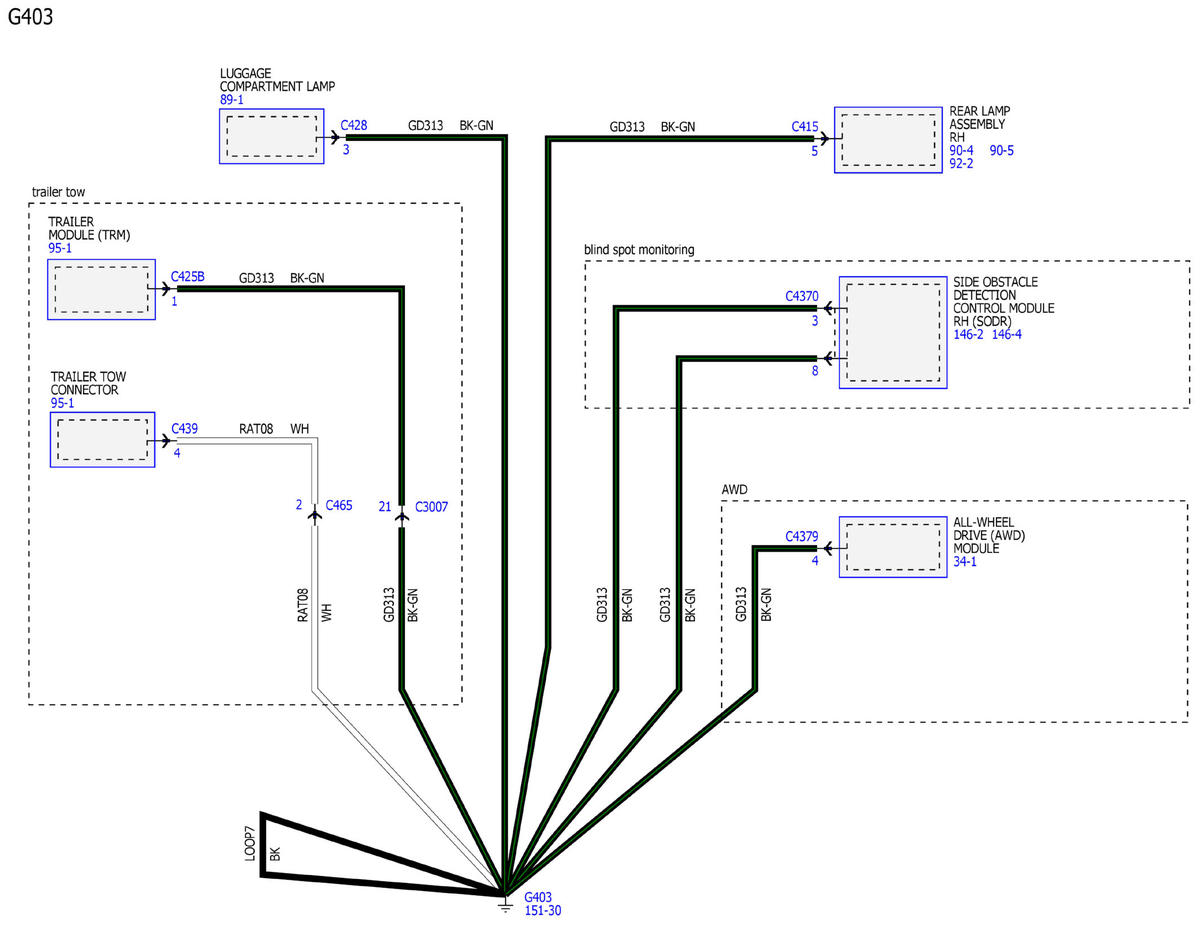

GFDWR1403Courtesy of FORD MOTOR COMPANY

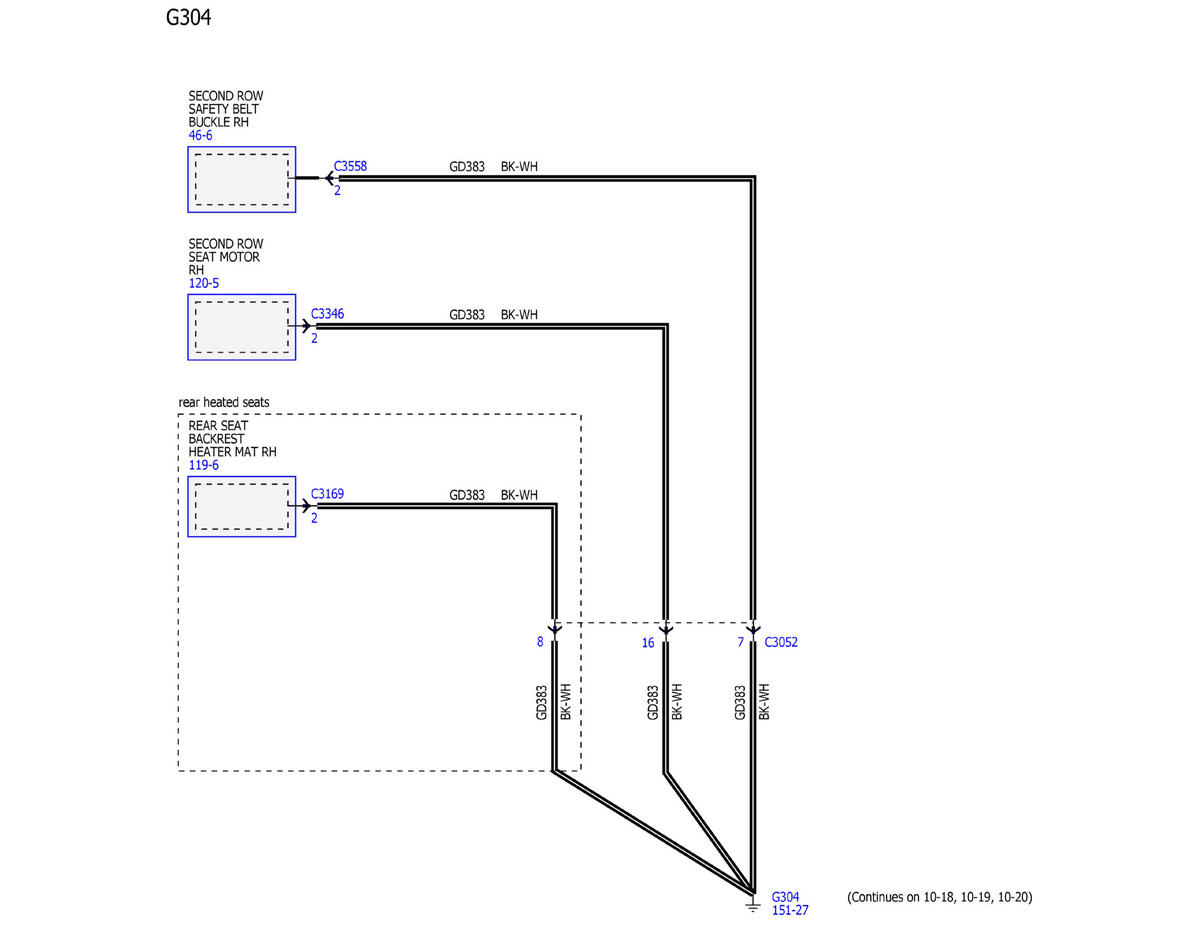

GFDWR1401Courtesy of FORD MOTOR COMPANY

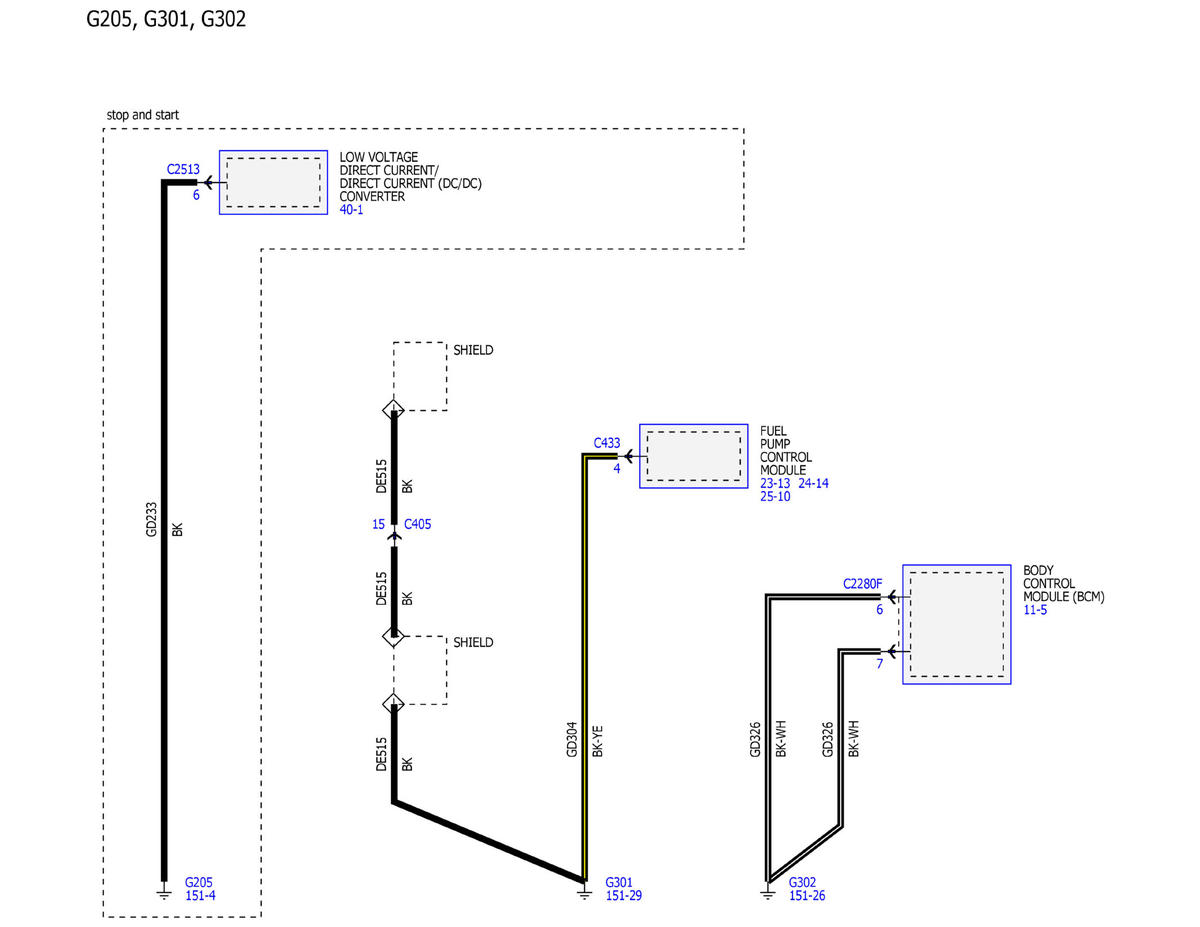

GFDWR1392Courtesy of FORD MOTOR COMPANY

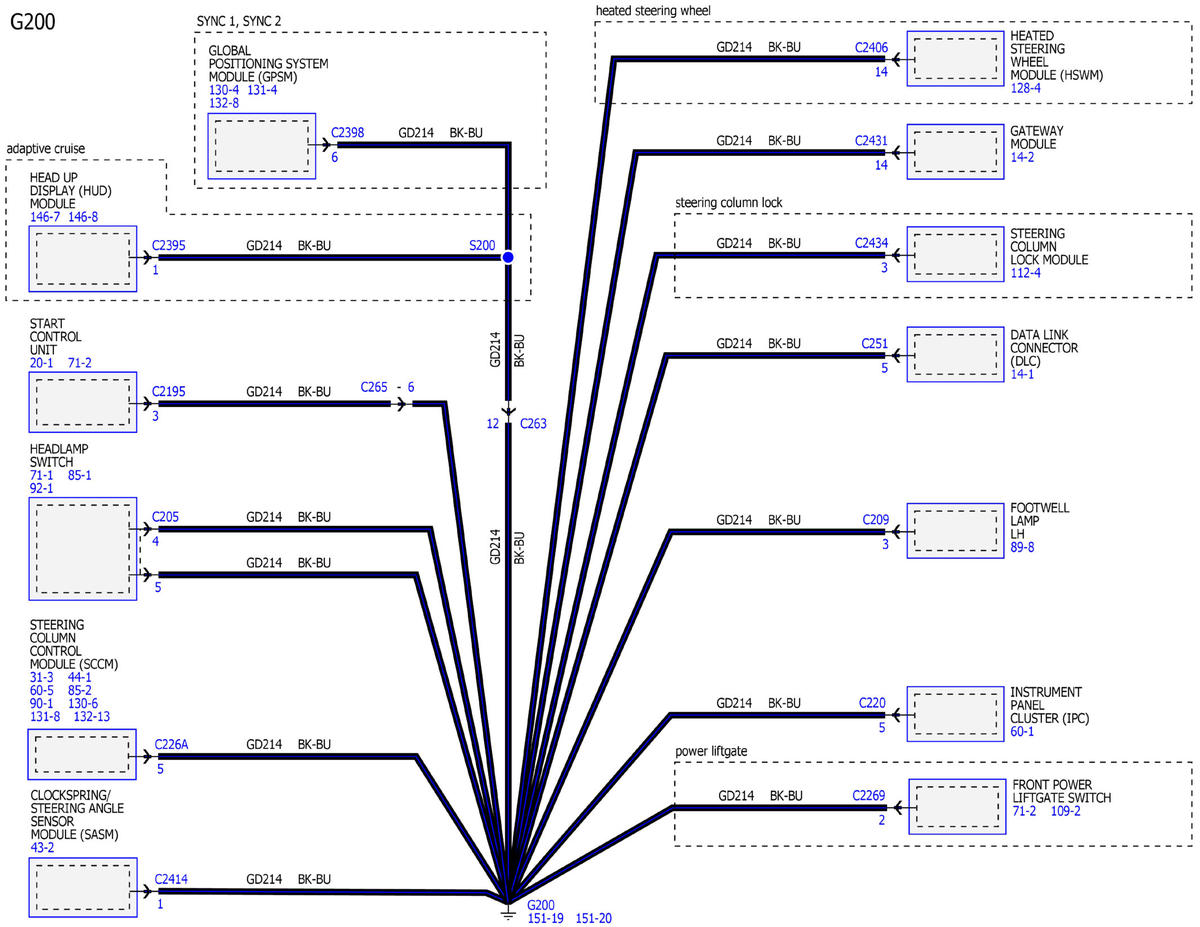

GFDWR1412Courtesy of FORD MOTOR COMPANY

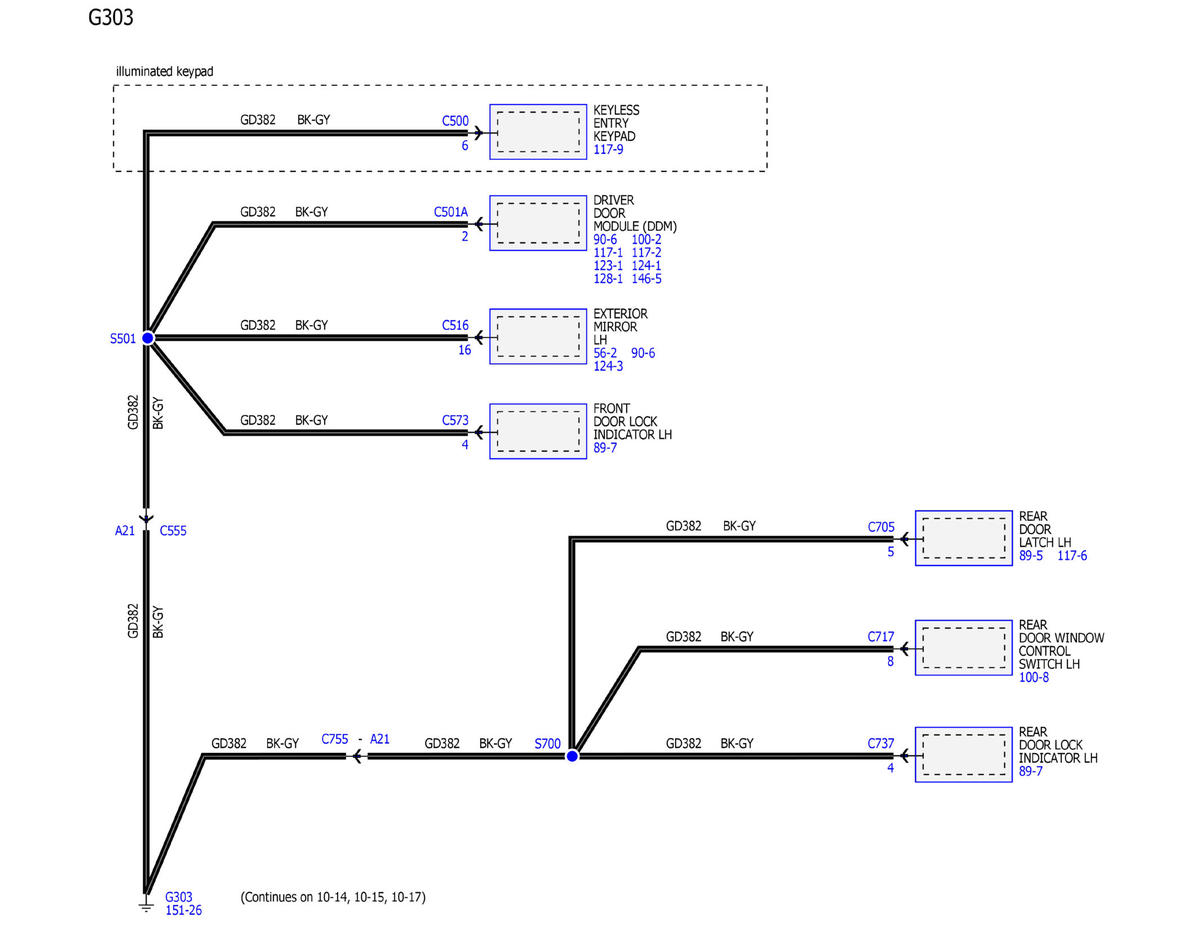

GFDWR1395Courtesy of FORD MOTOR COMPANY

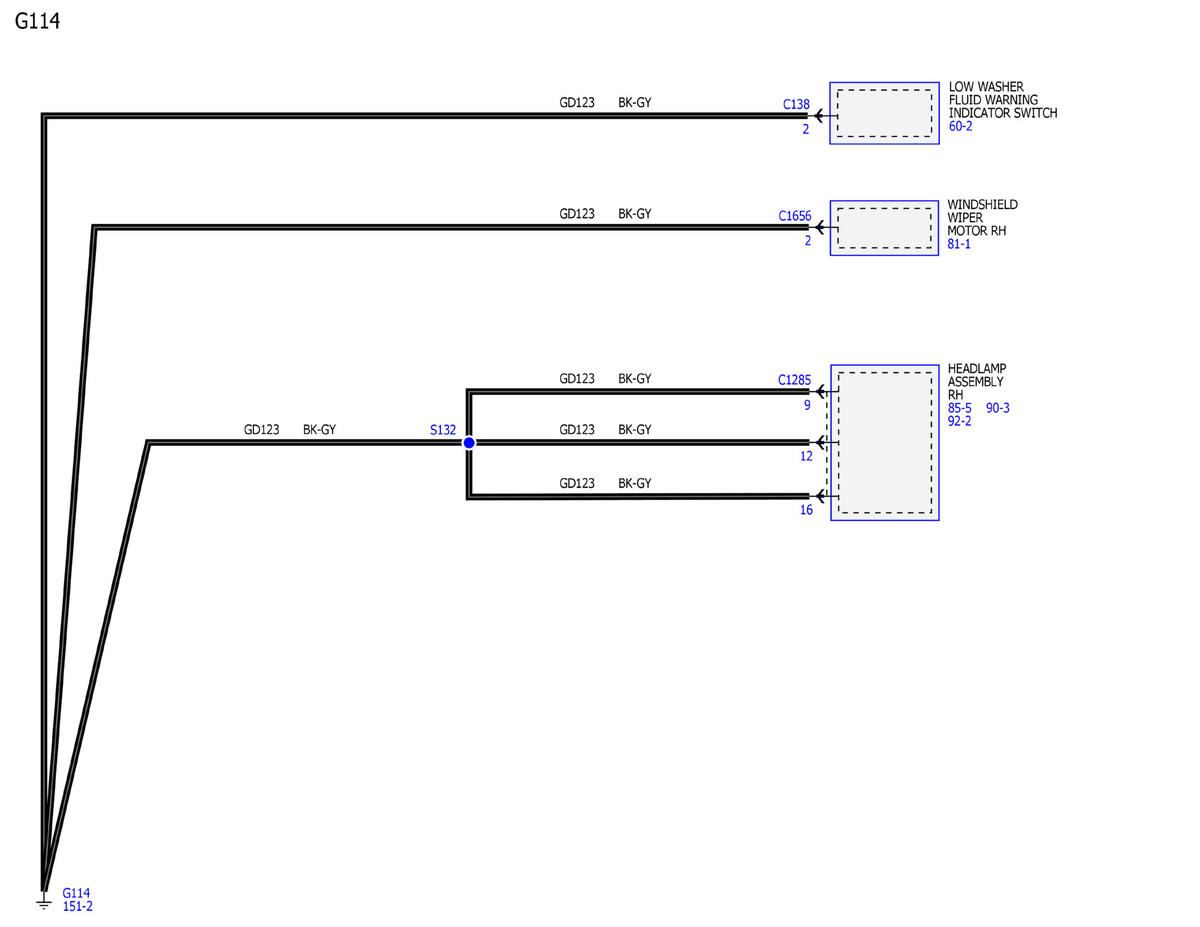

GFDWR1411Courtesy of FORD MOTOR COMPANY

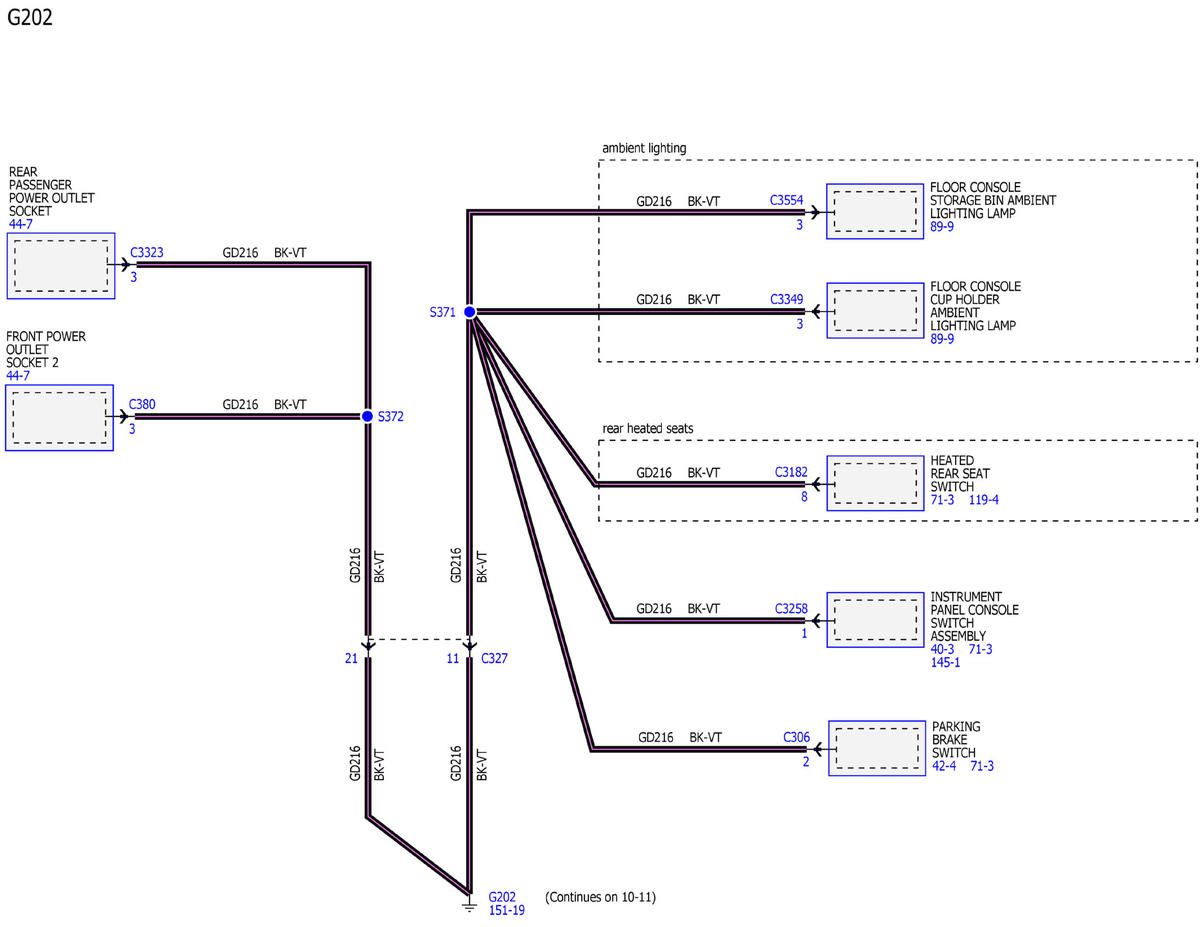

GFDWR1391Courtesy of FORD MOTOR COMPANY

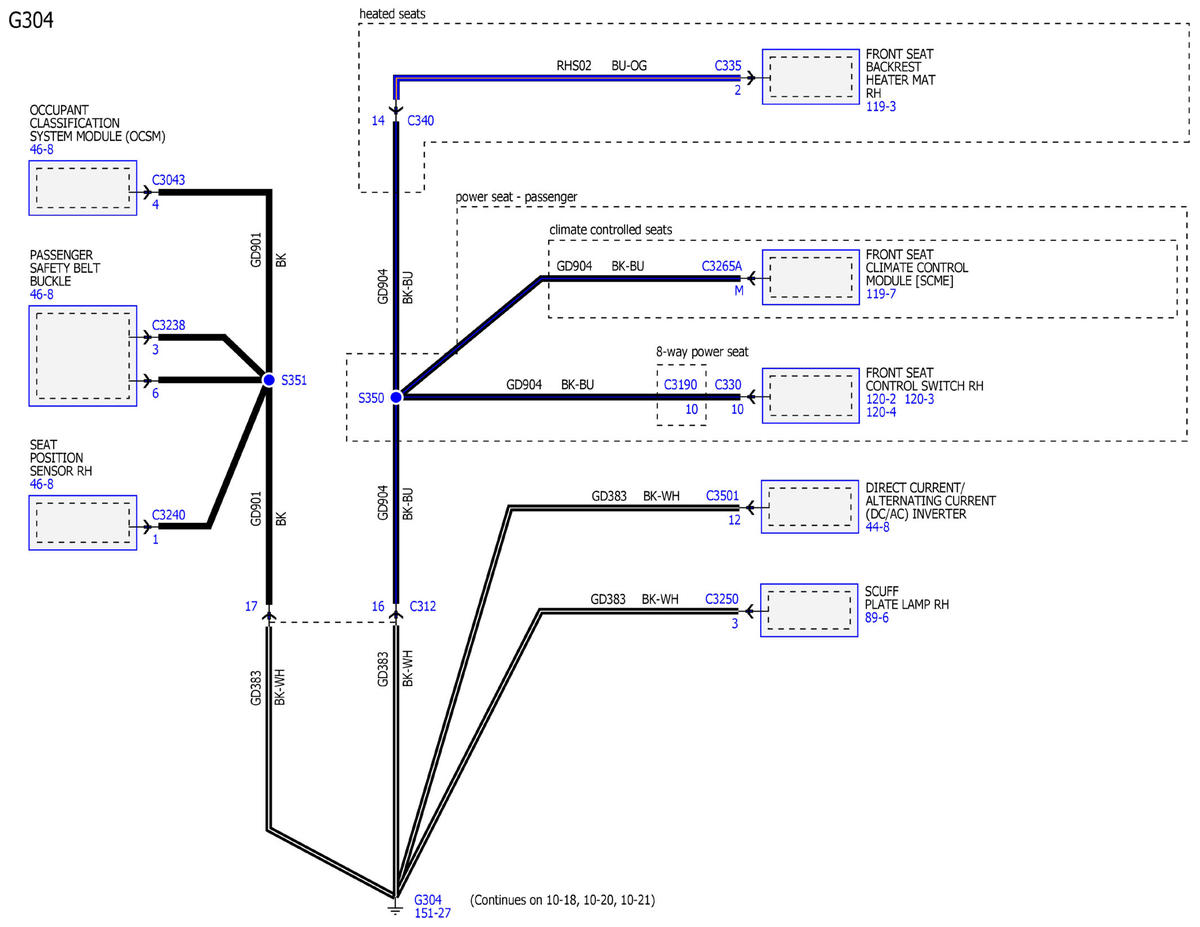

GFDWR1398Courtesy of FORD MOTOR COMPANY

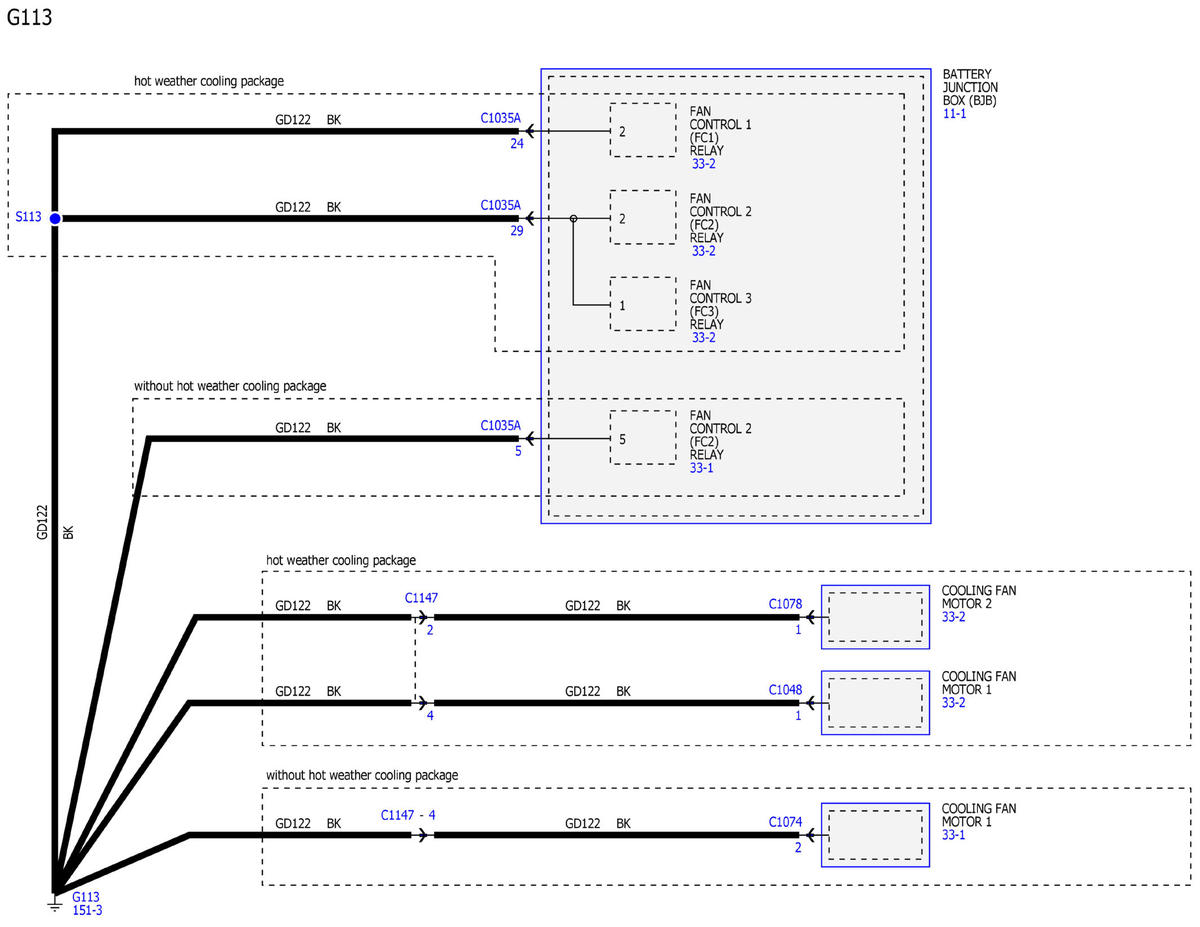

GFDWR1410Courtesy of FORD MOTOR COMPANY

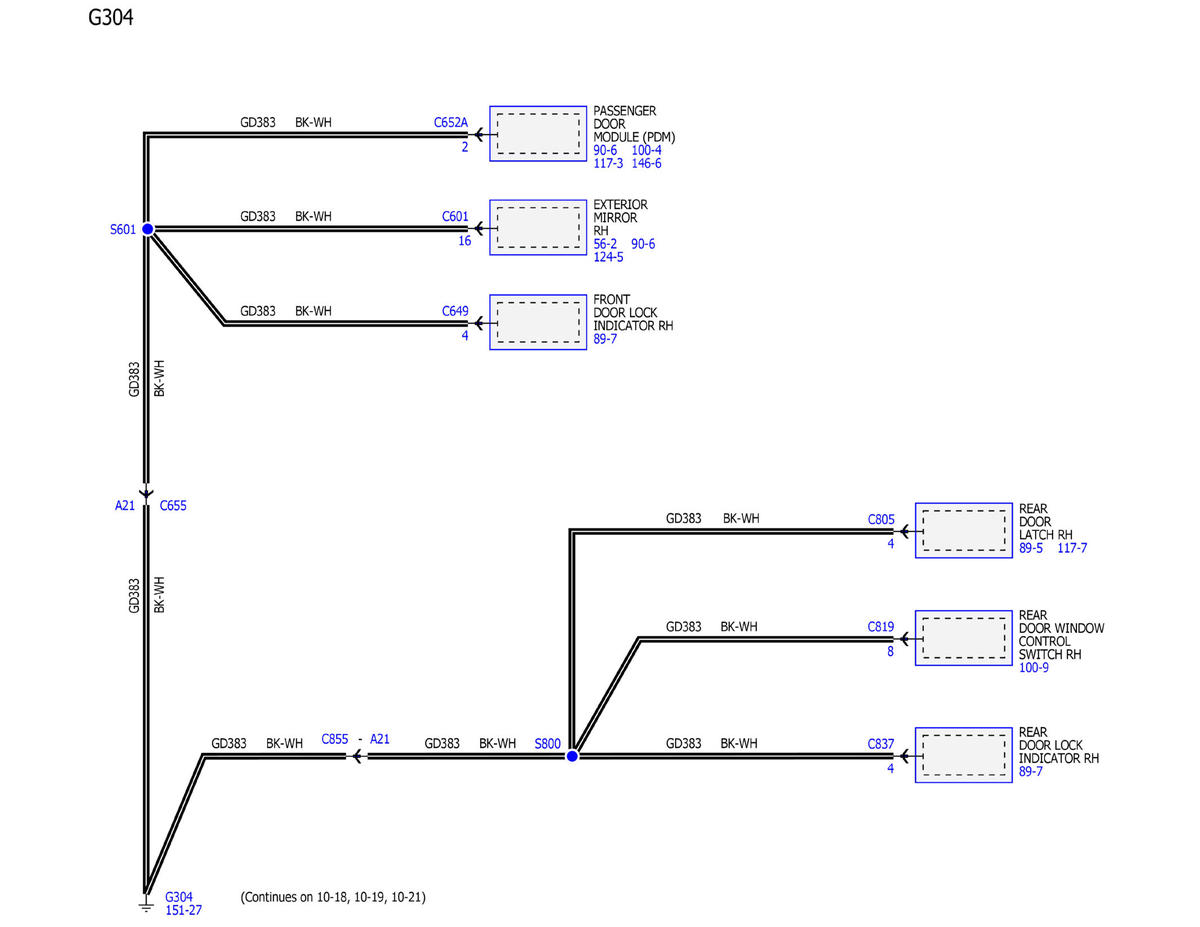

GFDWR1400Courtesy of FORD MOTOR COMPANY

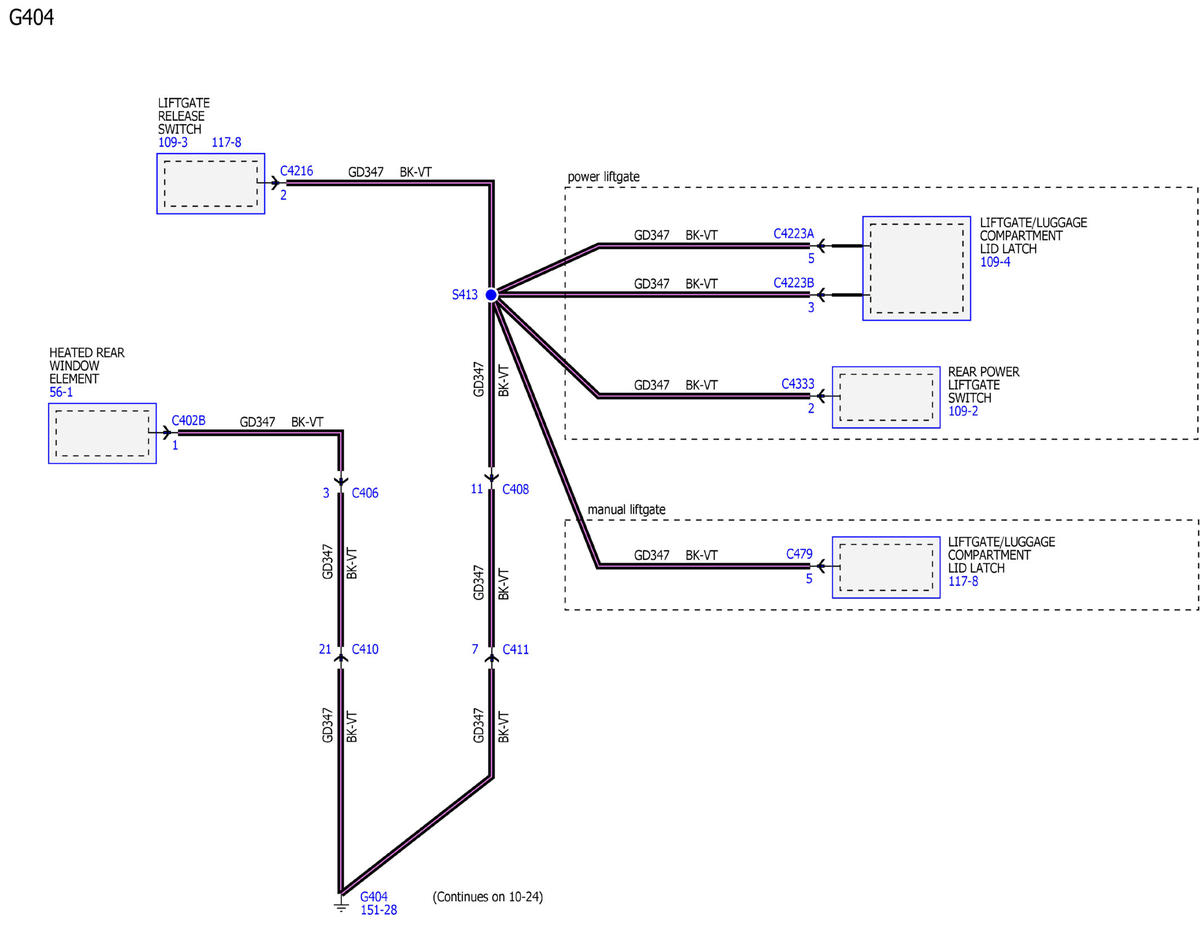

GFDWR1405Courtesy of FORD MOTOR COMPANY

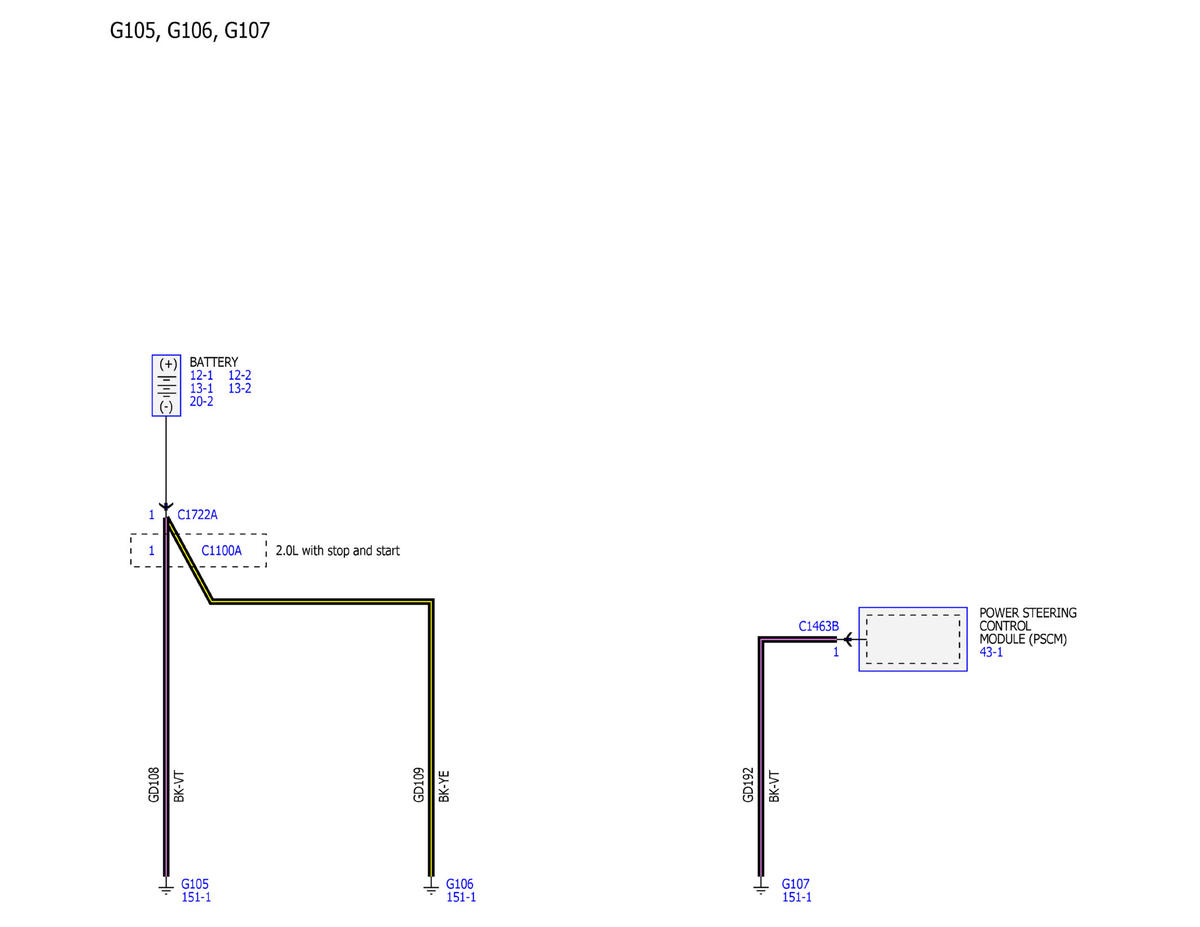

GFDWR1406Courtesy of FORD MOTOR COMPANY

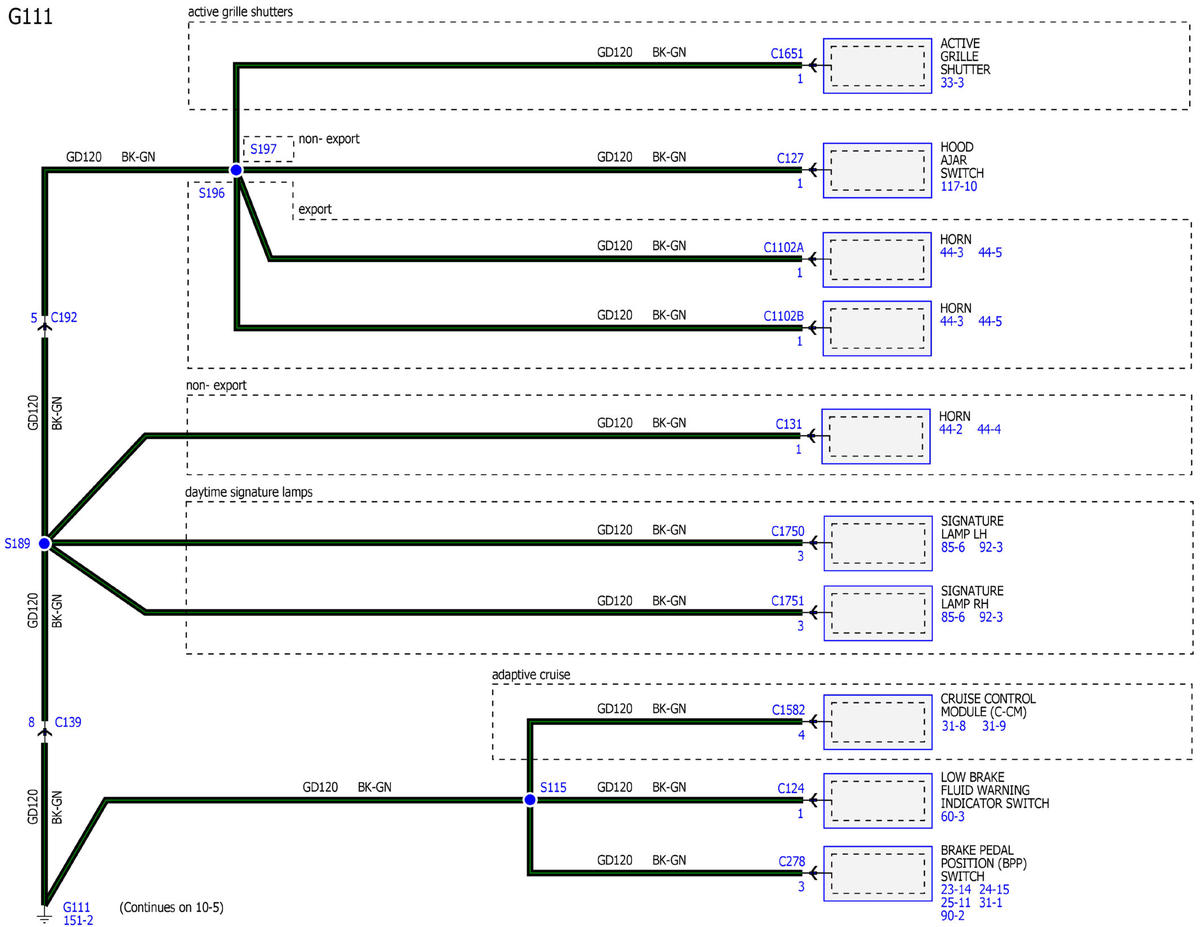

GFDWR1409Courtesy of FORD MOTOR COMPANY

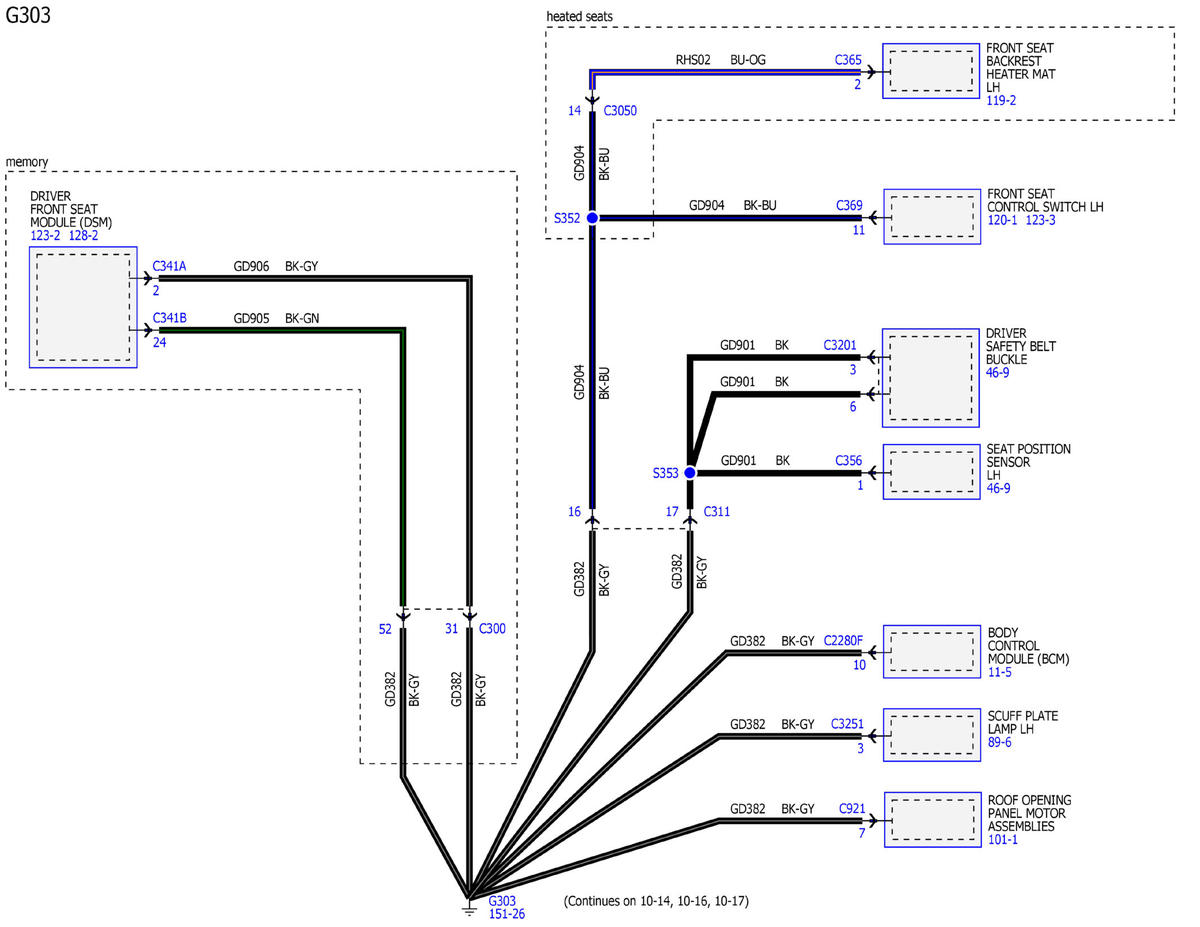

GFDWR1394Courtesy of FORD MOTOR COMPANY

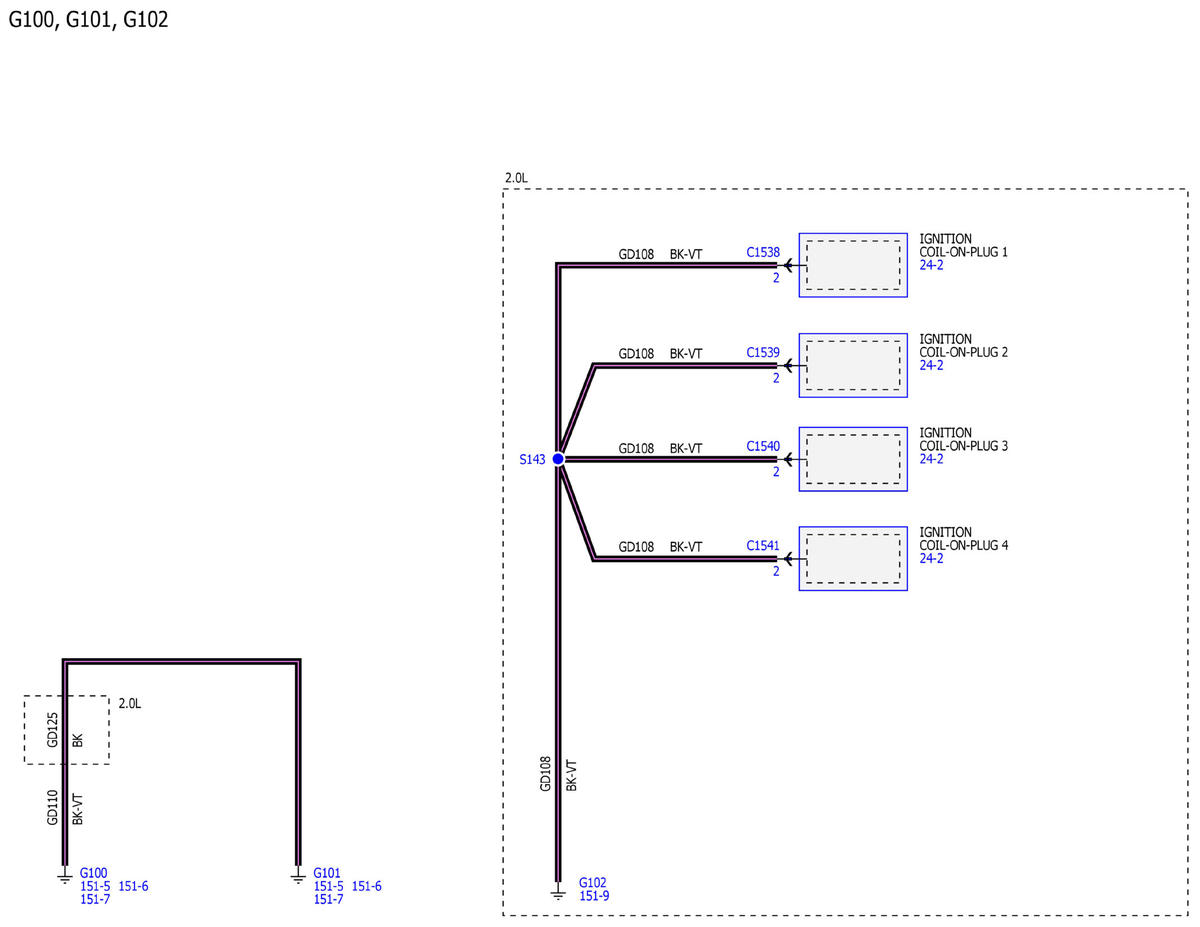

GFDWR1388Courtesy of FORD MOTOR COMPANY

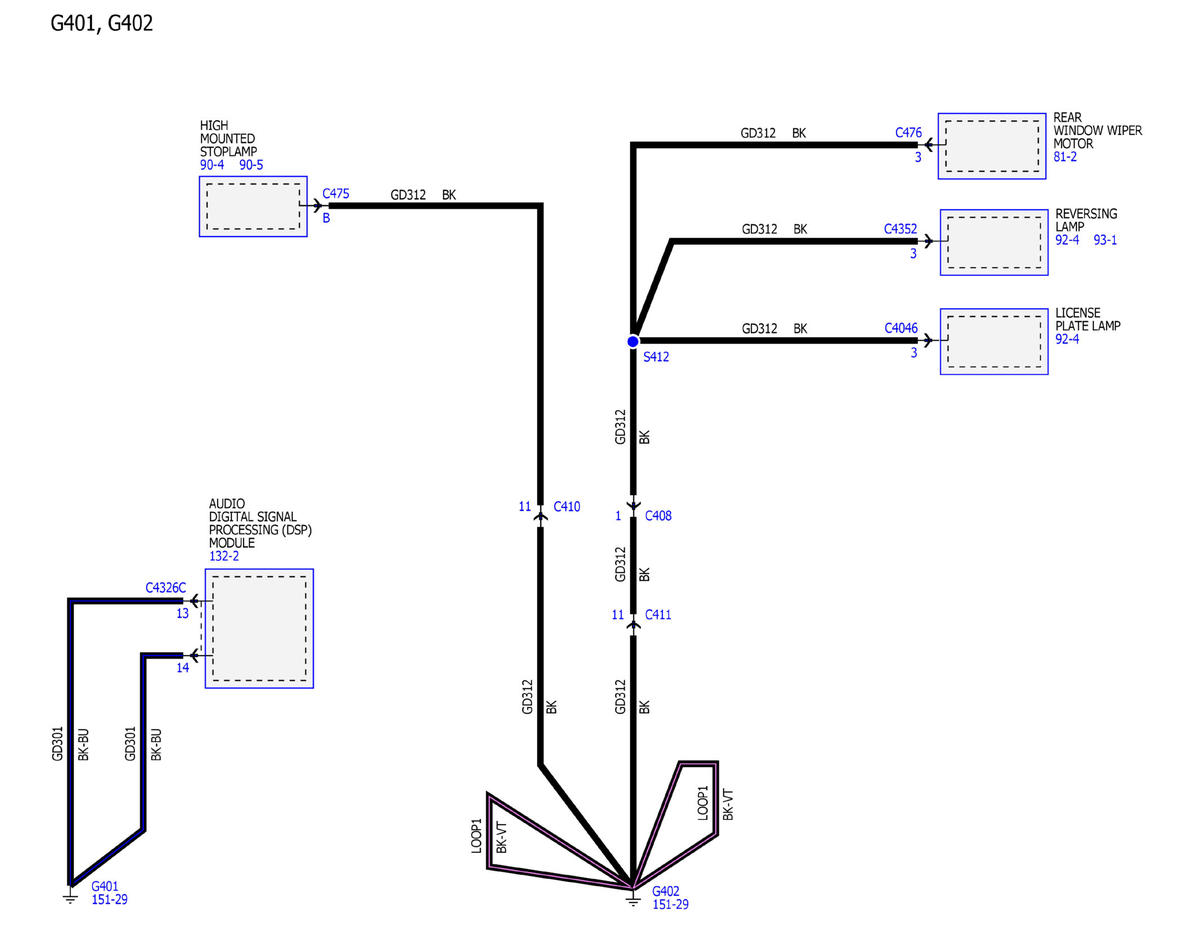

GFDWR1402Courtesy of FORD MOTOR COMPANY

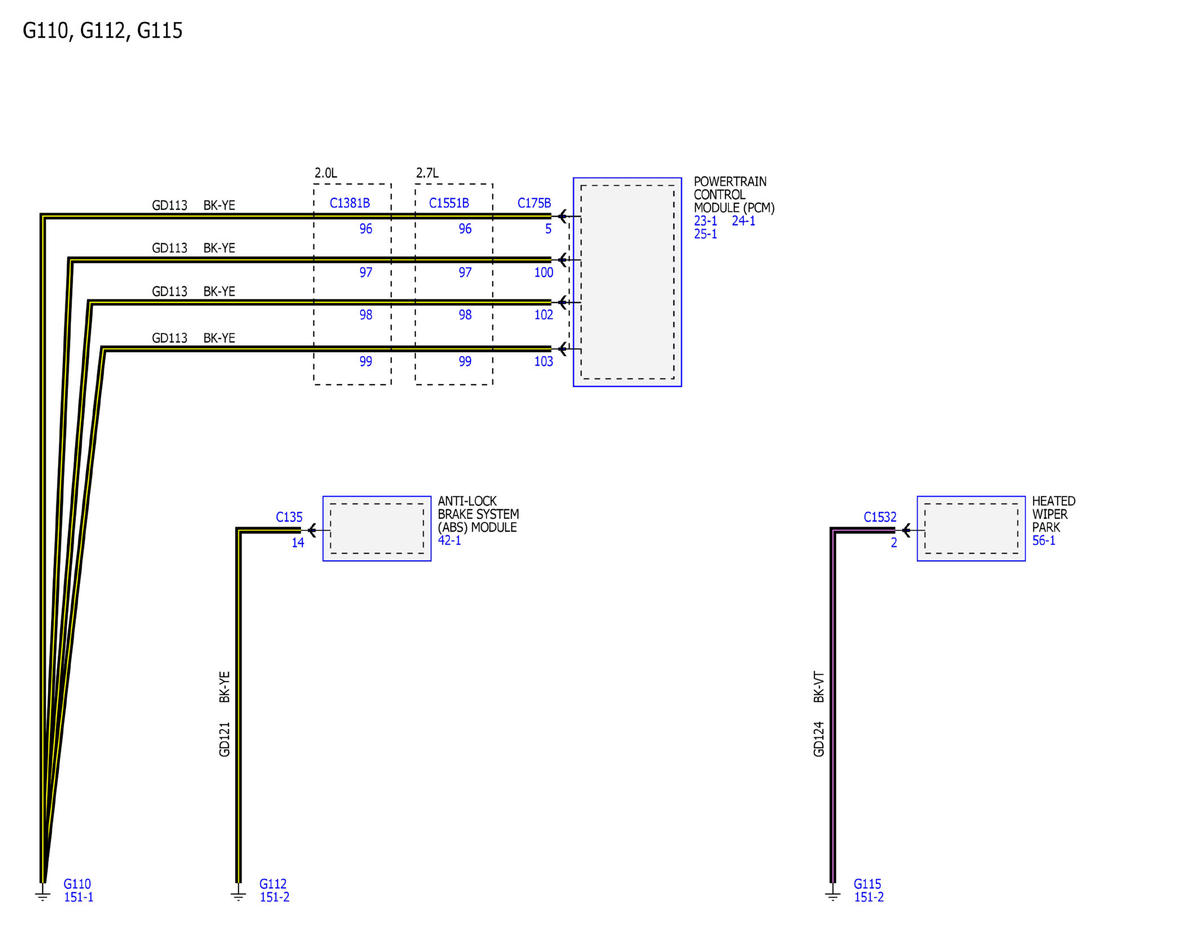

GFDWR1407Courtesy of FORD MOTOR COMPANY

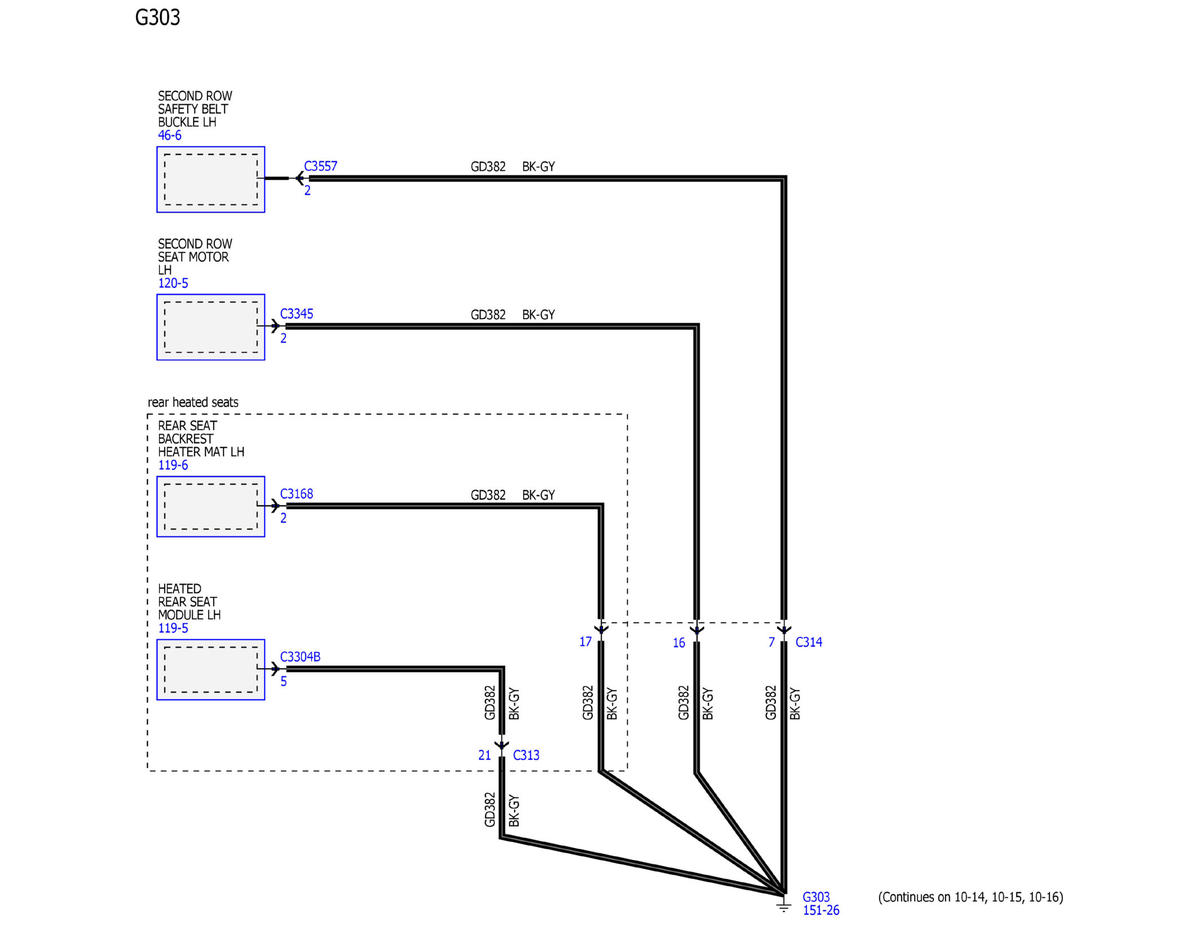

GFDWR1396Courtesy of FORD MOTOR COMPANY

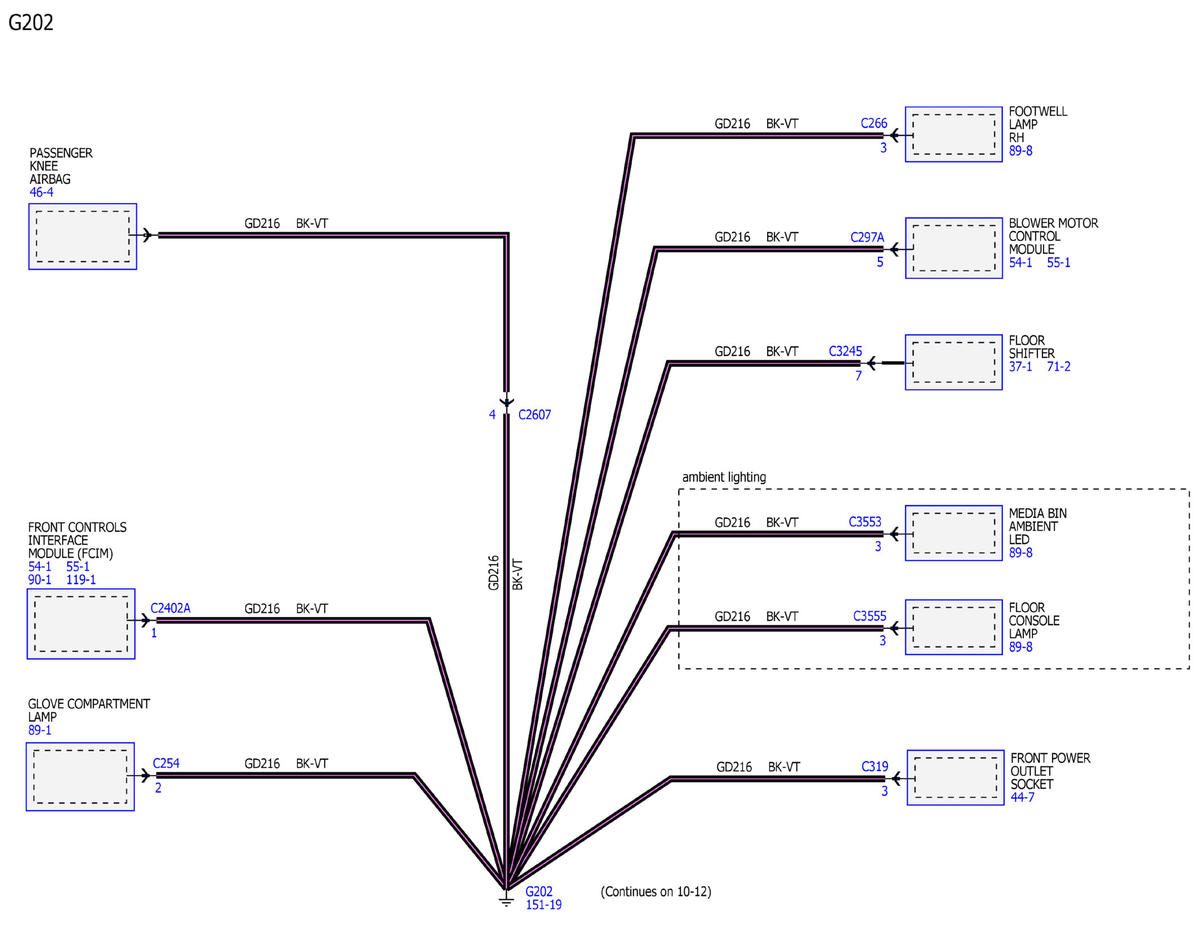

GFDWR1390Courtesy of FORD MOTOR COMPANY

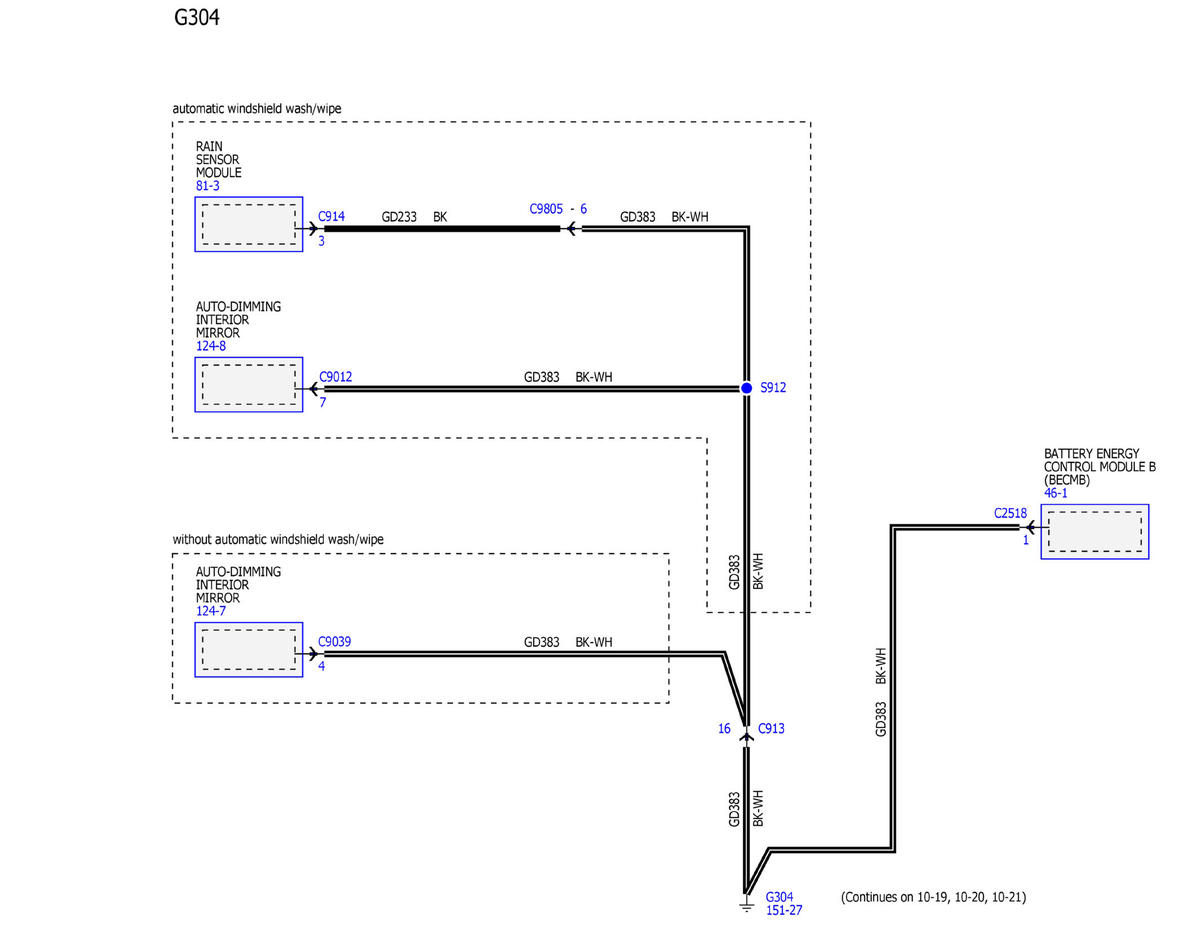

GFDWR1397Courtesy of FORD MOTOR COMPANY

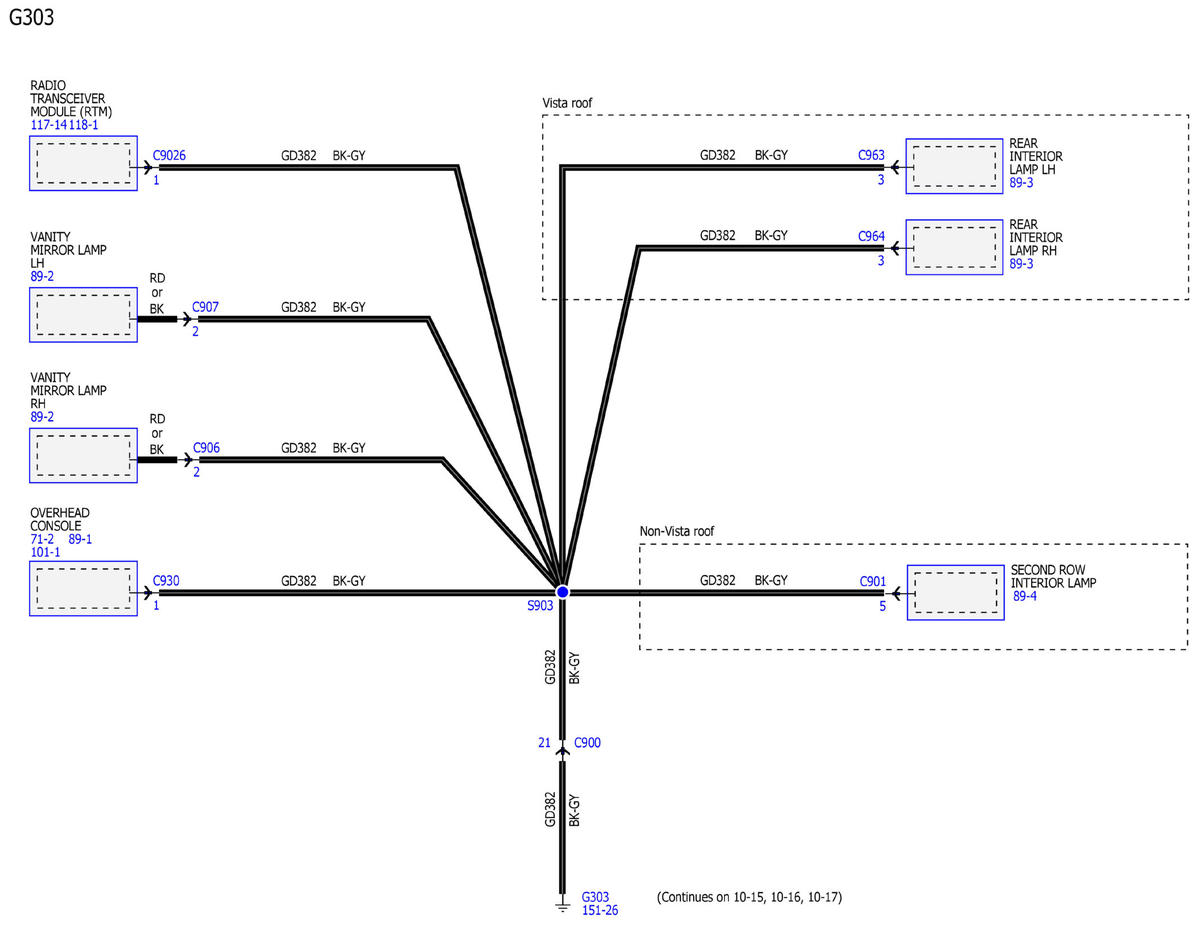

GFDWR1393Courtesy of FORD MOTOR COMPANY

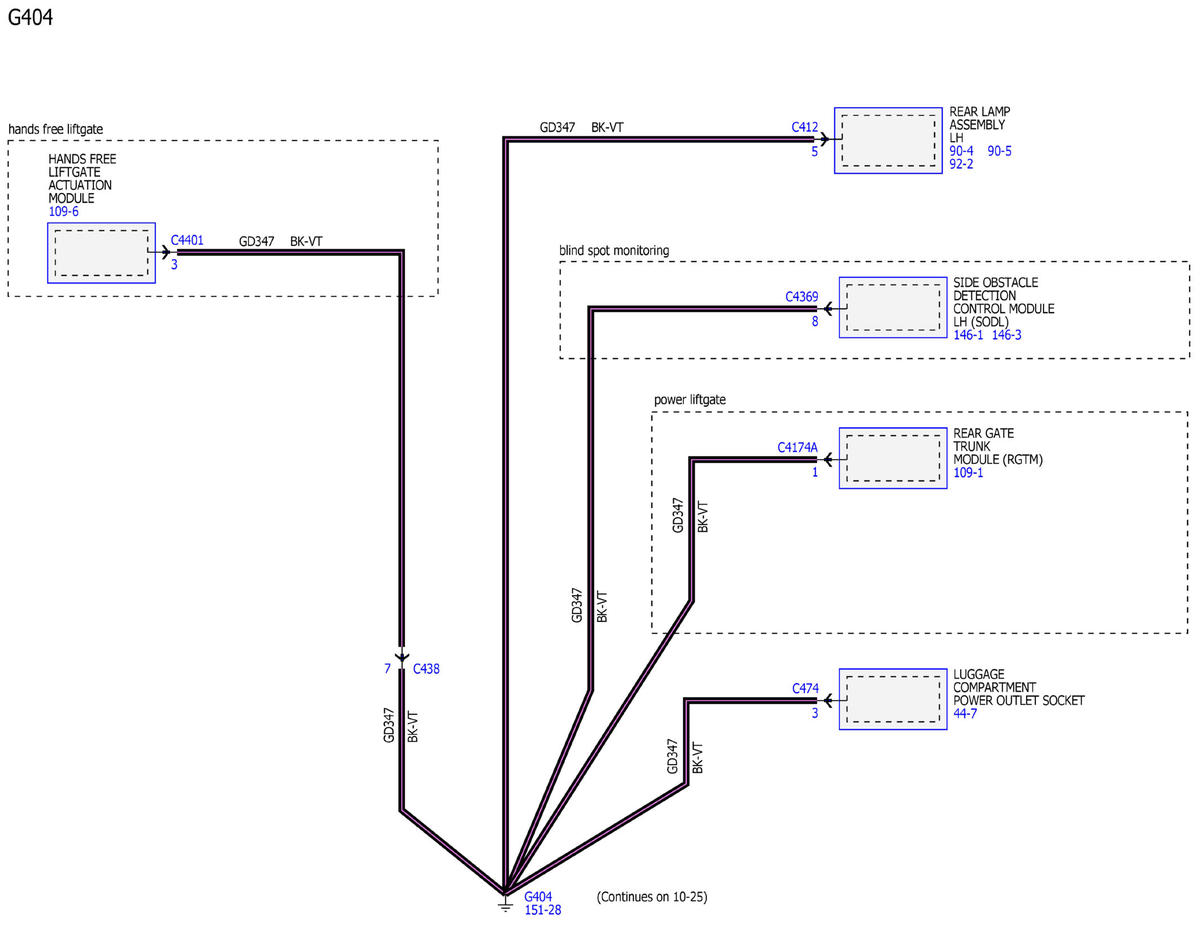

GFDWR1404Courtesy of FORD MOTOR COMPANY

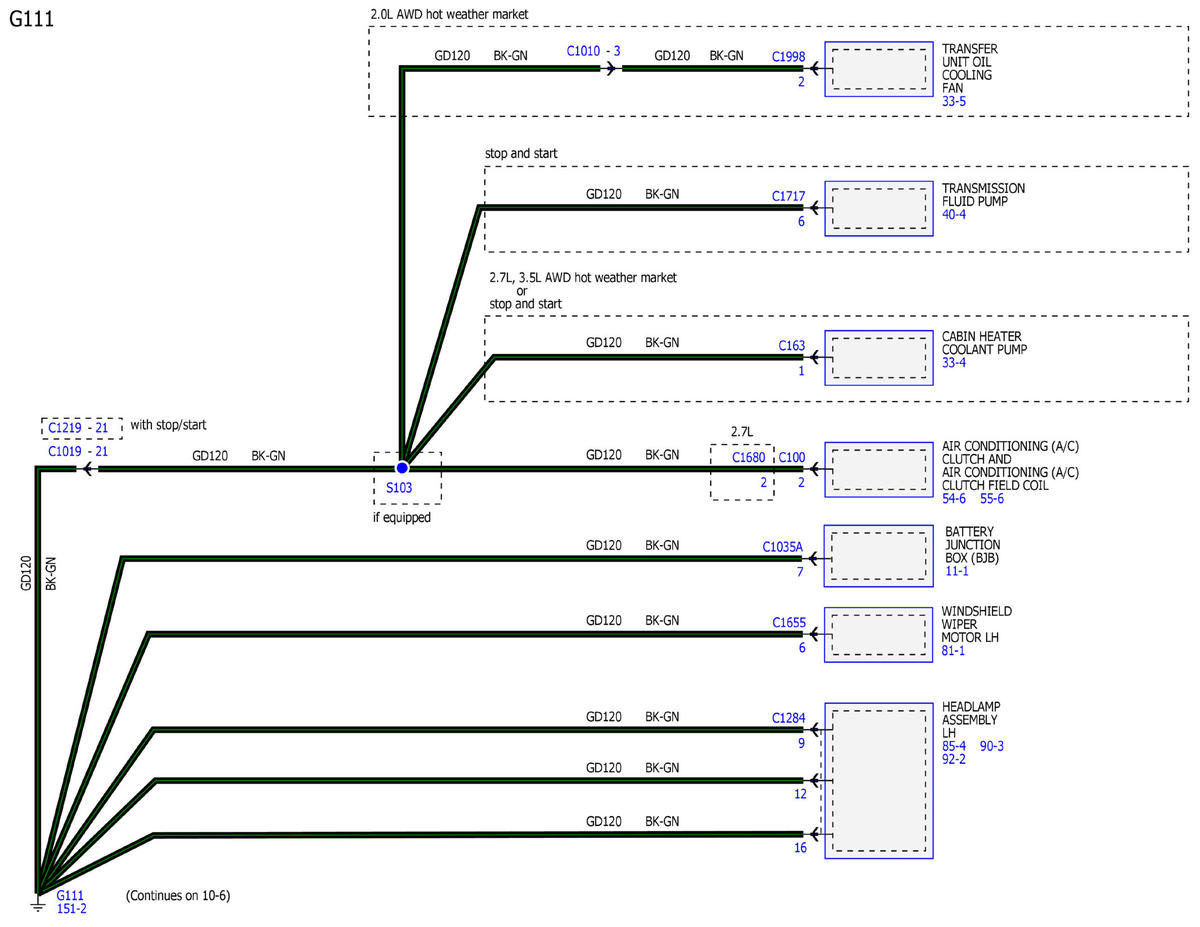

GFDWR1408Courtesy of FORD MOTOR COMPANY

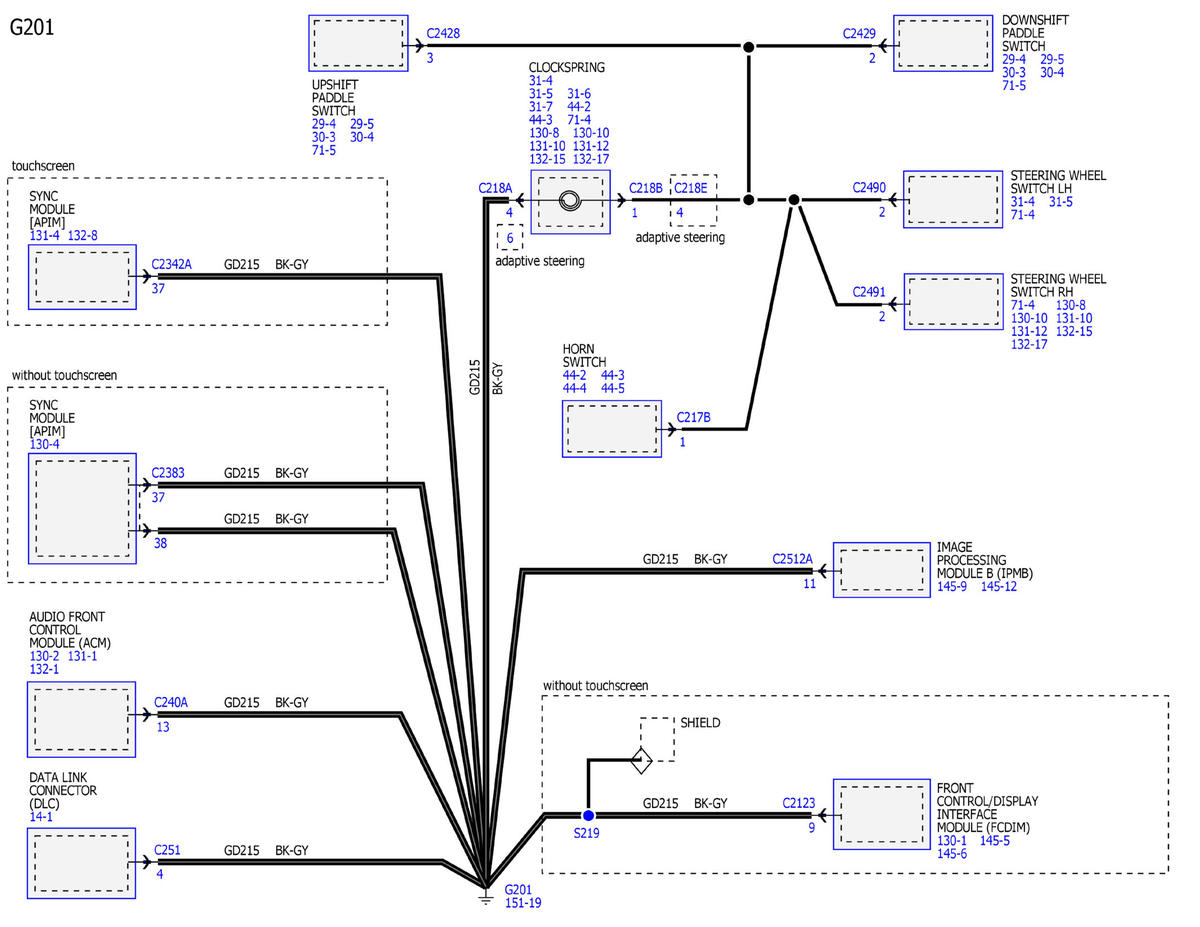

GFDWR1389Courtesy of FORD MOTOR COMPANY
