System Diagram

WARNING: This page is about a different variant/trim than selected.
GFD281785Courtesy of FORD MOTOR COMPANY

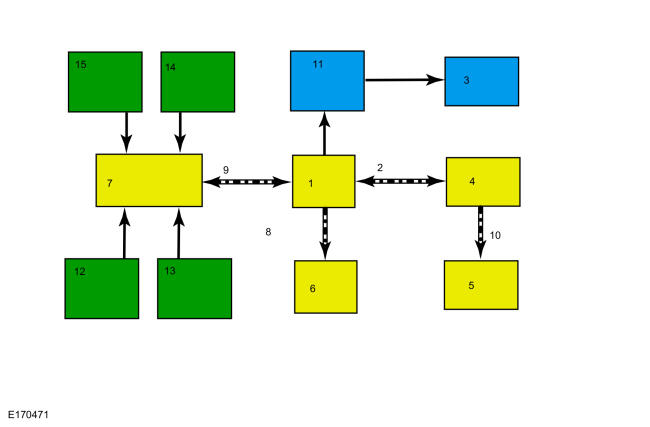

GFD281786Courtesy of FORD MOTOR COMPANY
Item Description
1 PCM
2 HS-CAN
3 Active Torque Coupling (ATC) solenoid
4 BCM
5 IPC
6 RCM
7 ABS module
8 HS-CAN
9 HS-CAN
10 MS-CAN
11 AWD relay module
12 LH rear wheel speed sensor
13 RH rear wheel speed sensor
14 RH front wheel speed sensor
15 LH front wheel speed sensor
