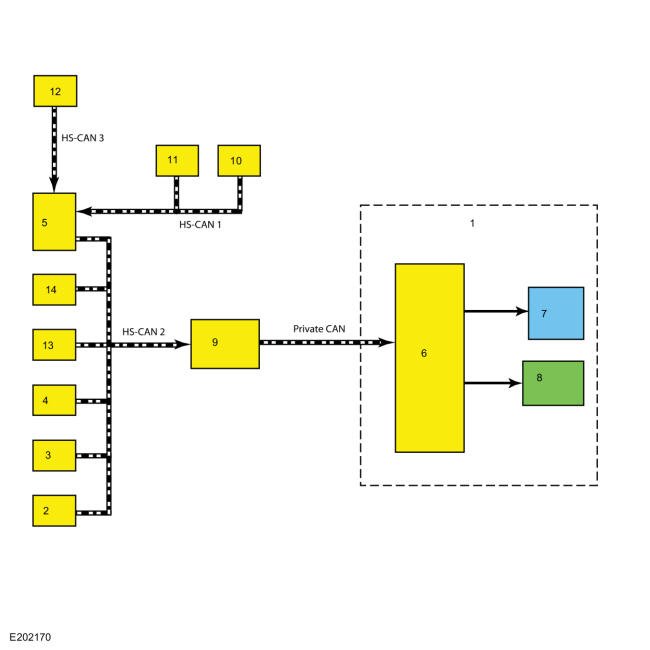

System Diagram

GFD277371Courtesy of FORD MOTOR COMPANY
GFD277372Courtesy of FORD MOTOR COMPANY
Item Description
1 SECM
2 IPMA
3 ABS module
4 PSCM
5 GWM
6 ECU
7 Adaptive steering motor
8 Adaptive steering locking solenoid
9 SASM
10 BCM
11 PCM
12 IPC
13 SCCM
14 RCM
