Transfer Case

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING .

All vehicles

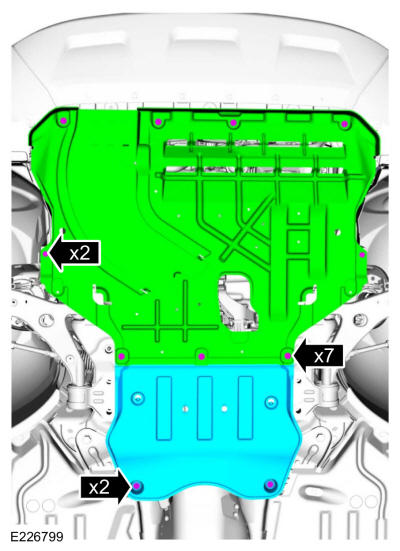

- Remove the retainers and the underbody shield.
- Remove the retainers and the stone guard.
Courtesy of FORD MOTOR COMPANY

1.5L EcoBoost (132kW/180PS) - I4/1.6L EcoBoost (132kW/180PS) - Sigma

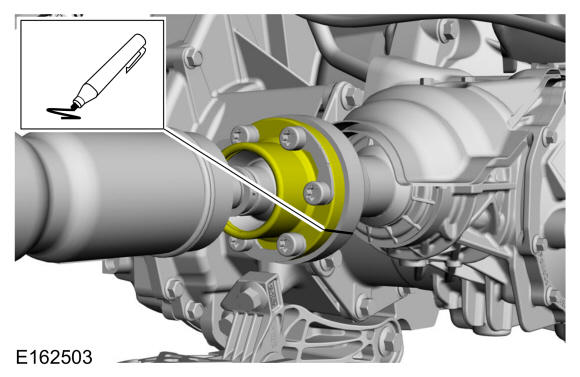

Index mark the driveshaft and the pinion flange for reference during installation.

Courtesy of FORD MOTOR COMPANY

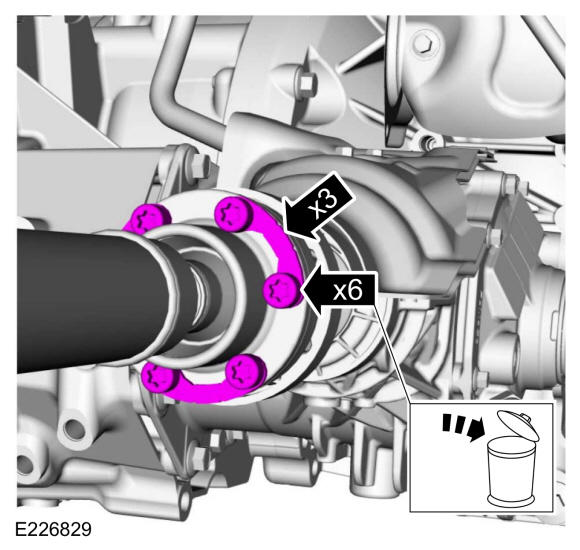

Remove and discard the driveshaft-to-pinion flange bolts.

Courtesy of FORD MOTOR COMPANY

1.6L EcoBoost (132kW/180PS) - Sigma

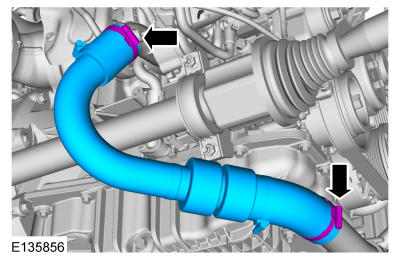

Remove the CAC tube clamps and CAC tube.

Courtesy of FORD MOTOR COMPANY

2.0L
Remove the rear driveshaft. REFER to: Rear Driveshaft .

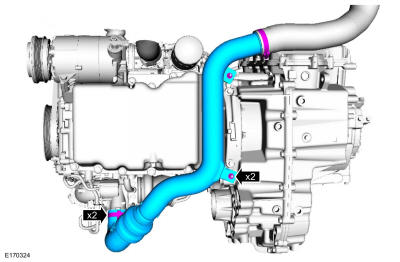

Remove the CAC tube clamps and CAC tube.

Courtesy of FORD MOTOR COMPANY
Remove the catalytic converter. REFER to: Catalytic Converter .
All vehicles

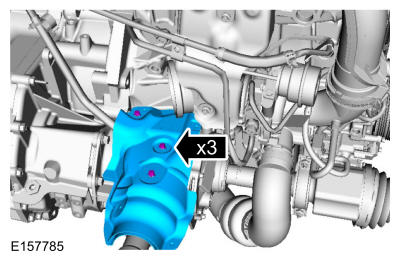

Remove the PTU heat shield bolts and the PTU heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the RH front halfshaft. REFER to: Front Halfshaft RH .
Disconnect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

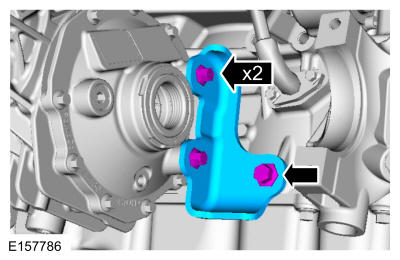

Remove the PTU support bracket bolts and the PTU support bracket.

Courtesy of FORD MOTOR COMPANY

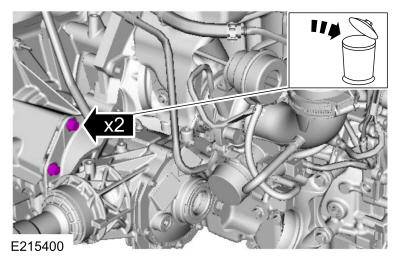

Remove and discard the upper PTU bolts.

Courtesy of FORD MOTOR COMPANY

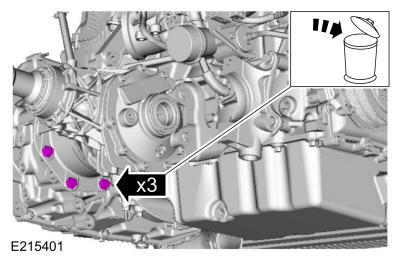

Remove and discard the lower PTU bolts.

Courtesy of FORD MOTOR COMPANY

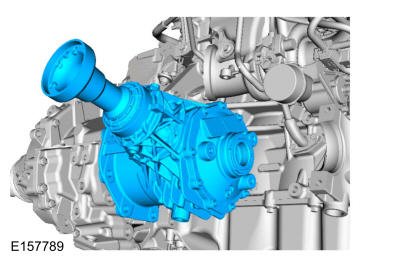

Remove the PTU.

Courtesy of FORD MOTOR COMPANY

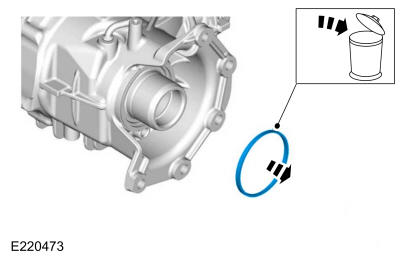

Remove and discard the PTU compression seal.

Courtesy of FORD MOTOR COMPANY
