Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in N position it on a hoist. REFER to: Jacking and Lifting - Overview .
  2. NOTE: PCM installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the PATS.
    NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation routine. REFER to: Module Configuration - System Operation and Component Description .

  3. Remove the LH fender splash shield. REFER to: Fender Splash Shield .
  4. Remove the retainers and the PCM cover.

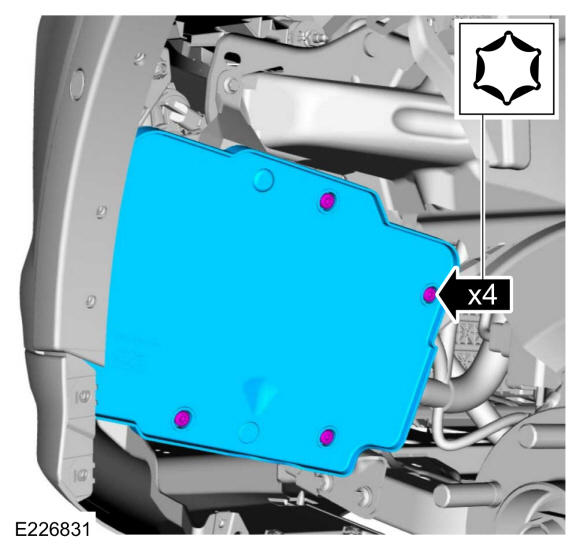

    GFD255536Courtesy of FORD MOTOR COMPANY
  5. Detach the wiring harness grommet.

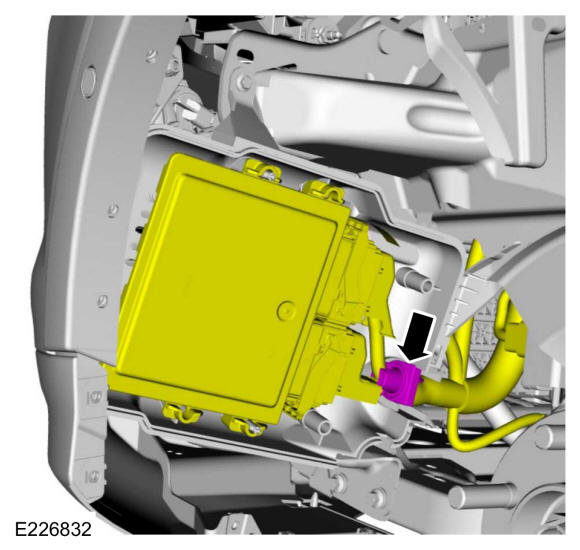

    GFD255537Courtesy of FORD MOTOR COMPANY
  6. Disconnect the electrical connectors and remove the PCM.

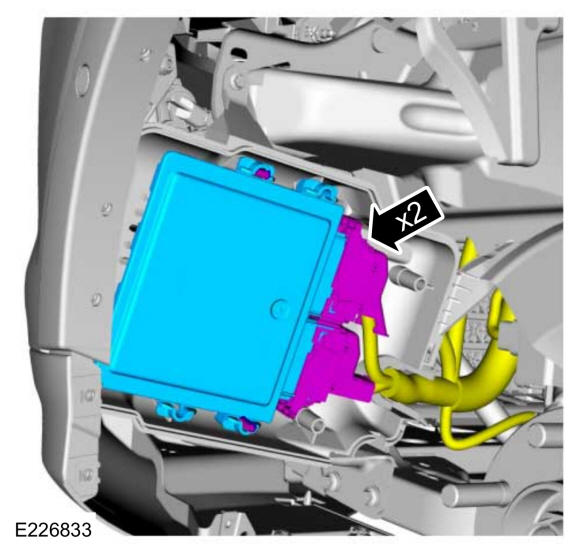

GFD255538Courtesy of FORD MOTOR COMPANY
