OEM Ground Distribution: Grounds

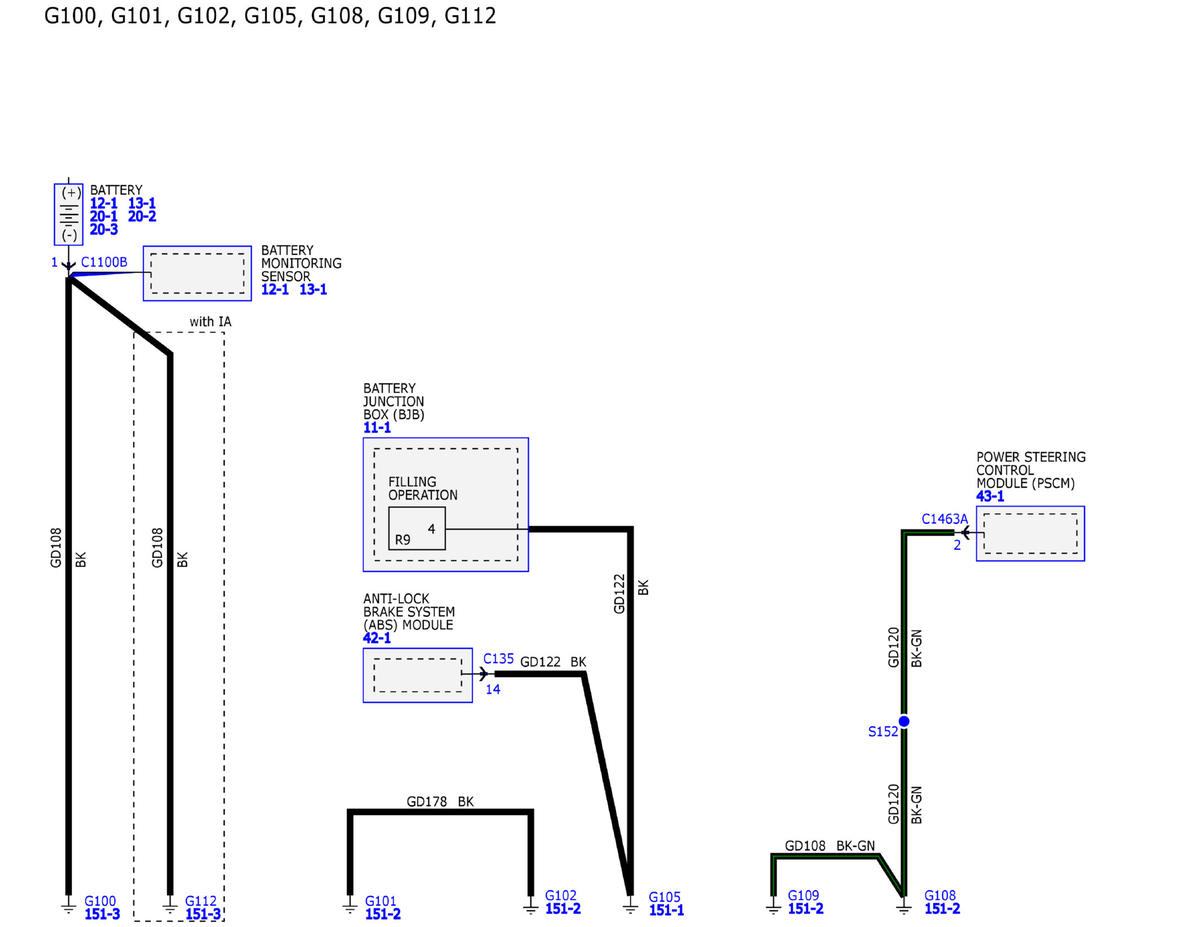

GFDW97275Courtesy of FORD MOTOR COMPANY

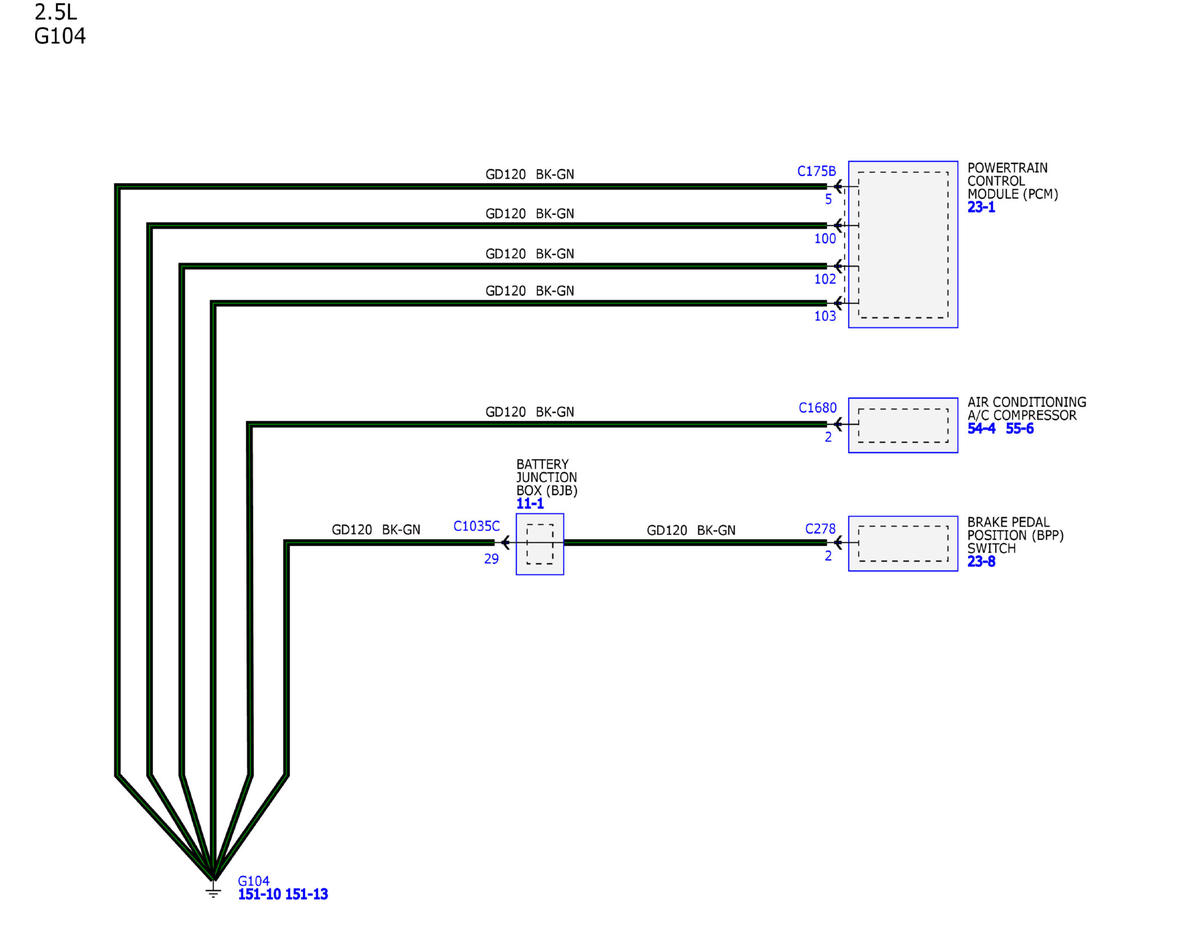

GFDW97276Courtesy of FORD MOTOR COMPANY

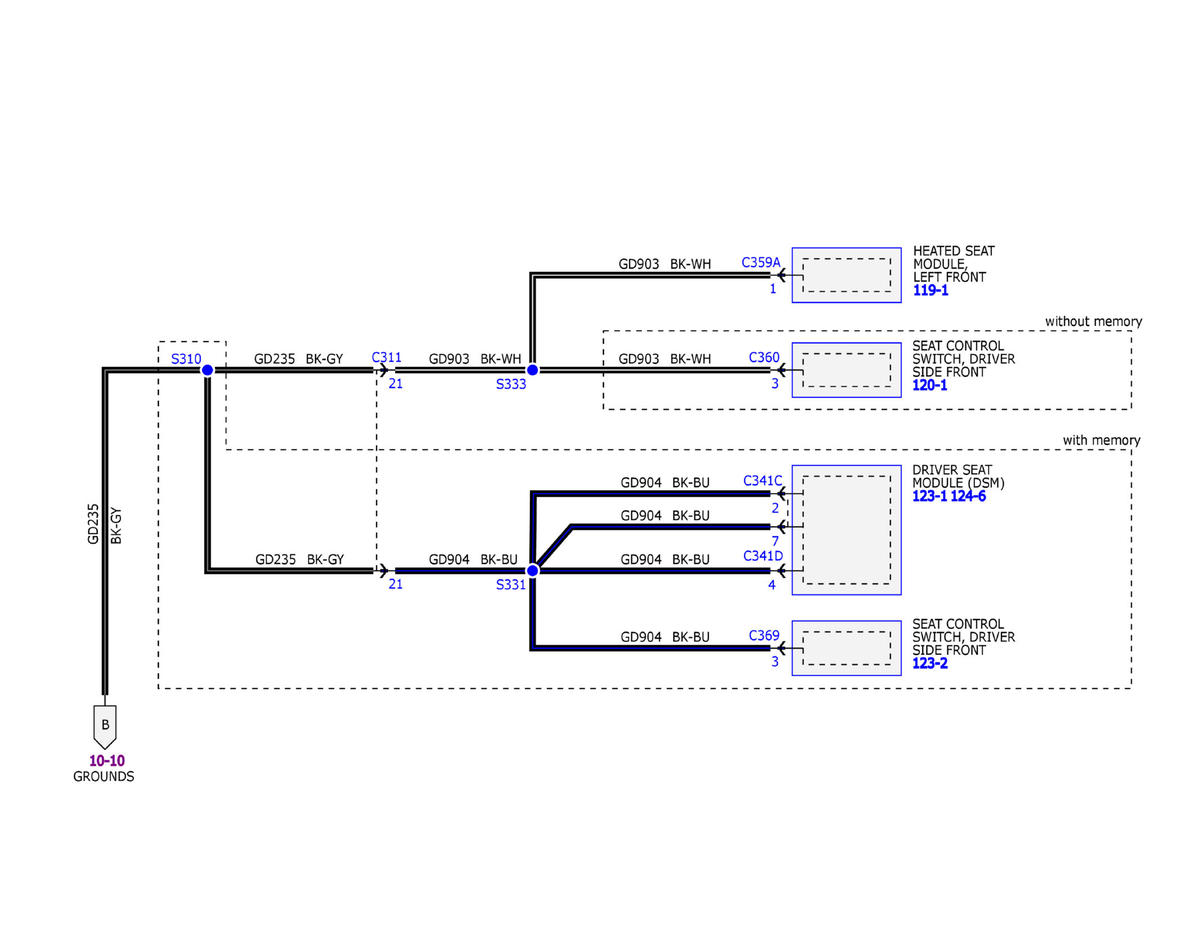

GFDW97277Courtesy of FORD MOTOR COMPANY

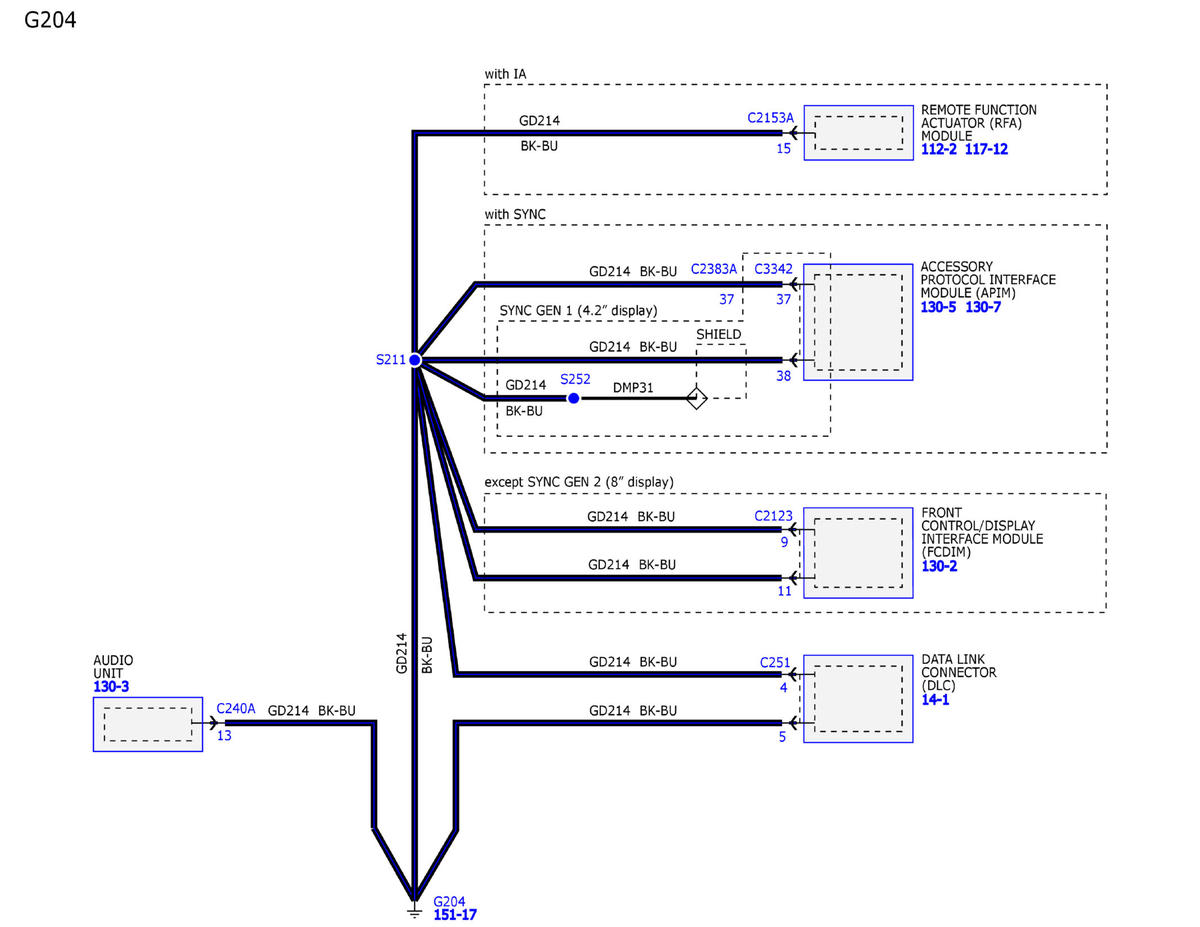

GFDW97278Courtesy of FORD MOTOR COMPANY

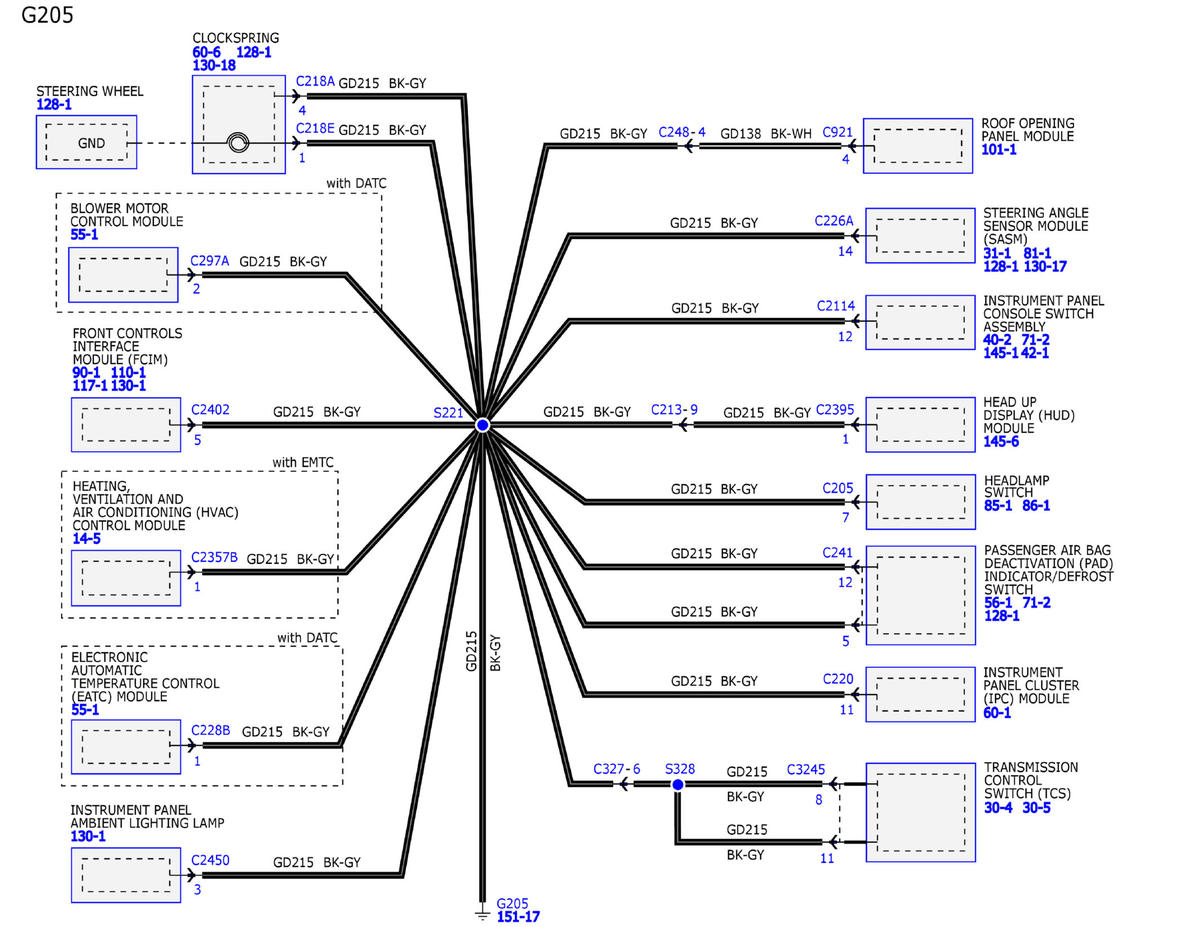

GFDW97279Courtesy of FORD MOTOR COMPANY

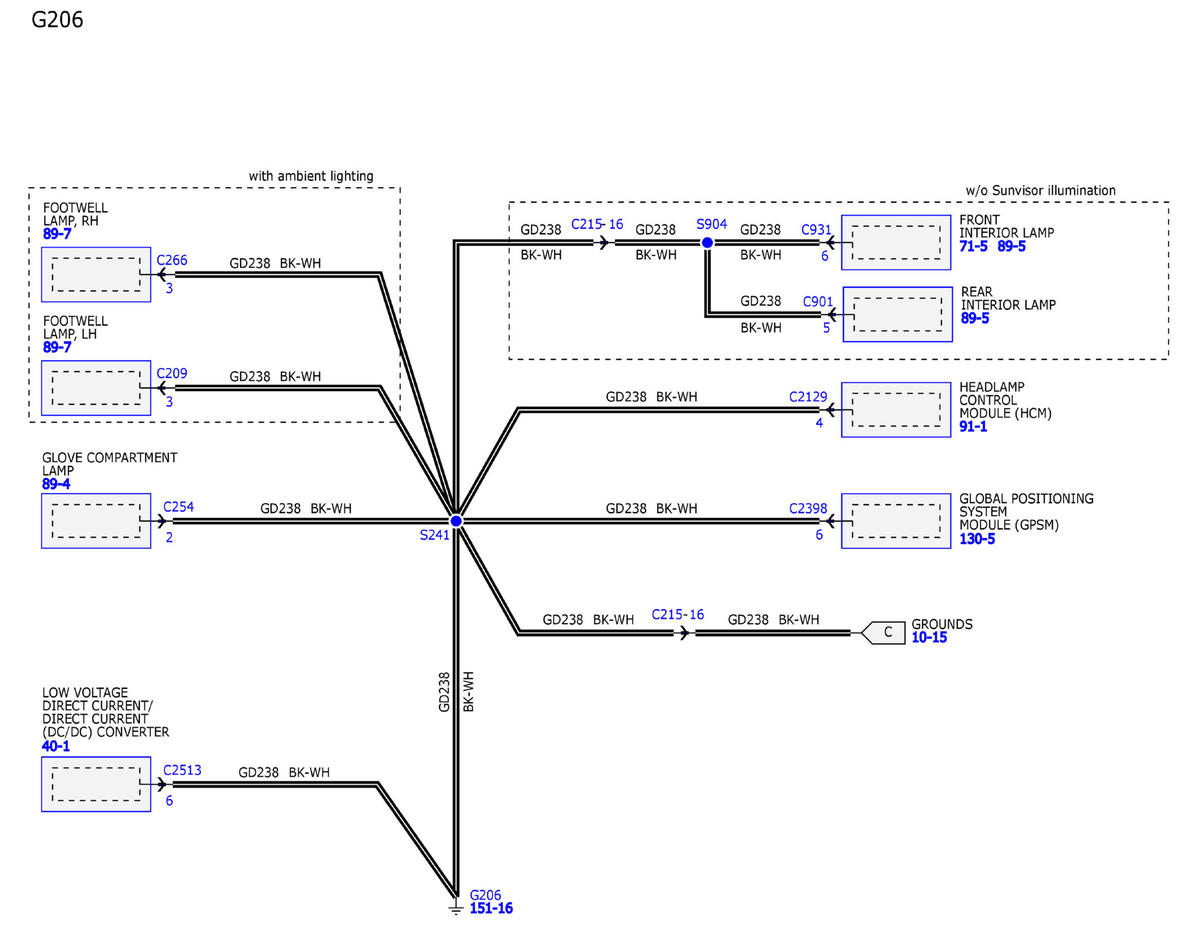

GFDW97280Courtesy of FORD MOTOR COMPANY

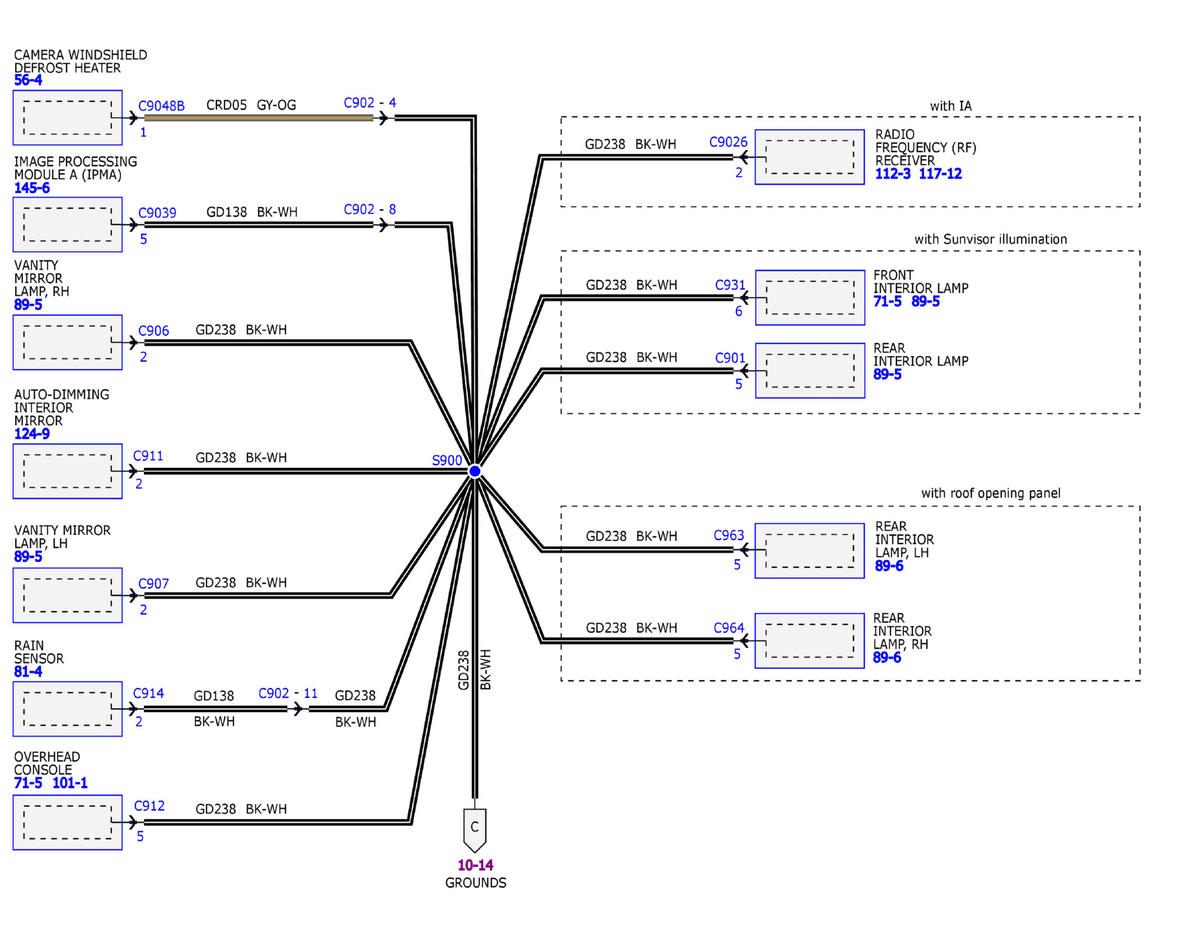

GFDW97281Courtesy of FORD MOTOR COMPANY

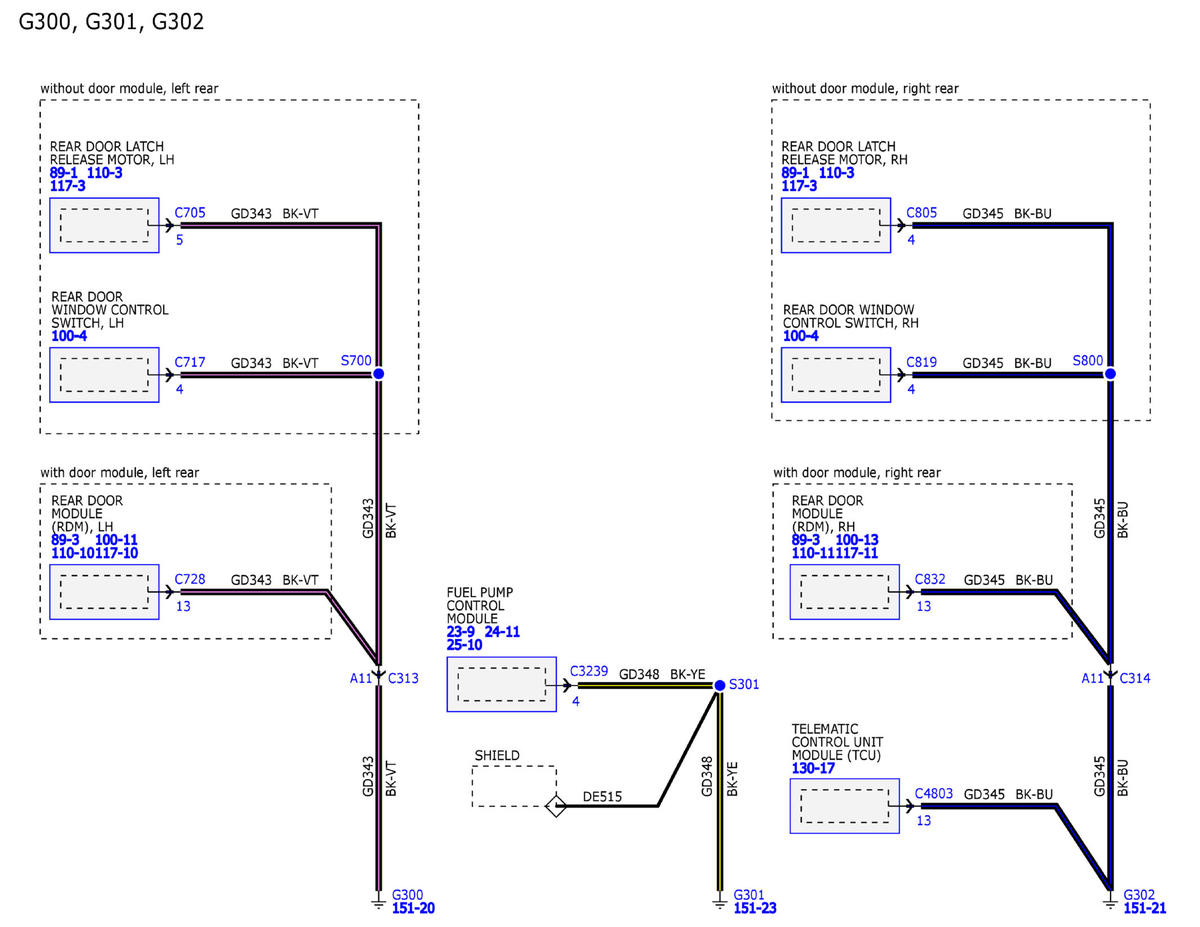

GFDW97282Courtesy of FORD MOTOR COMPANY

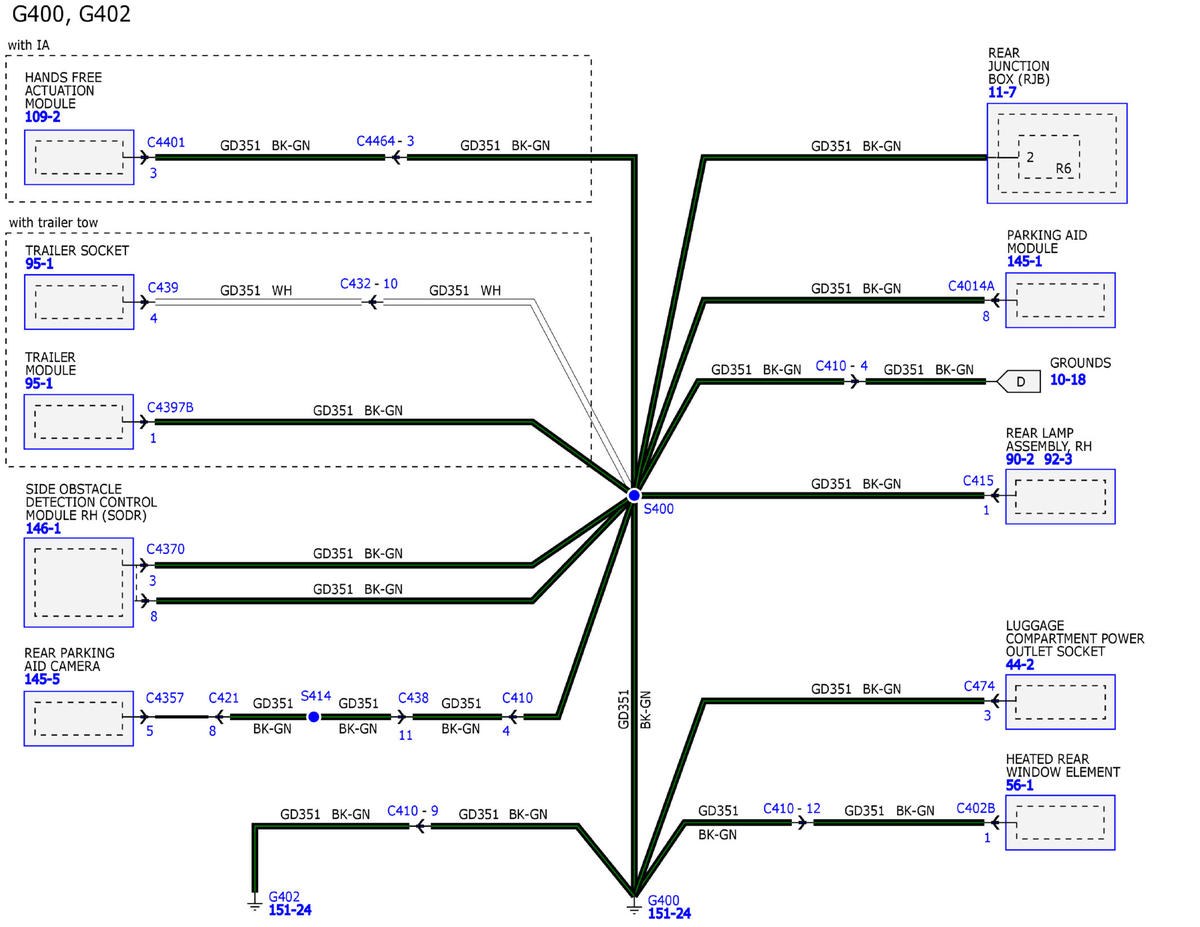

GFDW97283Courtesy of FORD MOTOR COMPANY

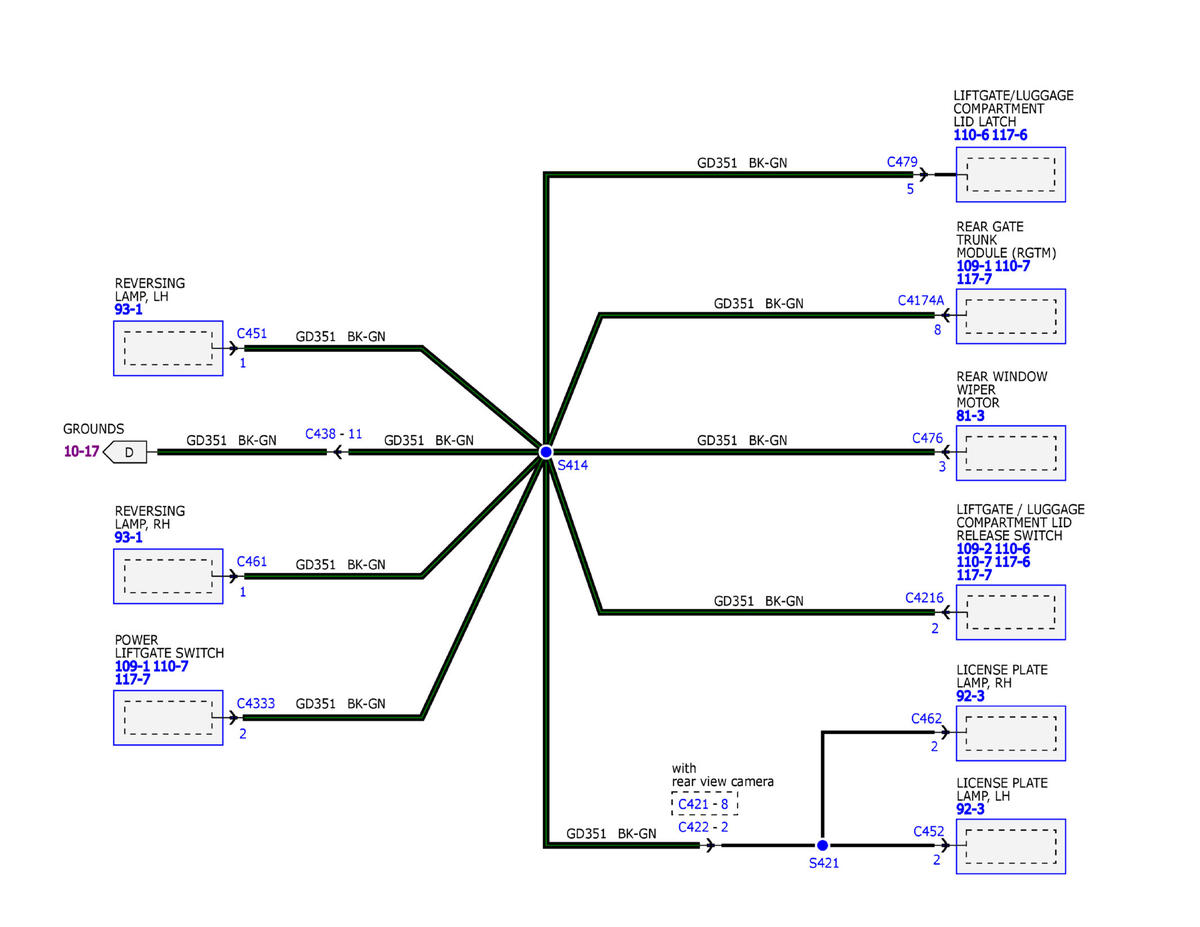

GFDW97284Courtesy of FORD MOTOR COMPANY

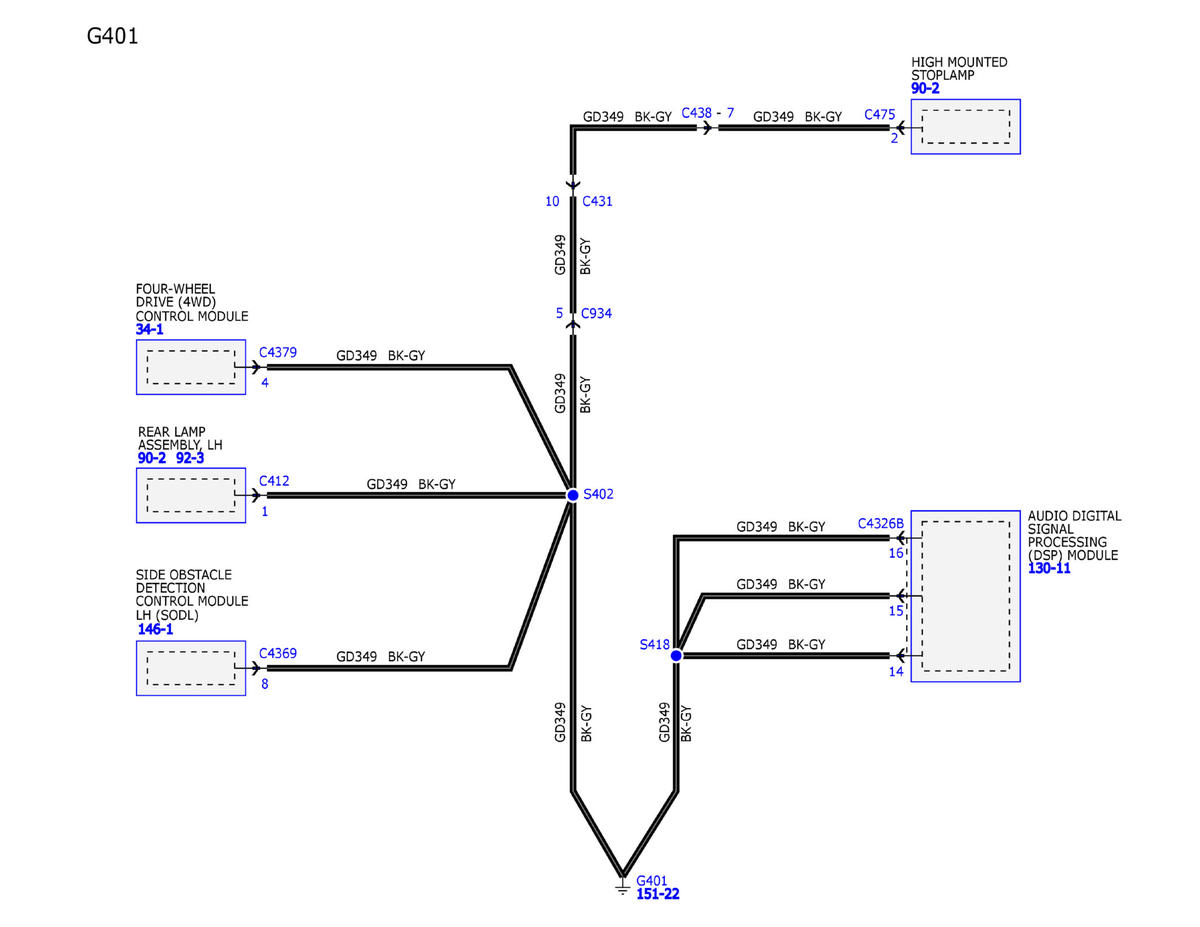

GFDW97285Courtesy of FORD MOTOR COMPANY

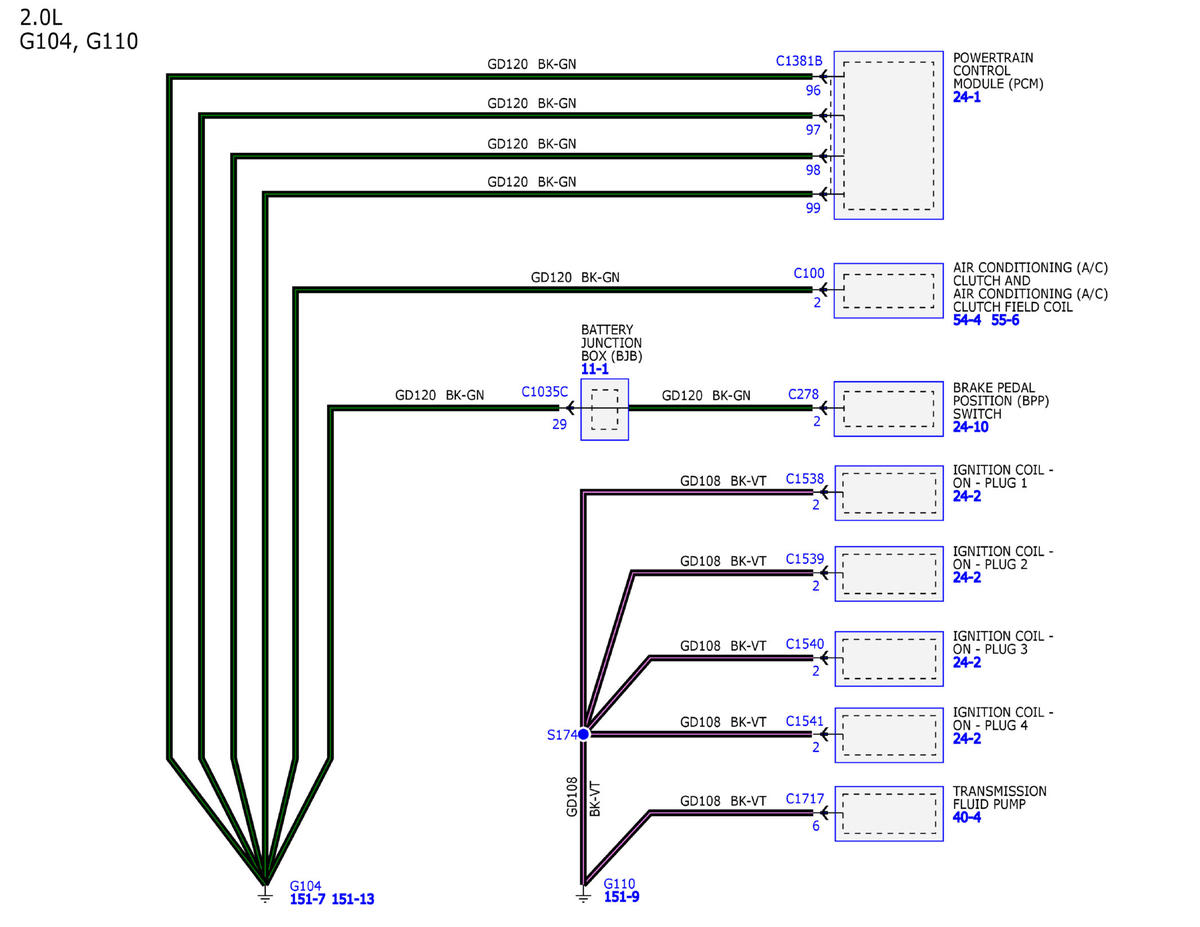

GFDW97286Courtesy of FORD MOTOR COMPANY

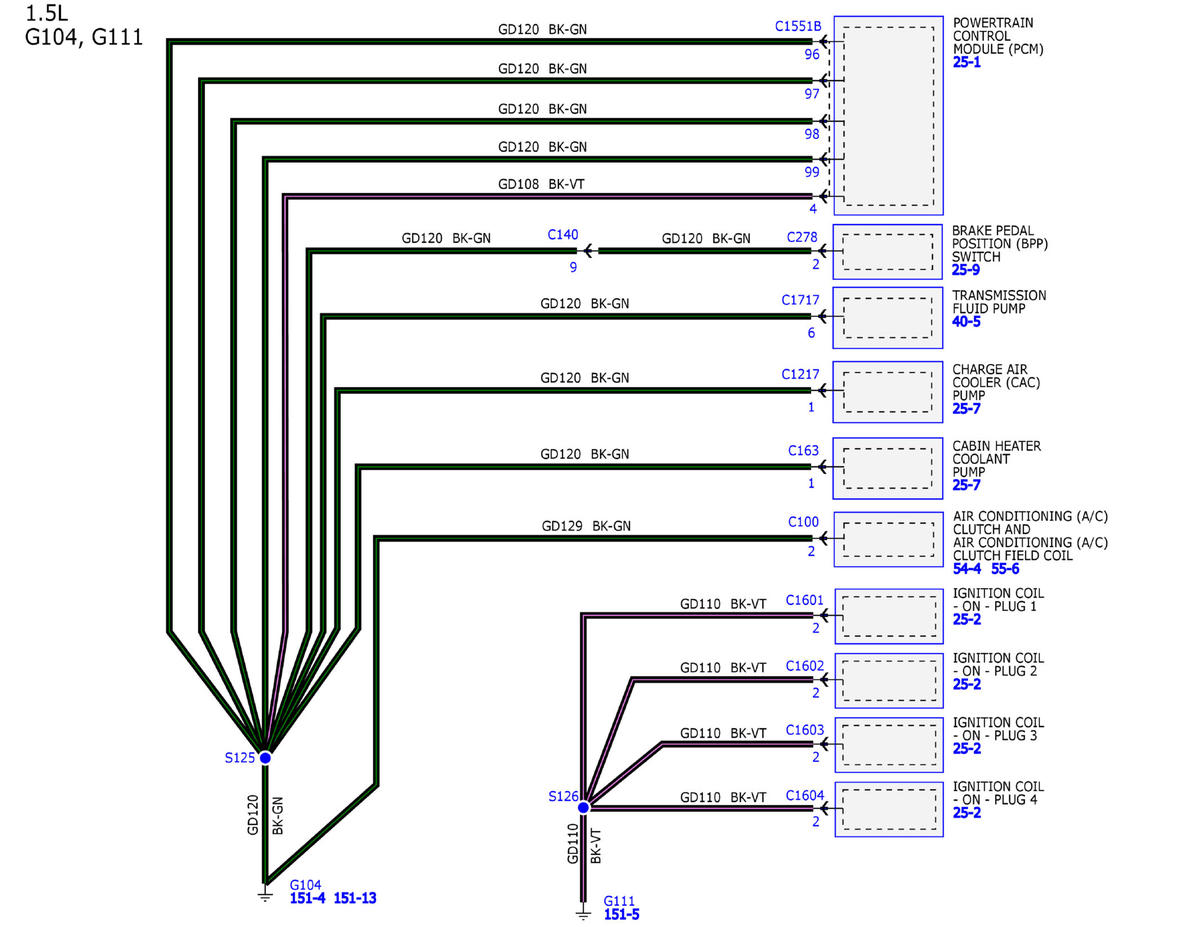

GFDW97287Courtesy of FORD MOTOR COMPANY

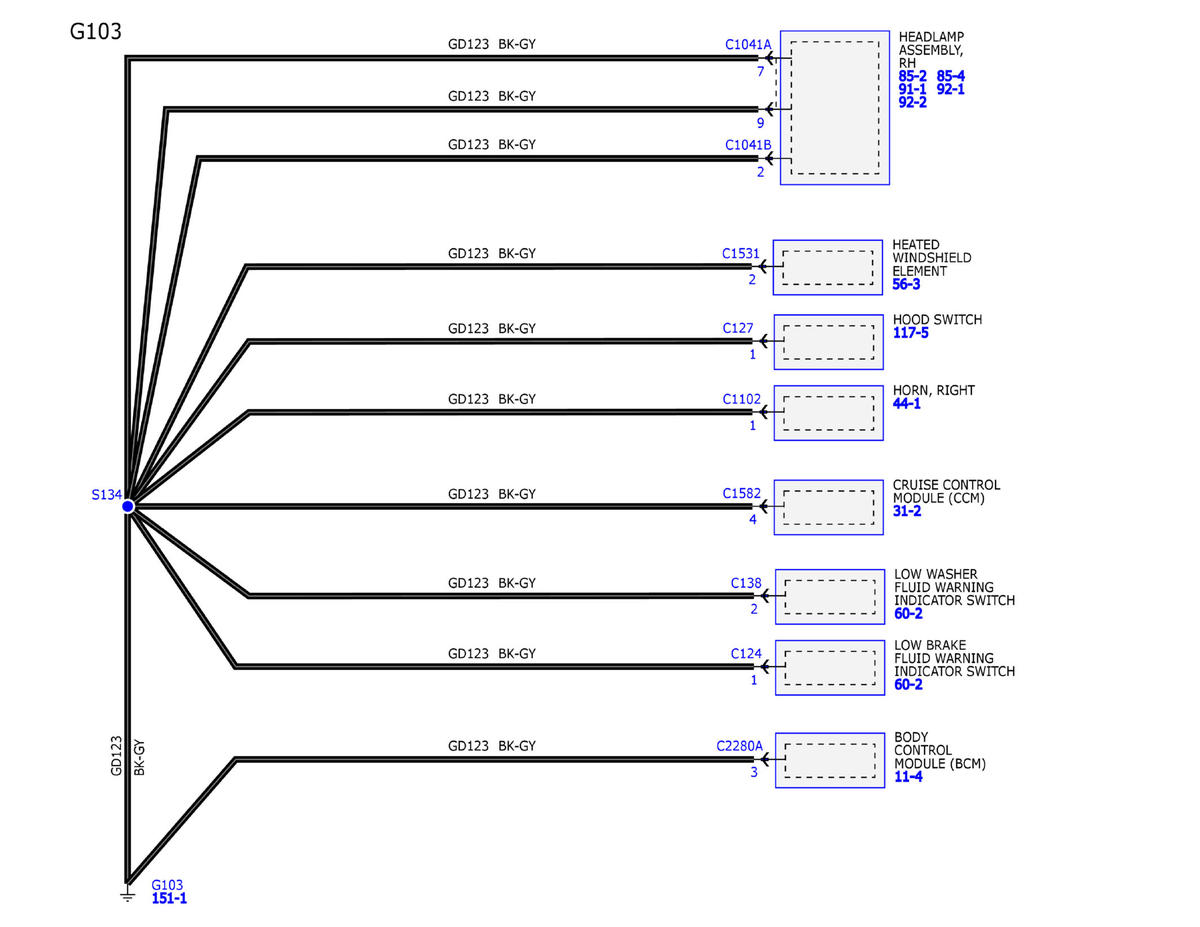

GFDW97288Courtesy of FORD MOTOR COMPANY
GFDW97289Courtesy of FORD MOTOR COMPANY

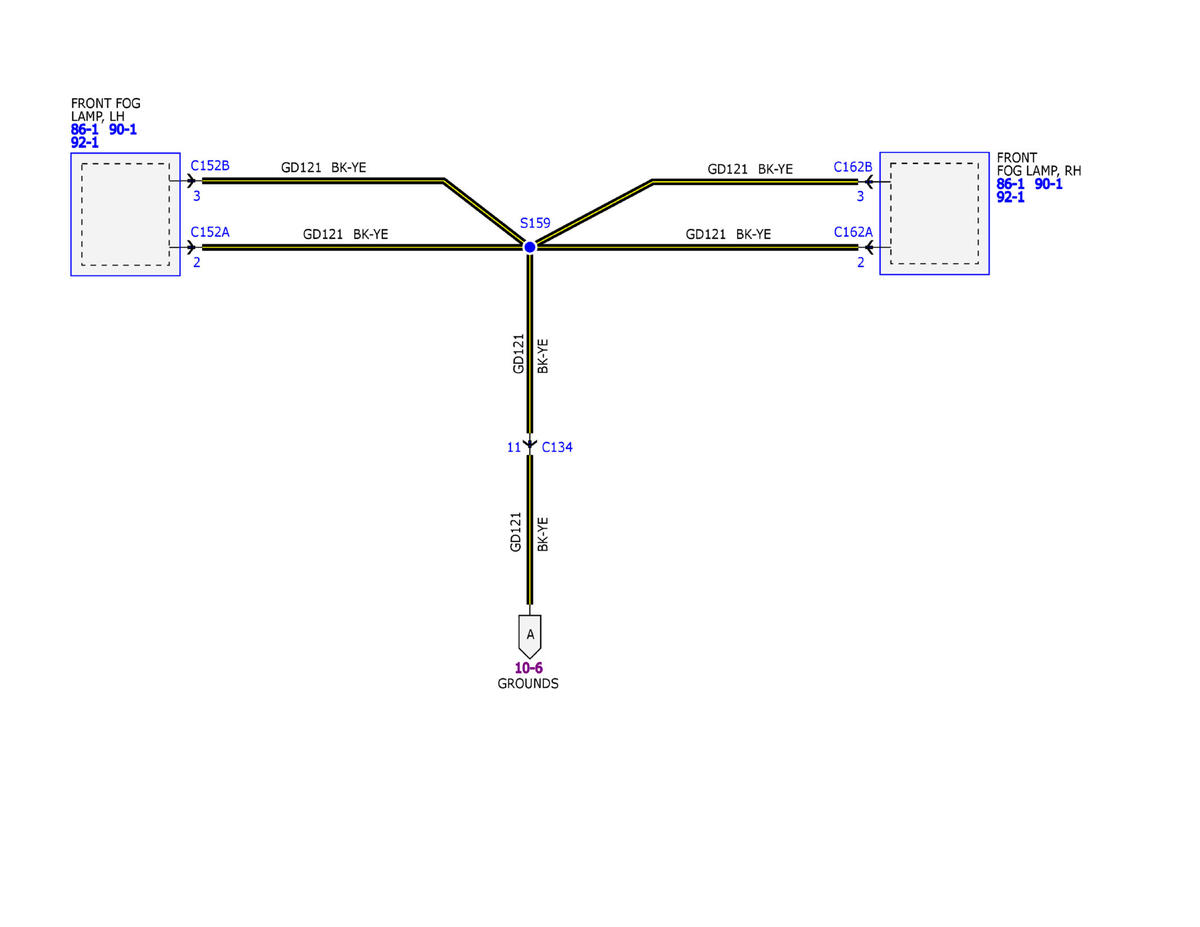

GFDW97290Courtesy of FORD MOTOR COMPANY

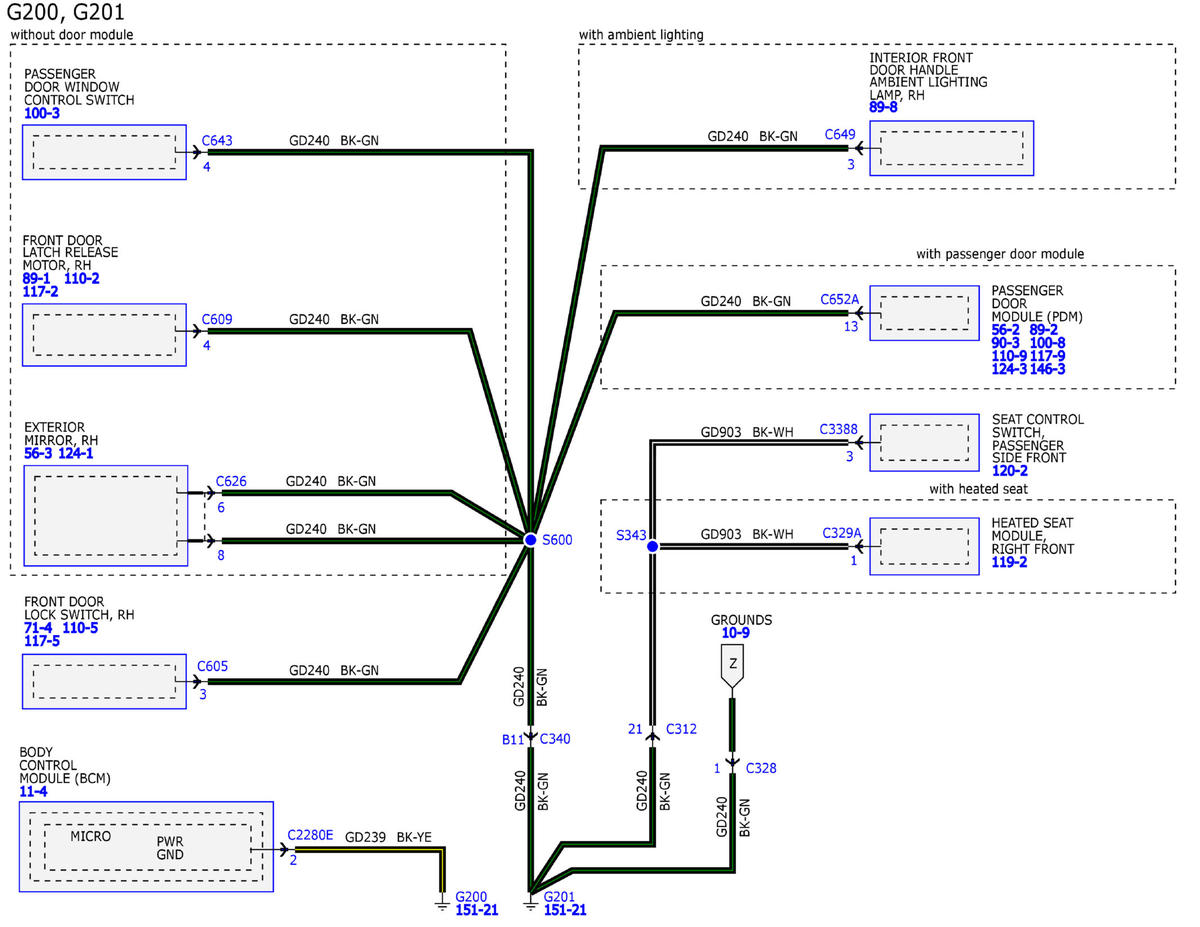

GFDW97291Courtesy of FORD MOTOR COMPANY

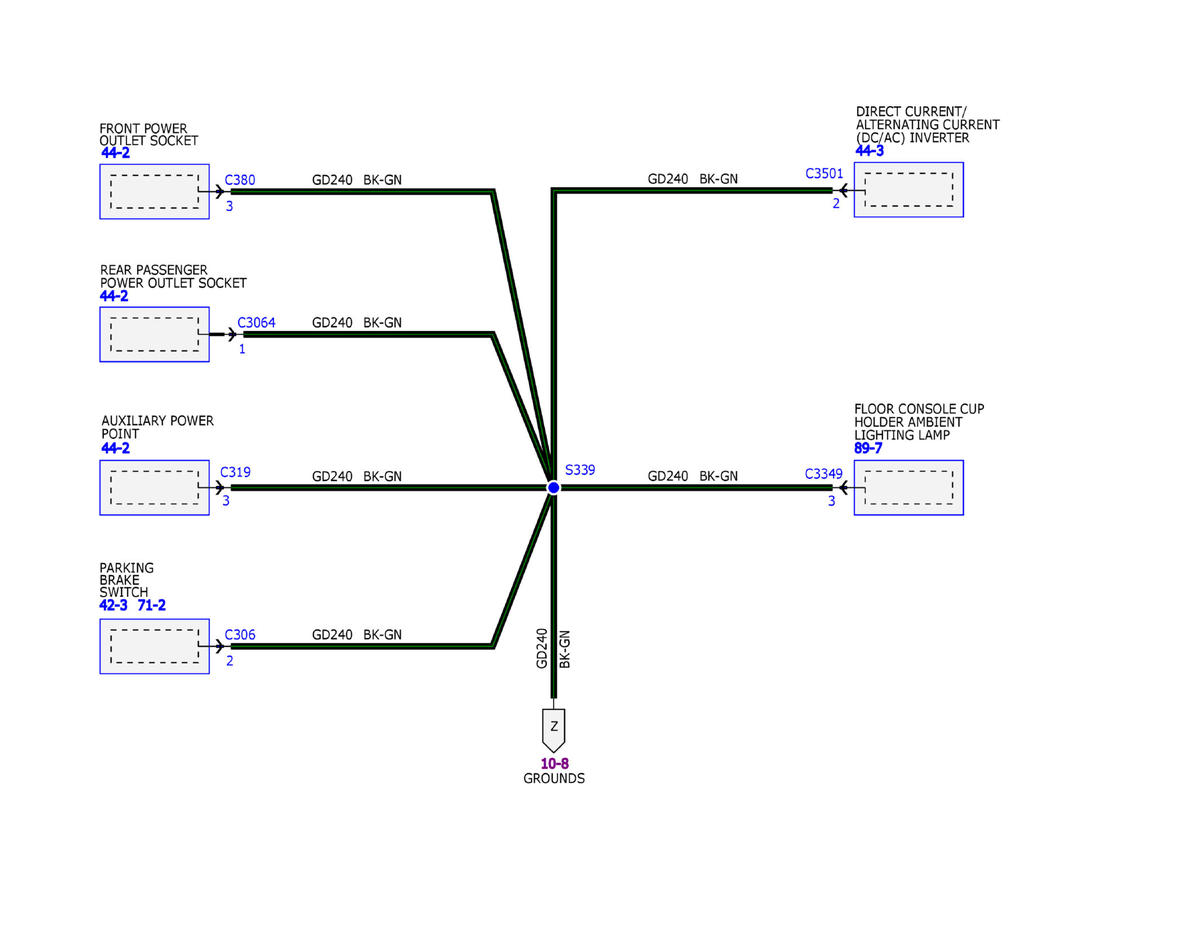

GFDW97292Courtesy of FORD MOTOR COMPANY

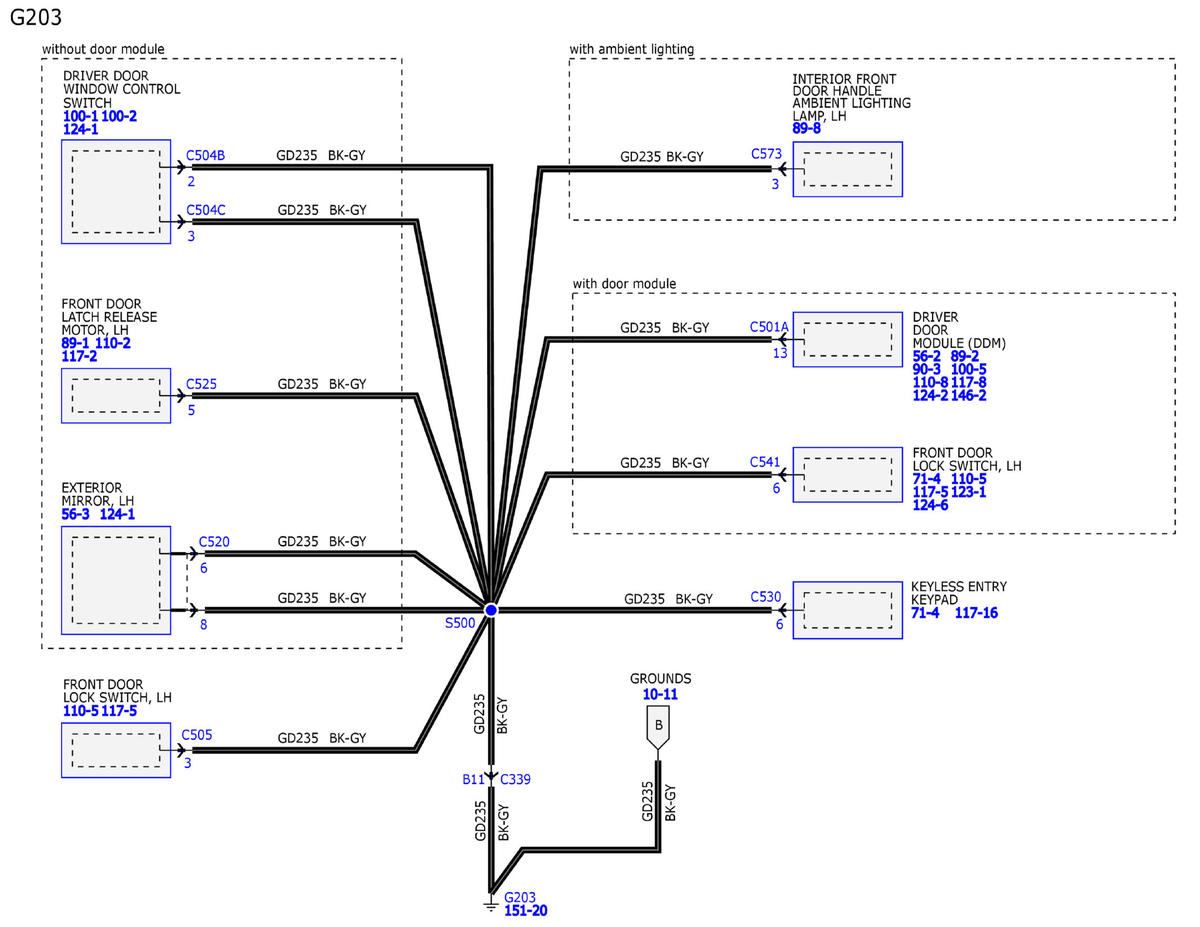

GFDW97293Courtesy of FORD MOTOR COMPANY
