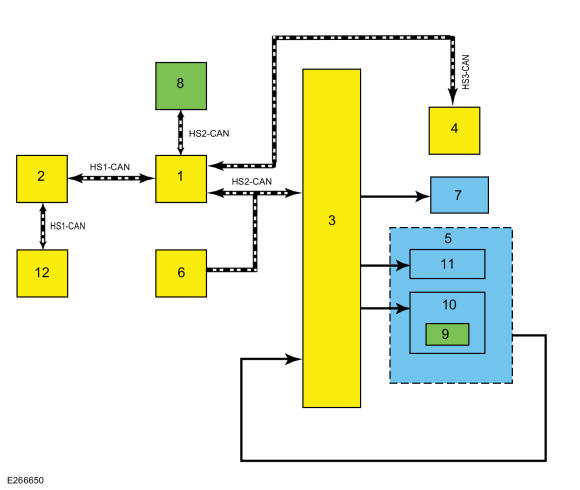

System Diagram

GFD293915Courtesy of FORD MOTOR COMPANY
Item Description
1 GWM (gateway module)
2 GWM (gateway module)
3 PCM
4 TCCM
5 IPC
6 Transfer Case
7 ABS
8 IWE
9 4x4 Switch Module
10 Shift Motor Position Sensors (2-Speed TOD Only)
11 Shift Motor (2-speed TOD only)
12 Clutch Solenoid
13 TCM
