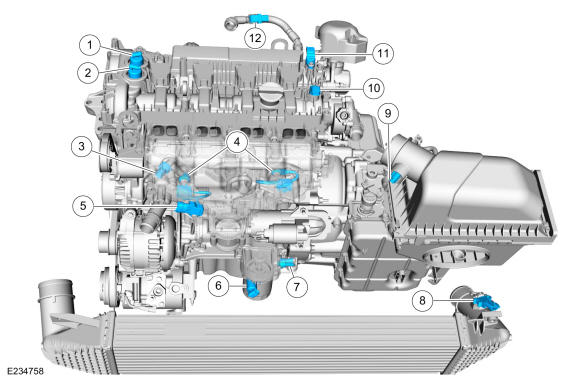

Electronic Engine Controls- Front

GFD332447Courtesy of FORD MOTOR COMPANY
Item Description
1 Exhaust VCT oil control solenoid
2 Intake VCT oil control solenoid
3 FRP sensor
4 KS sensors
5 MAP sensor
6 Oil pressure control solenoid
7 EOP sensor
8 Turbocharger boost pressure sensor
9 IAT sensor
10 Intake CMP sensor
11 Exhaust CMP sensor
12 Crankcase pressure sensor
