Connector Repair Procedures

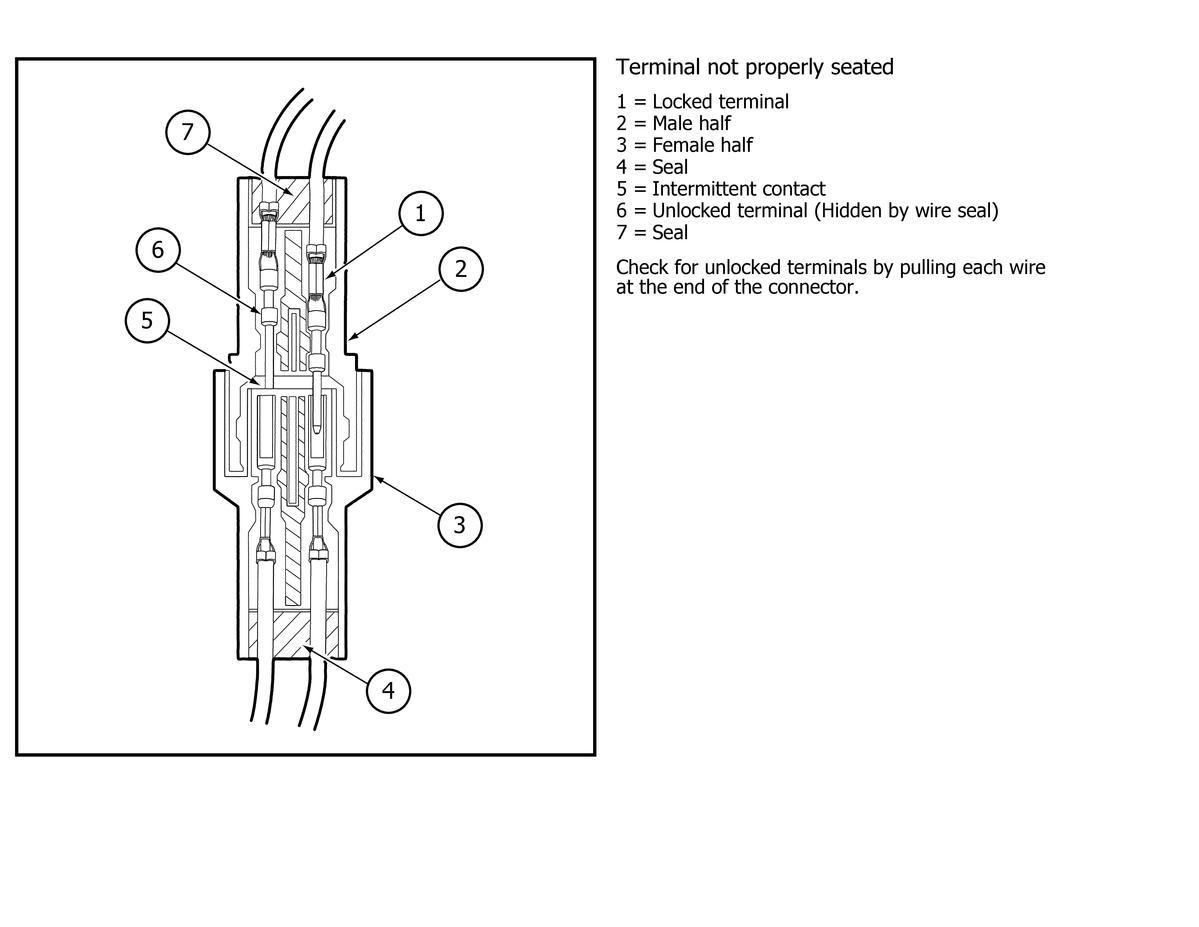

GFDWR25577Courtesy of FORD MOTOR COMPANY

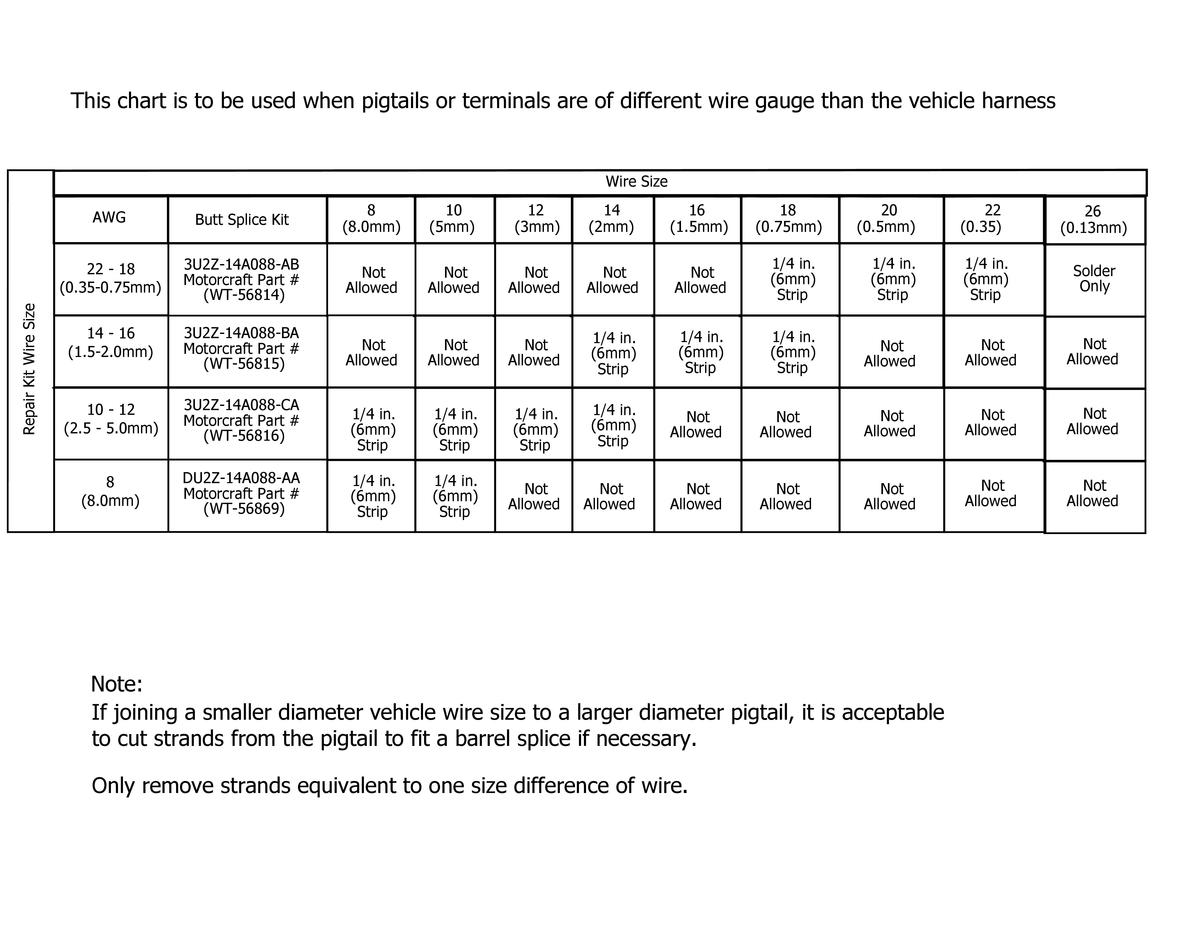

GFDWR25578Courtesy of FORD MOTOR COMPANY

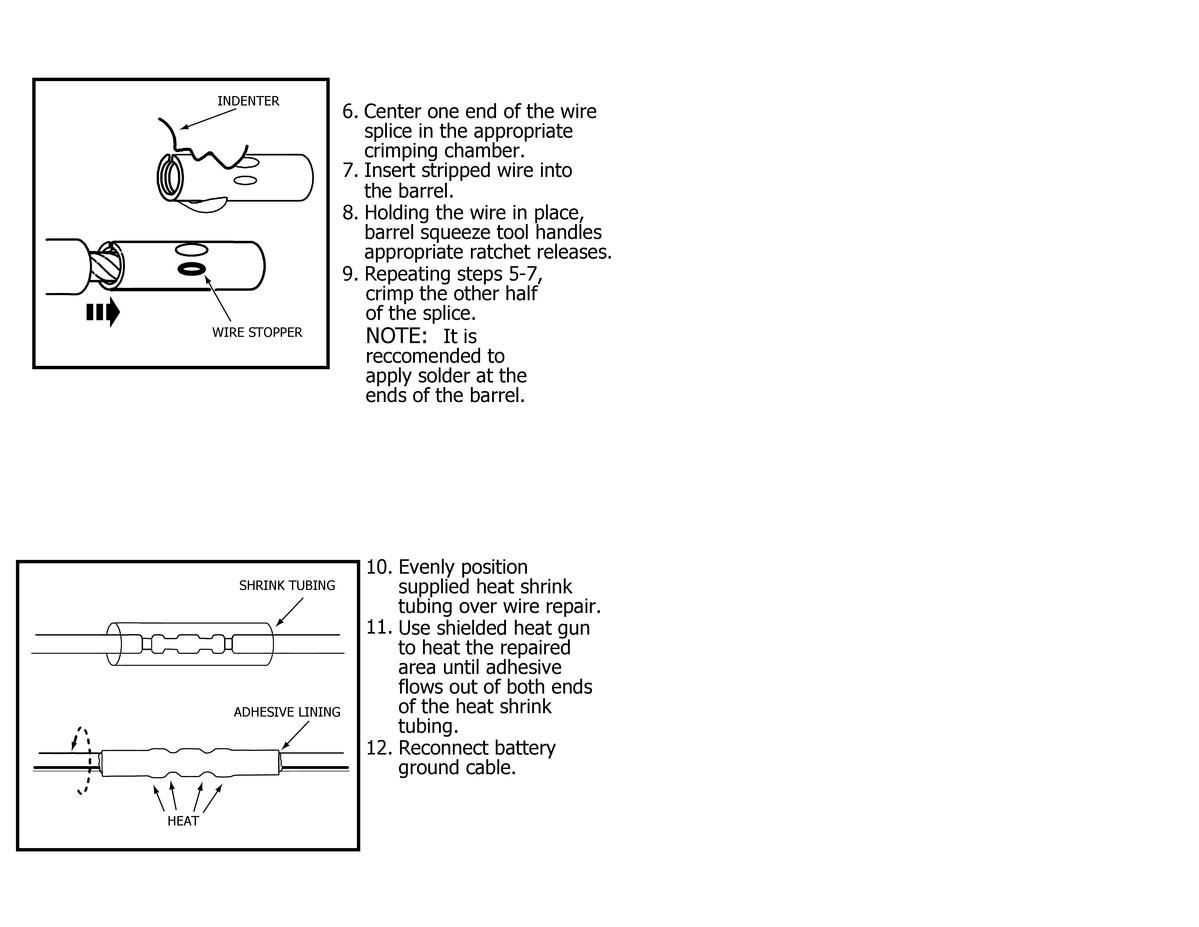

GFDWR25579Courtesy of FORD MOTOR COMPANY

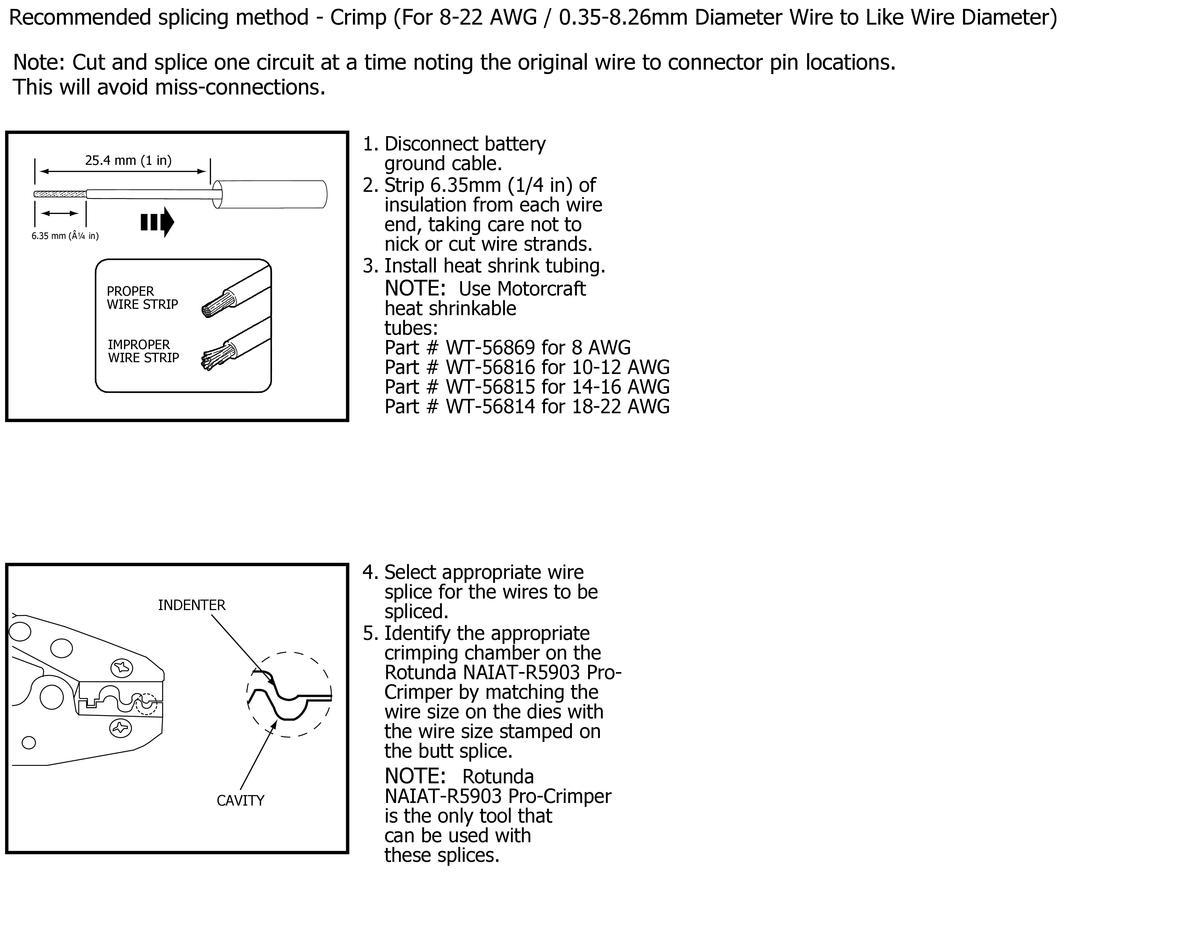

GFDWR25580Courtesy of FORD MOTOR COMPANY

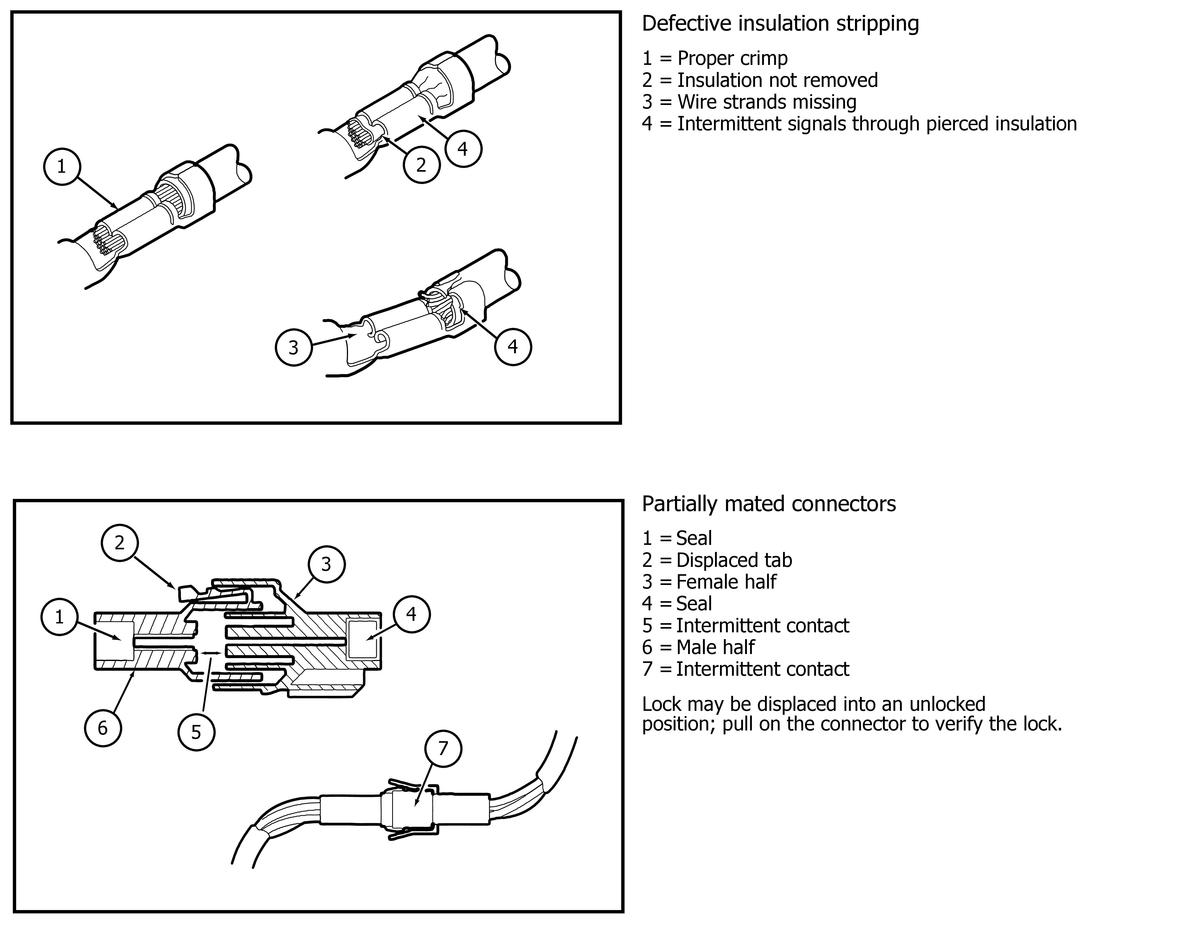

GFDWR25581Courtesy of FORD MOTOR COMPANY

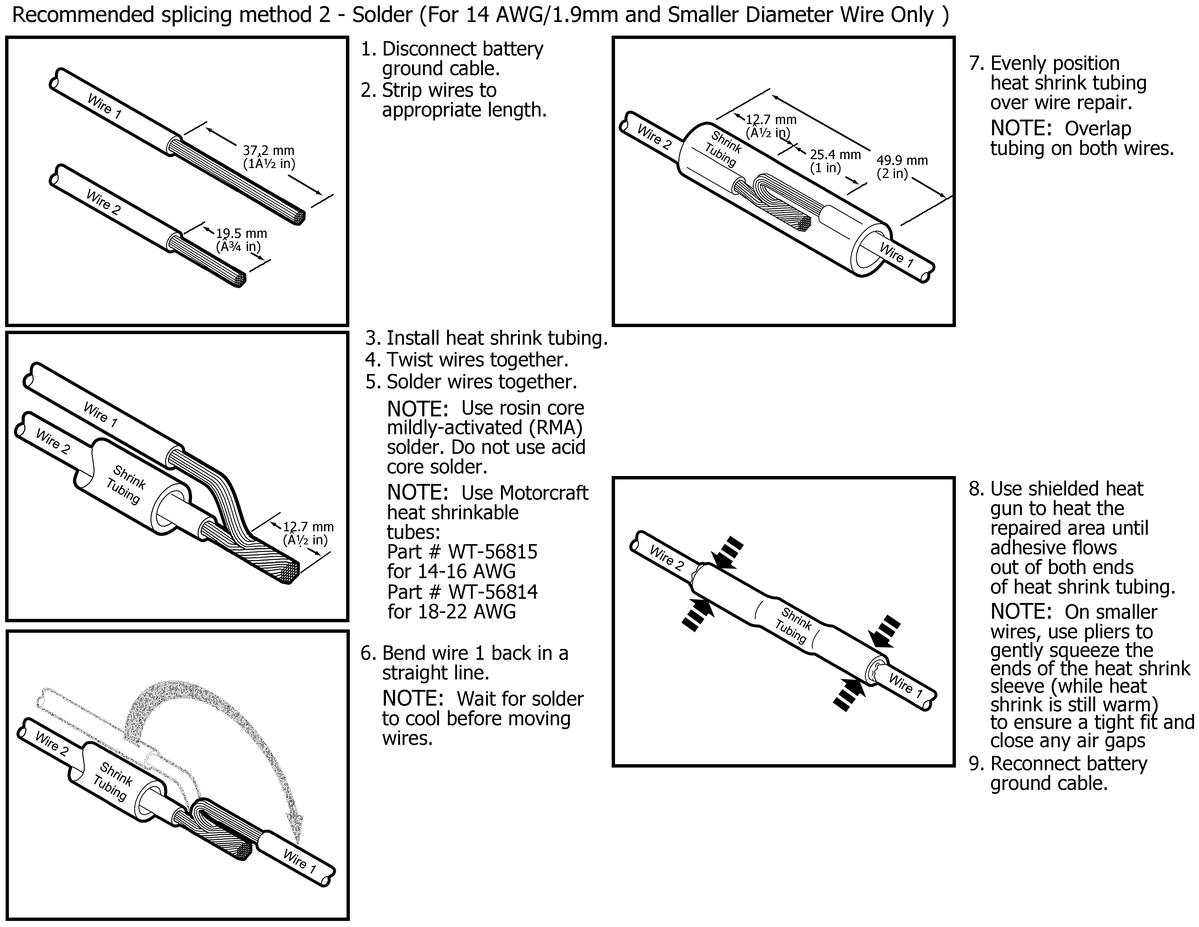

GFDWR25582Courtesy of FORD MOTOR COMPANY

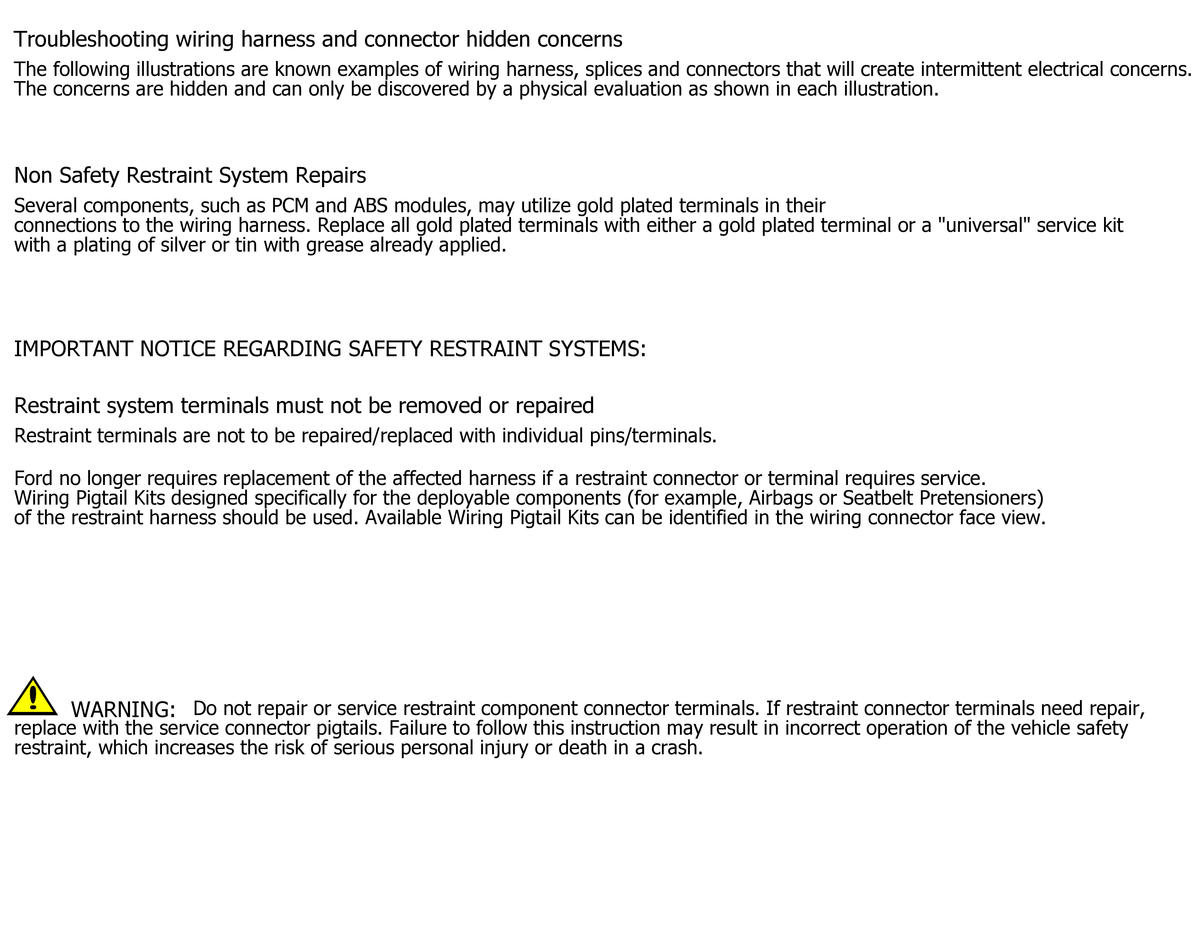

GFDWR25583Courtesy of FORD MOTOR COMPANY

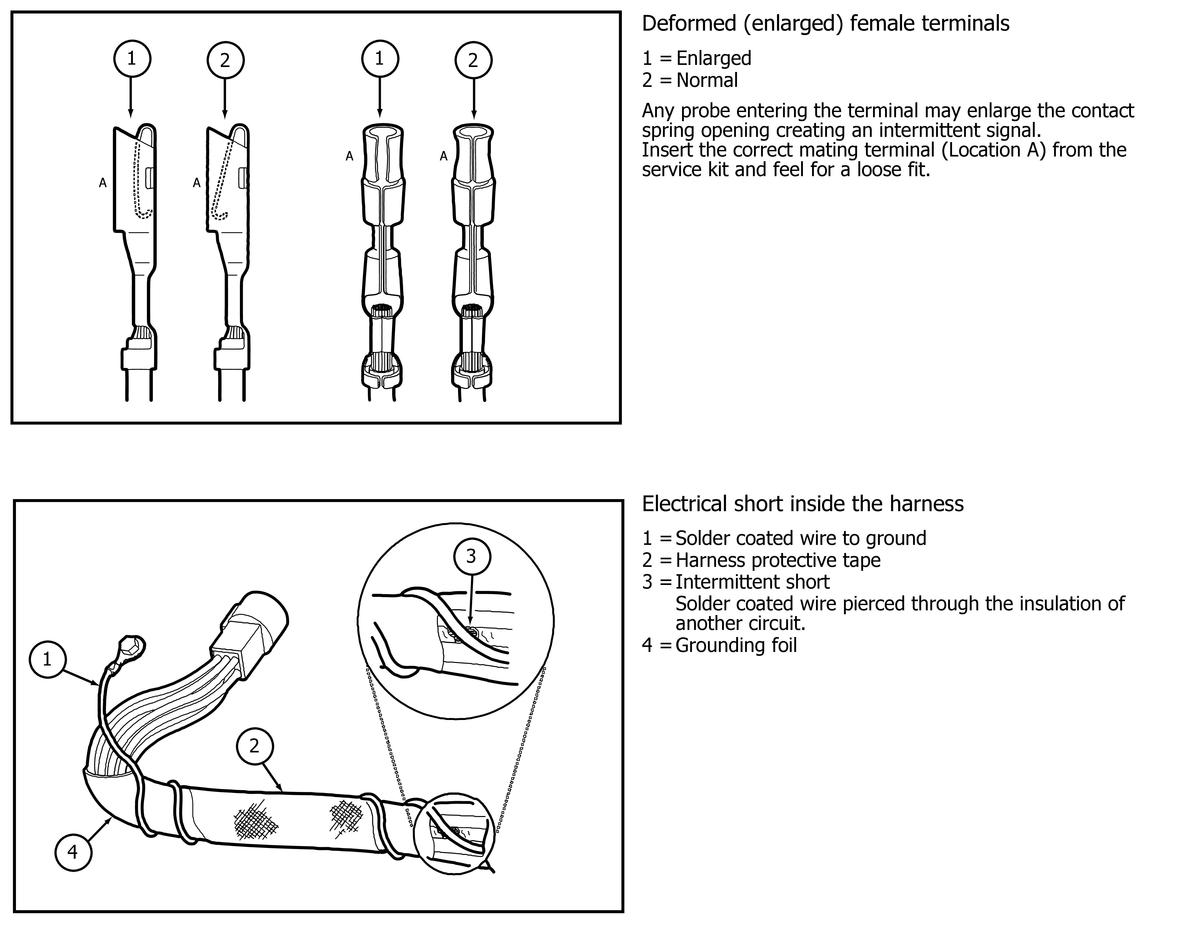

GFDWR25584Courtesy of FORD MOTOR COMPANY

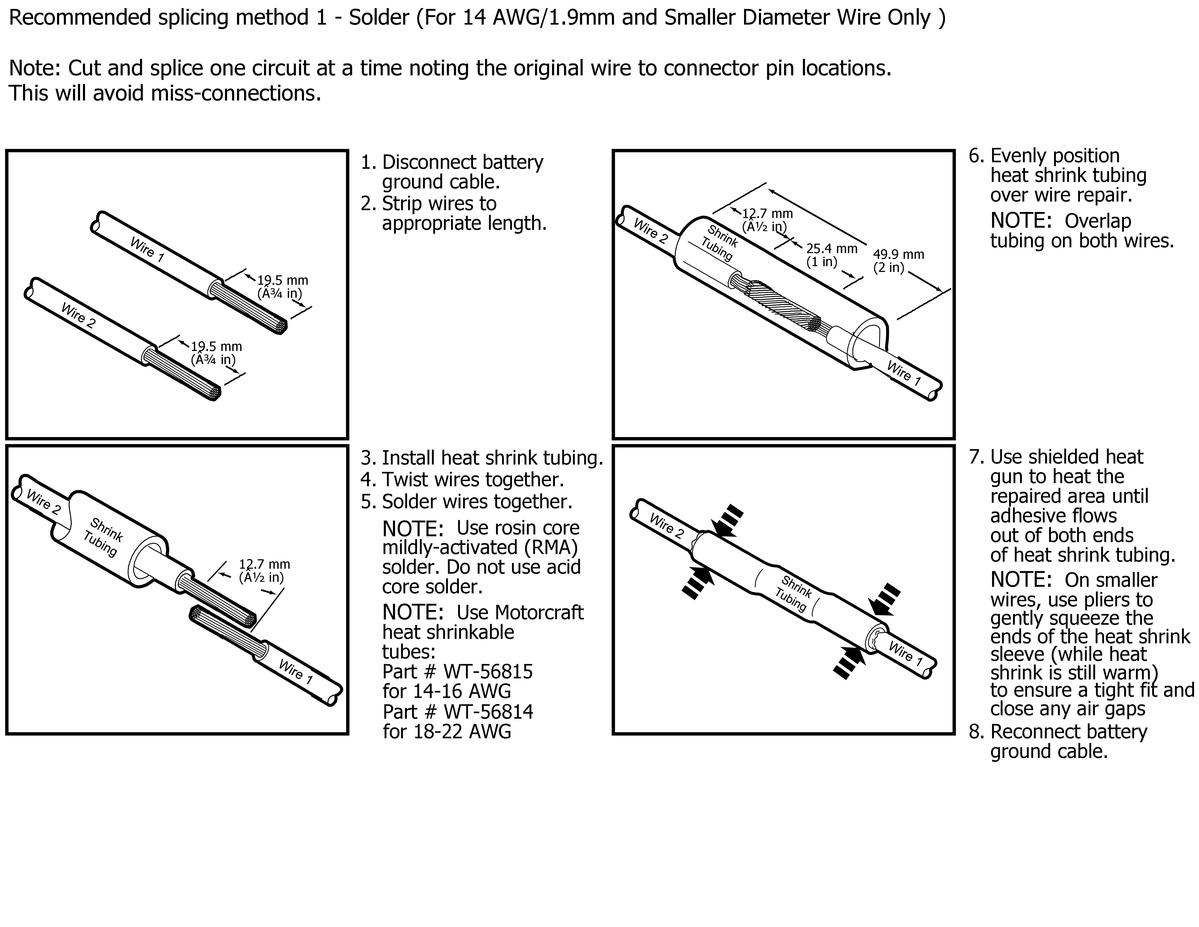

GFDWR25585Courtesy of FORD MOTOR COMPANY
