Transaxle Cooling

The transmission fluid cooling system consists of the following:

• OTA transmission fluid combo cooler
• Transmission fluid cooler tube assembly
• Thermal bypass valve
• Transmission fluid cooler outlet tube
• Transmission fluid cooler return tube

This vehicle is equipped with an external transmission fluid cooler. The transmission fluid cooler is part of the A/C condenser and cannot be serviced separately. The transmission fluid cooler is mounted in front of the engine radiator. The cooling system also consists of a thermal bypass valve which is mounted on the transmission main control cover. When the transmission fluid is below normal operating temperature, transmission fluid travels from the transmission to the thermal bypass valve and back to the transmission. When the transmission fluid is at or above normal operating temperature, the thermal bypass valve opens allowing transmission fluid to travel from the transmission through the cooler and back to the transmission. The transmission fluid cooler transfers heat from the transmission fluid to the outside air.

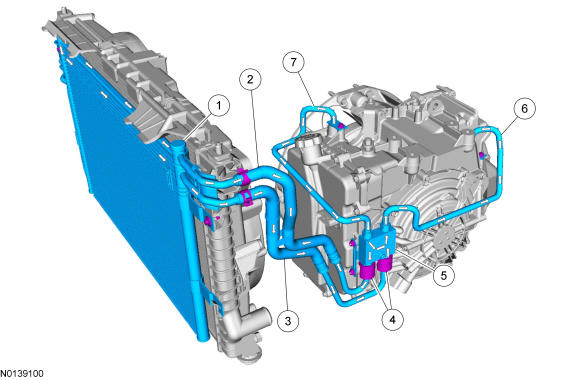

Transmission Cooling -- 3.5L Engine

Courtesy of FORD MOTOR COMPANY

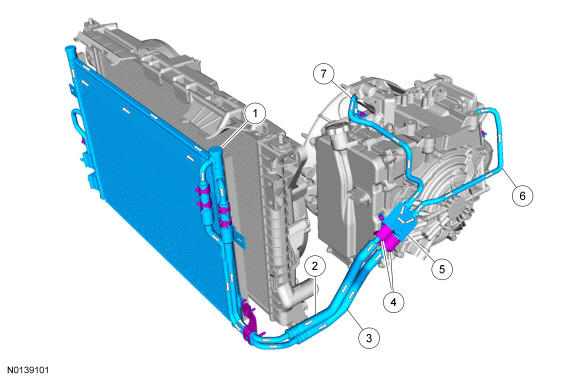

Transmission Cooling -- 3.5L Gasoline Turbocharged Direct Injection(GTDI) Engine

Courtesy of FORD MOTOR COMPANY
