Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

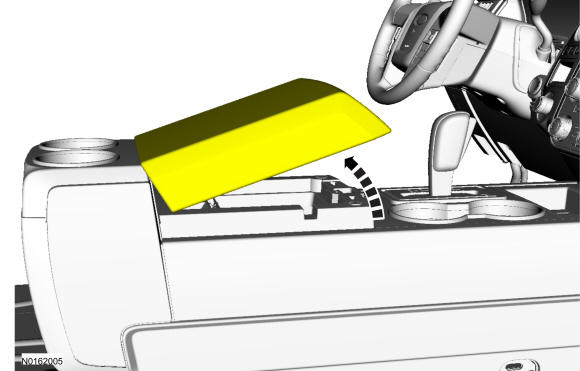

    Open the floor console.
GFD136931Courtesy of FORD MOTOR COMPANY

  1. 2.

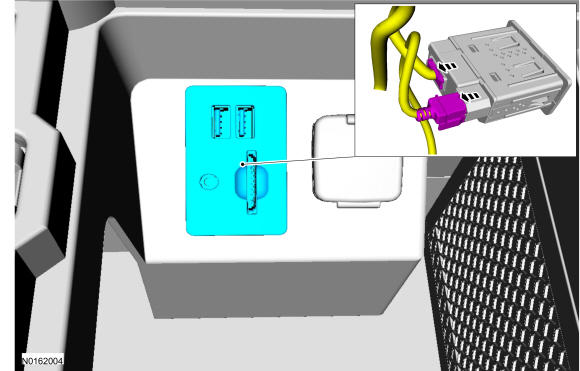

    Remove the media hub.
    • Disconnect the electrical connector(s).
GFD136932Courtesy of FORD MOTOR COMPANY

  1. 3.

    To install, reverse the removal procedure.
