Fuel Pump Driver Module (FPDM): Removal
NOTE:
Removal steps in this procedure may contain installation details.

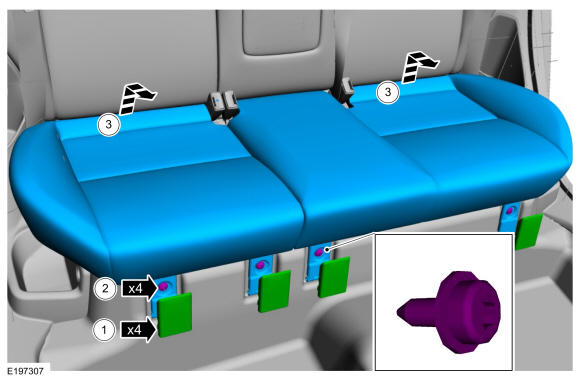

Vehicles with rear bench seat
- Torque
: 18 lb.ft (24 Nm)
 Courtesy of FORD MOTOR COMPANY
|

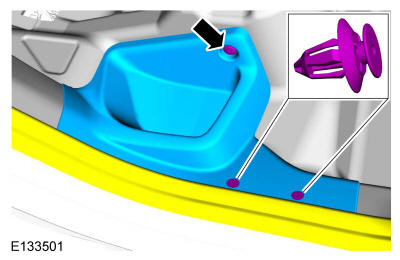

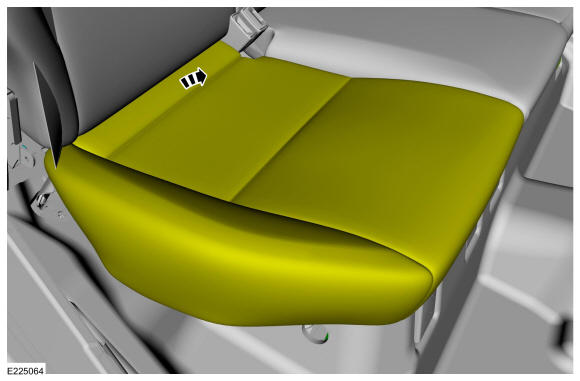

Vehicles with split rear seat backrest
 Courtesy of FORD MOTOR COMPANY
|

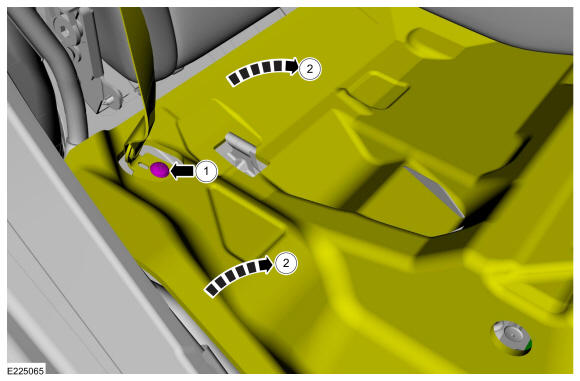

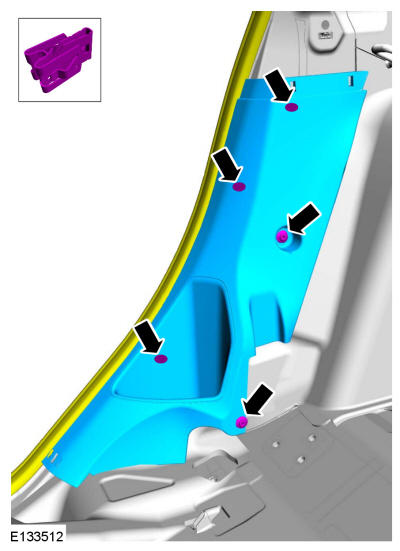

All vehicles
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

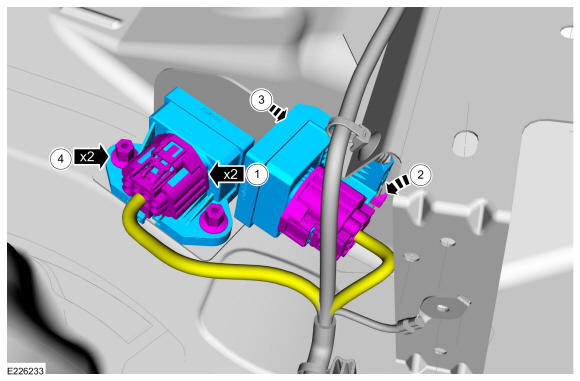

Torque
: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
NOTE:
Only tighten the nuts finger tight.
 Courtesy of FORD MOTOR COMPANY
|
