Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

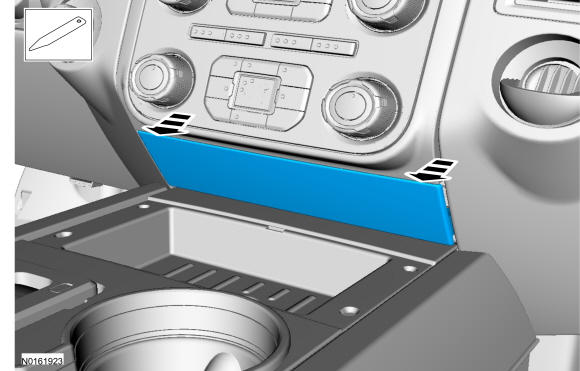

Remove the instrument panel lower trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

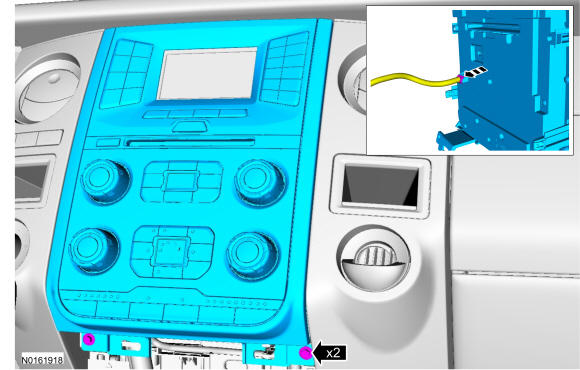

Remove the two bolts and the FCIM.
- Disconnect the electrical connector.
- To install, tighten to 2.5 Nm (23 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
- 3.
To install, reverse the removal procedure.
