Transfer Case - Vehicles With: 1-Speed Torque On Demand Transfer Case: Assembly

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Lubricate all internal components with the recommended transfer case lubricant during reassembly.

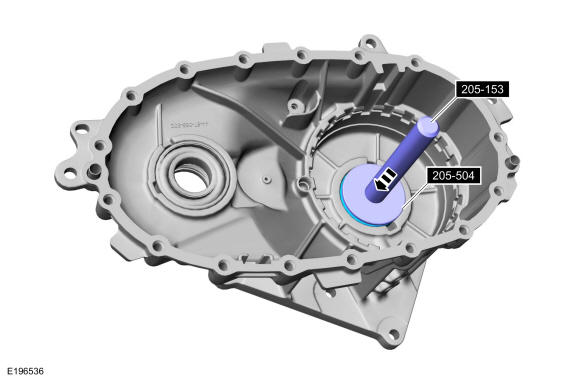

  1. Using the special tools, install the input shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-504 Installer, Halfshaft Pilot Bearing.
    GFD274107Courtesy of FORD MOTOR COMPANY

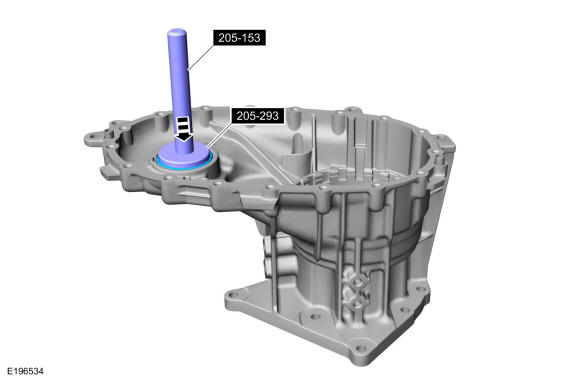

  2. Using the special tools, install the front output shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-293 (T89P-4850-A) Installer, Differential Oil Seal.
    GFD274108Courtesy of FORD MOTOR COMPANY

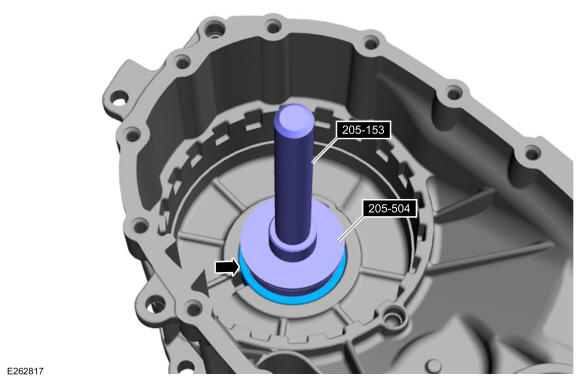

  3. Using the special tools, install the input shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-504 Installer, Halfshaft Pilot Bearing.
    GFD274109Courtesy of FORD MOTOR COMPANY

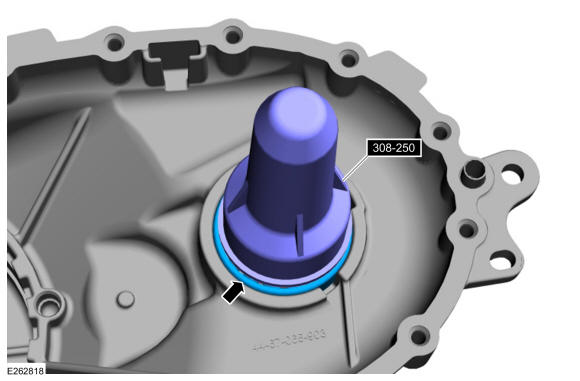

  4. Using the special tools, install the front output shaft seal Use Special Service Tool: 308-250 (T96T-7127-B) Installer, Output Shaft Oil Seal.
    GFD274110Courtesy of FORD MOTOR COMPANY
  5. NOTE: Do not let the front output shaft fall while removing the snap ring or damage to the component may occur.

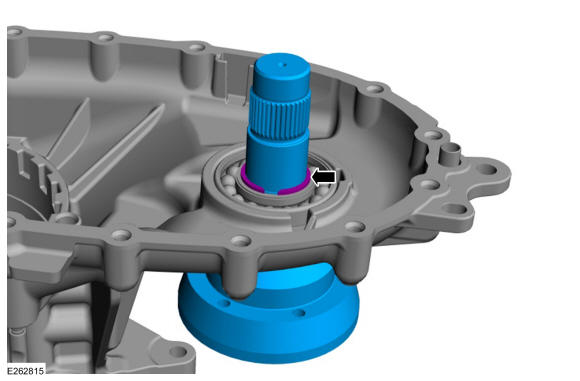

    Install the output shaft and the output shaft circlip.

    GFD274105Courtesy of FORD MOTOR COMPANY

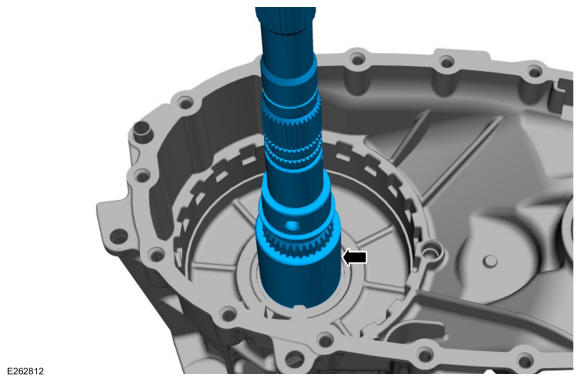

  6. Install the output shaft.
    GFD274102Courtesy of FORD MOTOR COMPANY

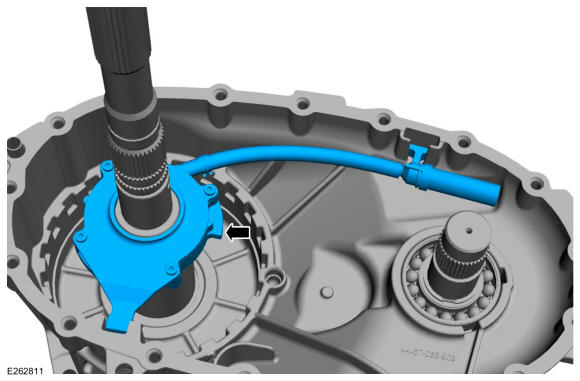

  7. Install the oil pump assembly.
    GFD274101Courtesy of FORD MOTOR COMPANY

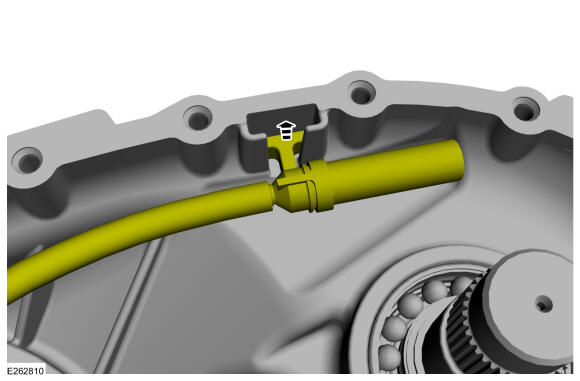

  8. Install the magnet into its slot in the case.
    GFD274100Courtesy of FORD MOTOR COMPANY

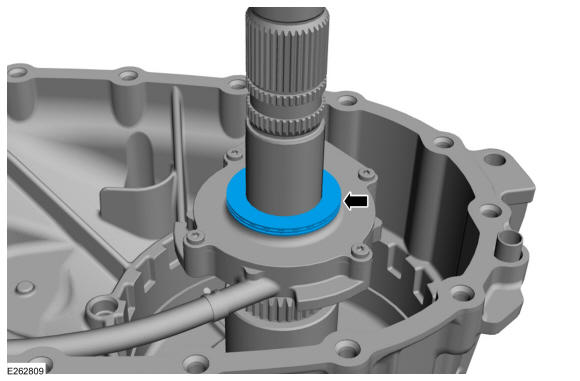

  9. Install the thrust bearing assembly.

    • Install the thrust washer.

    • Install the thrust bearing.

    • Install the thrust washer.

    GFD274099Courtesy of FORD MOTOR COMPANY

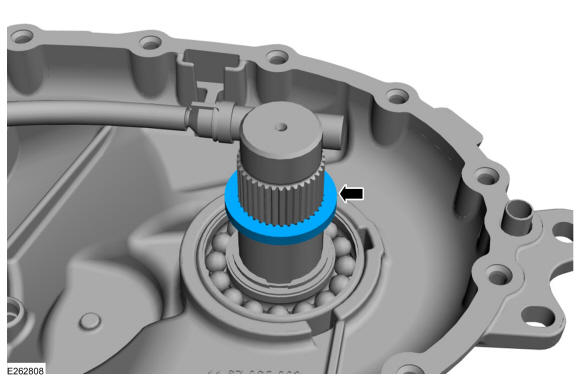

  10. Install the output shaft sprocket spacer.
    GFD274098Courtesy of FORD MOTOR COMPANY

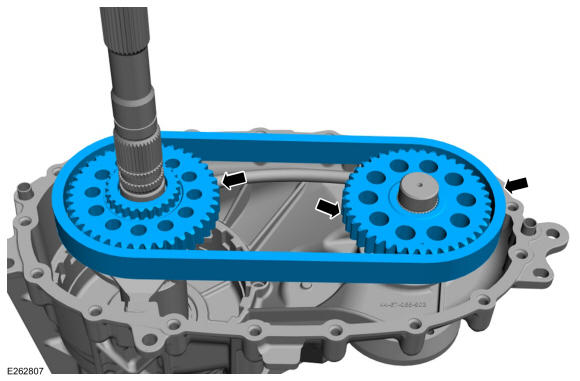

  11. Install the drive chain and the sprockets as an assembly.
    GFD274097Courtesy of FORD MOTOR COMPANY

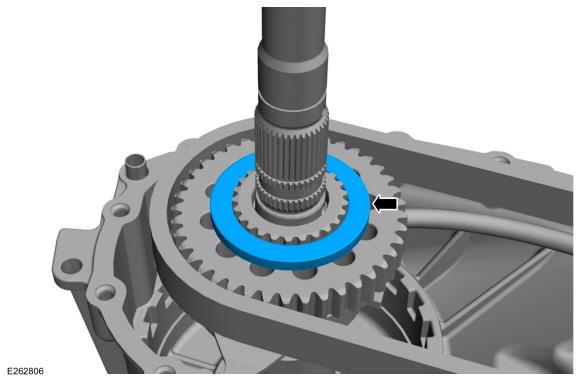

  12. Install the clutch pack spacer.
    GFD274096Courtesy of FORD MOTOR COMPANY
  13. NOTE: When installing the clutch assembly, do not separate the clutch pack assembly. The thrust washer in the lower clutch pack uses tabs to hold it in place. If the thrust washer is not in place, a transfer case clearance problem will occur.
    NOTE: If the clutch pack is disassembled, a new clutch pack and armature must be installed. Failure to install a new clutch pack can result in component failure.

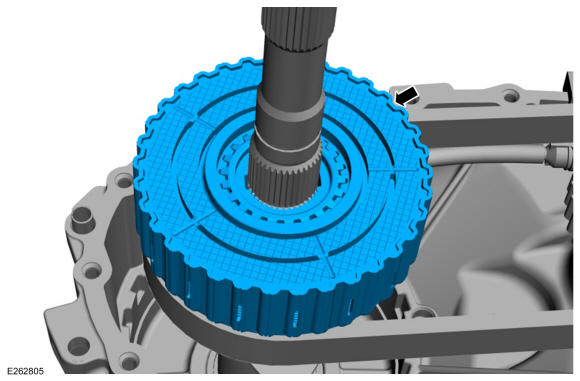

    Install the clutch pack assembly with the armature.

    GFD274095Courtesy of FORD MOTOR COMPANY

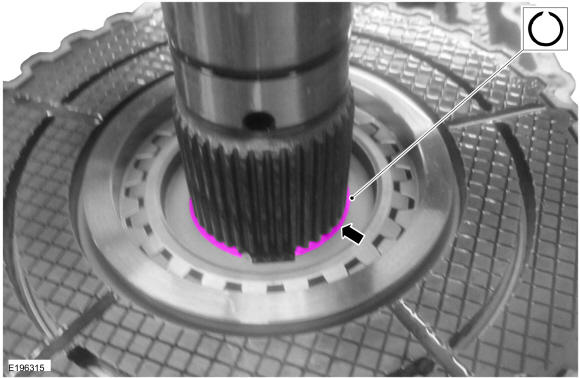

  14. Install the clutch pack circlip.
    GFD274094Courtesy of FORD MOTOR COMPANY

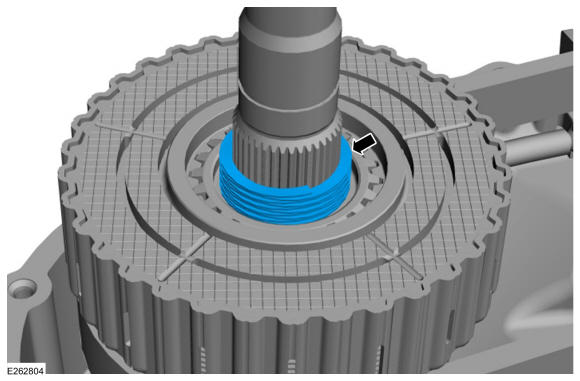

  15. Install the wave spring.
    GFD274093Courtesy of FORD MOTOR COMPANY

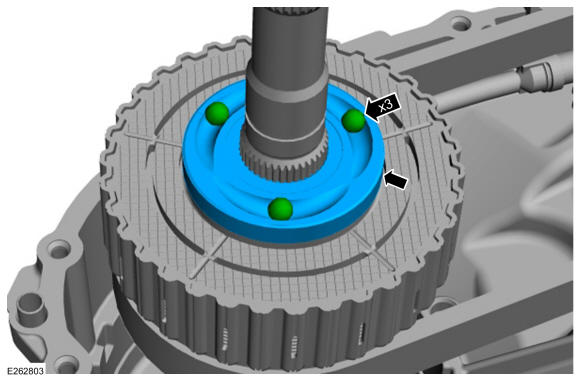

  16. Install the cam and the steel balls.
    GFD274092Courtesy of FORD MOTOR COMPANY

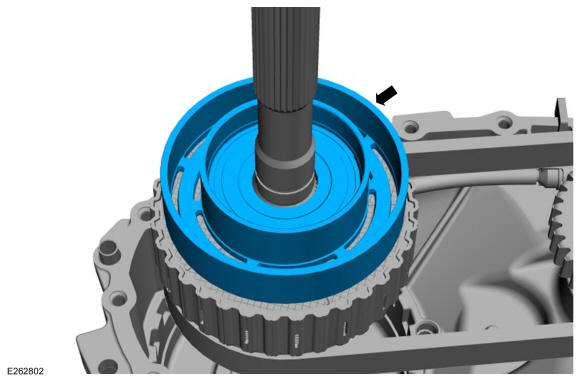

  17. Install the coil housing.
    GFD274091Courtesy of FORD MOTOR COMPANY

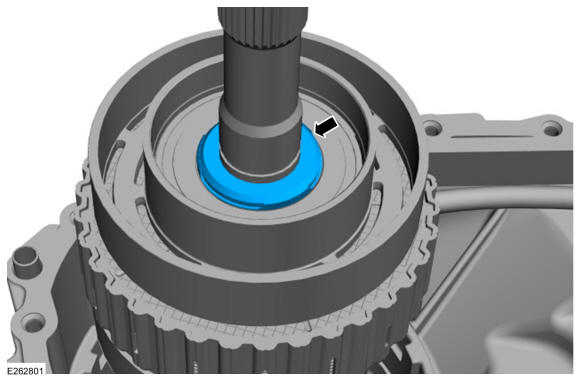

  18. Install the coil housing thrust bearing assembly.
    GFD274090Courtesy of FORD MOTOR COMPANY

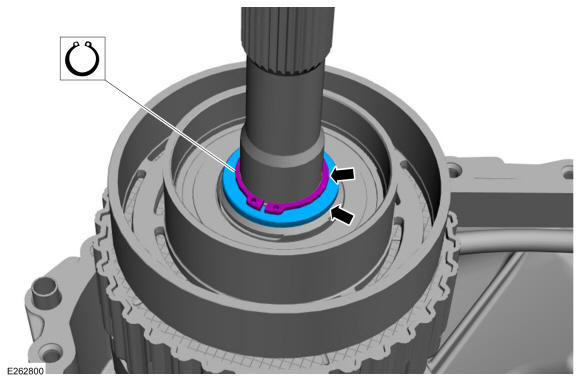

  19. Install the coil housing spacer and snap ring.
    GFD274089Courtesy of FORD MOTOR COMPANY
  20. Install the transfer case field coil.
    GFD274088Courtesy of FORD MOTOR COMPANY

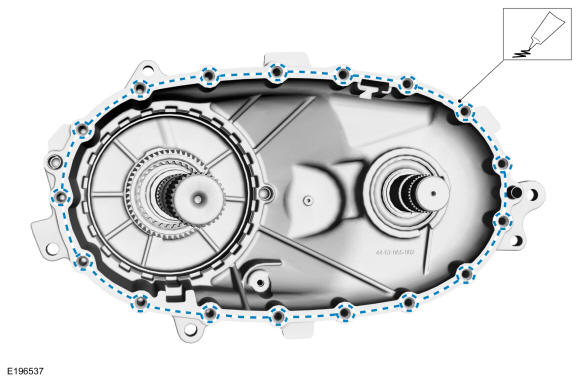

  21. NOTE: Only apply enough silicone sealant to seal the transfer case halves together.

    Apply a small bead of silicone sealant to the mating surface of the case half.

    Material: Motorcraft® Ultra Silicone Sealant / TA-29

    GFD274111Courtesy of FORD MOTOR COMPANY
  22. NOTE: Position the field coil bolts to align with the field coil bolt holes in the rear case. Position field coil wire through the field coil wire through hole in the case.

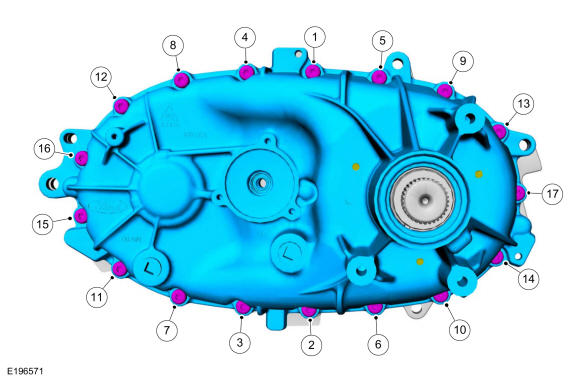

    Position the transfer case halves and tighten the bolts in the sequence shown in the figure.

    Torque: 21 lb.ft (29 Nm)

    Fig 1: Transfer Case Bolts Tightening Sequence
    GFD274112Courtesy of FORD MOTOR COMPANY

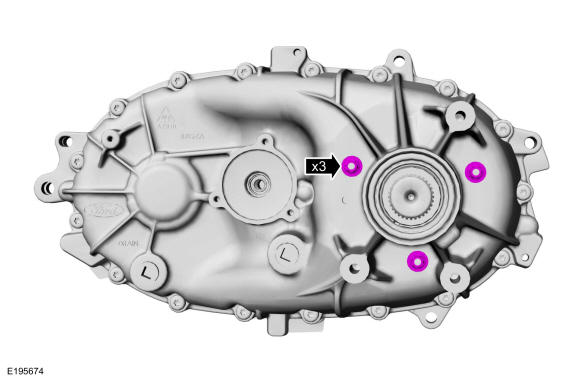

  23. Install the coil washers and nuts.

    Torque: 89 lb.in (10 Nm)

    GFD274085Courtesy of FORD MOTOR COMPANY
  24. Install the transfer case rear seal. Refer to:Transfer Case Rear Seal

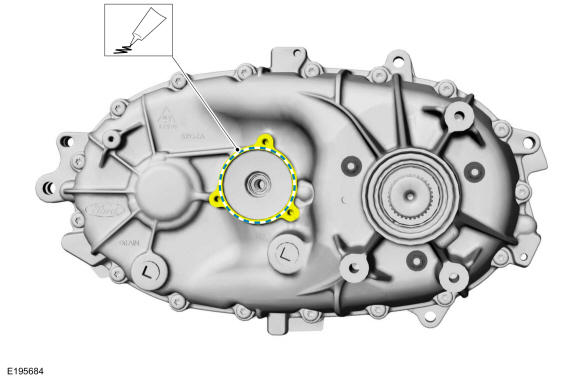

  25. Apply a small bead of silicone sealant to the transfer case shift motor mating surface.

    Material: Motorcraft® Ultra Silicone Sealant / TA-29

    GFD274062Courtesy of FORD MOTOR COMPANY

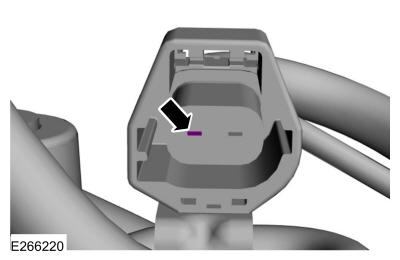

  26. NOTE: After the coil wire is inserted into the connector, gently pull the wire back to verify the pin is locked inside the connector.

    Install the coil wire pin in the electrical connector.

    GFD274084Courtesy of FORD MOTOR COMPANY

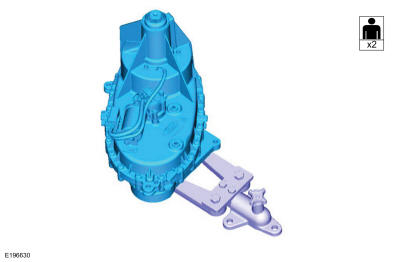

  27. Remove the transfer case from the transmission adjustable mounting arms. Use the General Equipment: Adjustable Mounting Arm
GFD274083Courtesy of FORD MOTOR COMPANY
