Transfer Case - Vehicles With: 2-Speed Torque On Demand Transfer Case: Assembly

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Lubricate all internal components with the recommended transfer case lubricant during reassembly.
  1. Using the special tools, install the front planetary carrier bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-504 Installer, Halfshaft Pilot Bearing.
    GFD274107Courtesy of FORD MOTOR COMPANY
  2. Using the special tools, install the front output shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-293 (T89P-4850-A) Installer, Differential Oil Seal.
    GFD274108Courtesy of FORD MOTOR COMPANY

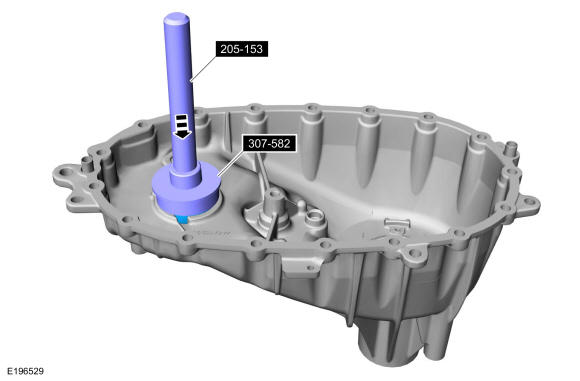

  3. Using the special tool, install the front output shaft support bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-582A Cover Axle Seal Installer.
    GFD274141Courtesy of FORD MOTOR COMPANY

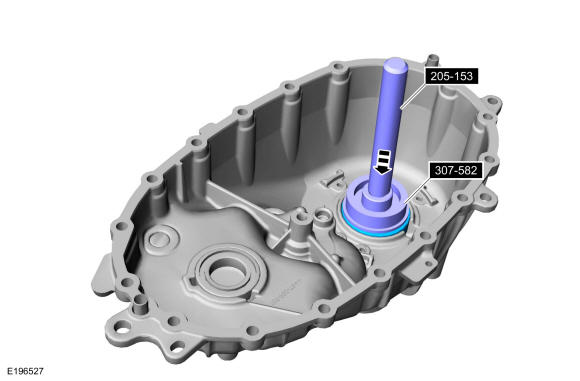

  4. Using the special tool, install the rear output shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-582A Cover Axle Seal Installer.
    GFD274142Courtesy of FORD MOTOR COMPANY

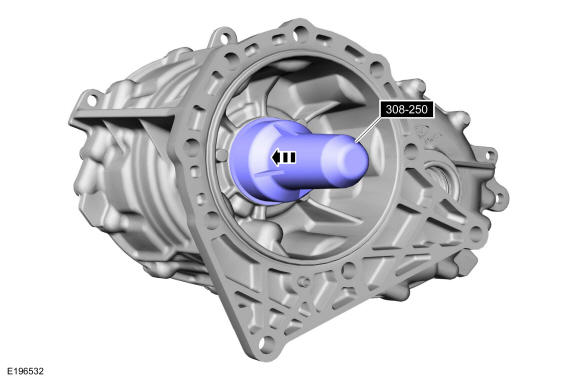

  5. Using the special tool, install the input shaft seal. Use Special Service Tool: 308-250 (T96T-7127-B) Installer, Output Shaft Oil Seal.
    GFD274143Courtesy of FORD MOTOR COMPANY

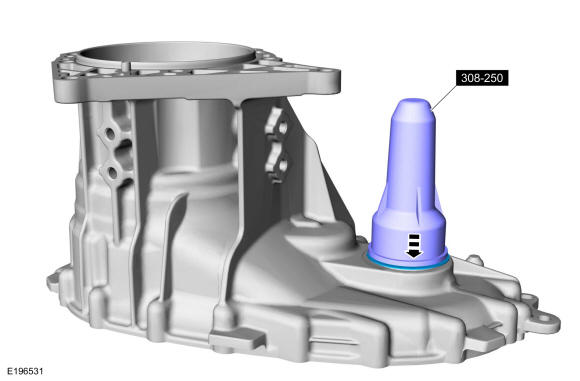

  6. Using the special tool, install the front output shaft seal. Use Special Service Tool: 308-250 (T96T-7127-B) Installer, Output Shaft Oil Seal.
    GFD274144Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not let the front output shaft fall while removing the snap ring or damage to the component may occur.

    Install the output shaft and the output shaft circlip.

    GFD274135Courtesy of FORD MOTOR COMPANY
  8. Install the ring gear.
    GFD274134Courtesy of FORD MOTOR COMPANY
  9. If removed, using a press and the special tool, install the needle bearing into the front planetary carrier. Use Special Service Tool: 308-085 (T83T-7025-C) Installer, Input Shaft Bearing.
  10. NOTE: Replace the inner planetary carrier needle bearing if necessary.

    Install the front planetary carrier.

    GFD274133Courtesy of FORD MOTOR COMPANY
  11. Install the ring gear circlip.
    GFD274132Courtesy of FORD MOTOR COMPANY
  12. Install the planetary carrier thrust bearing.
    GFD274131Courtesy of FORD MOTOR COMPANY
  13. Install the electric shift cam assembly.
    GFD274130Courtesy of FORD MOTOR COMPANY
  14. Install the reduction hub.
    GFD274129Courtesy of FORD MOTOR COMPANY
  15. Install the output shaft.
    GFD274128Courtesy of FORD MOTOR COMPANY
  16. Install the shift fork.
    GFD274127Courtesy of FORD MOTOR COMPANY
  17. Install the shift rail.
    GFD274126Courtesy of FORD MOTOR COMPANY
  18. Install the oil pump assembly.
    GFD274125Courtesy of FORD MOTOR COMPANY
  19. Install the magnet into its slot in the case.
    GFD274100Courtesy of FORD MOTOR COMPANY
  20. Install the thrust bearing assembly.

    • Install the thrust washer.

    • Install the thrust bearing.

    • Install the thrust washer.

    GFD274124Courtesy of FORD MOTOR COMPANY
  21. Install the output shaft sprocket spacer.
    GFD274123Courtesy of FORD MOTOR COMPANY
  22. Install the drive chain and the sprockets as an assembly.
    GFD274122Courtesy of FORD MOTOR COMPANY
  23. Install the clutch pack spacer.
    GFD274121Courtesy of FORD MOTOR COMPANY
  24. NOTE: When installing the clutch assembly, do not separate the clutch pack assembly. The thrust washer in the lower clutch pack uses tabs to hold it in place. If the thrust washer is not in place, a transfer case clearance problem will occur.
    NOTE: If the clutch pack is disassembled, a new clutch pack and armature must be installed. Failure to install a new clutch pack can result in component failure.

    Install the clutch pack assembly with the armature.

    GFD274120Courtesy of FORD MOTOR COMPANY
  25. Install the clutch pack circlip.
    GFD274094Courtesy of FORD MOTOR COMPANY
  26. Install the wave spring.
    GFD274093Courtesy of FORD MOTOR COMPANY
  27. Install the cam and the steel balls.
    GFD274119Courtesy of FORD MOTOR COMPANY
  28. Install the coil housing.
    GFD274118Courtesy of FORD MOTOR COMPANY
  29. Install the coil housing thrust bearing assembly.
    GFD274117Courtesy of FORD MOTOR COMPANY
  30. Install the coil housing spacer and snap ring.
    GFD274089Courtesy of FORD MOTOR COMPANY
  31. Install the transfer case field coil.
    GFD274088Courtesy of FORD MOTOR COMPANY
  32. NOTE: Only apply enough silicone sealant to seal the transfer case halves together.

    Apply a small bead of silicone sealant to the mating surface of the case half.

    Material: Motorcraft® Ultra Silicone Sealant / TA-29

    GFD274111Courtesy of FORD MOTOR COMPANY
  33. NOTE: Position the field coil bolts to align with the field coil bolt holes in the rear case. Position field coil wire through the field coil wire through hole in the case.

    Position the transfer case halves and tighten the bolts in the sequence shown.

    Torque: 21 lb.ft (29 Nm)

    GFD274112Courtesy of FORD MOTOR COMPANY
  34. Install the coil washers and nuts.

    Torque: 89 lb.in (10 Nm)

    GFD274085Courtesy of FORD MOTOR COMPANY
  35. Install the transfer case rear seal. Refer to:Transfer Case Rear Seal .
  36. Apply a small bead of silicone sealant to the transfer case shift motor mating surface.

    Material: Motorcraft® Ultra Silicone Sealant / TA-29

    GFD274062Courtesy of FORD MOTOR COMPANY

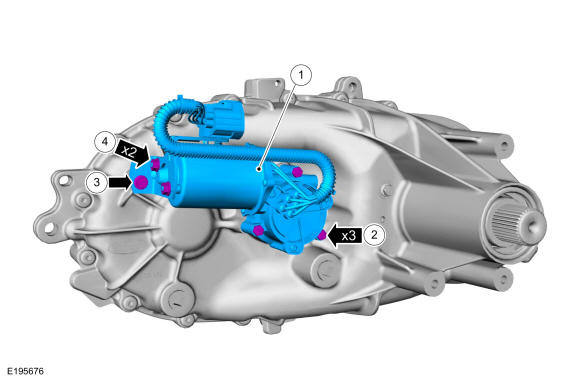

  37. NOTE: When installing the shift motor, tighten the bracket nuts last. Failure to follow the steps in the correct order may result in damage to the component.

    1. Install the transfer case shift motor.
    2. Install the transfer case shift motor bolts.

      Torque: 89 lb.in (10 Nm)

    3. Install the transfer case shift motor bracket bolt.

      Torque: 89 lb.in (10 Nm)

    4. Tighten the transfer case shift motor bracket nuts.

      Torque: 27 lb.in (3 Nm)

    GFD274145Courtesy of FORD MOTOR COMPANY

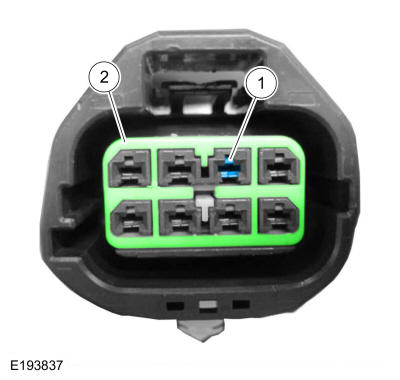

  38. NOTE: After the coil wire is inserted into the connector, gently pull the wire back to verify the pin is locked inside the connector.

    Install the coil wire pin in the electrical connector.

    1. Insert the coil wire pin in the electrical connector.
    2. Install the inner connector retainer.

    GFD274064Courtesy of FORD MOTOR COMPANY
  39. Remove the transfer case from the transmission adjustable mounting arms. Use the General Equipment: Adjustable Mounting Arm
GFD274083Courtesy of FORD MOTOR COMPANY
