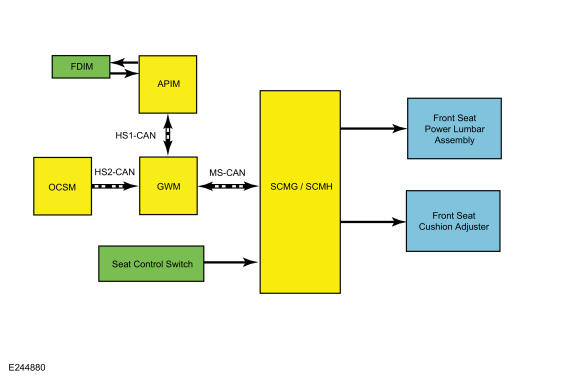

System Diagram - Multi-Contour Front Seats
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
FDIM |
| 2 |
APIM |
| 3 |
HS1-CAN |
| 4 |
GWM |
| 5 |
MS-CAN |
| 6 |
Seat Control Switch |
| 7 |
SCMG / SCMH |
| 8 |
Front Seat Cushion Adjuster |
| 9 |
Front Seat Power Lumbar Assembly |
| 10 |
HS2-CAN |
| 11 |
OCSM |
